Power Windows

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

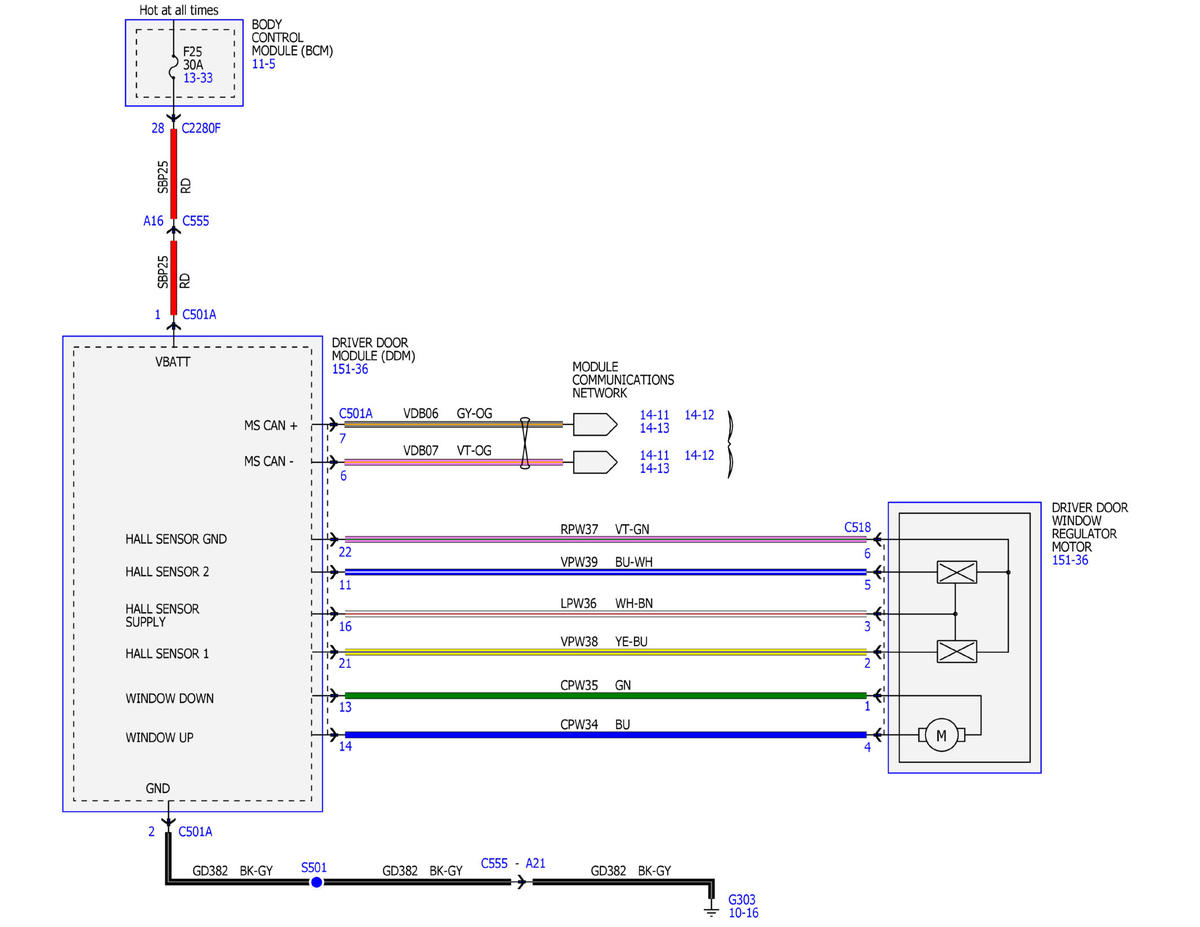

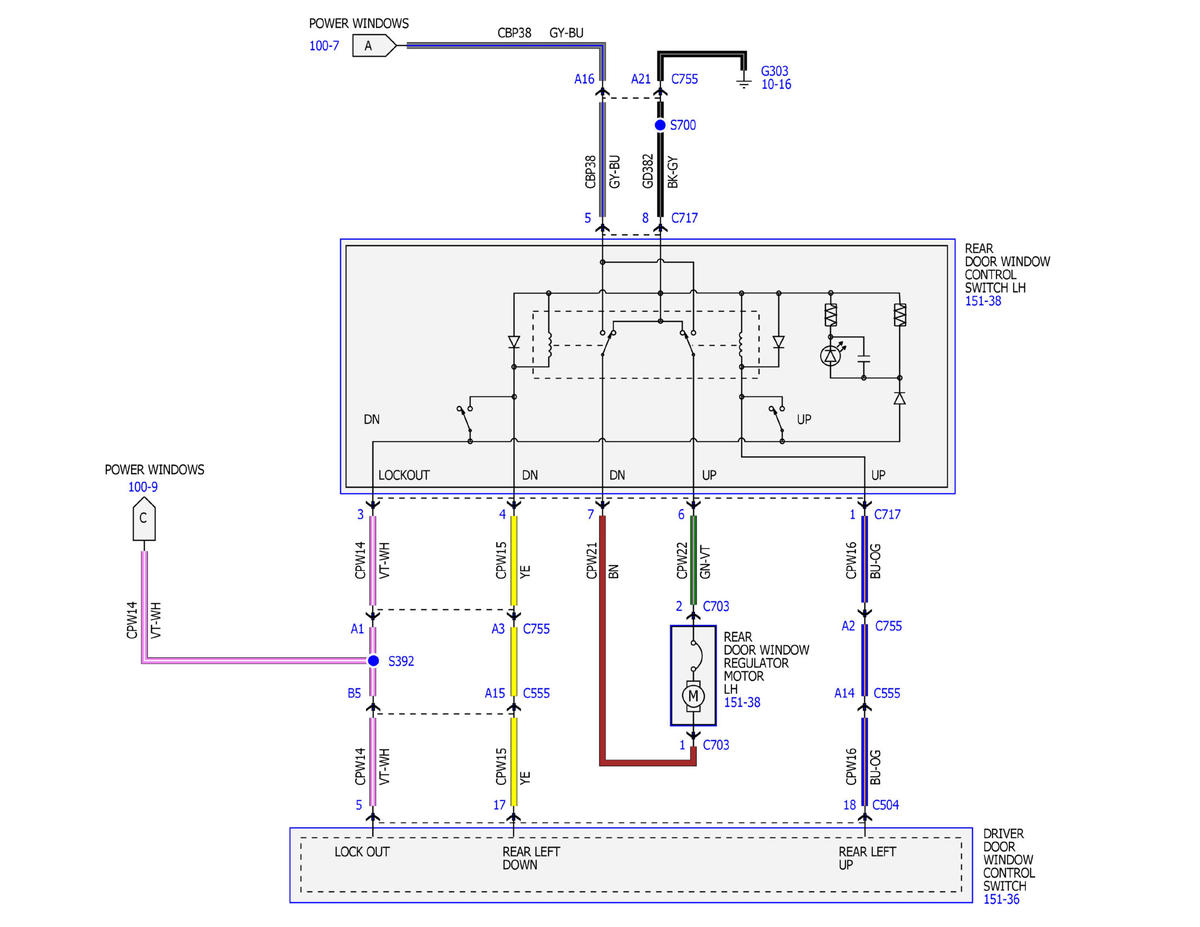

Fig 1: Power Windows Wiring Diagrams (1 of 9)

Courtesy of FORD MOTOR COMPANY

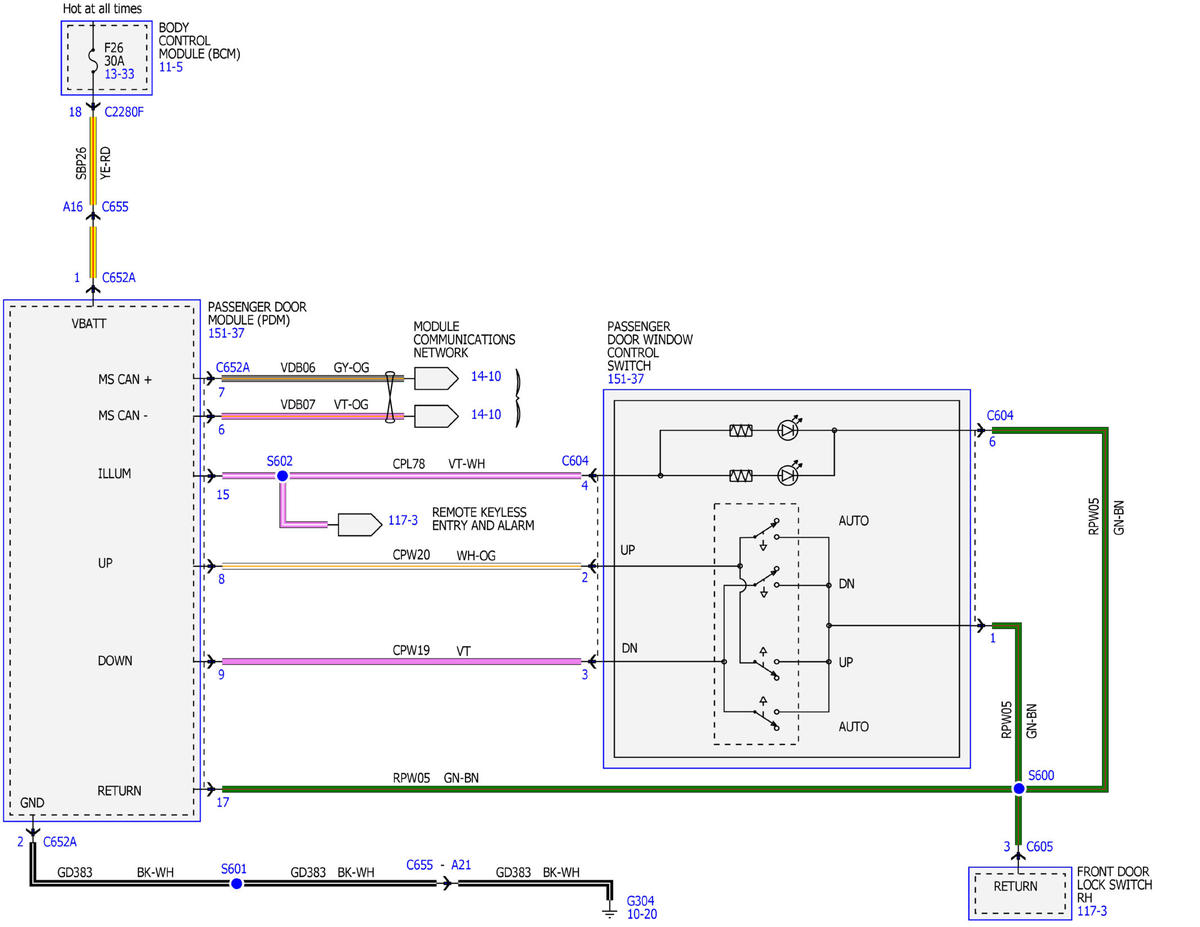

Fig 2: Power Windows Wiring Diagrams (2 of 9)

Courtesy of FORD MOTOR COMPANY

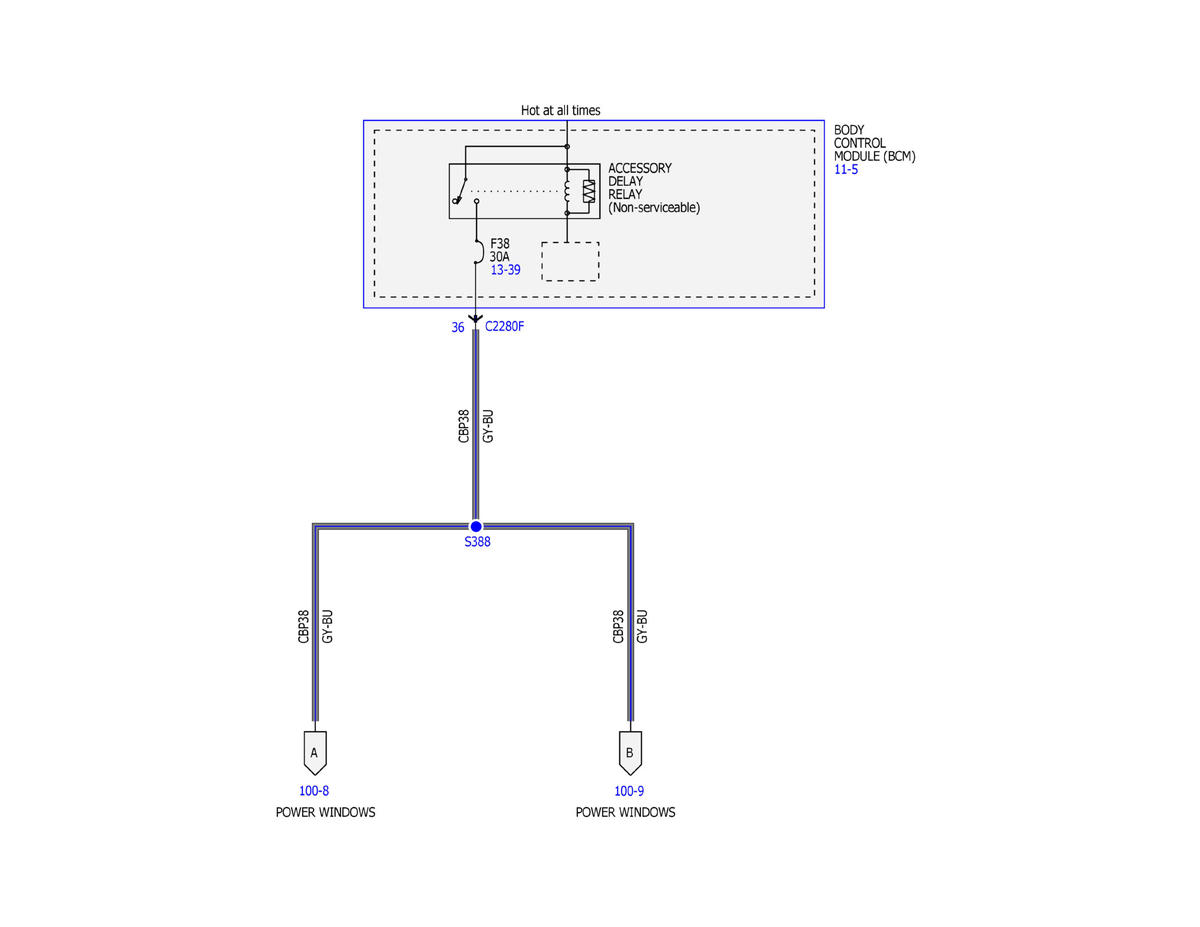

Fig 3: Power Windows Wiring Diagrams (3 of 9)

Courtesy of FORD MOTOR COMPANY

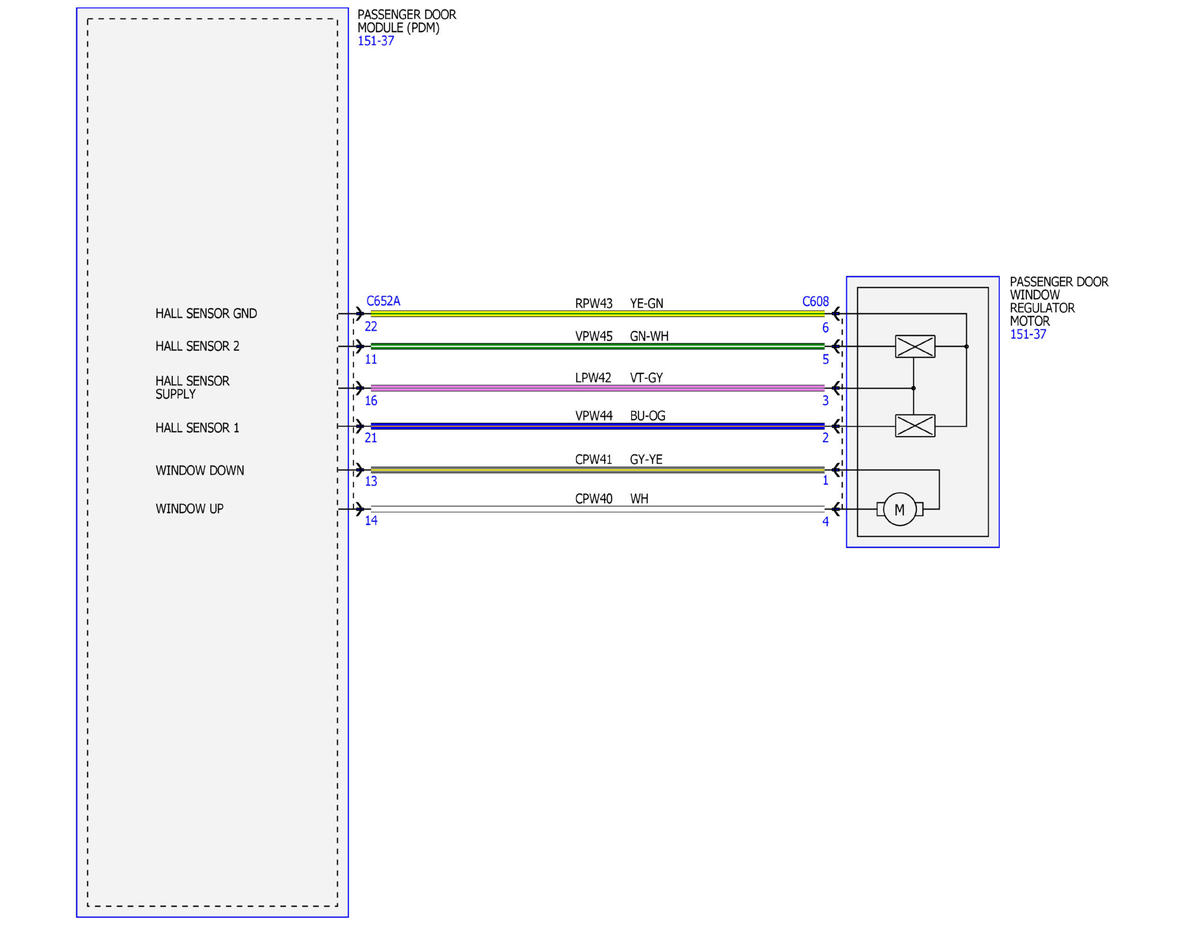

Fig 4: Power Windows Wiring Diagrams (4 of 9)

Courtesy of FORD MOTOR COMPANY

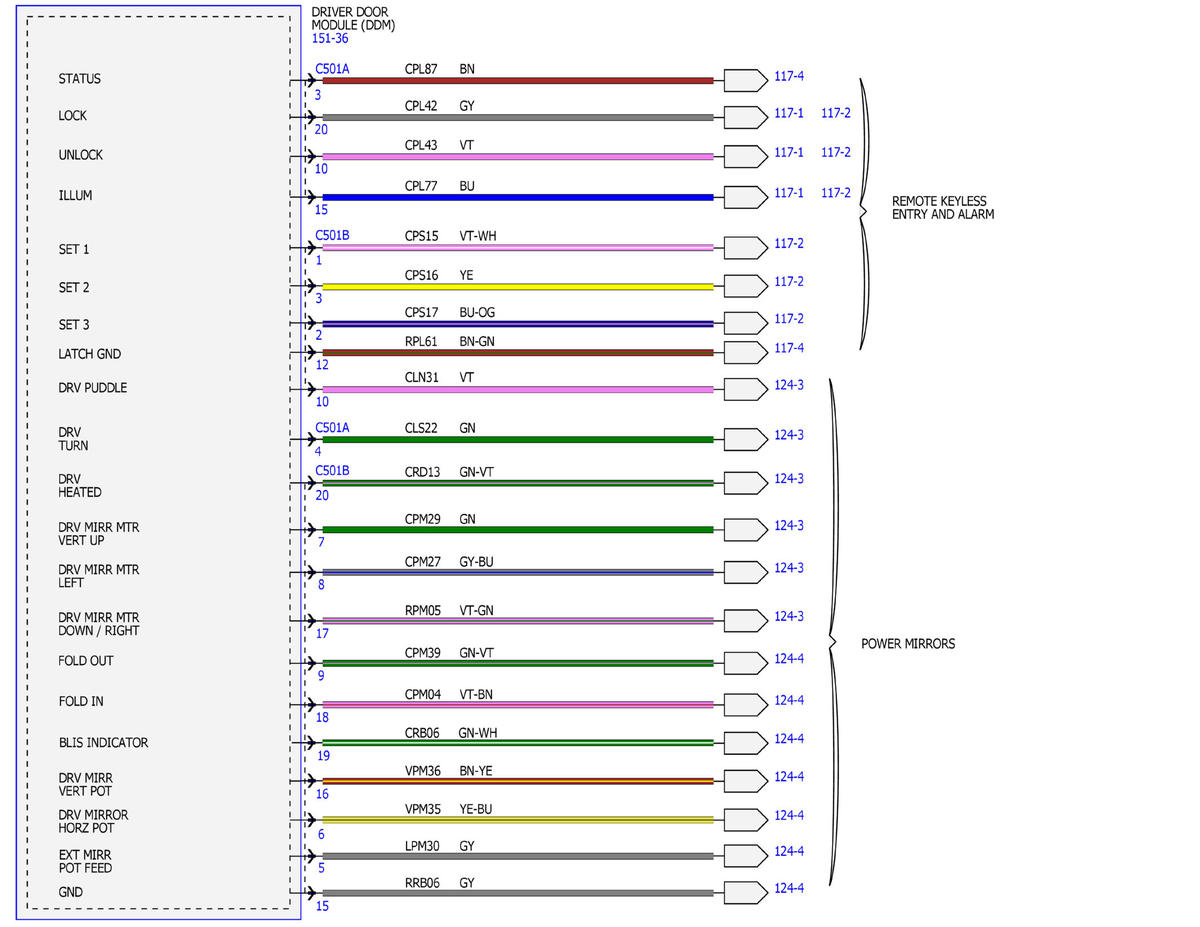

Fig 5: Power Windows Wiring Diagrams (5 of 9)

Courtesy of FORD MOTOR COMPANY

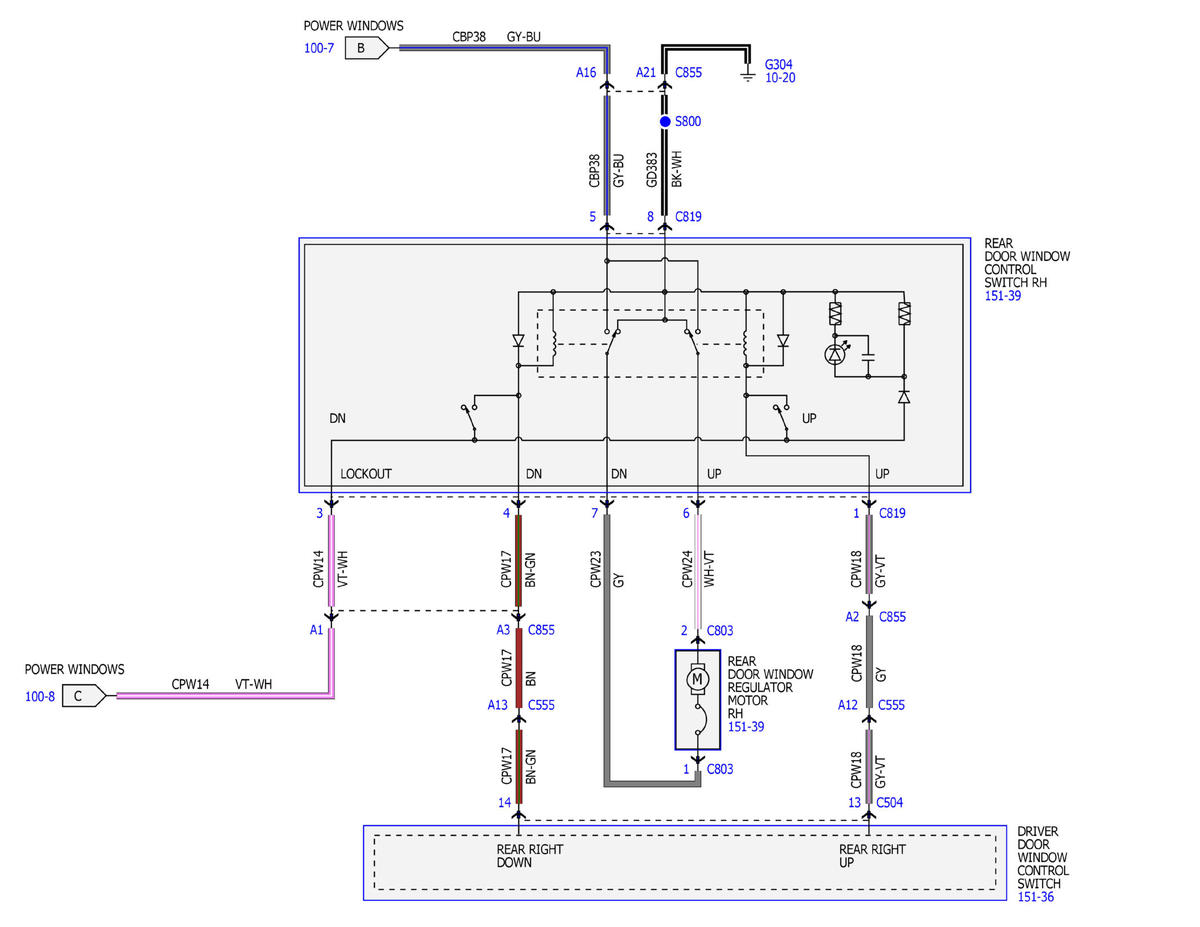

Fig 6: Power Windows Wiring Diagrams (6 of 9)

Courtesy of FORD MOTOR COMPANY

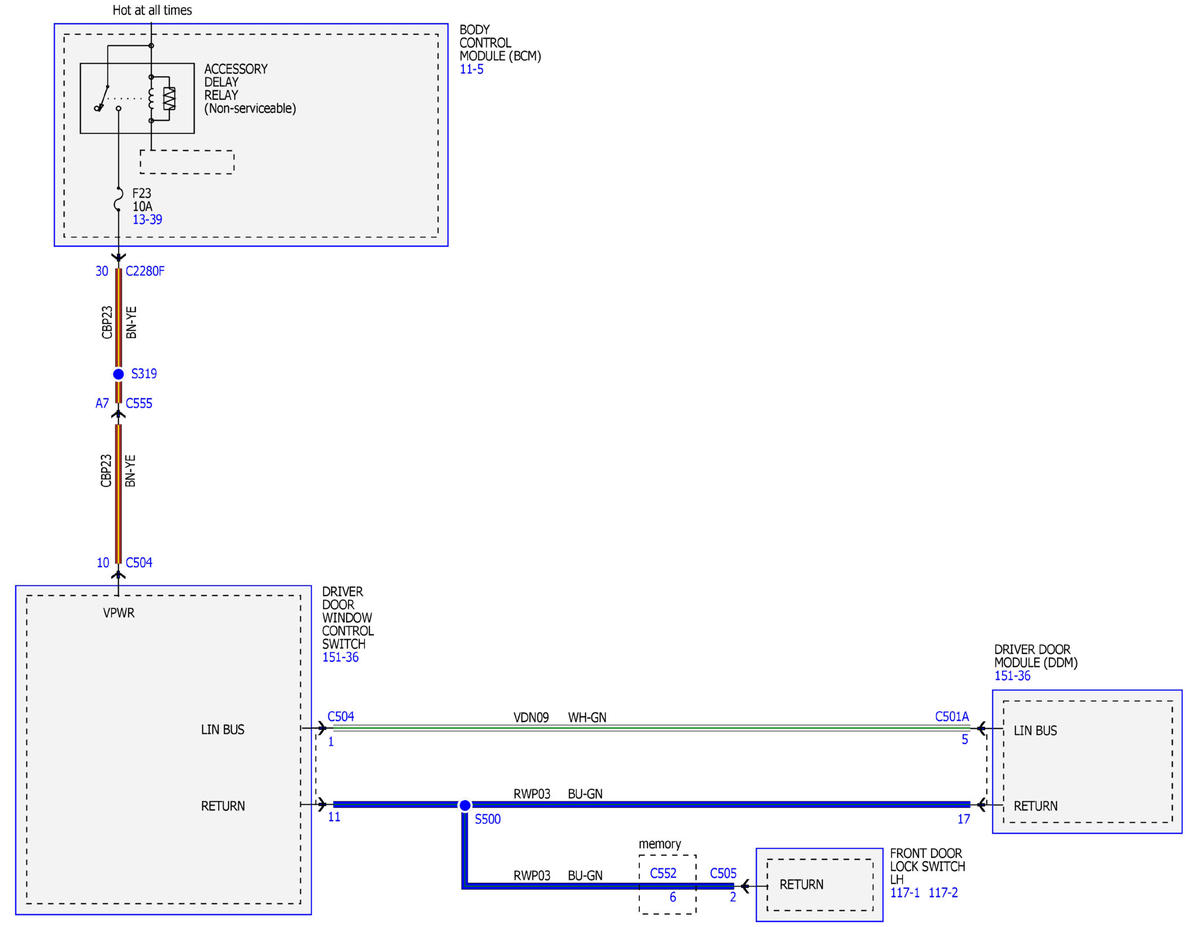

Fig 7: Power Windows Wiring Diagrams (7 of 9)

Courtesy of FORD MOTOR COMPANY

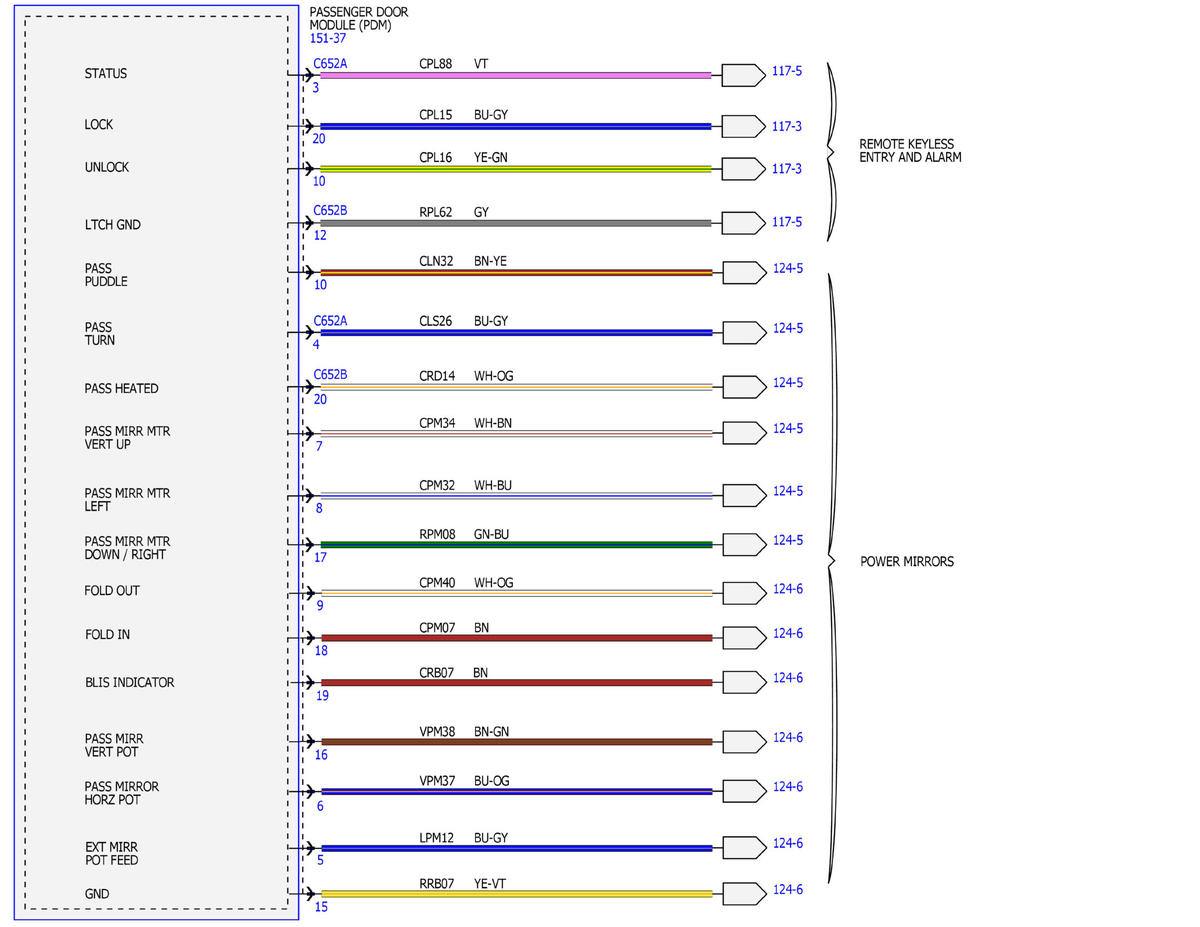

Fig 8: Power Windows Wiring Diagrams (8 of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Windows Wiring Diagrams (9 of 9)

Courtesy of FORD MOTOR COMPANY
