Power Mirrors

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

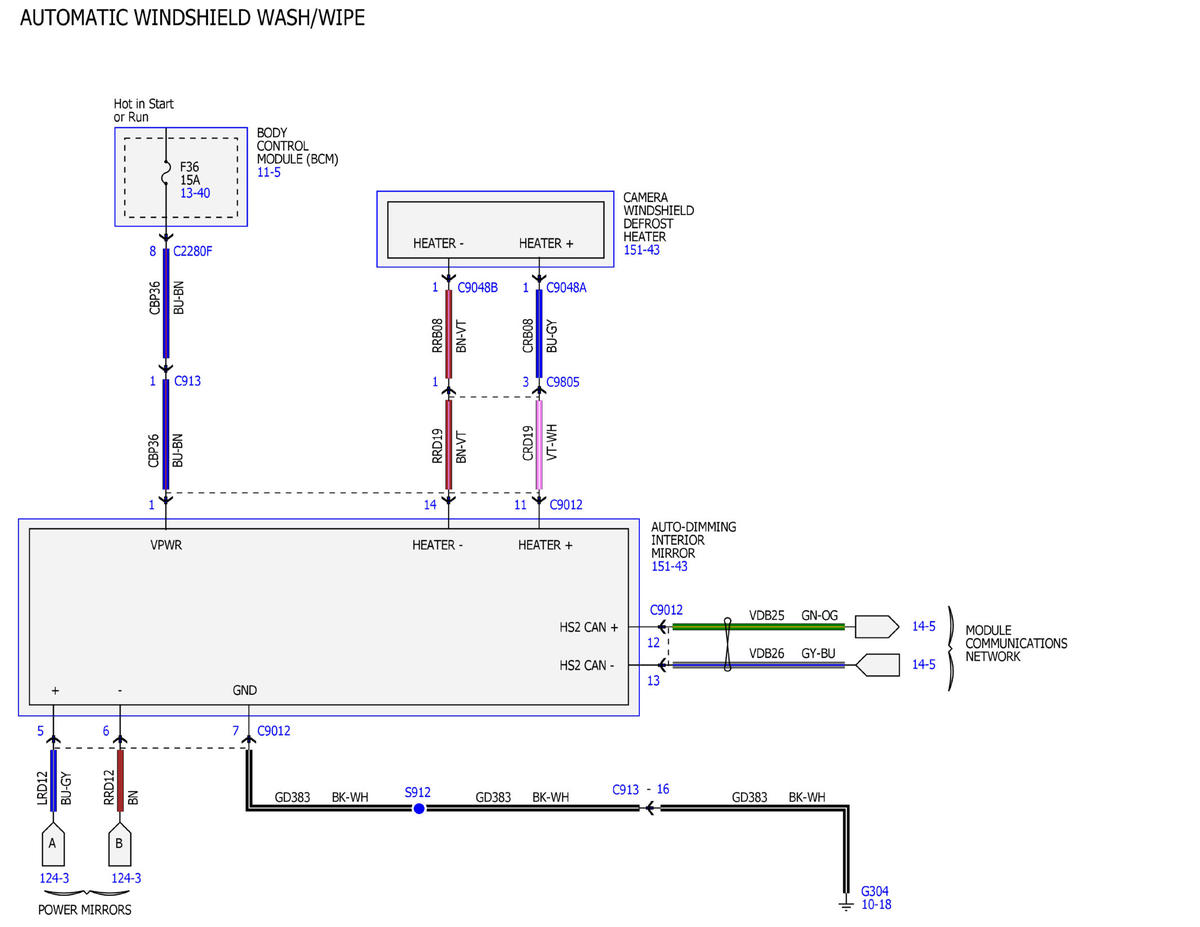

Fig 1: Power Mirrors Wiring Diagrams (1 of 8)

Courtesy of FORD MOTOR COMPANY

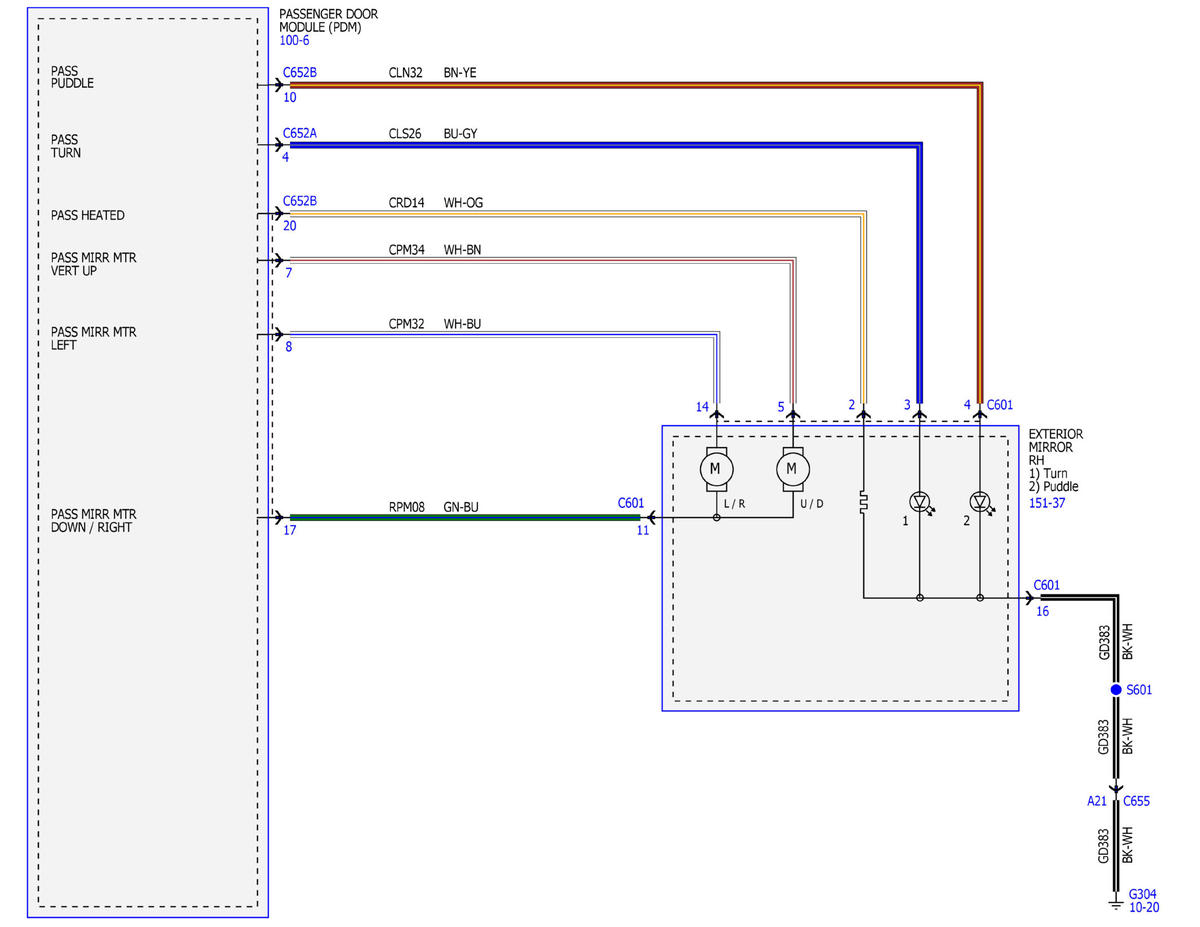

Fig 2: Power Mirrors Wiring Diagrams (2 of 8)

Courtesy of FORD MOTOR COMPANY

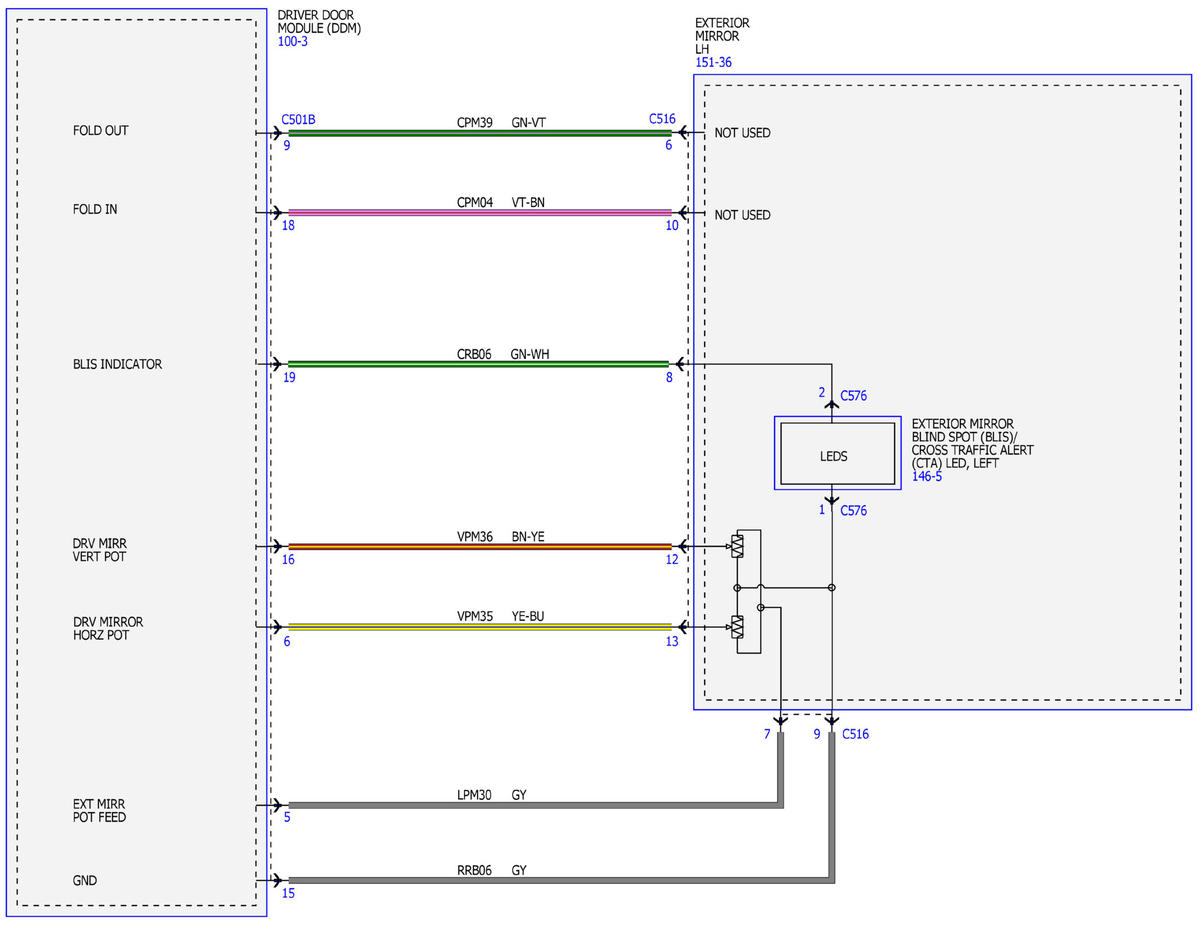

Fig 3: Power Mirrors Wiring Diagrams (3 of 8)

Courtesy of FORD MOTOR COMPANY

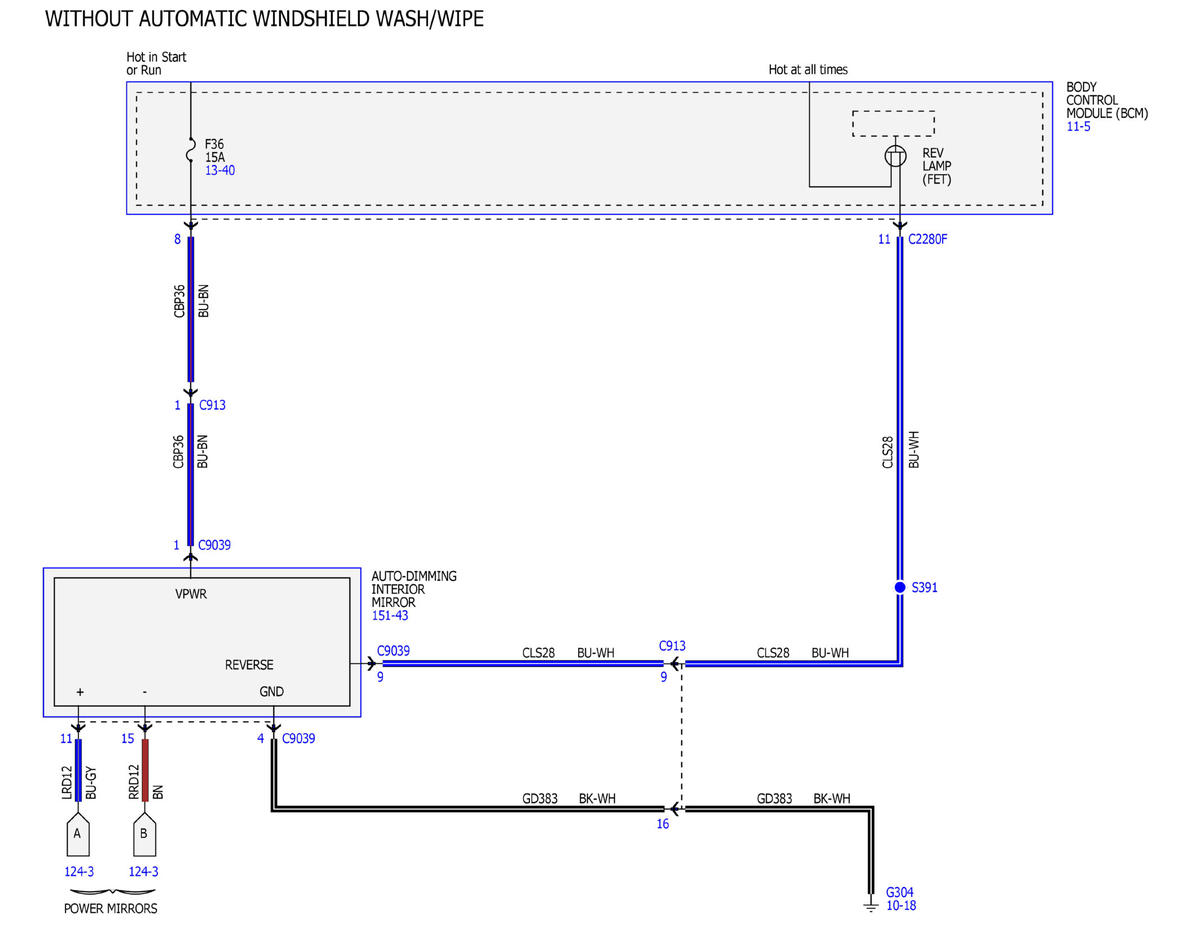

Fig 4: Power Mirrors Wiring Diagrams (4 of 8)

Courtesy of FORD MOTOR COMPANY

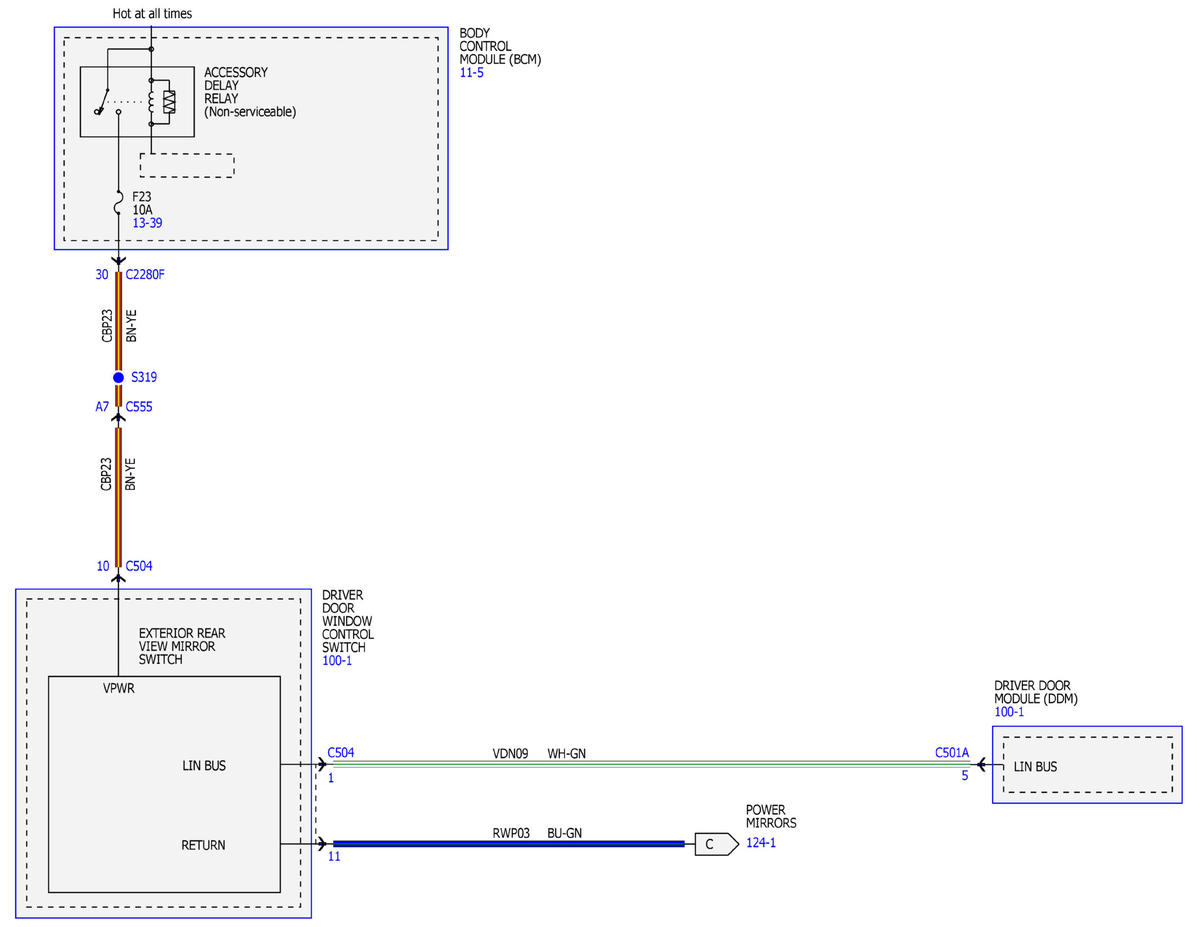

Fig 5: Power Mirrors Wiring Diagrams (5 of 8)

Courtesy of FORD MOTOR COMPANY

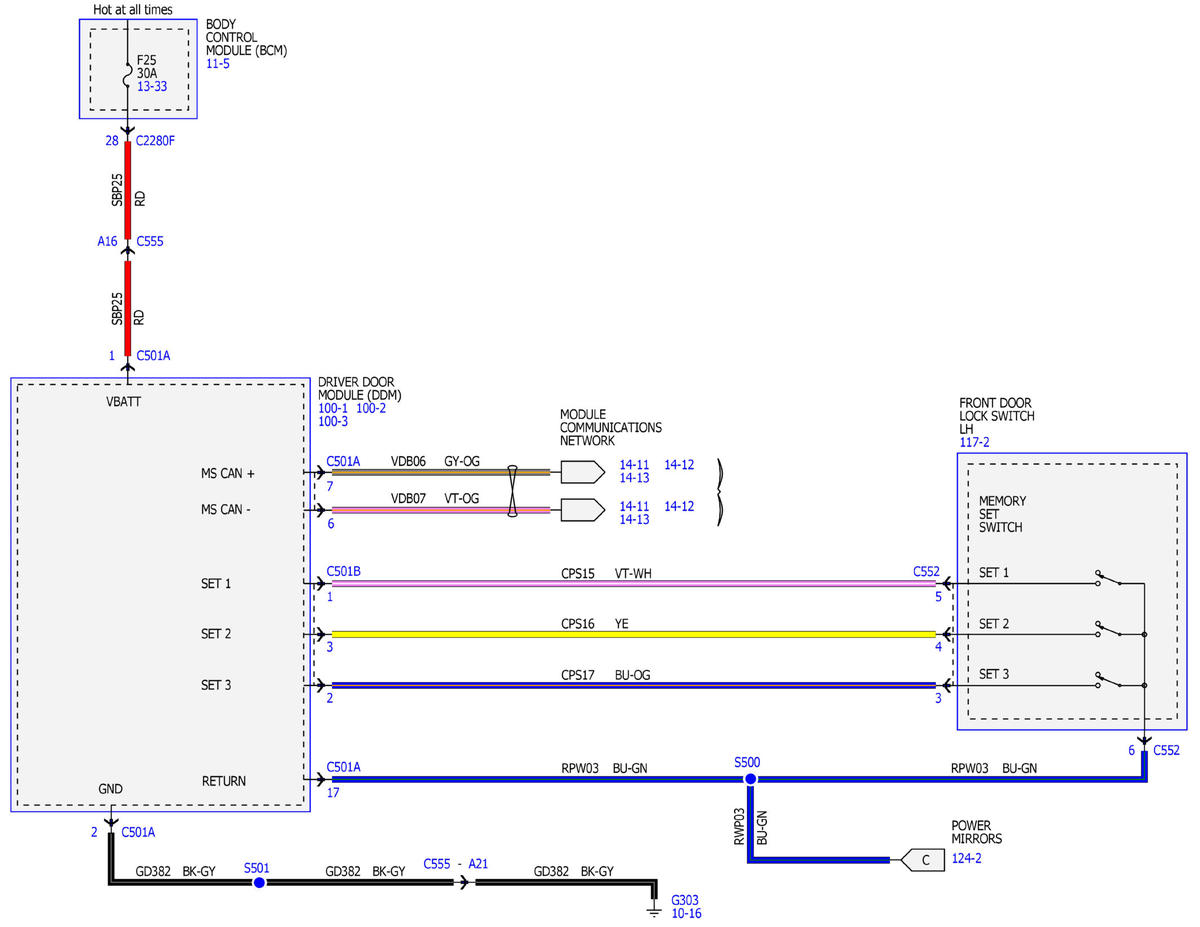

Fig 6: Power Mirrors Wiring Diagrams (6 of 8)

Courtesy of FORD MOTOR COMPANY

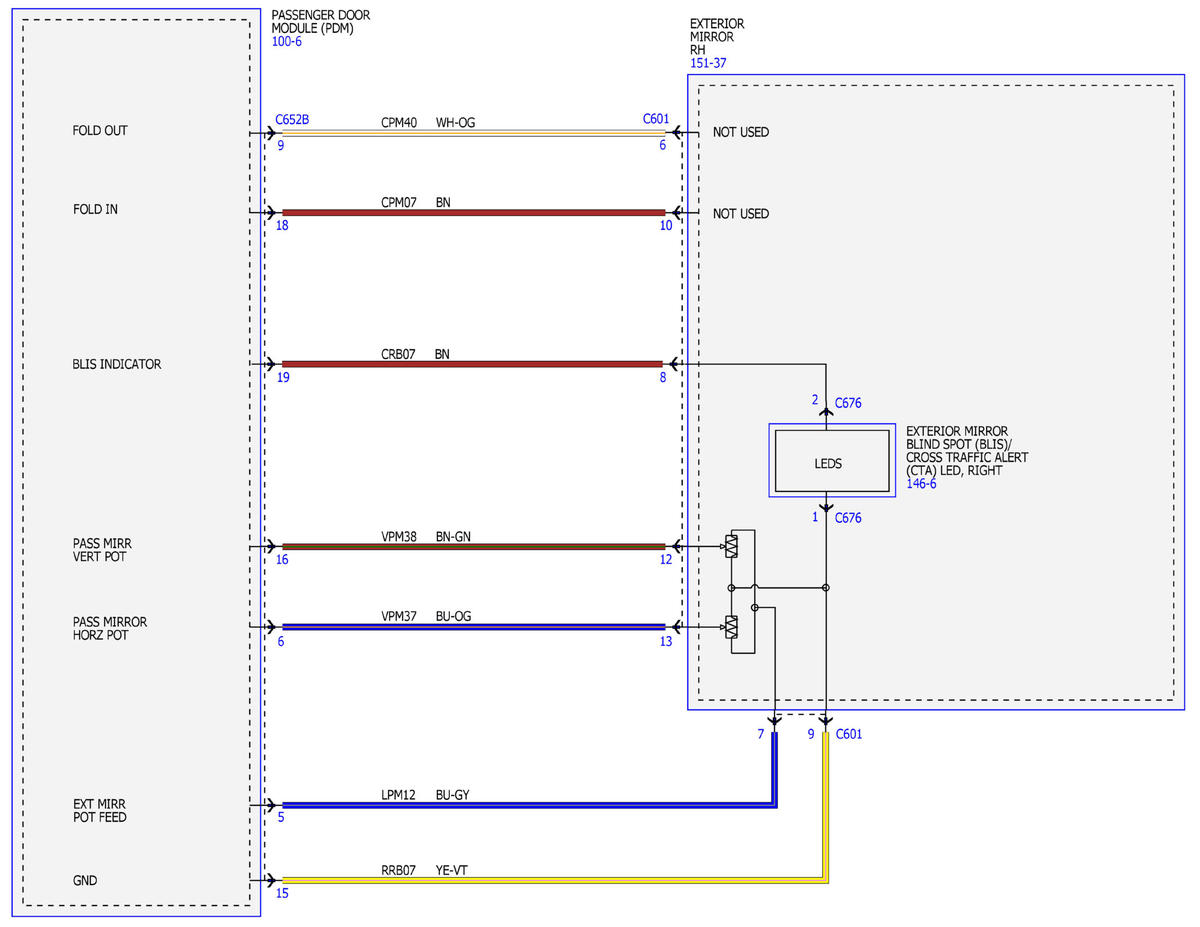

Fig 7: Power Mirrors Wiring Diagrams (7 of 8)

Courtesy of FORD MOTOR COMPANY

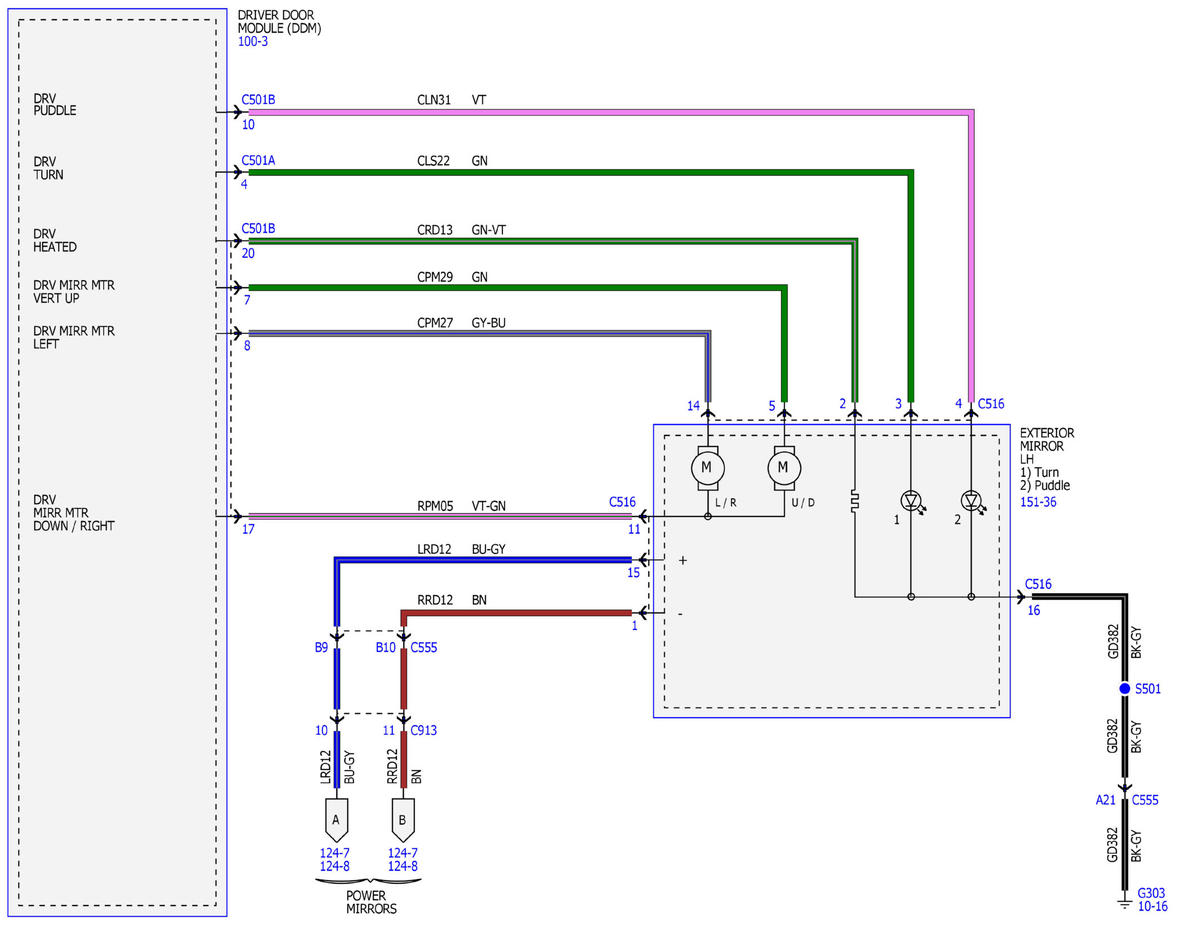

Fig 8: Power Mirrors Wiring Diagrams (8 of 8)

Courtesy of FORD MOTOR COMPANY
