Section 6 (OEM Wiring Diagrams)
>>
Power Distribution
Power Distribution
WARNING:
This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

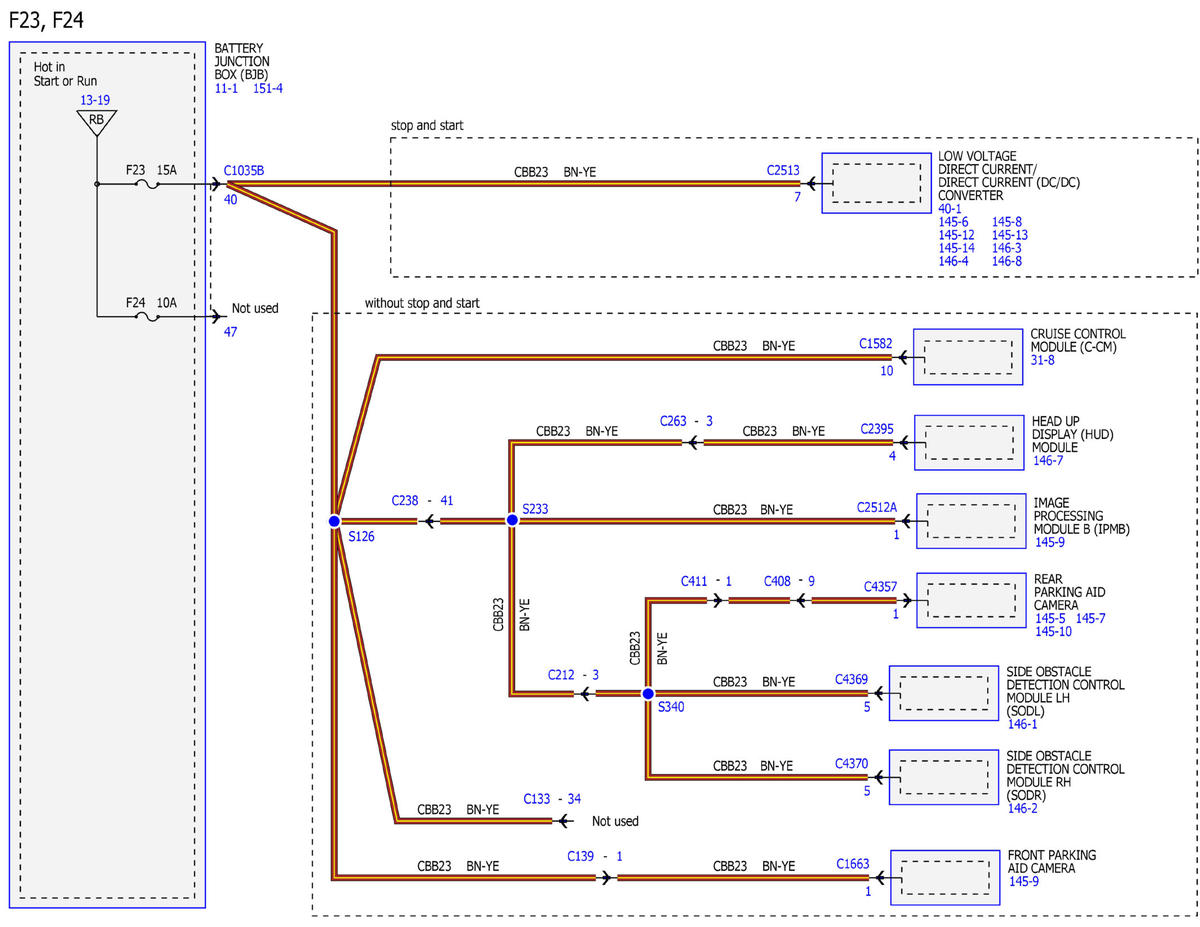

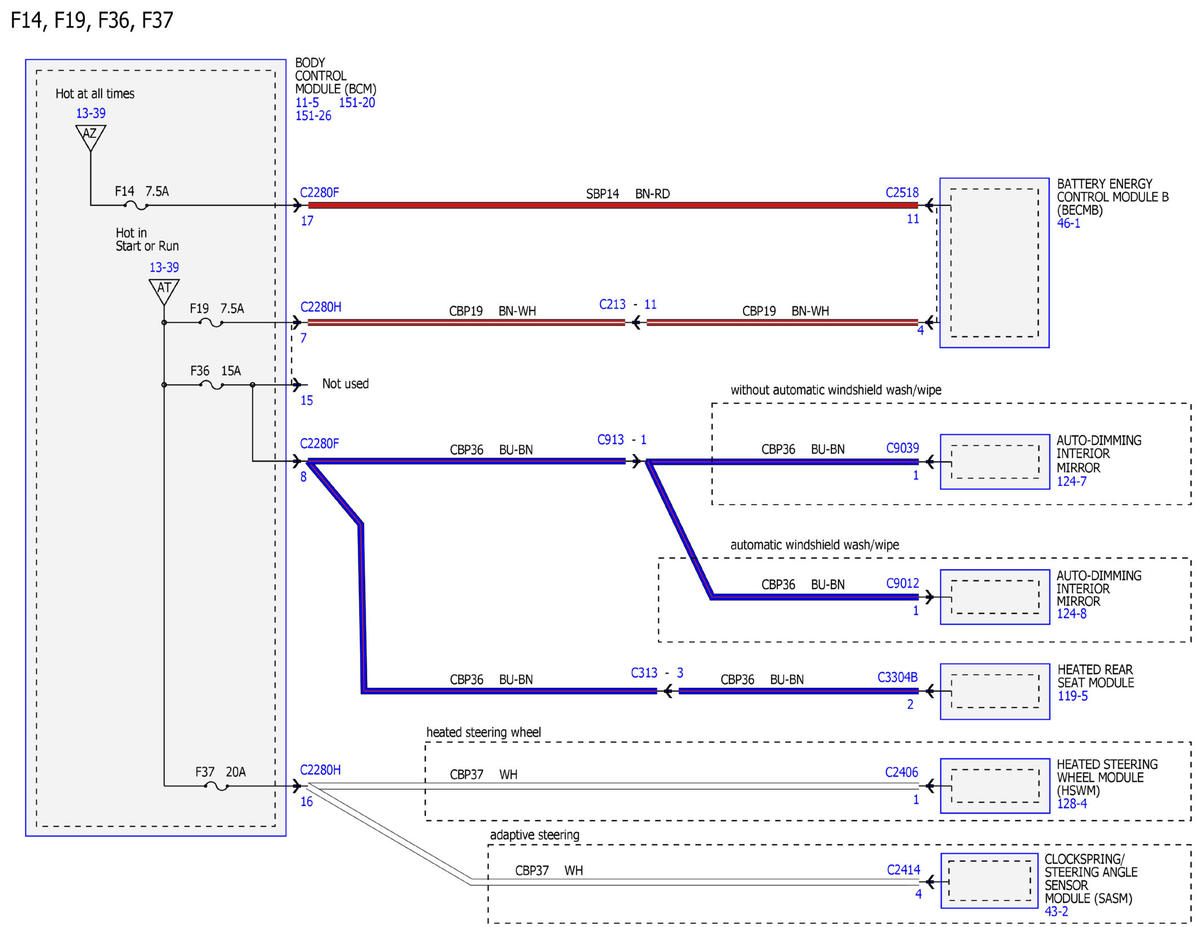

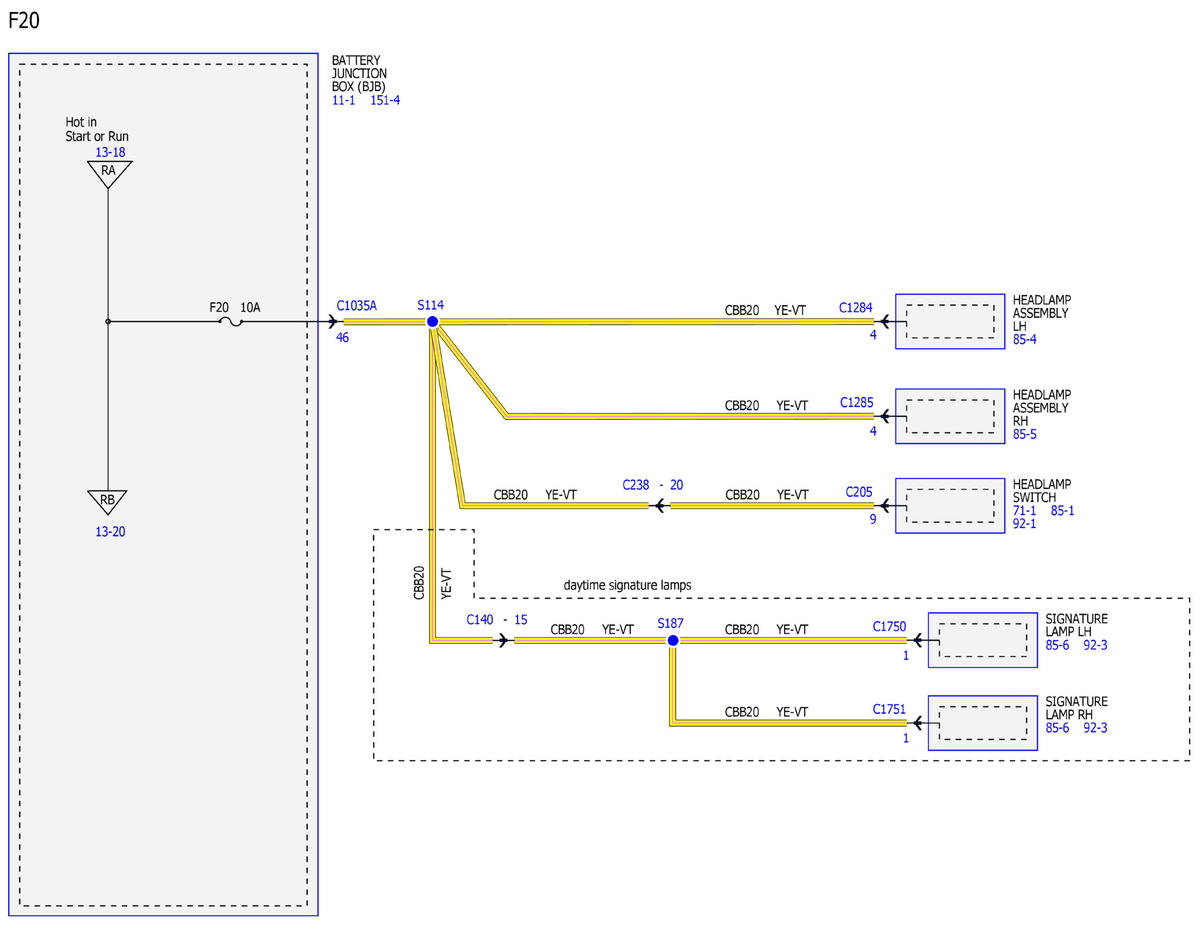

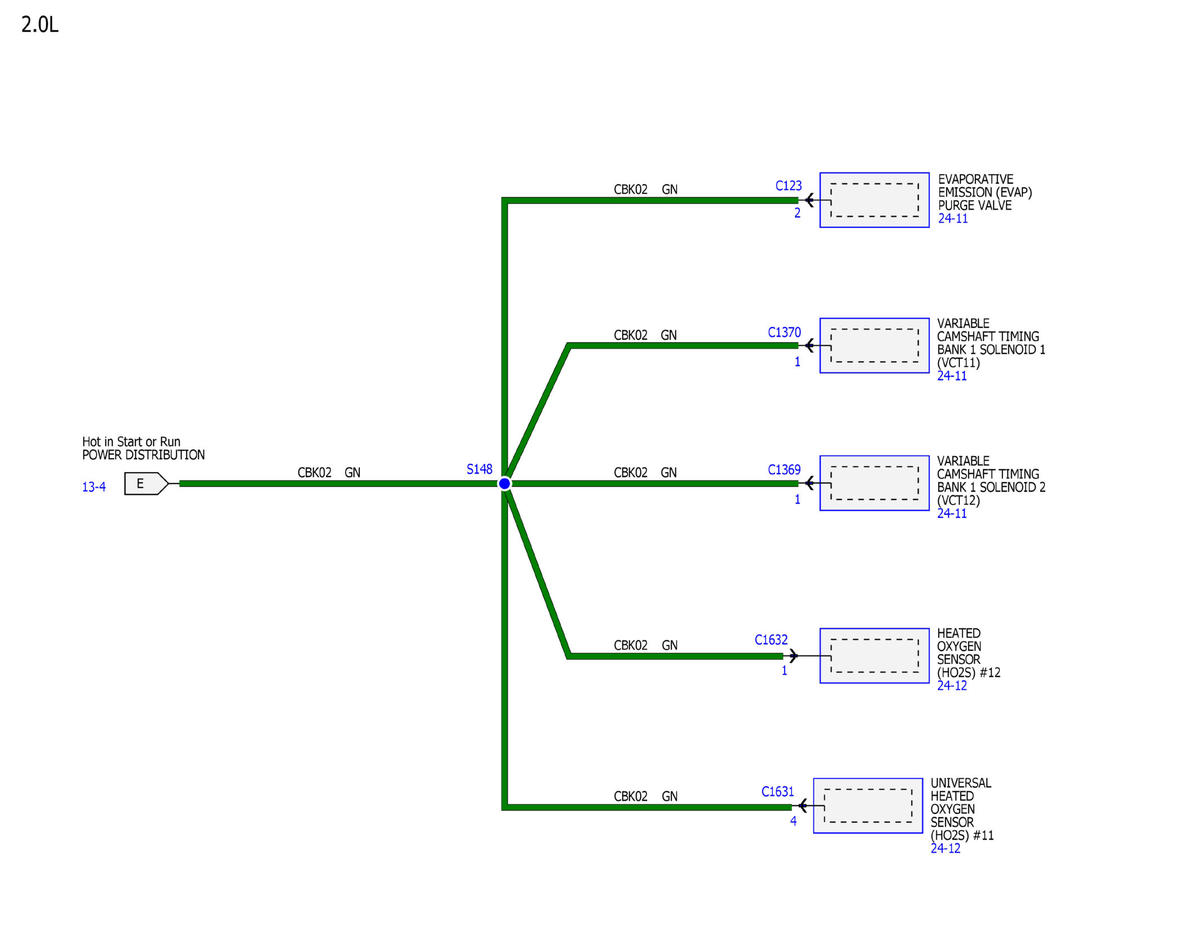

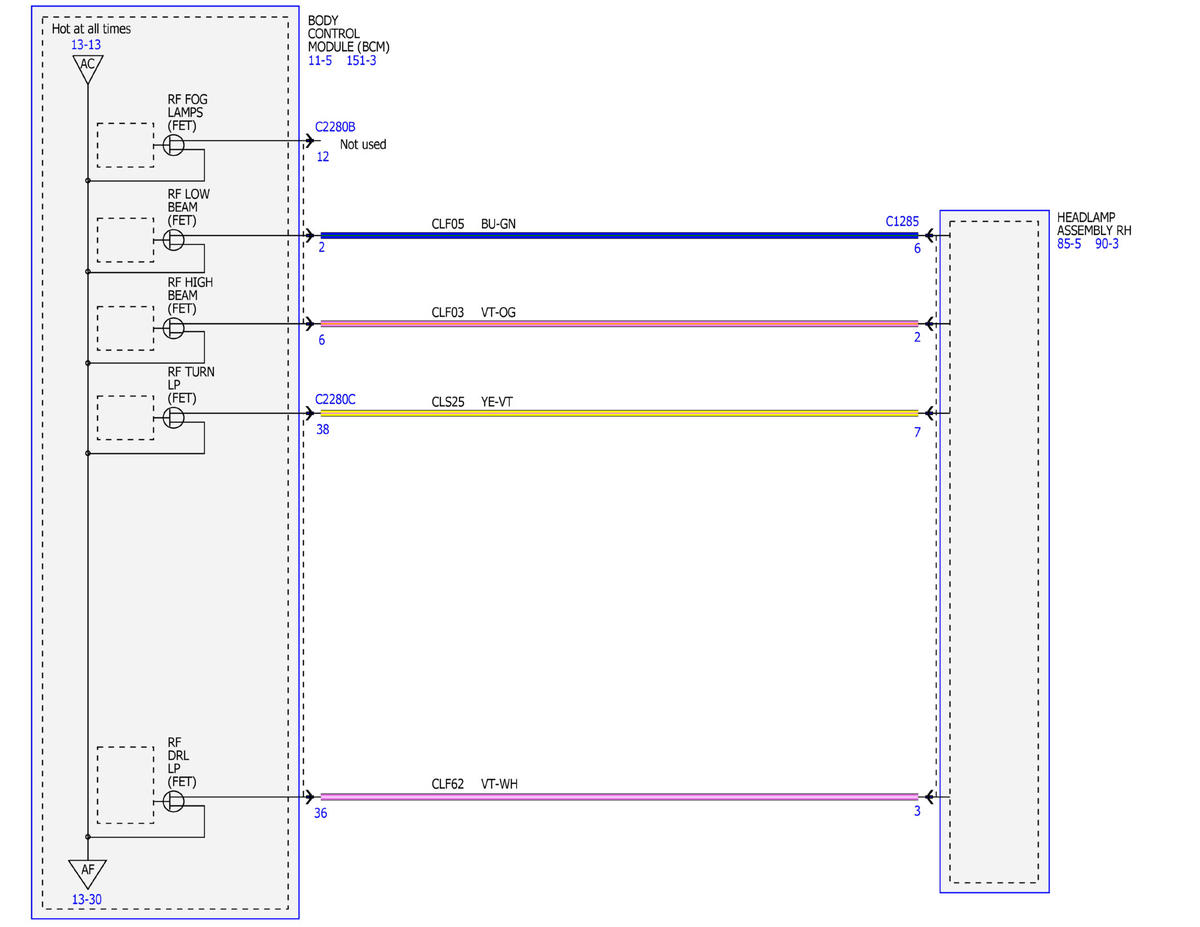

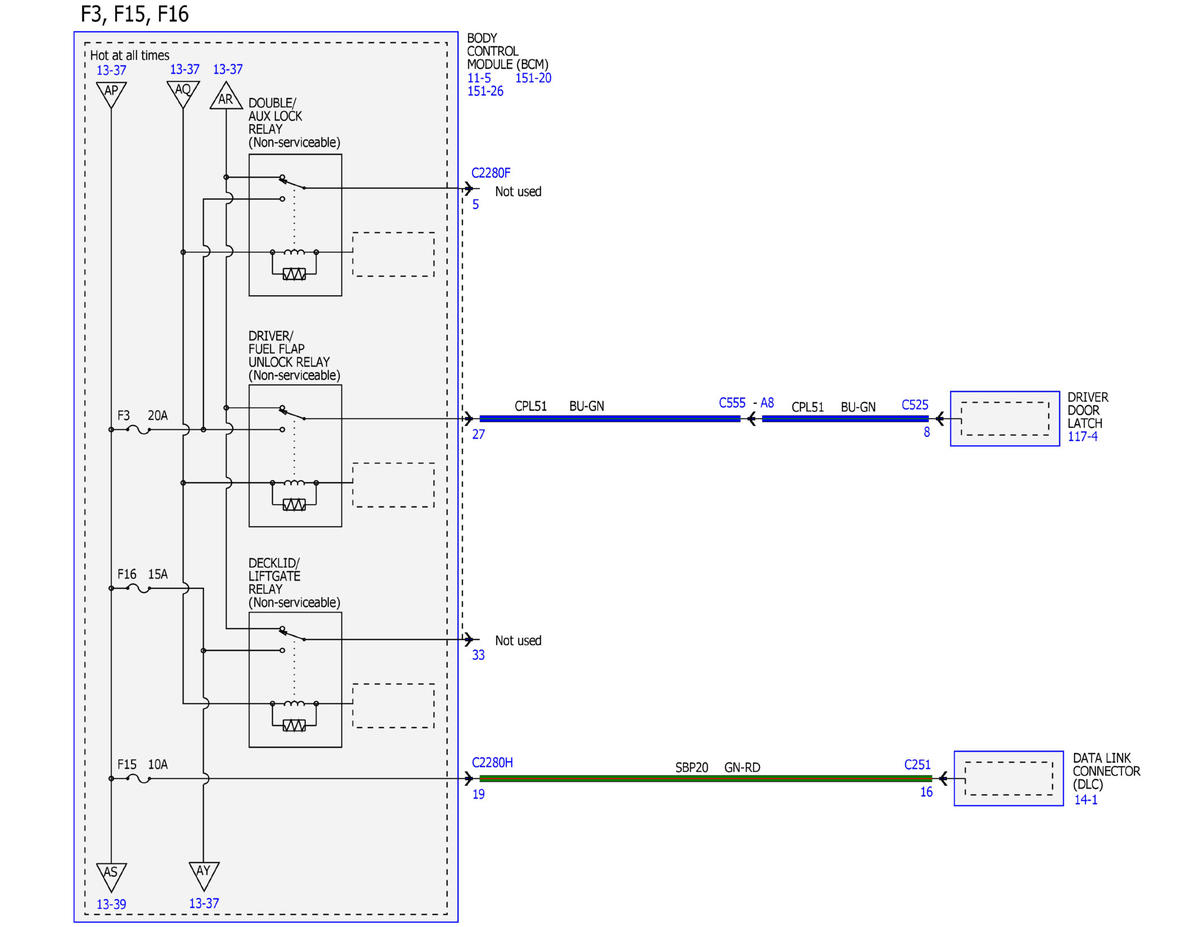

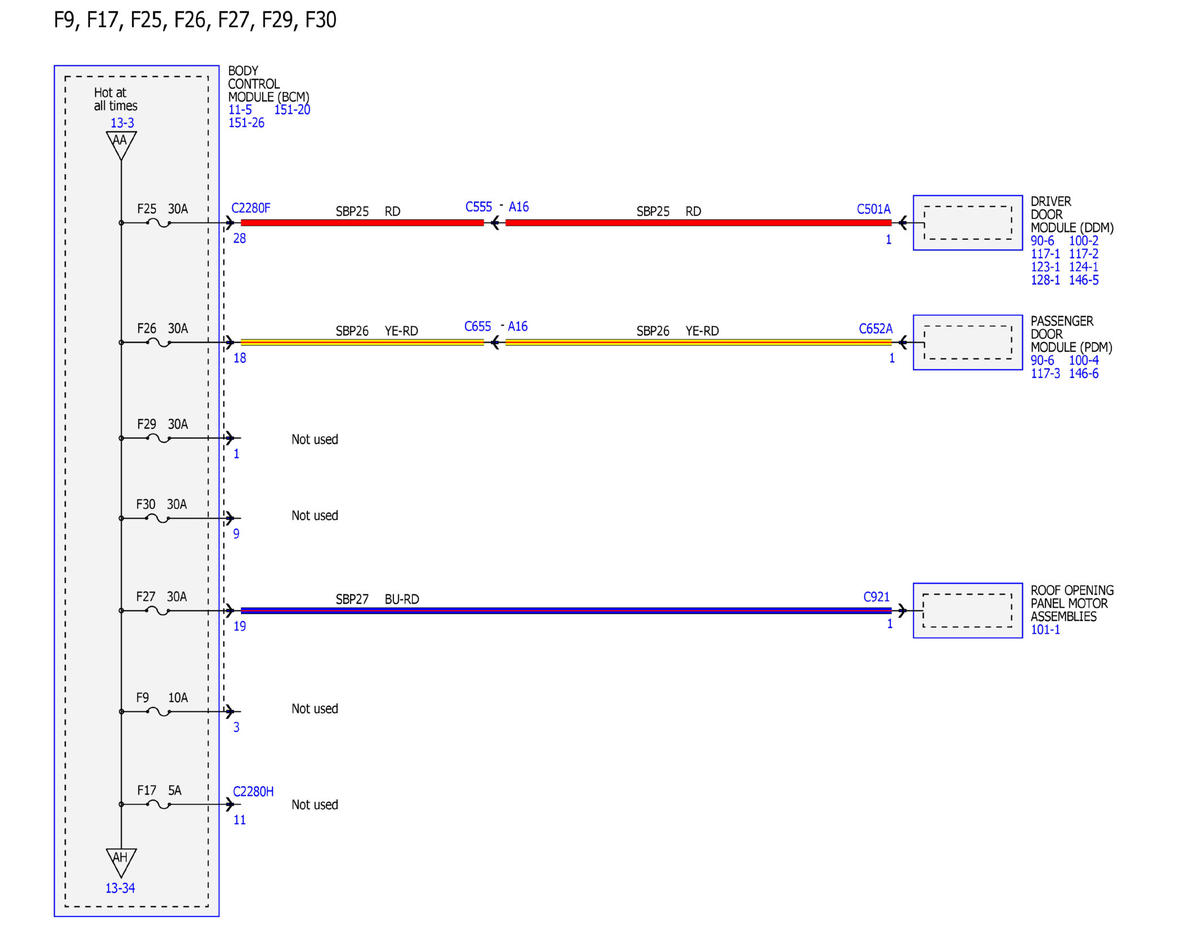

Fig 1: Power Distribution Wiring Diagrams (1 of 50)
Courtesy of FORD MOTOR COMPANY

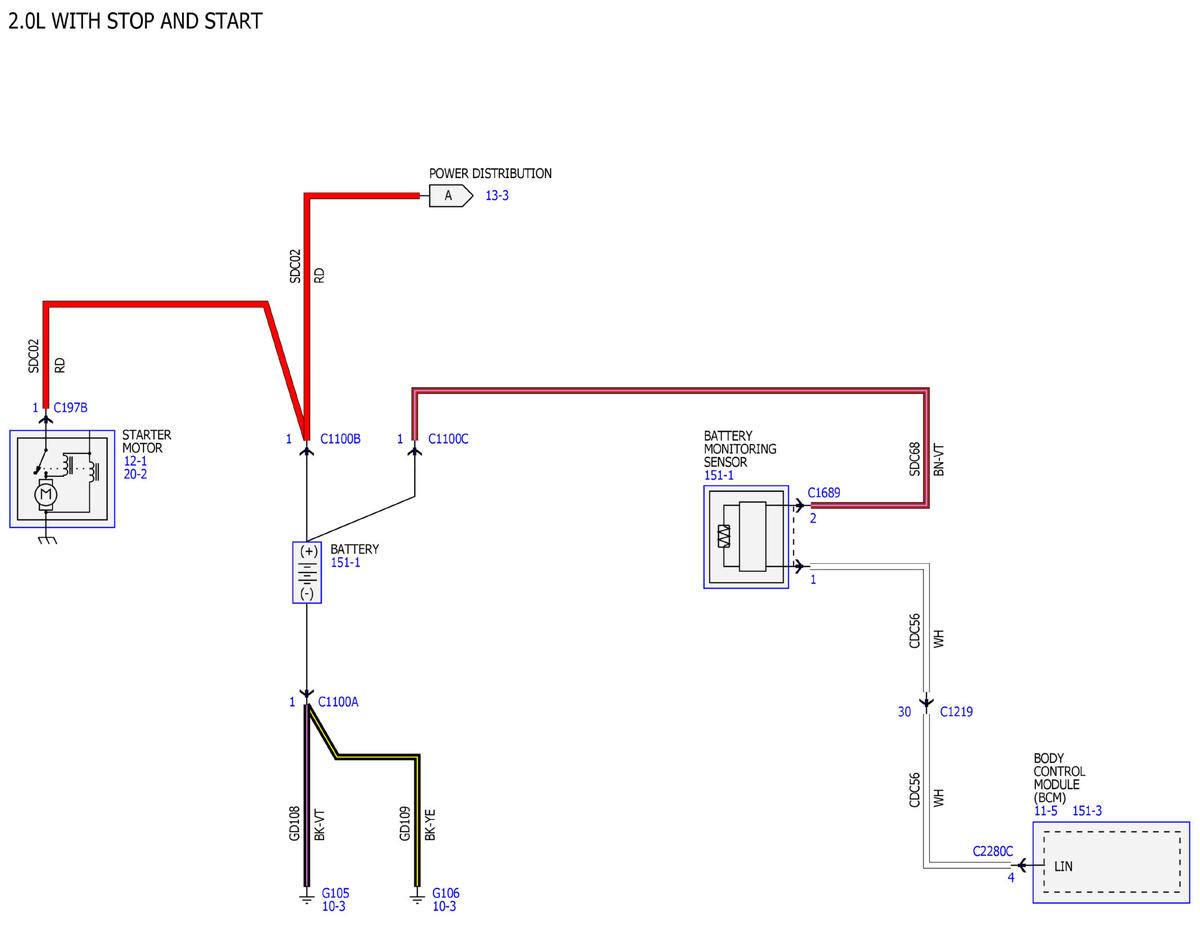

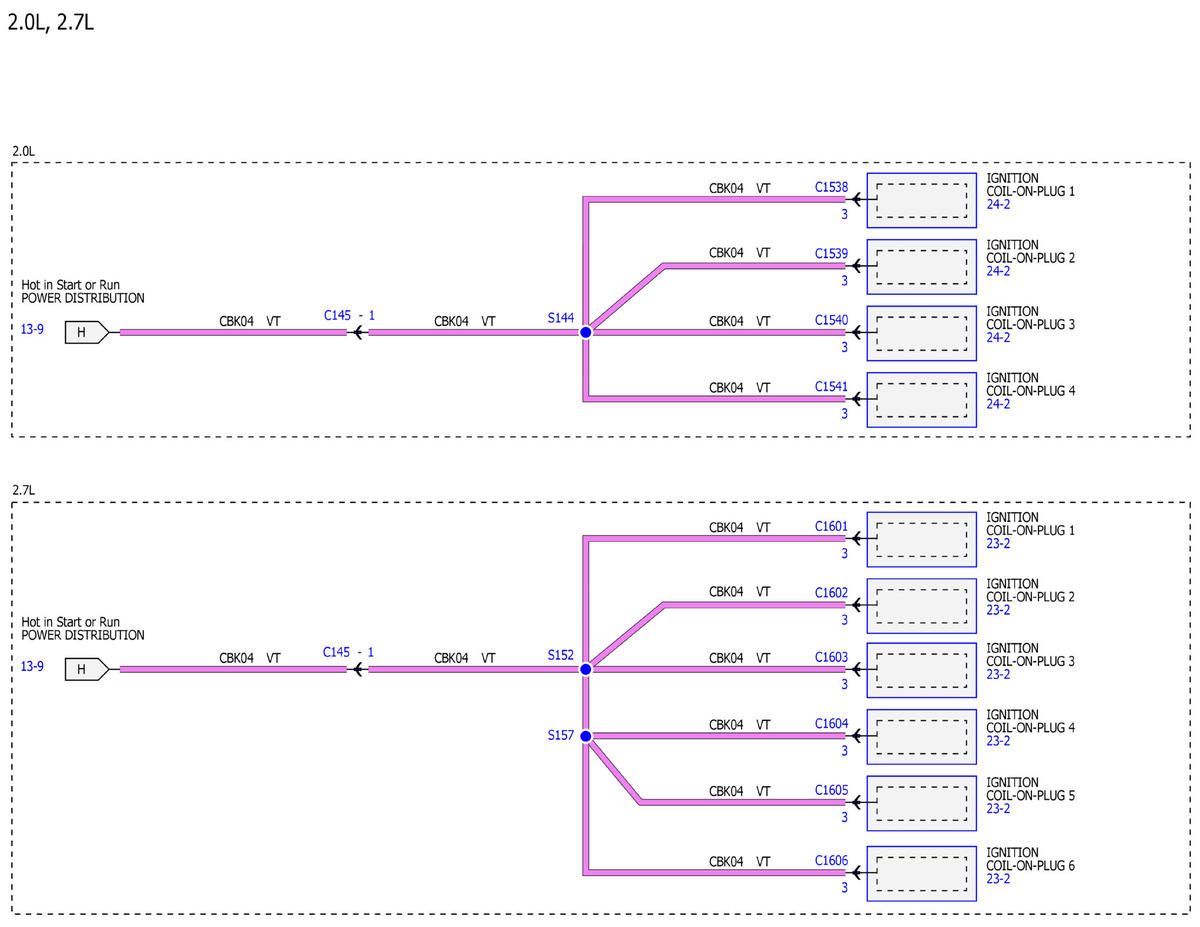

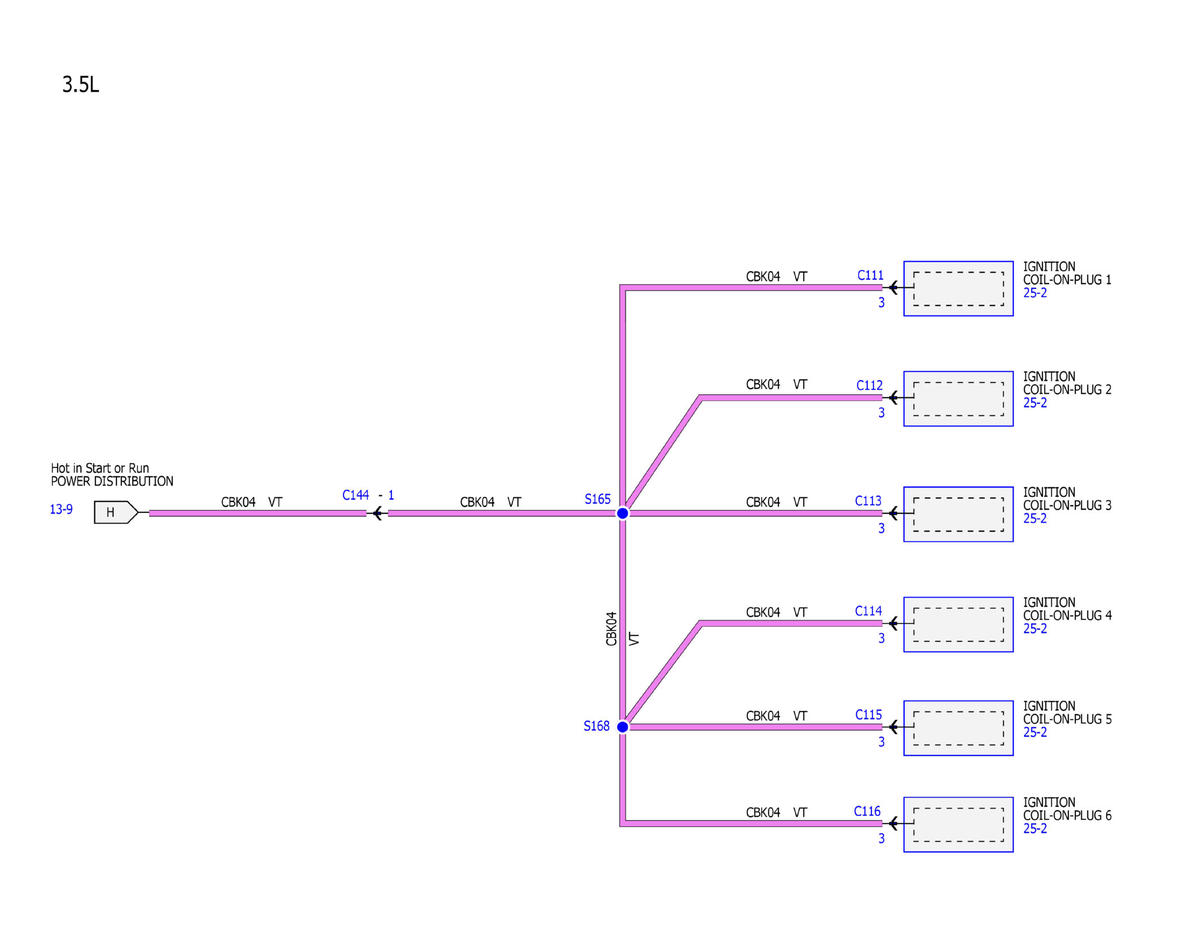

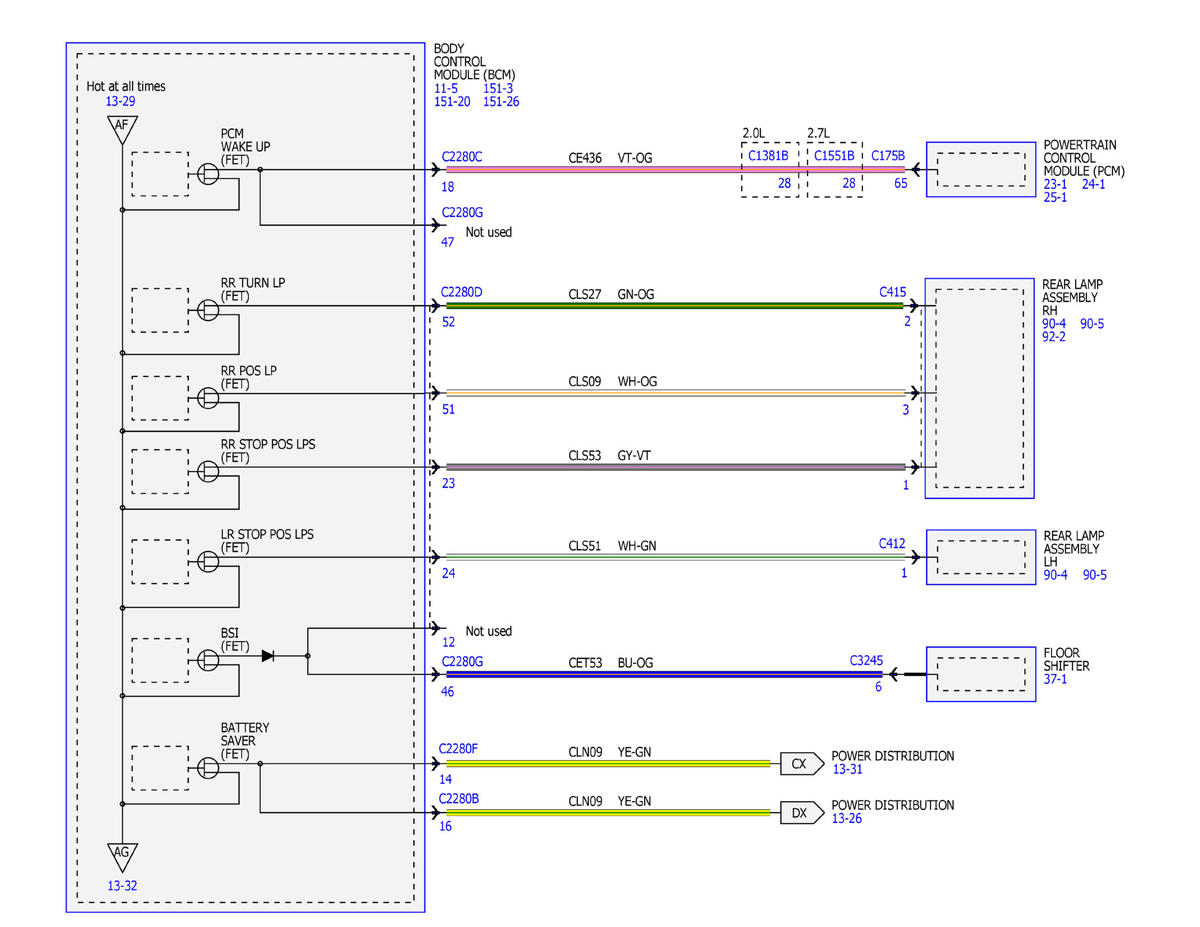

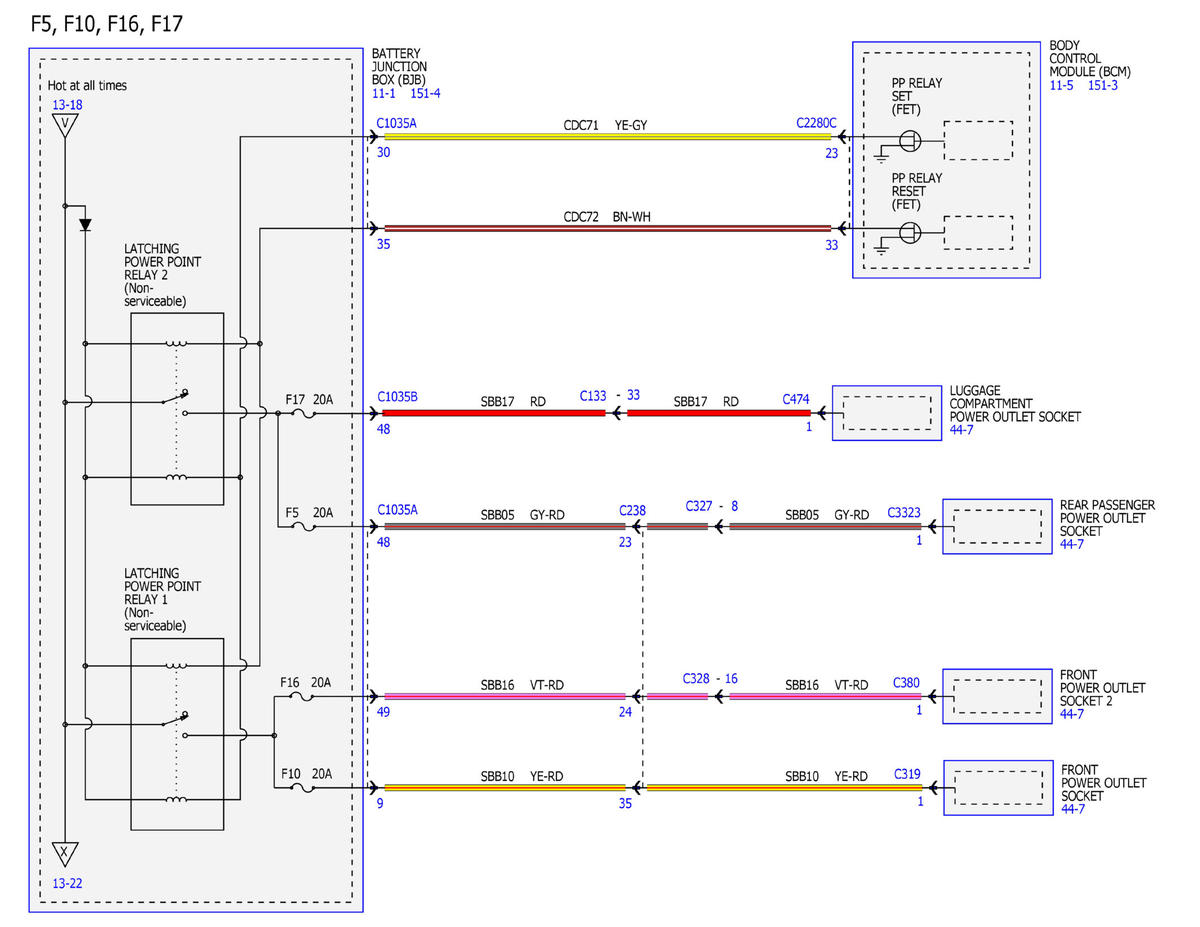

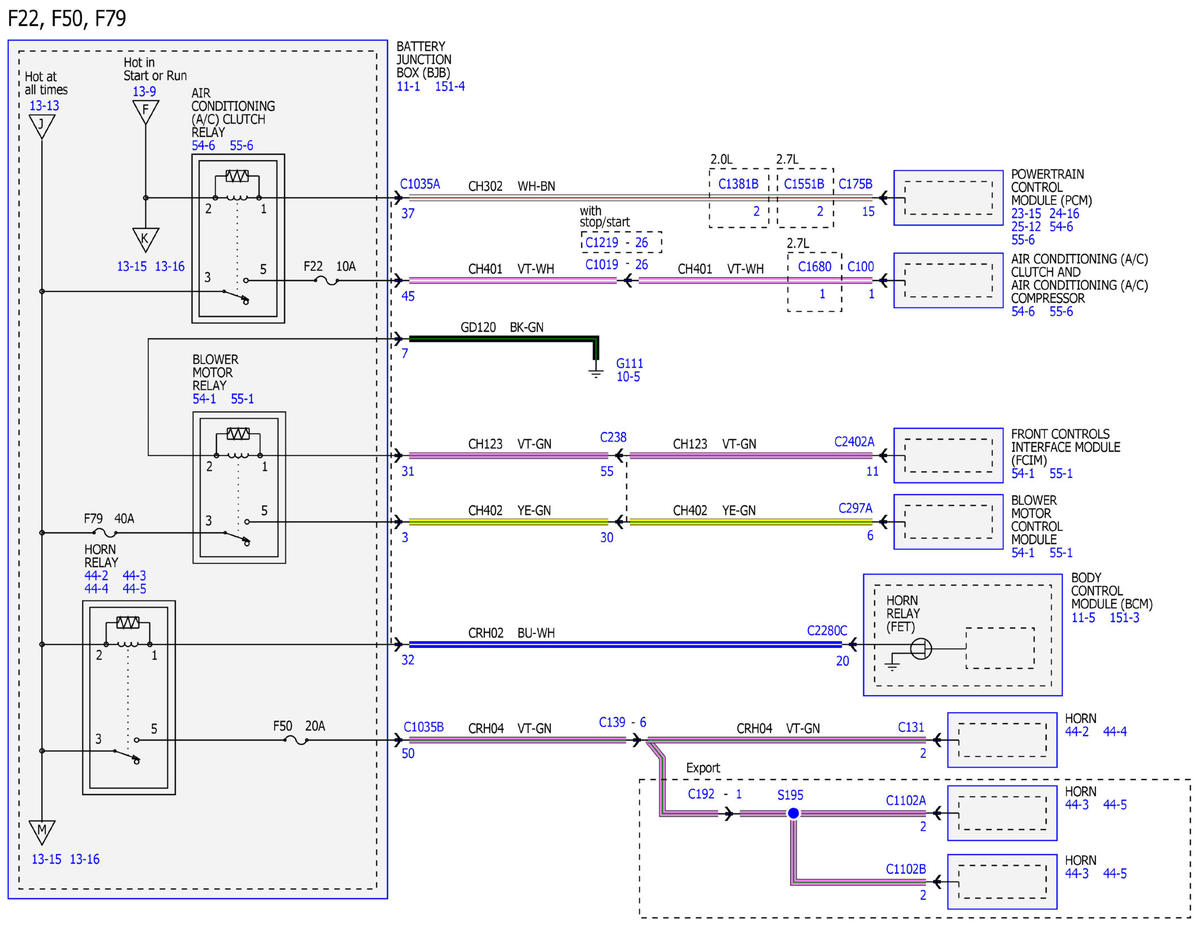

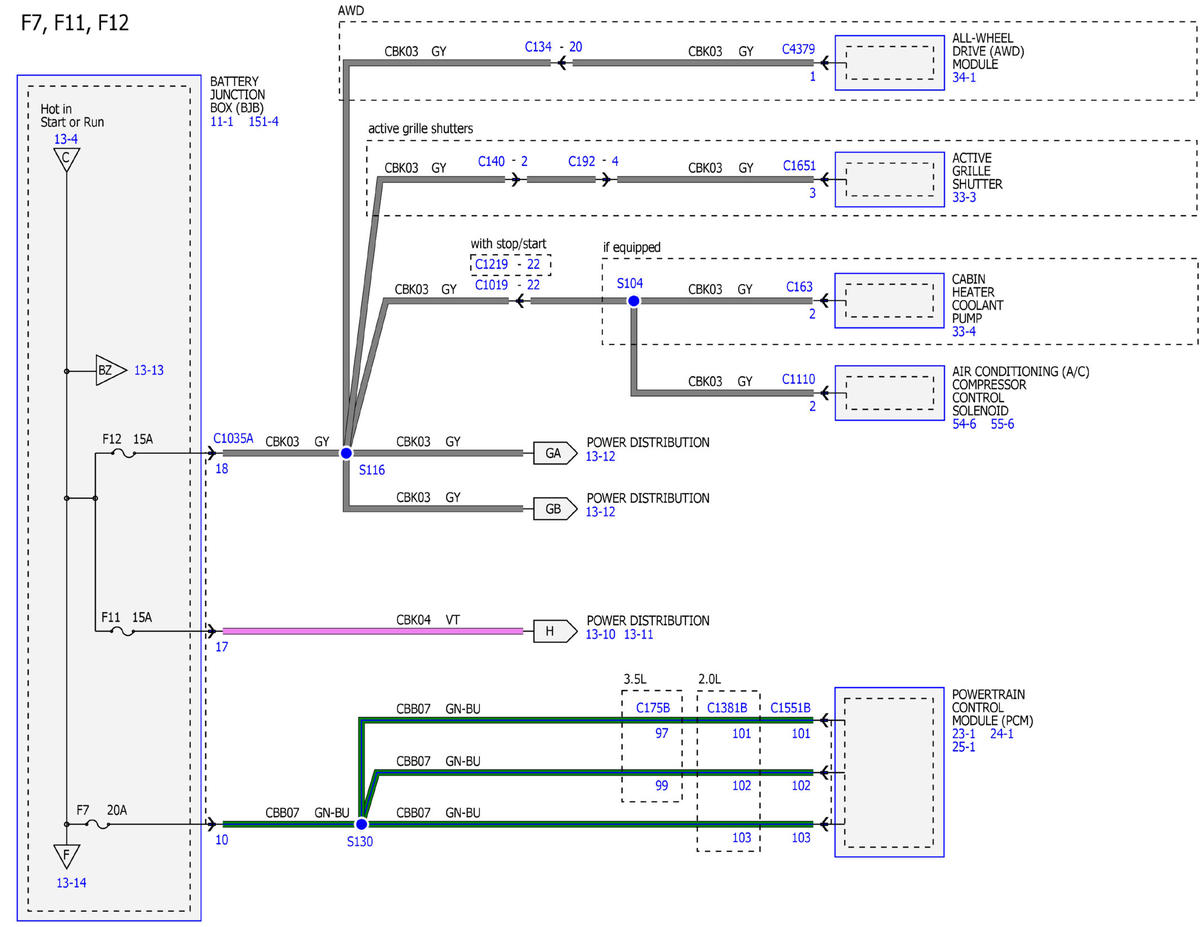

Fig 2: Power Distribution Wiring Diagrams (2 of 50)
Courtesy of FORD MOTOR COMPANY

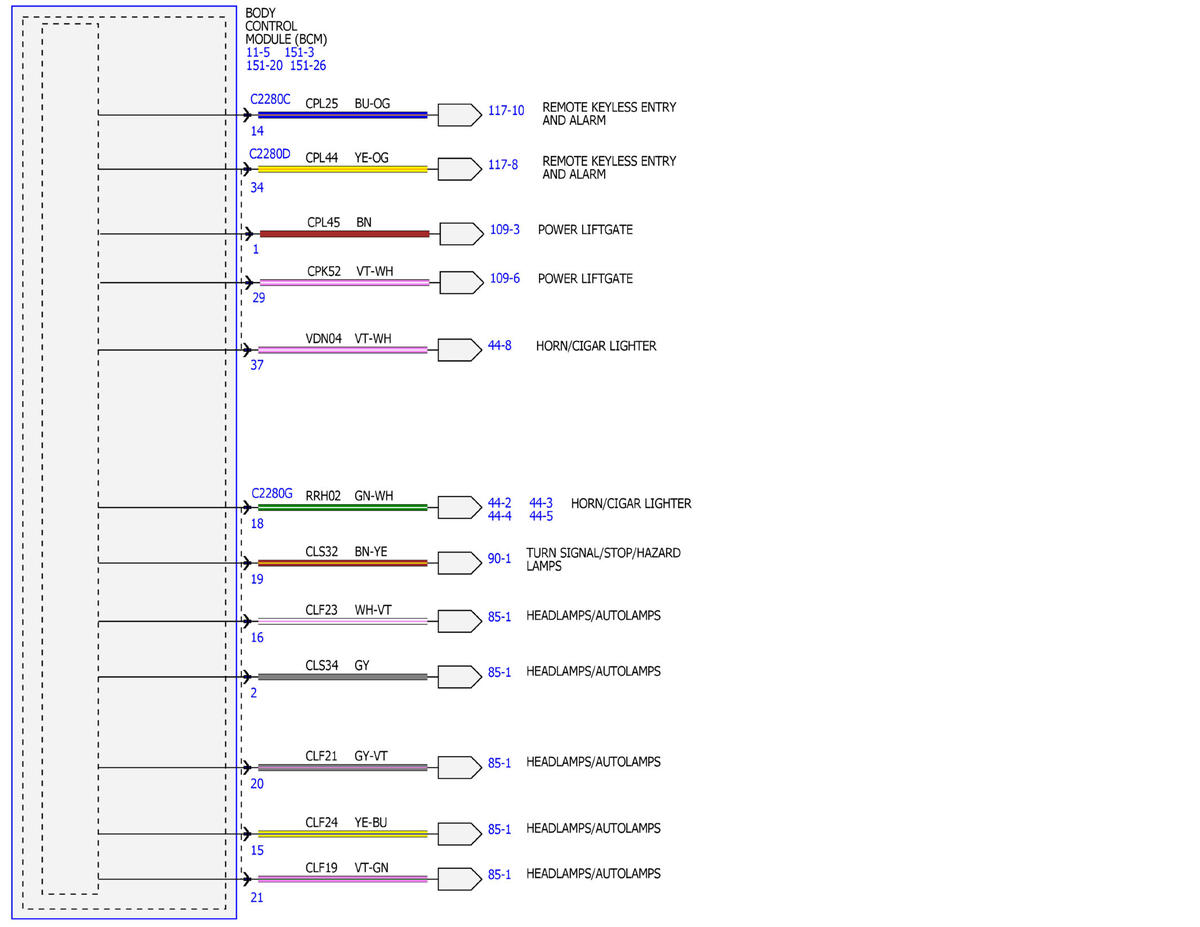

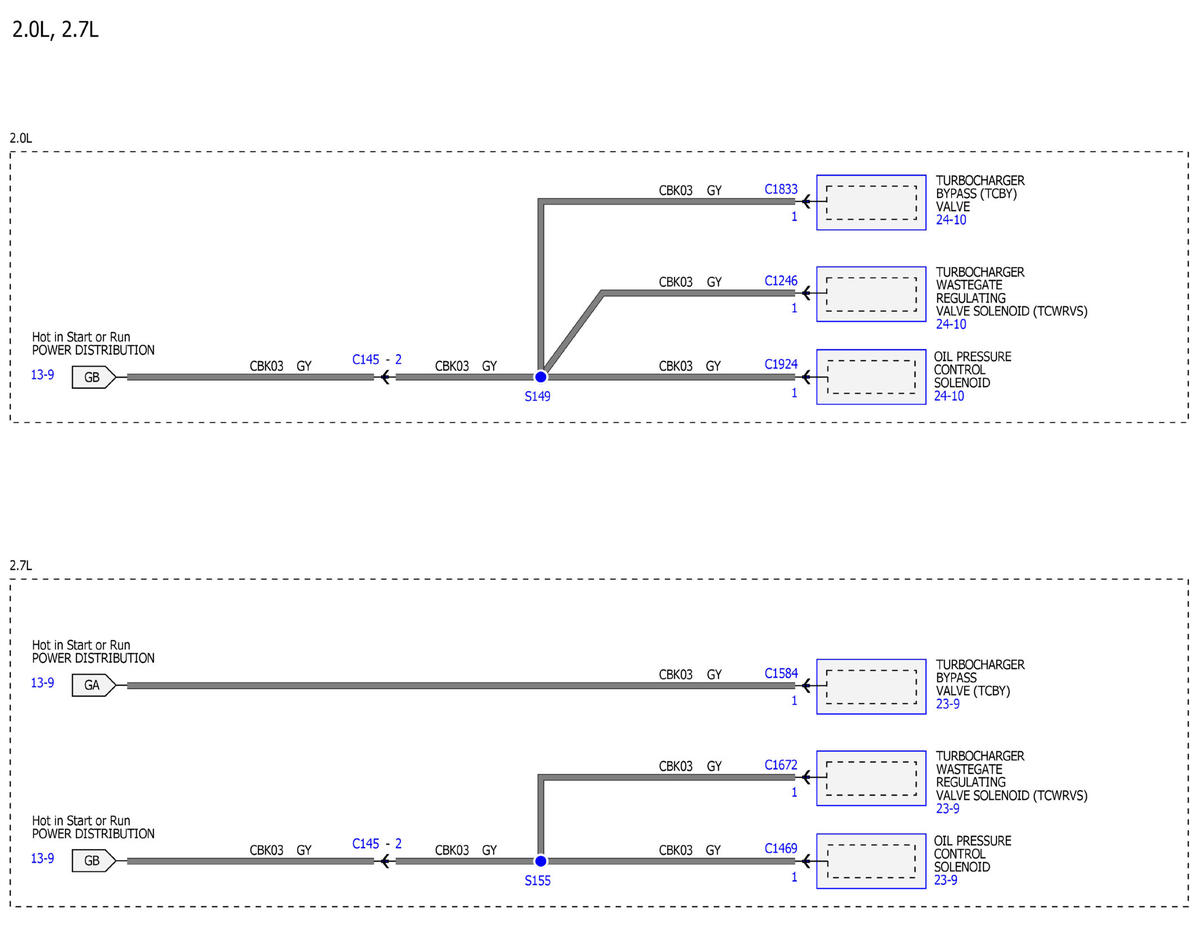

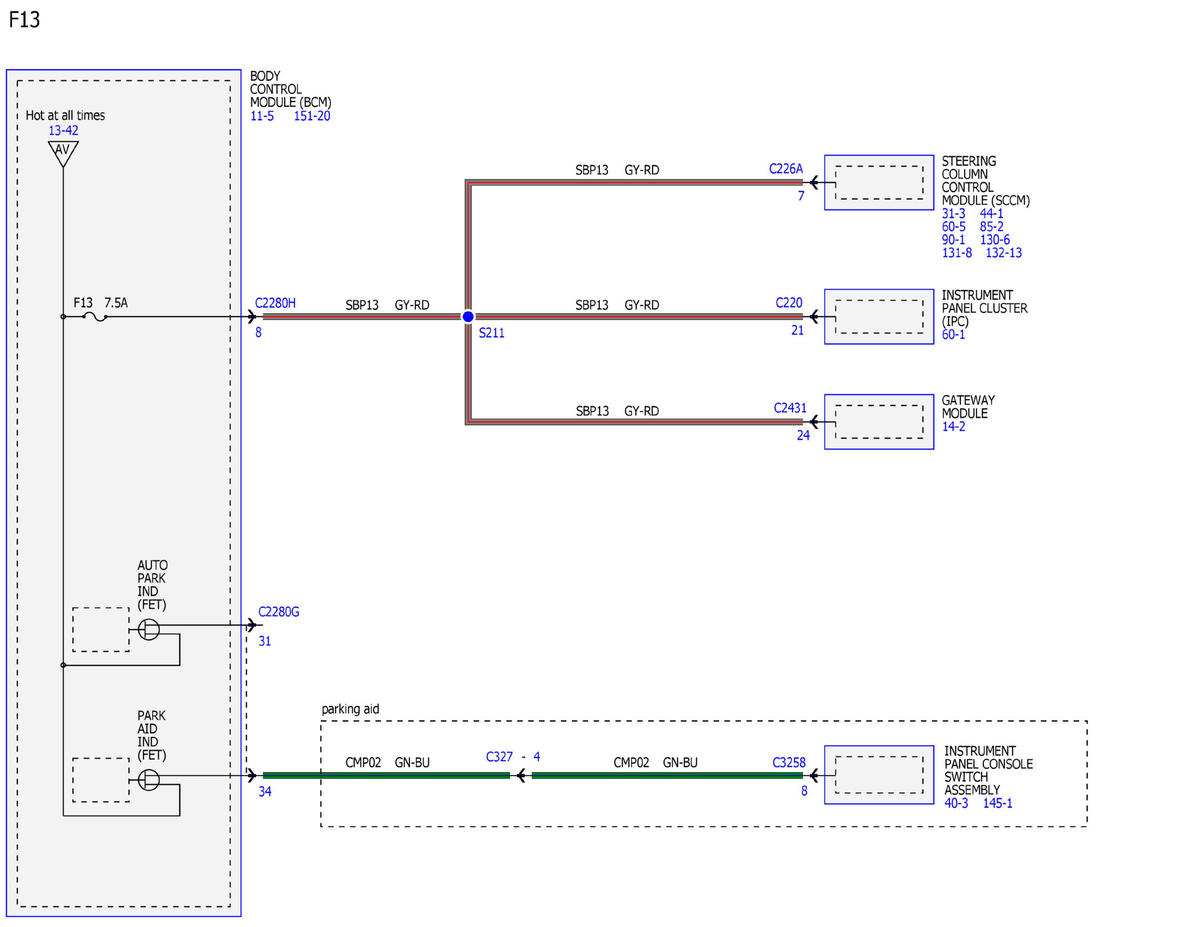

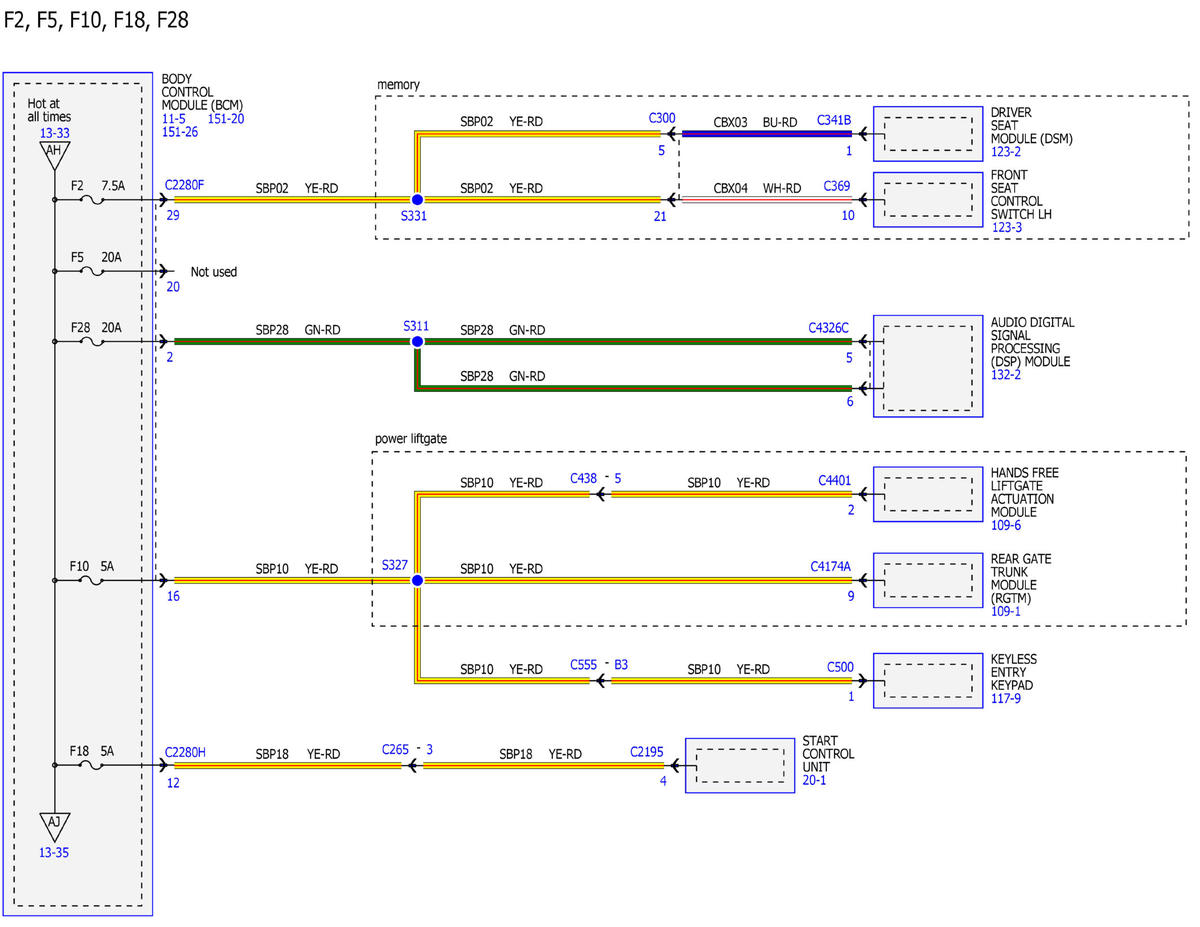

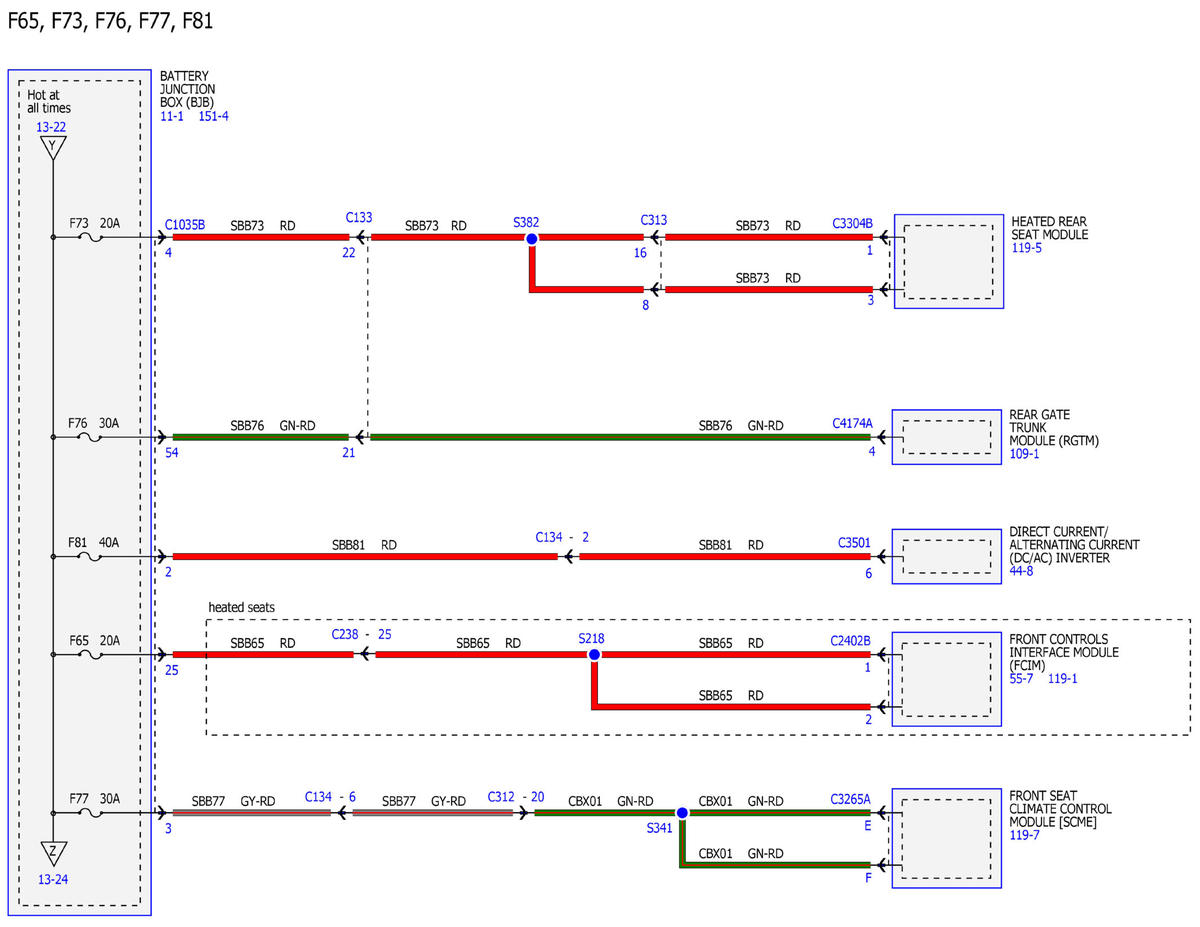

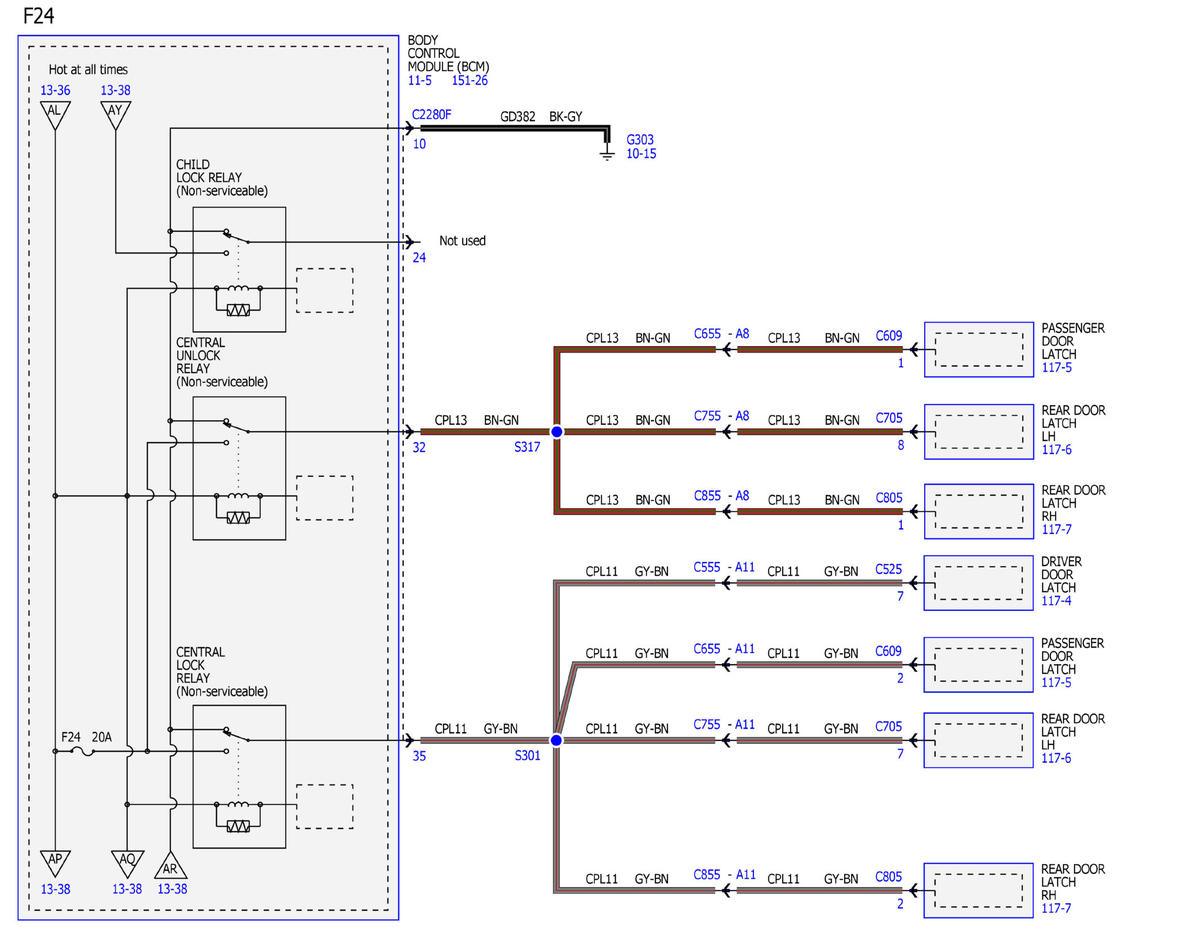

Fig 3: Power Distribution Wiring Diagrams (3 of 50)
Courtesy of FORD MOTOR COMPANY

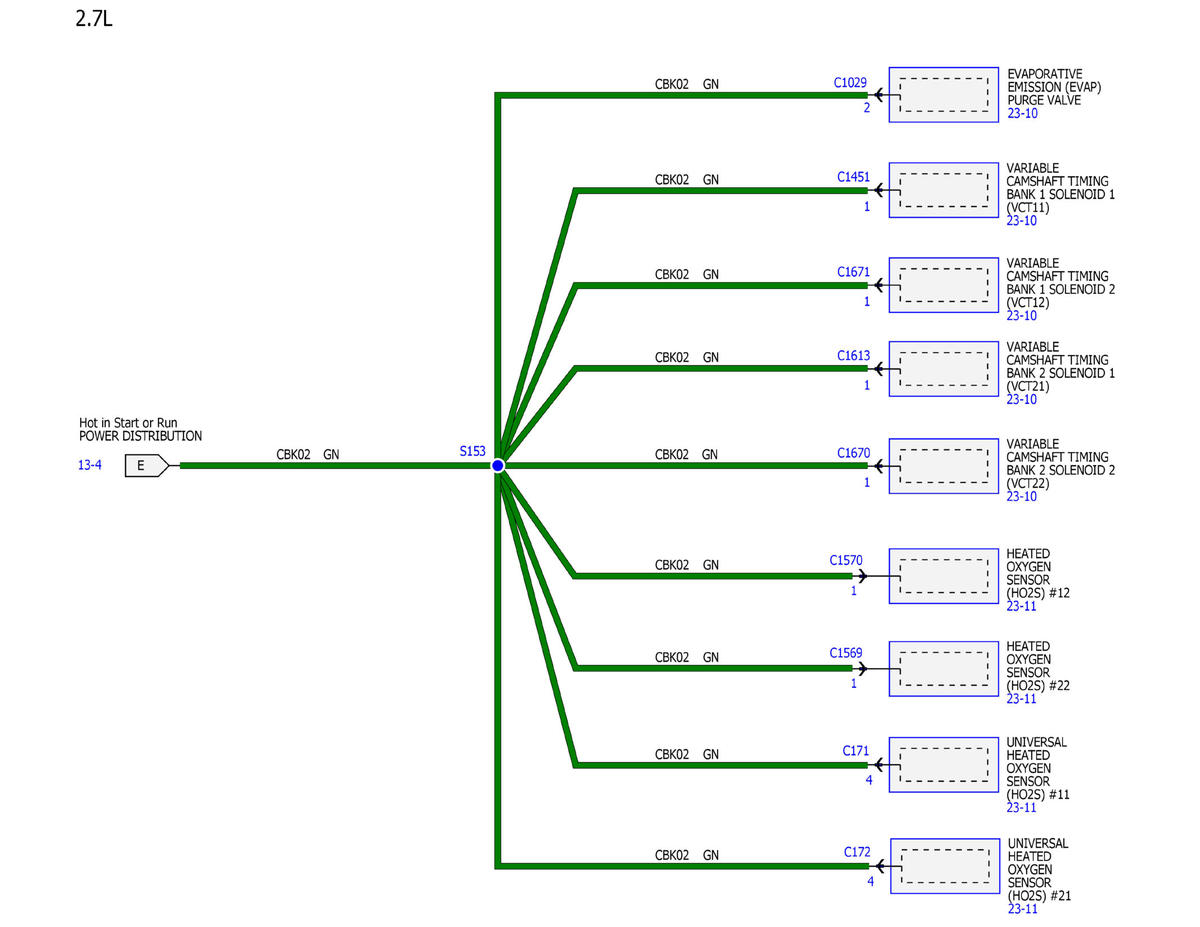

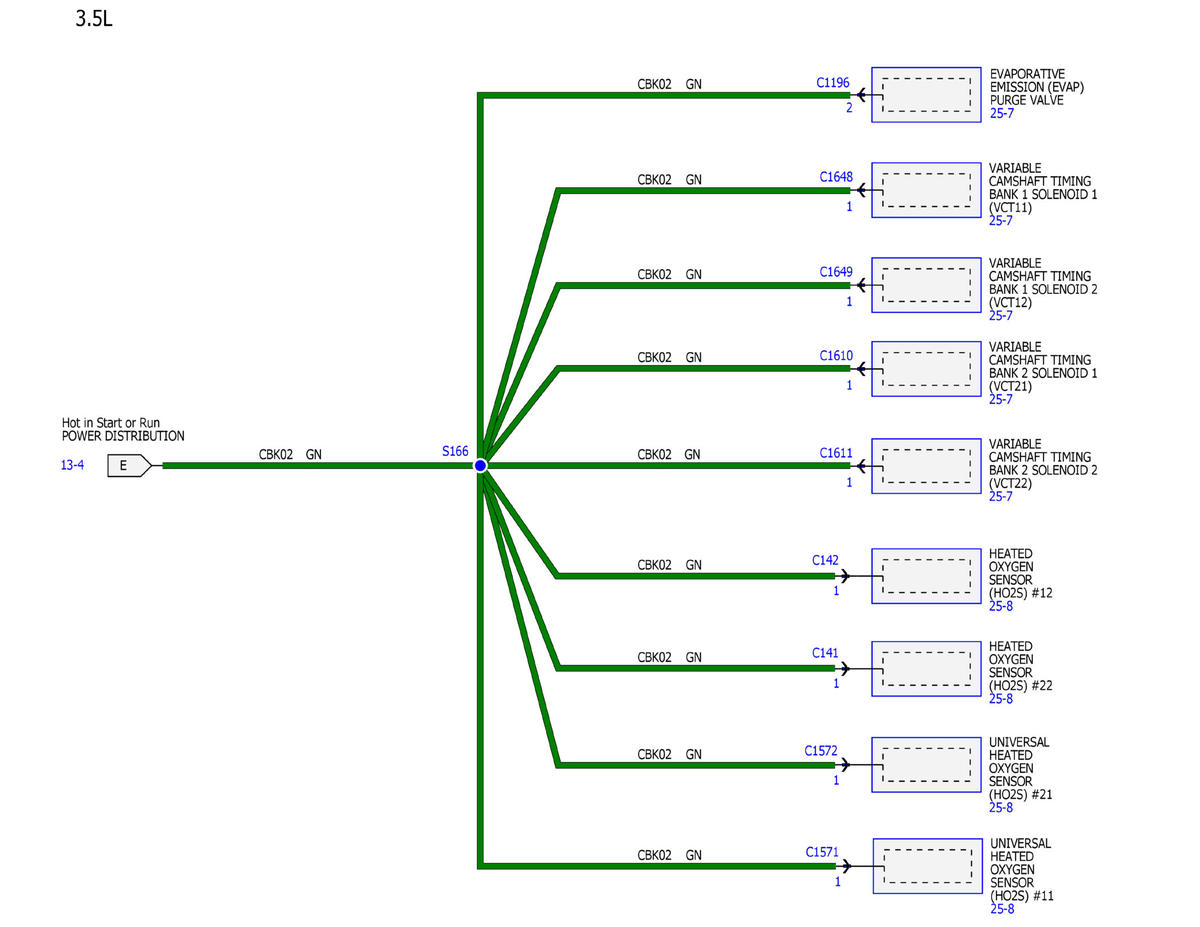

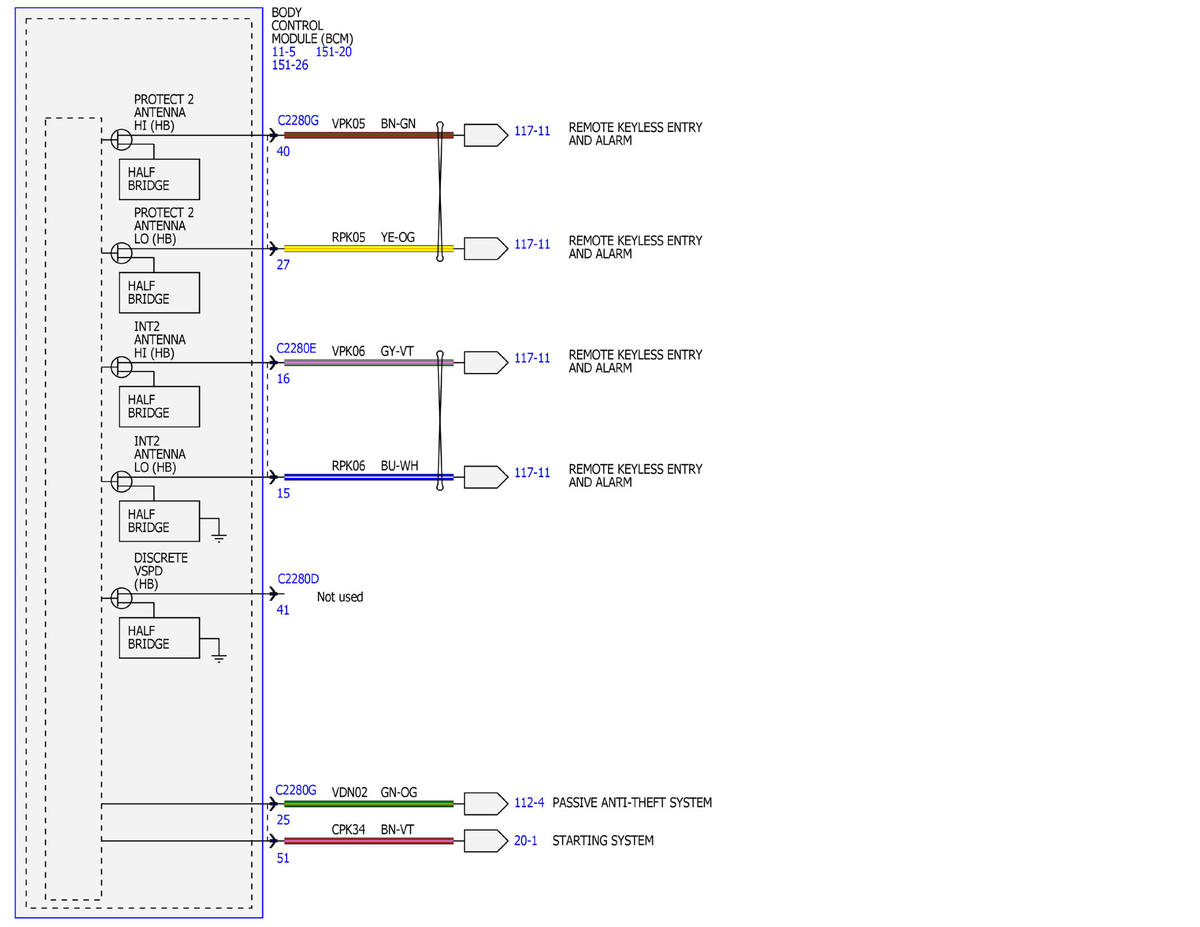

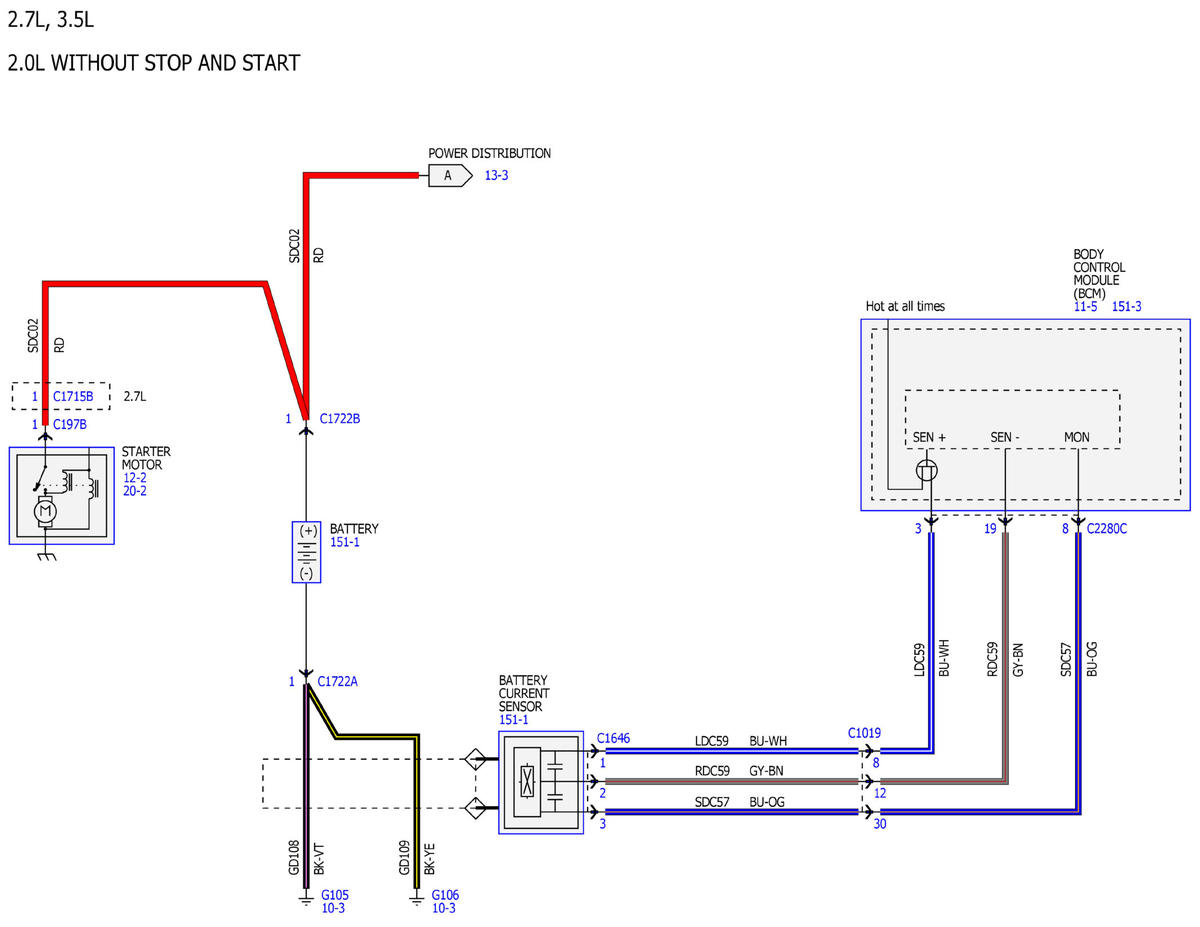

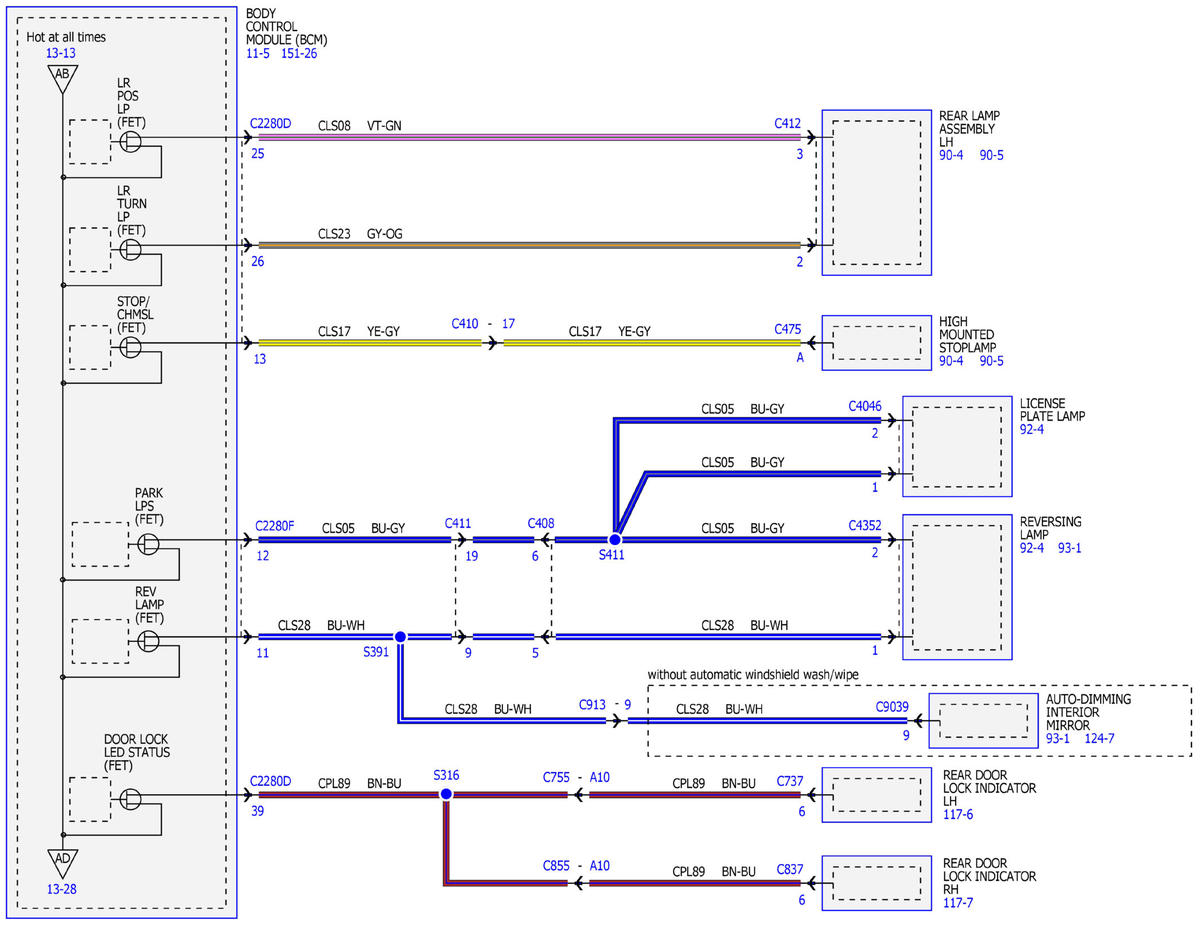

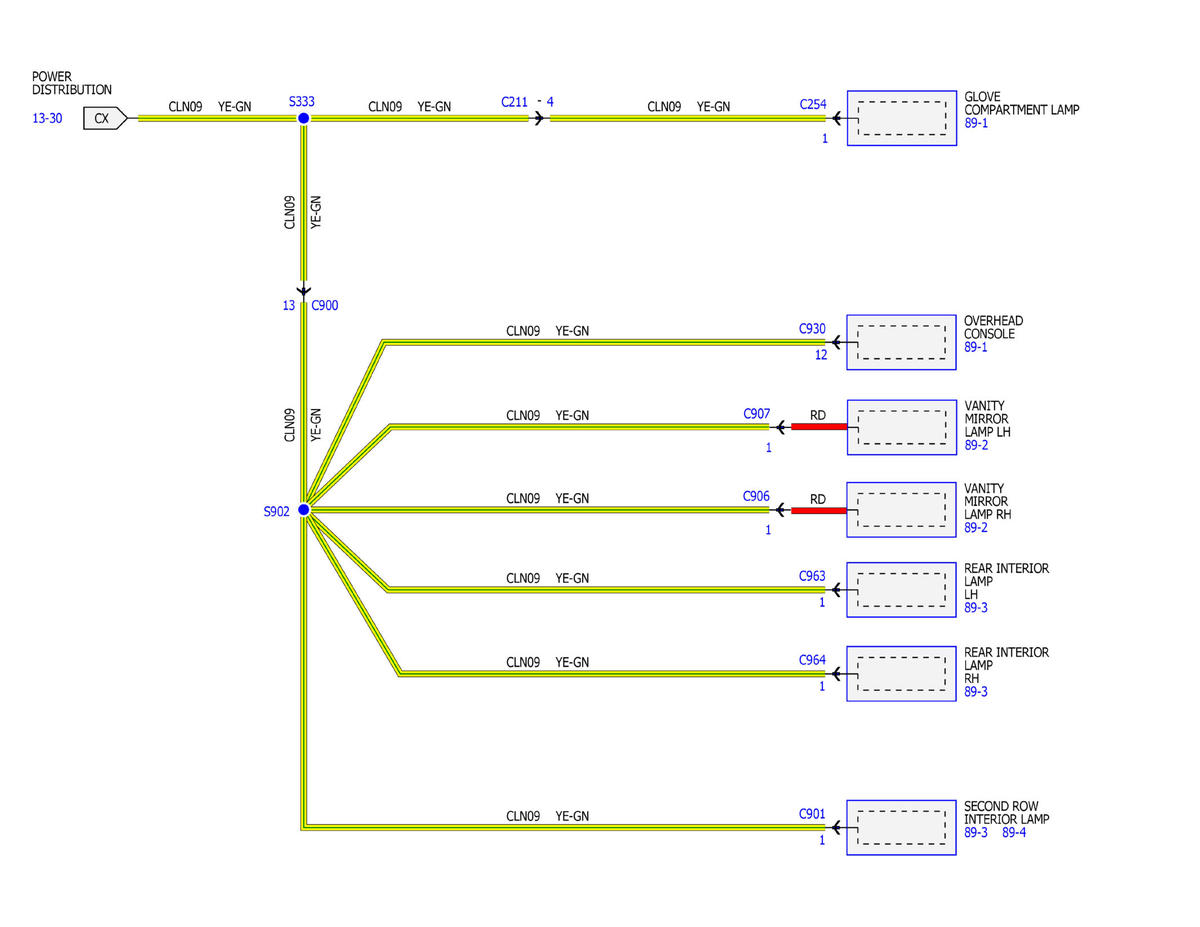

Fig 4: Power Distribution Wiring Diagrams (4 of 50)
Courtesy of FORD MOTOR COMPANY

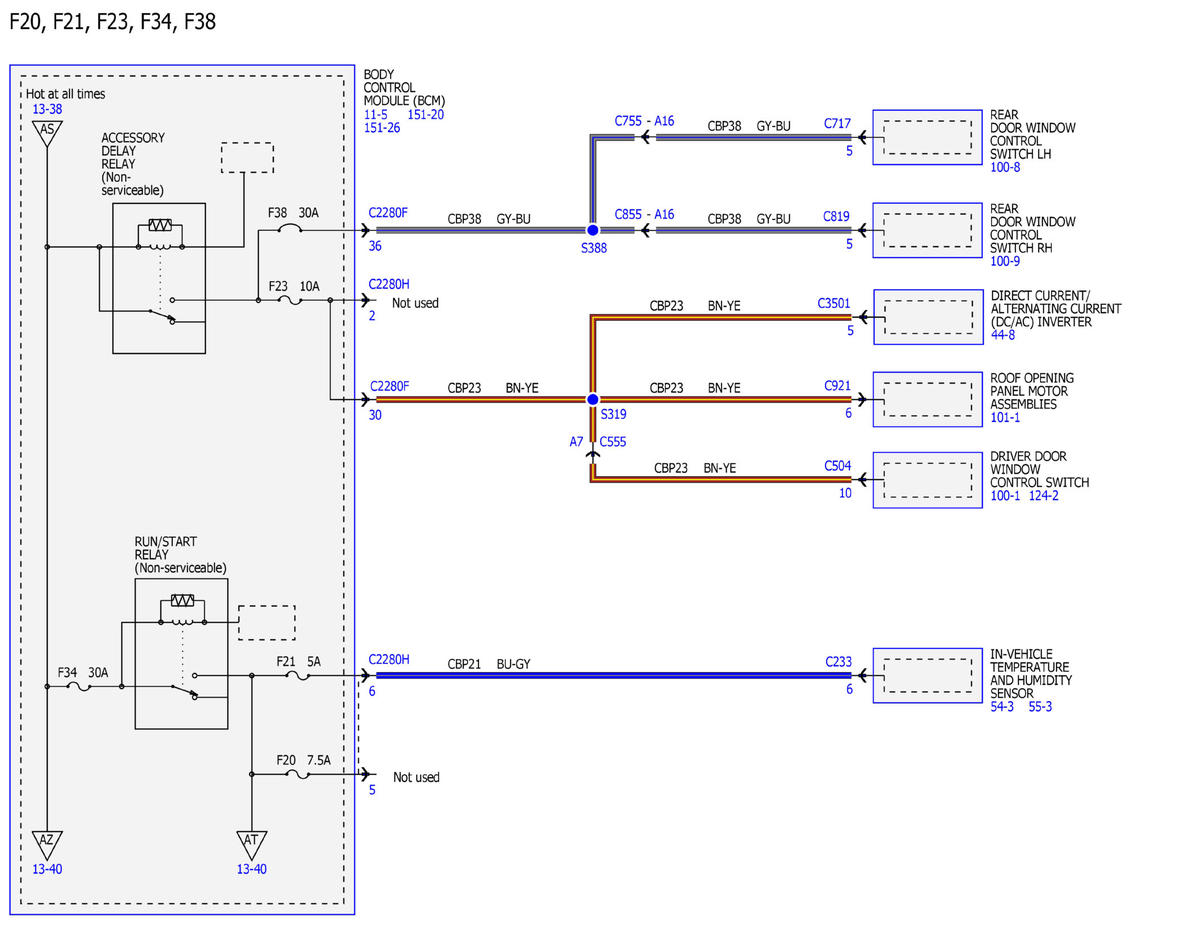

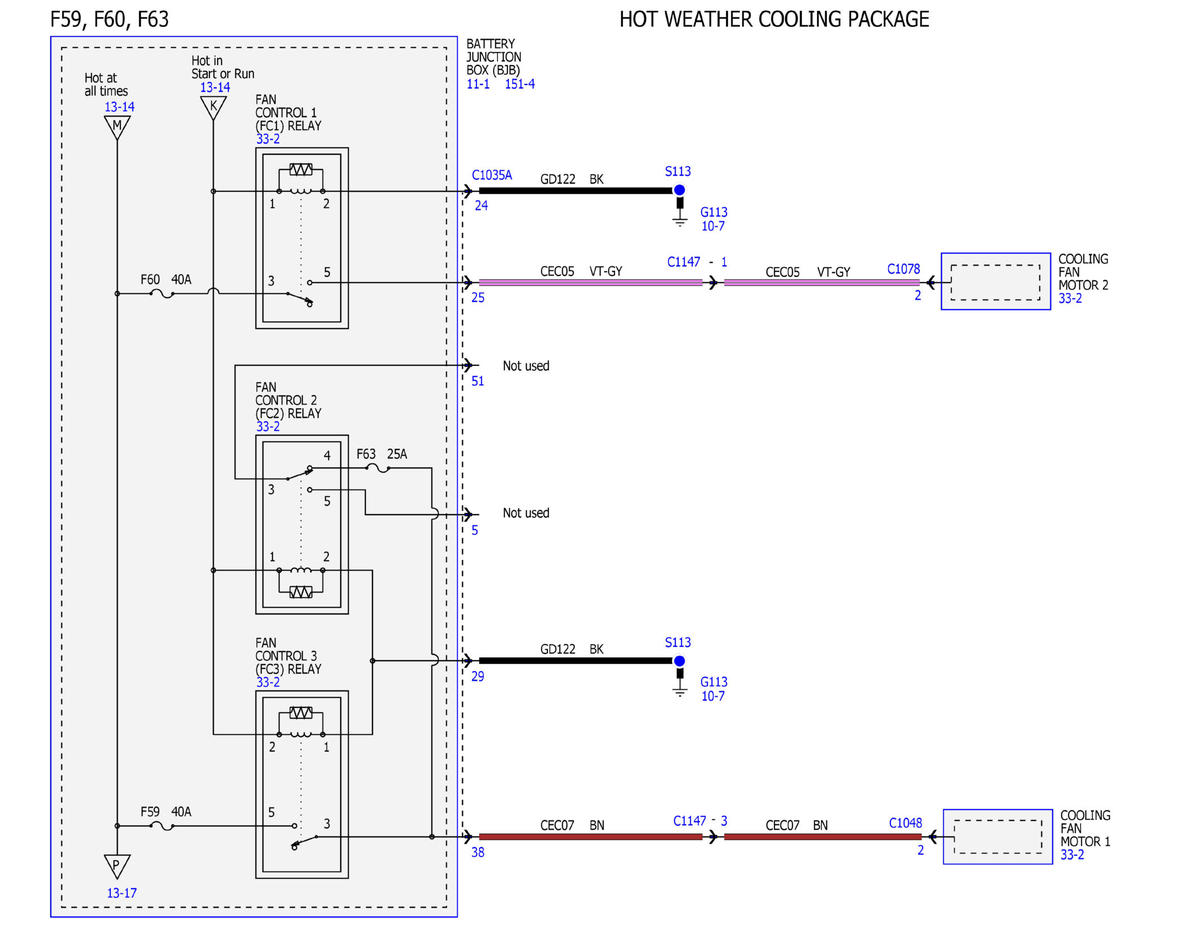

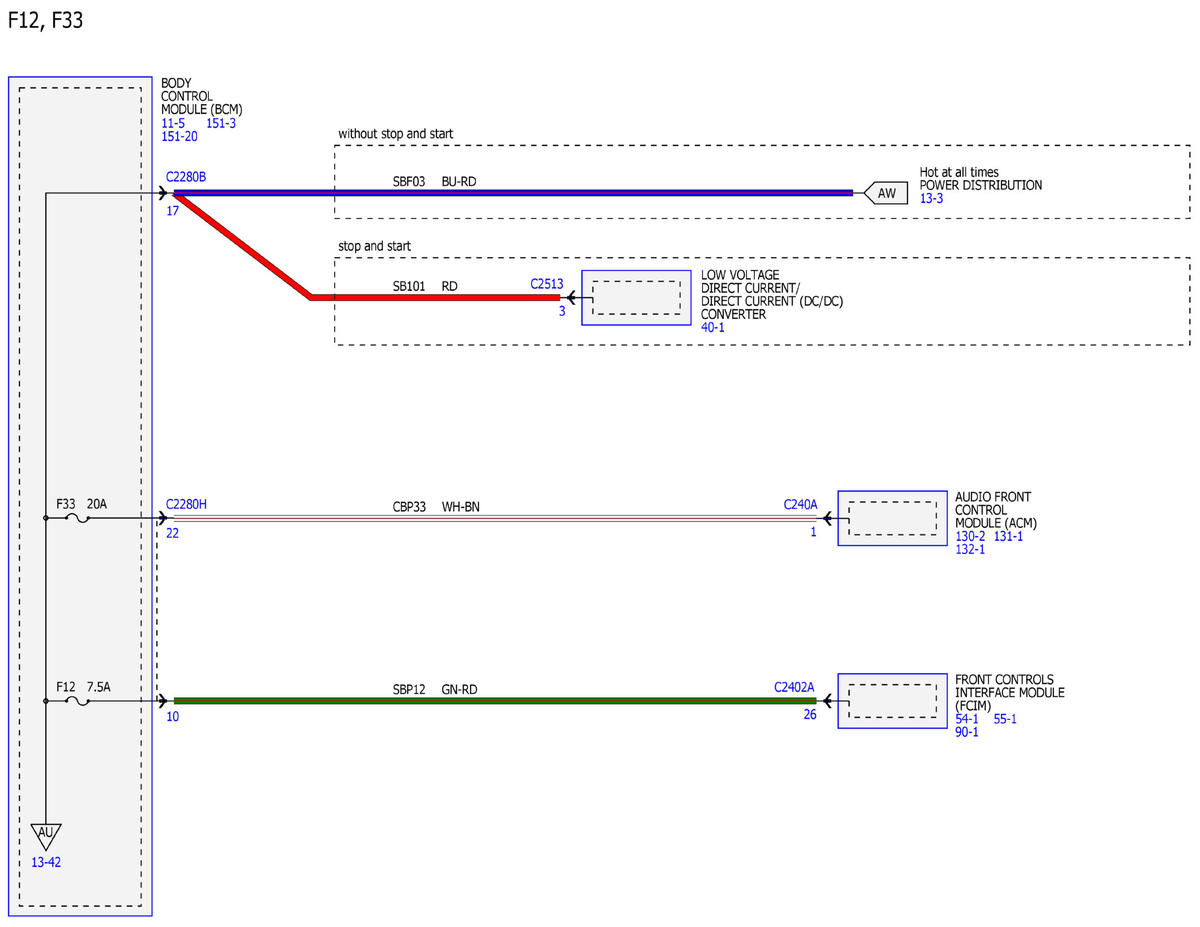

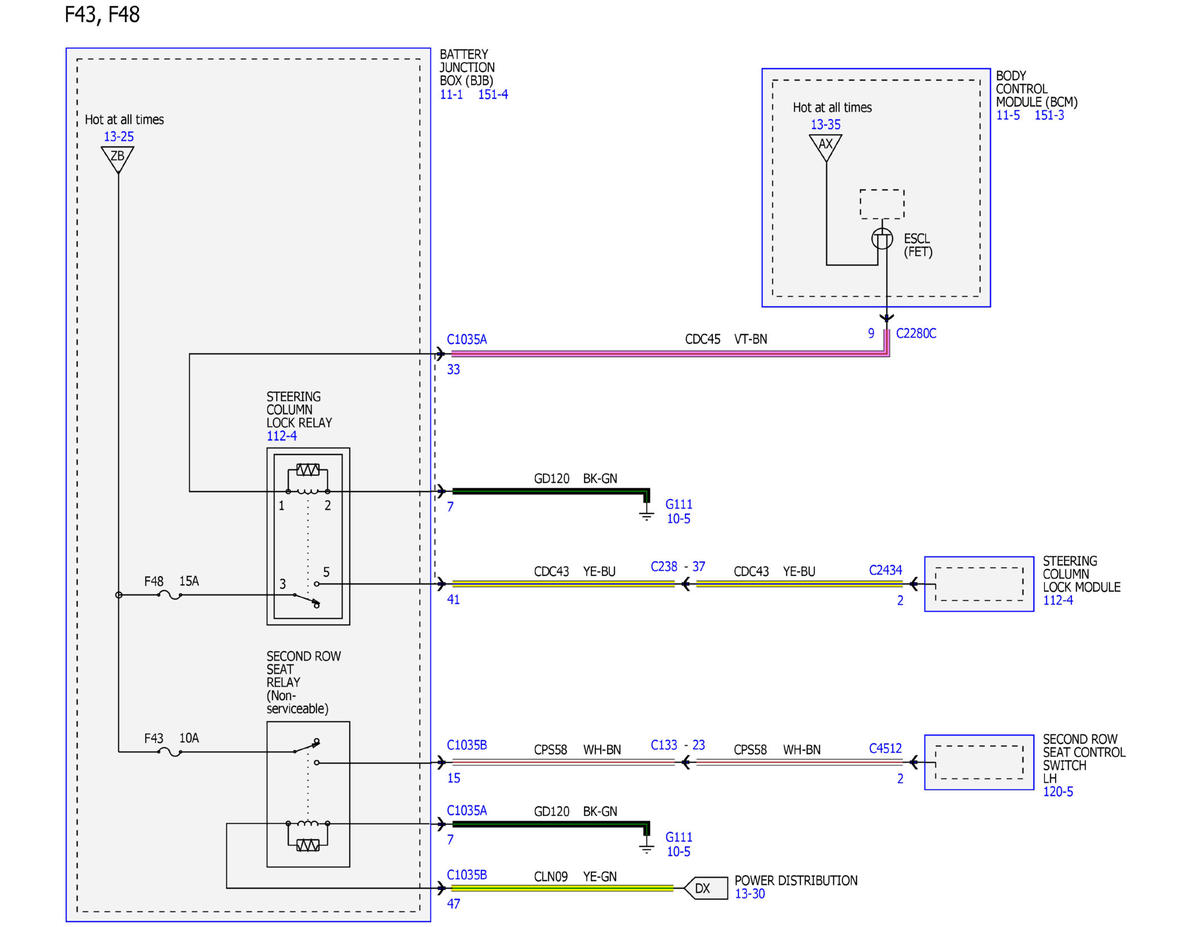

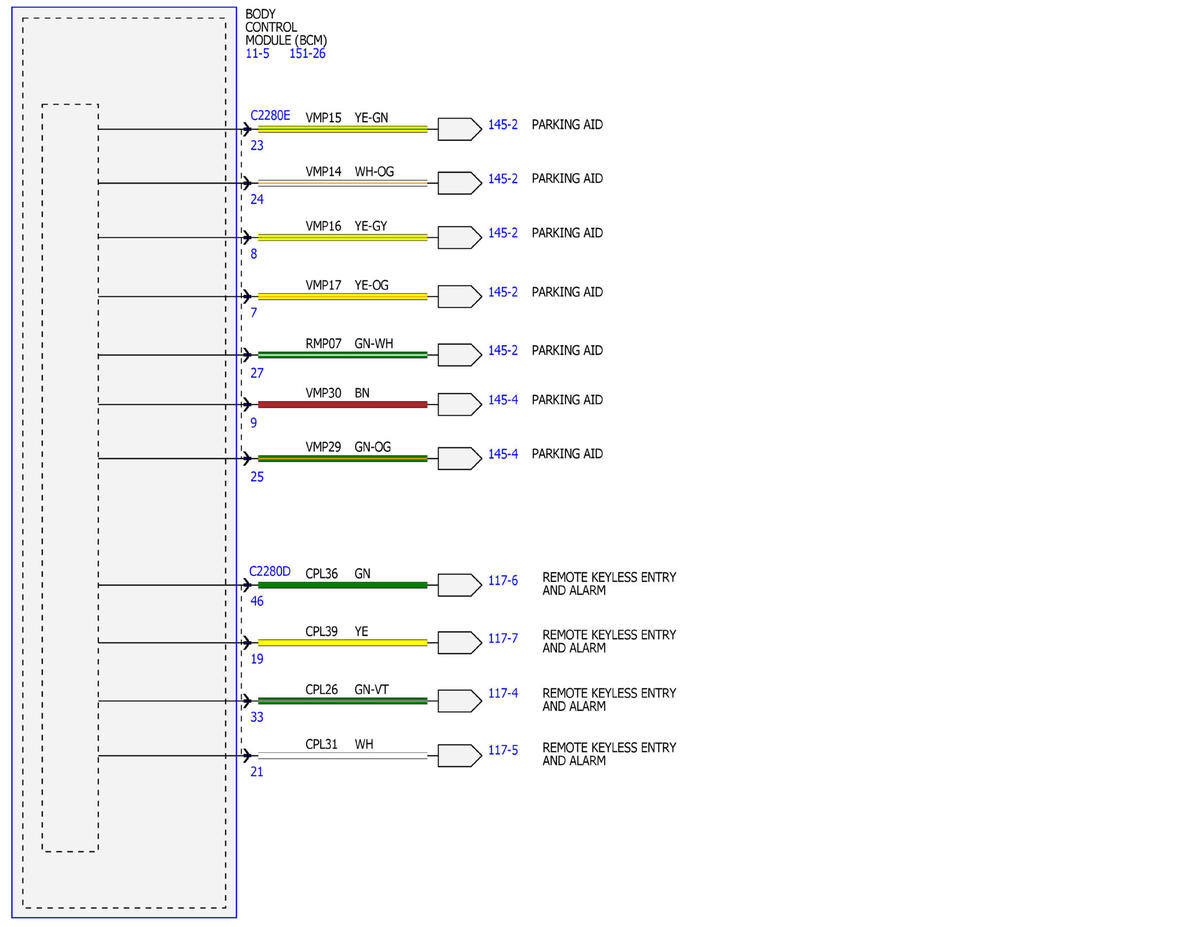

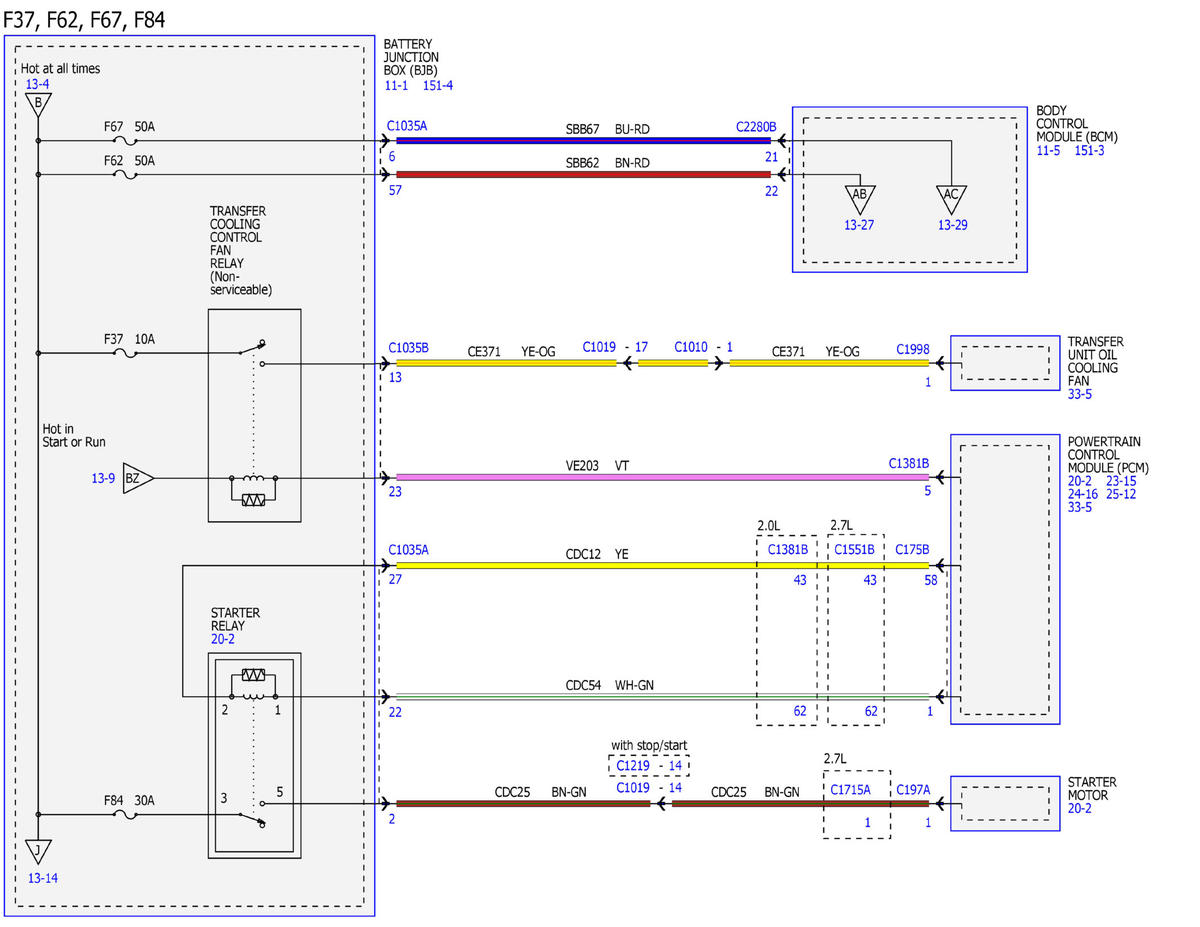

Fig 5: Power Distribution Wiring Diagrams (5 of 50)
Courtesy of FORD MOTOR COMPANY

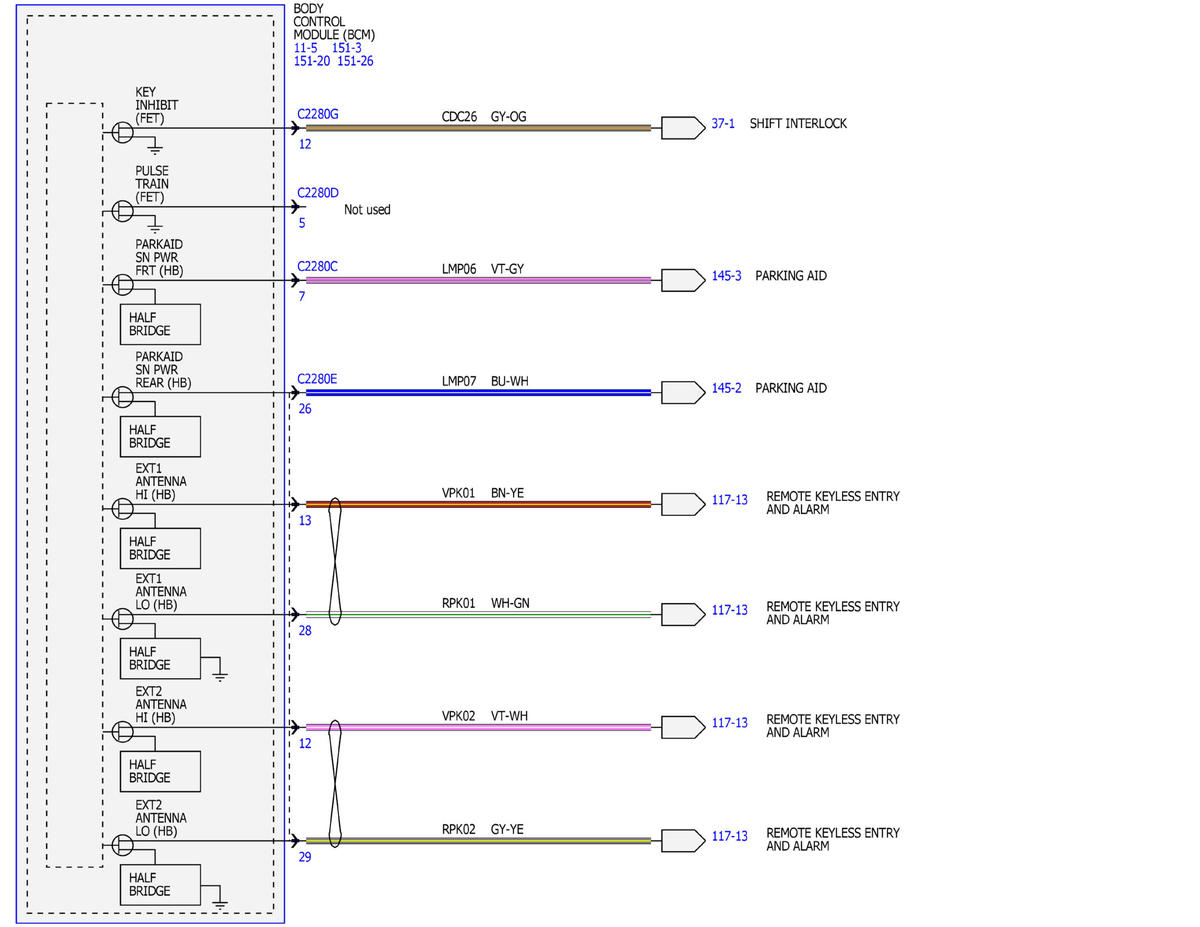

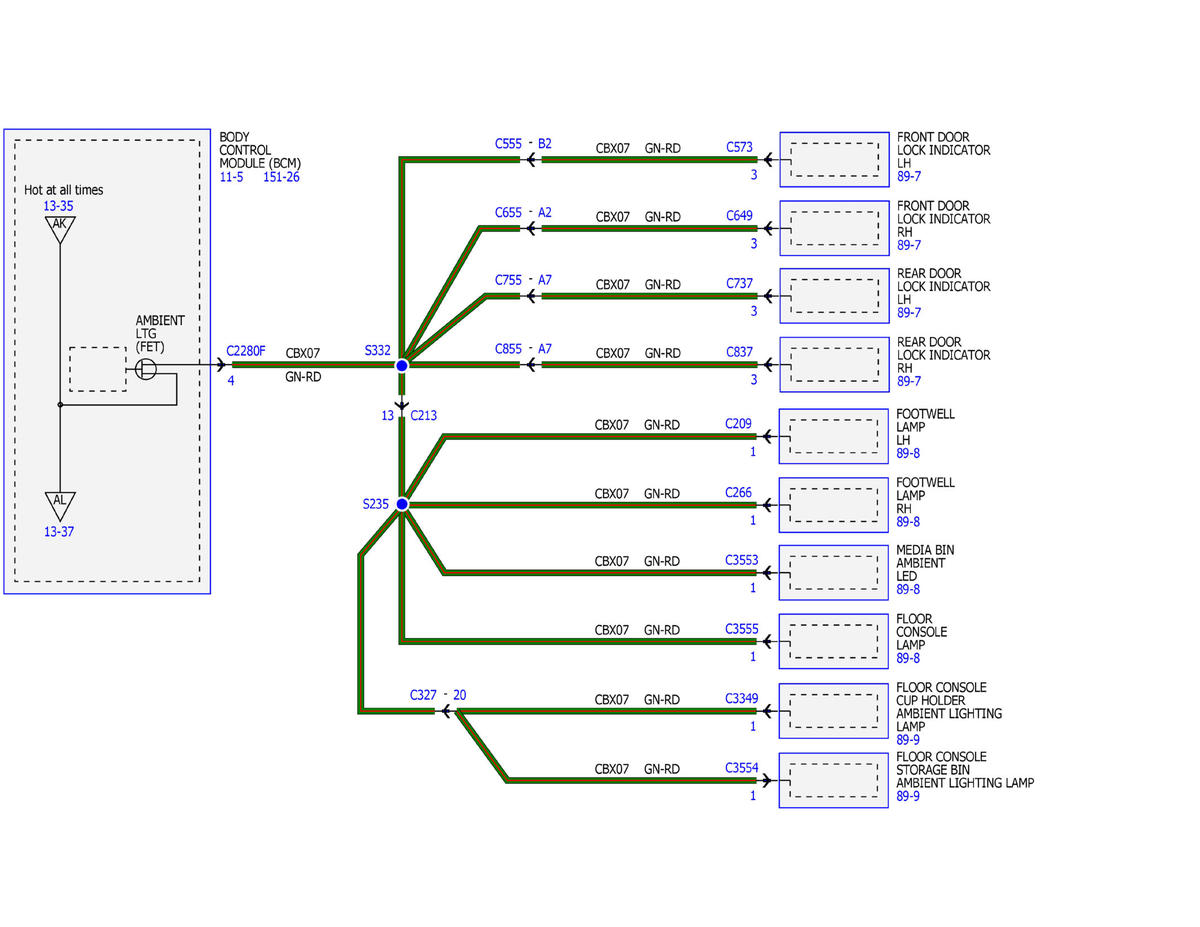

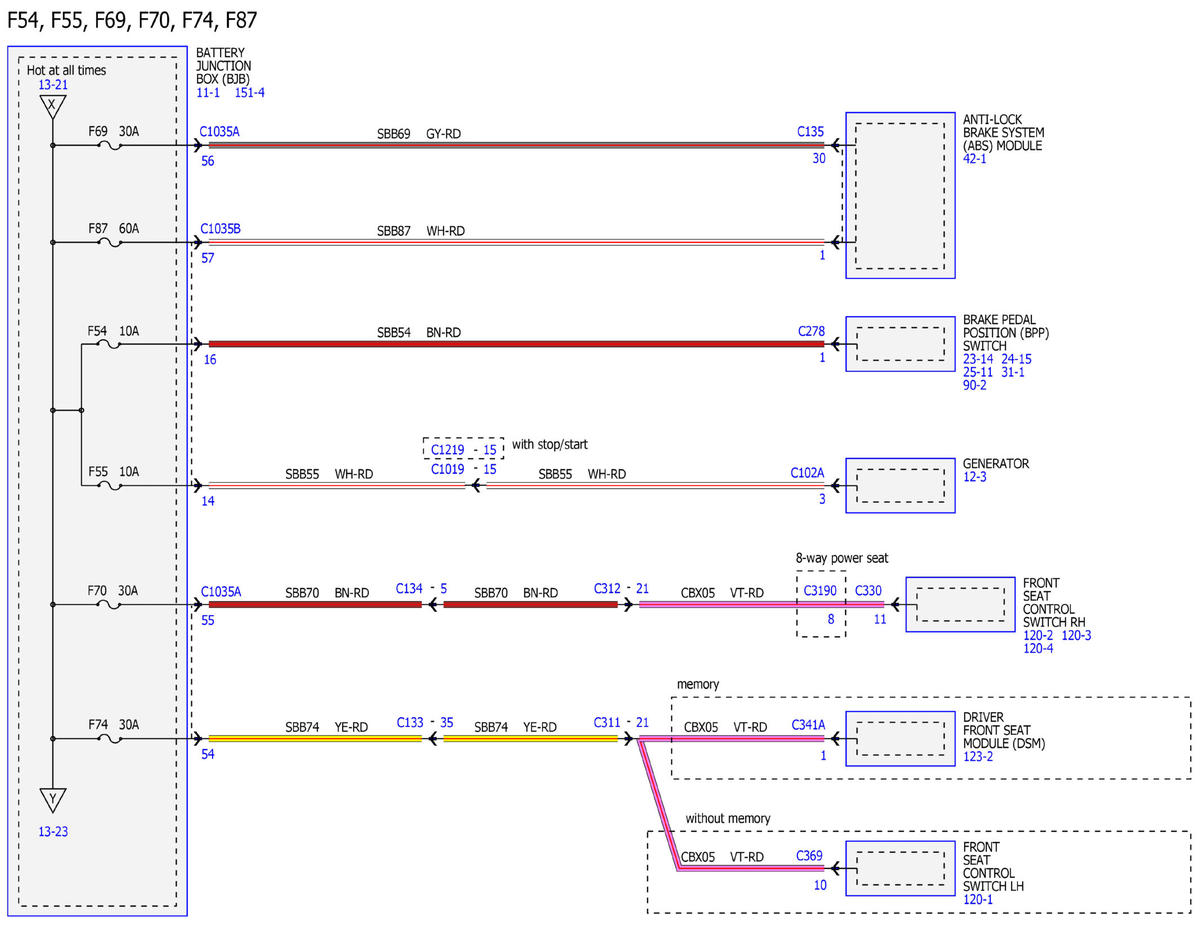

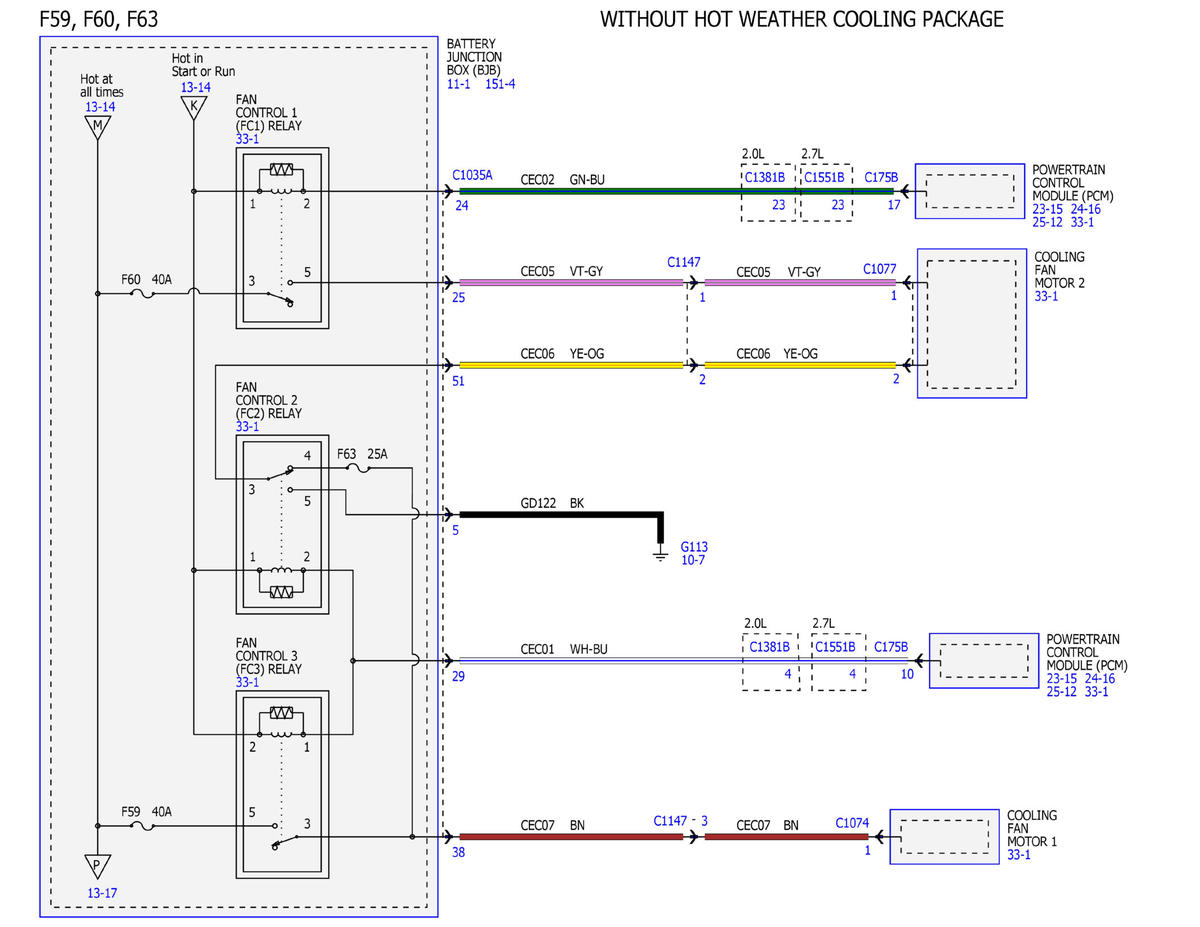

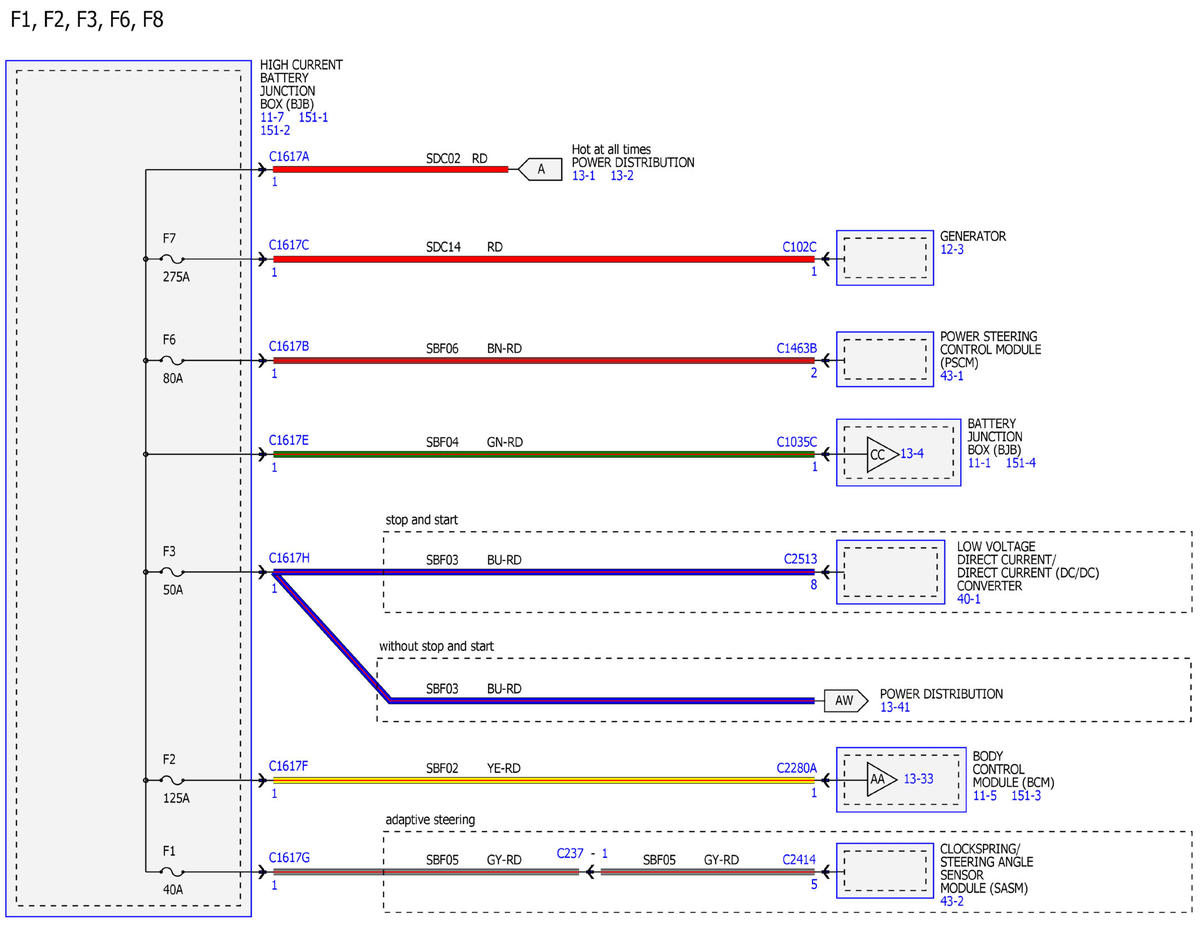

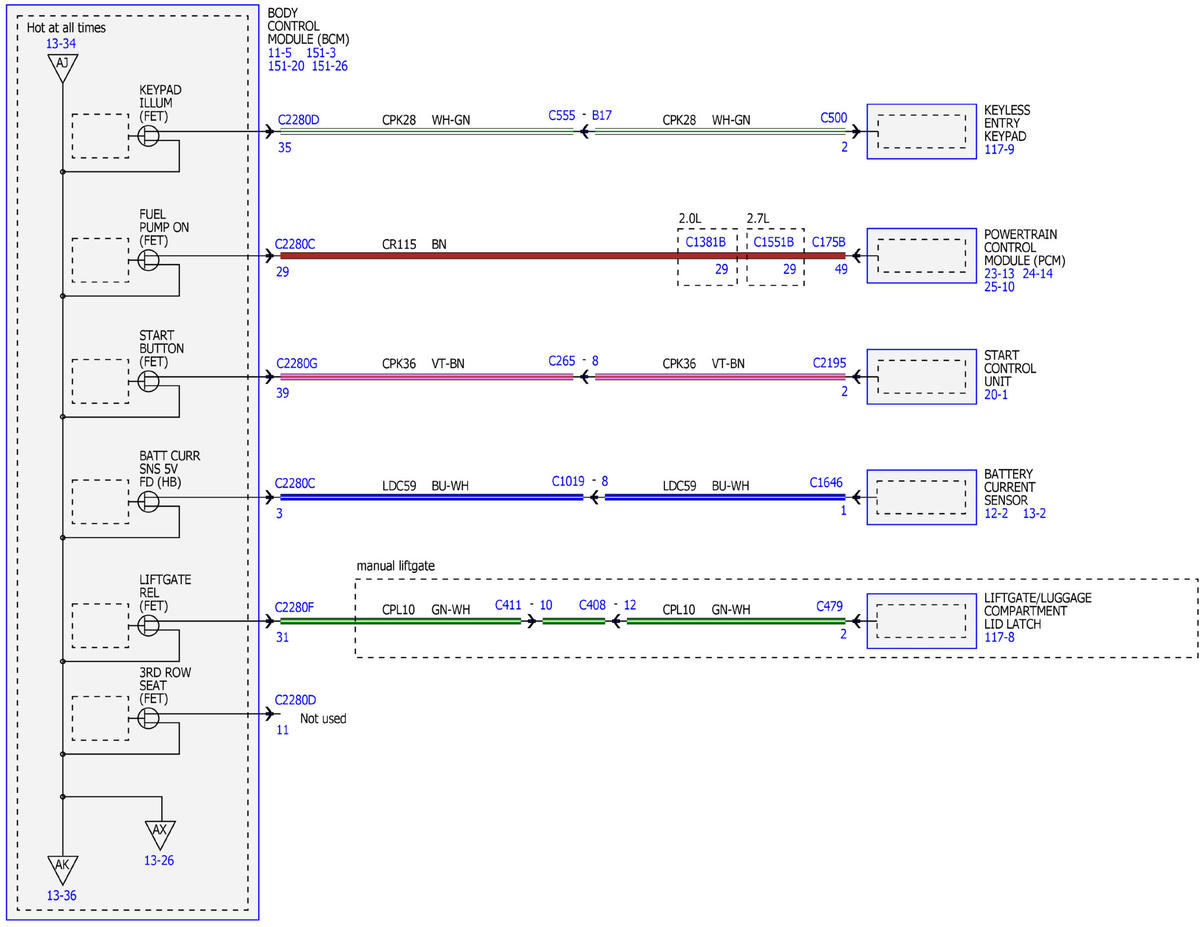

Fig 6: Power Distribution Wiring Diagrams (6 of 50)
Courtesy of FORD MOTOR COMPANY

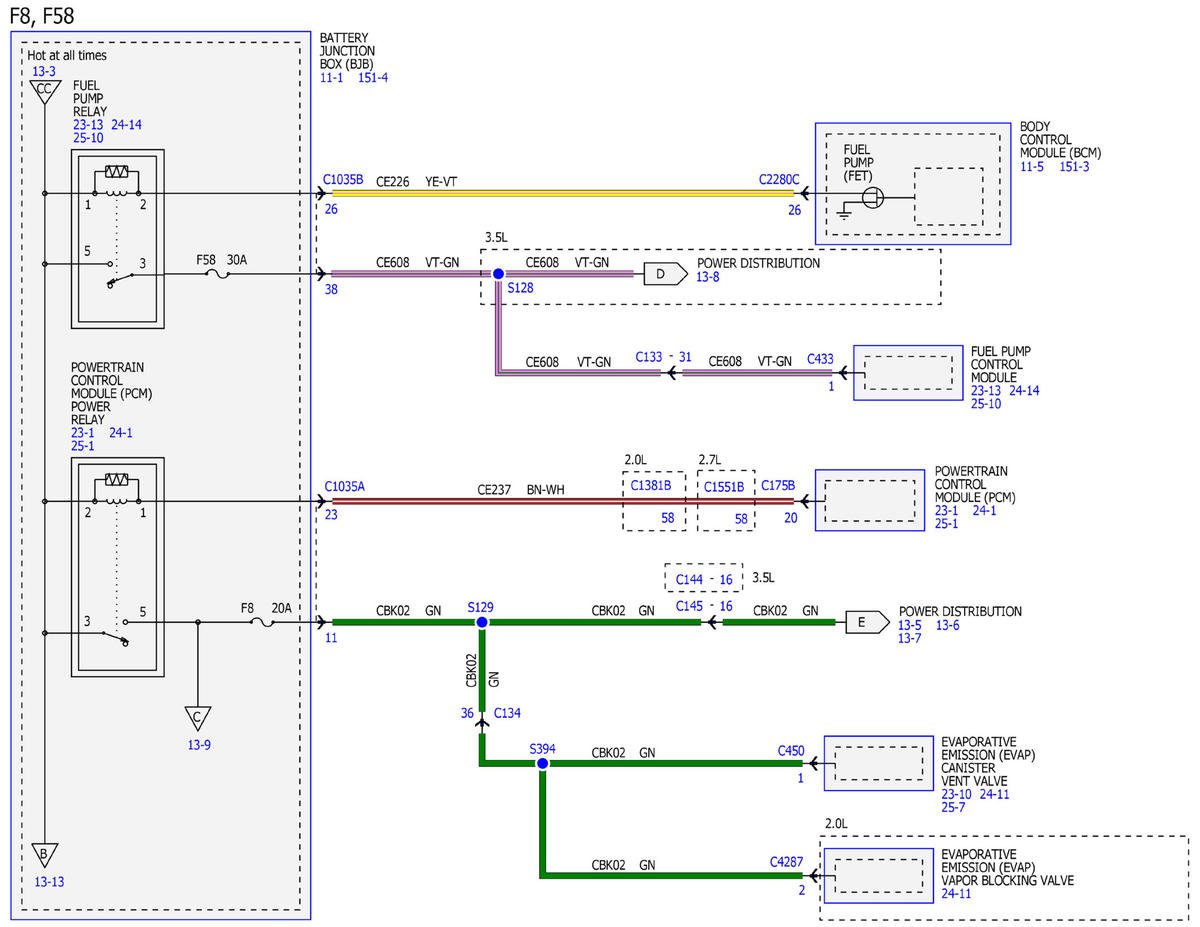

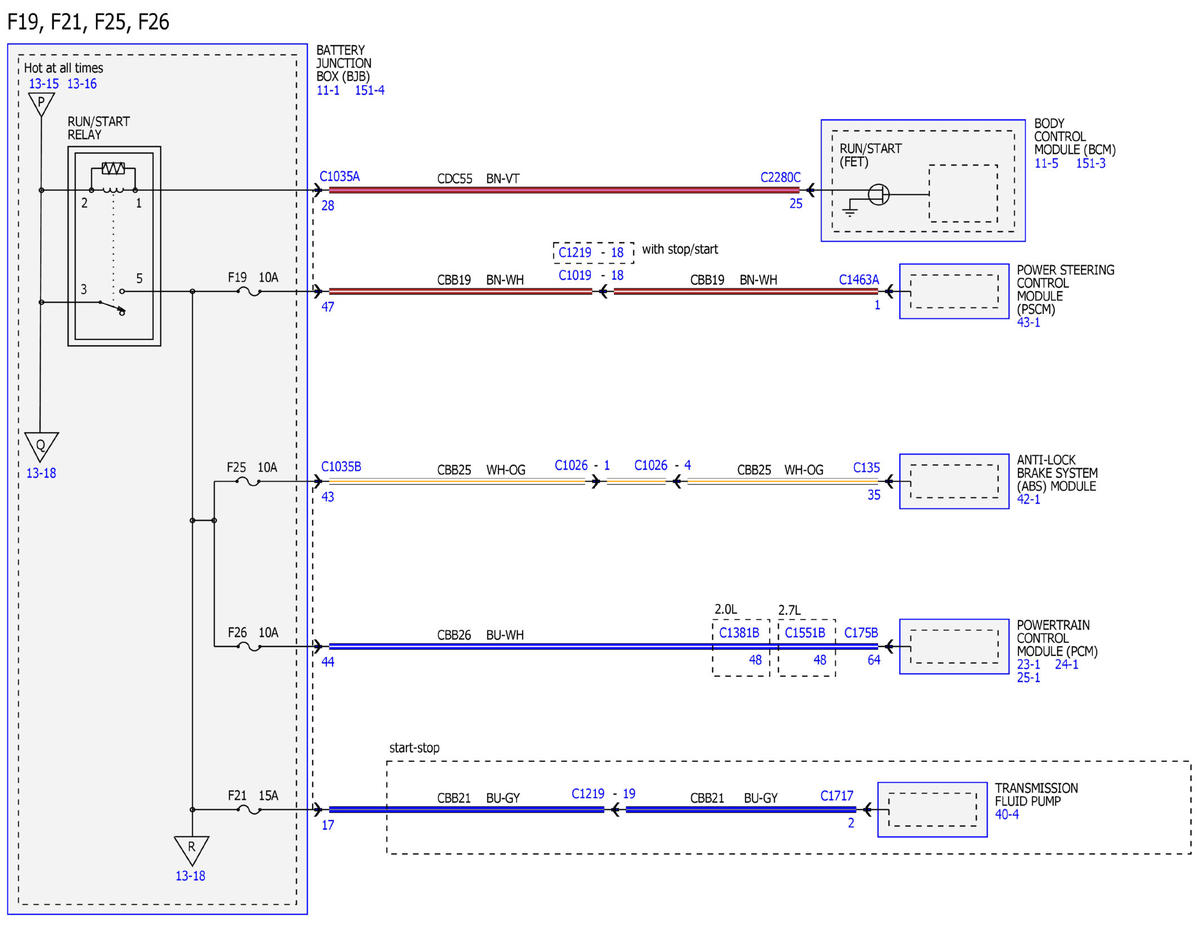

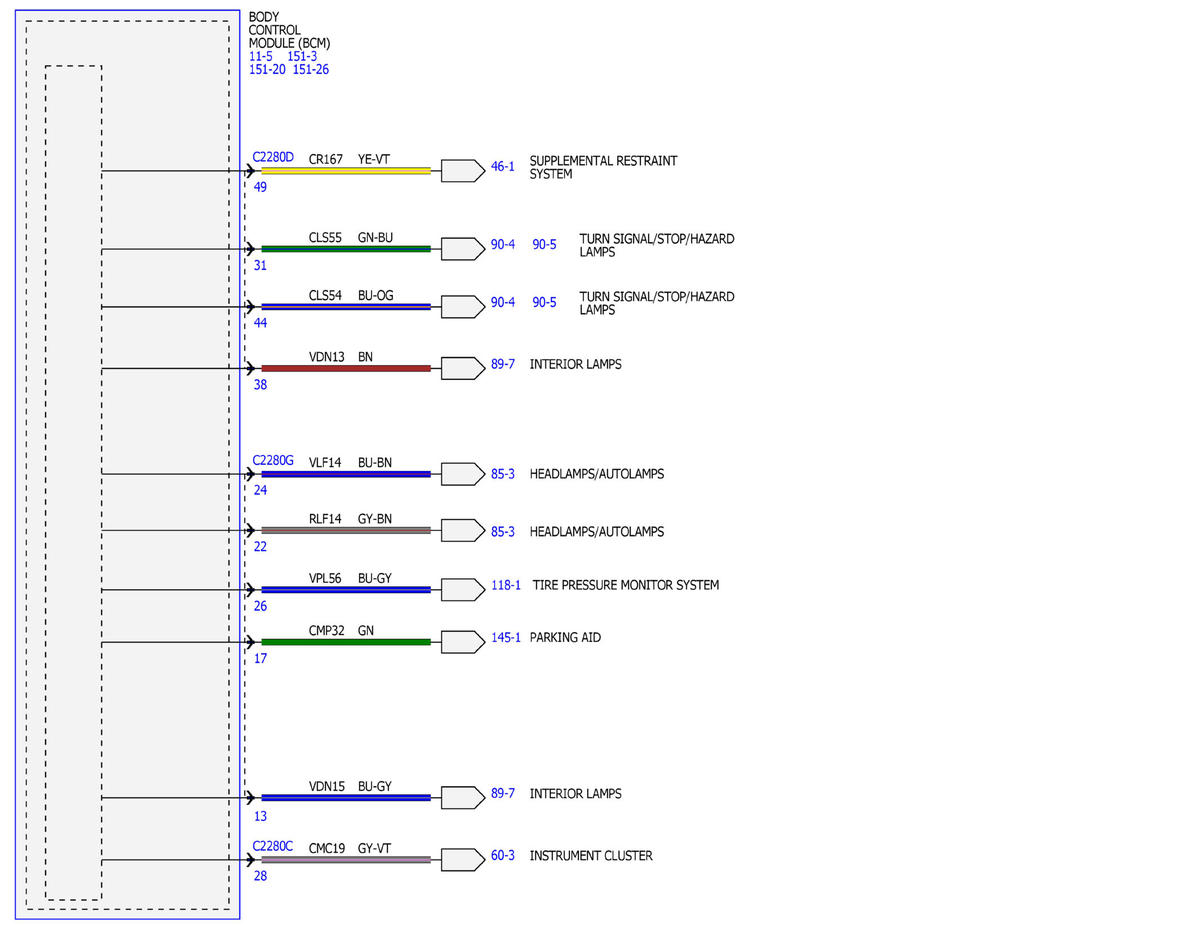

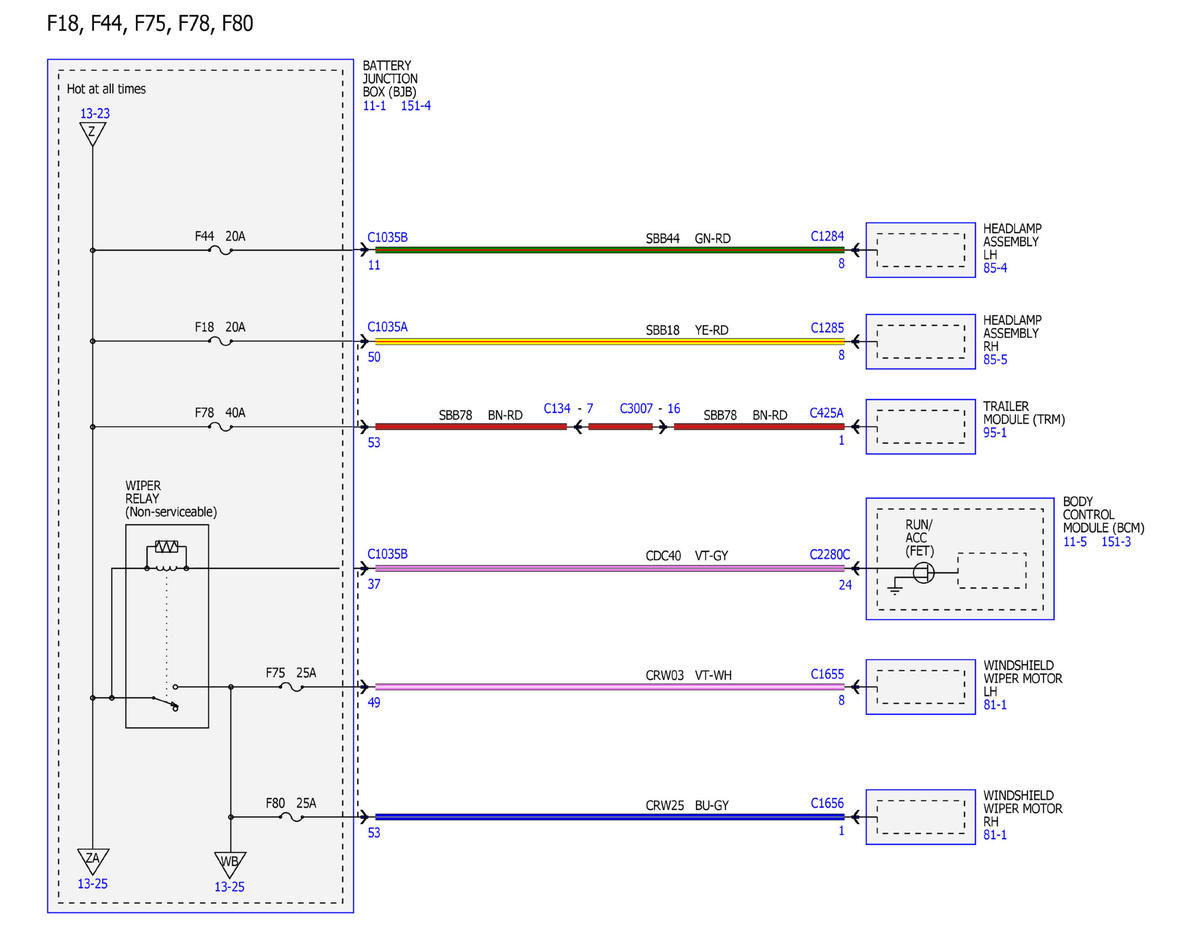

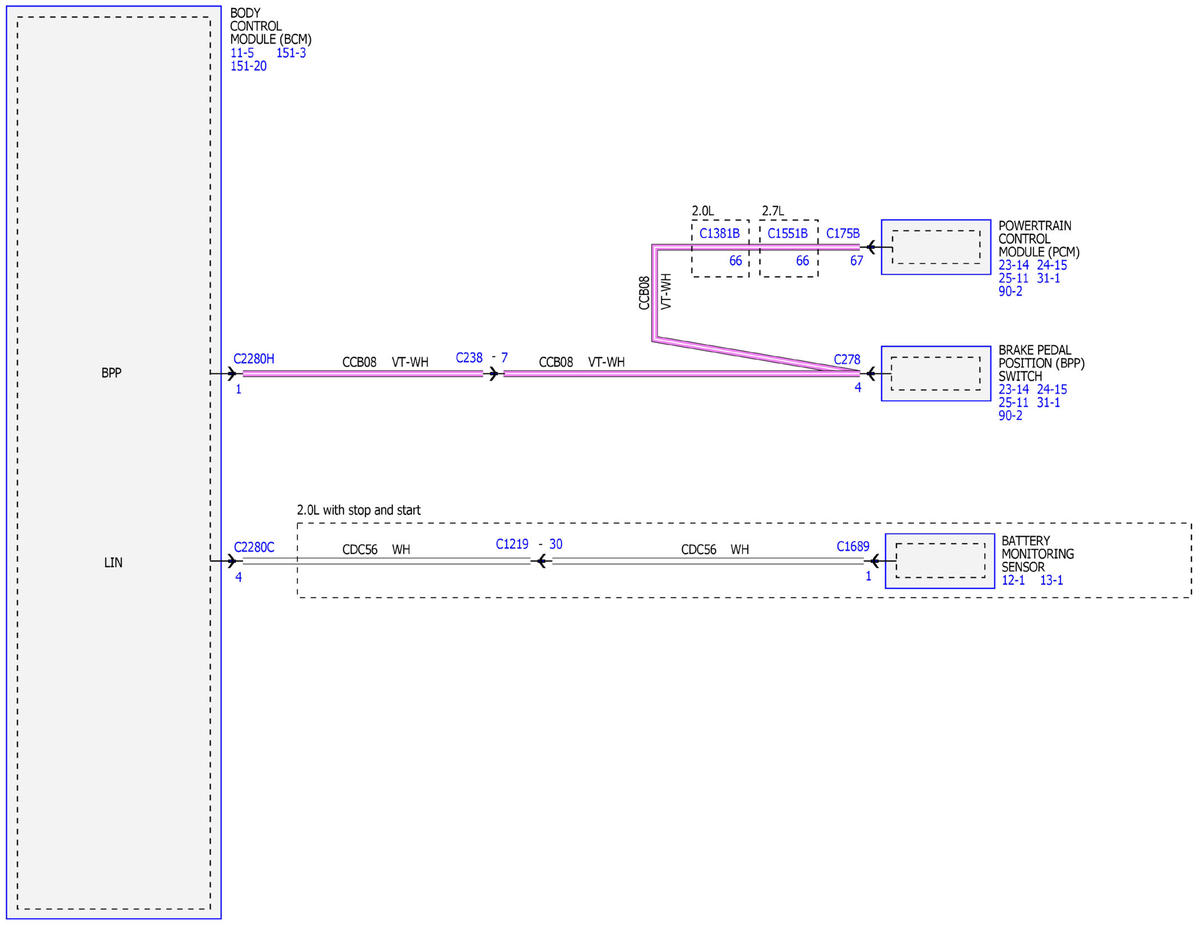

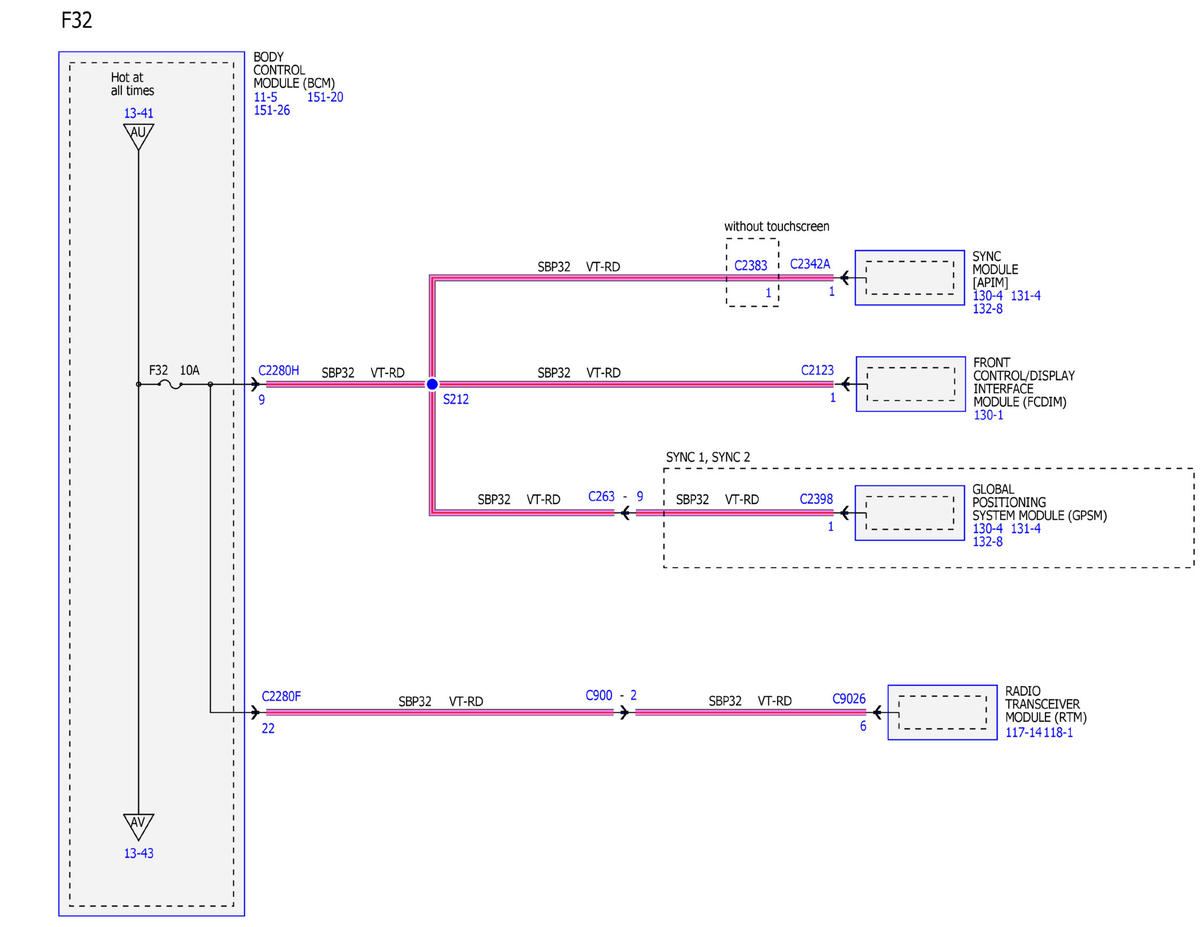

Fig 7: Power Distribution Wiring Diagrams (7 of 50)
Courtesy of FORD MOTOR COMPANY

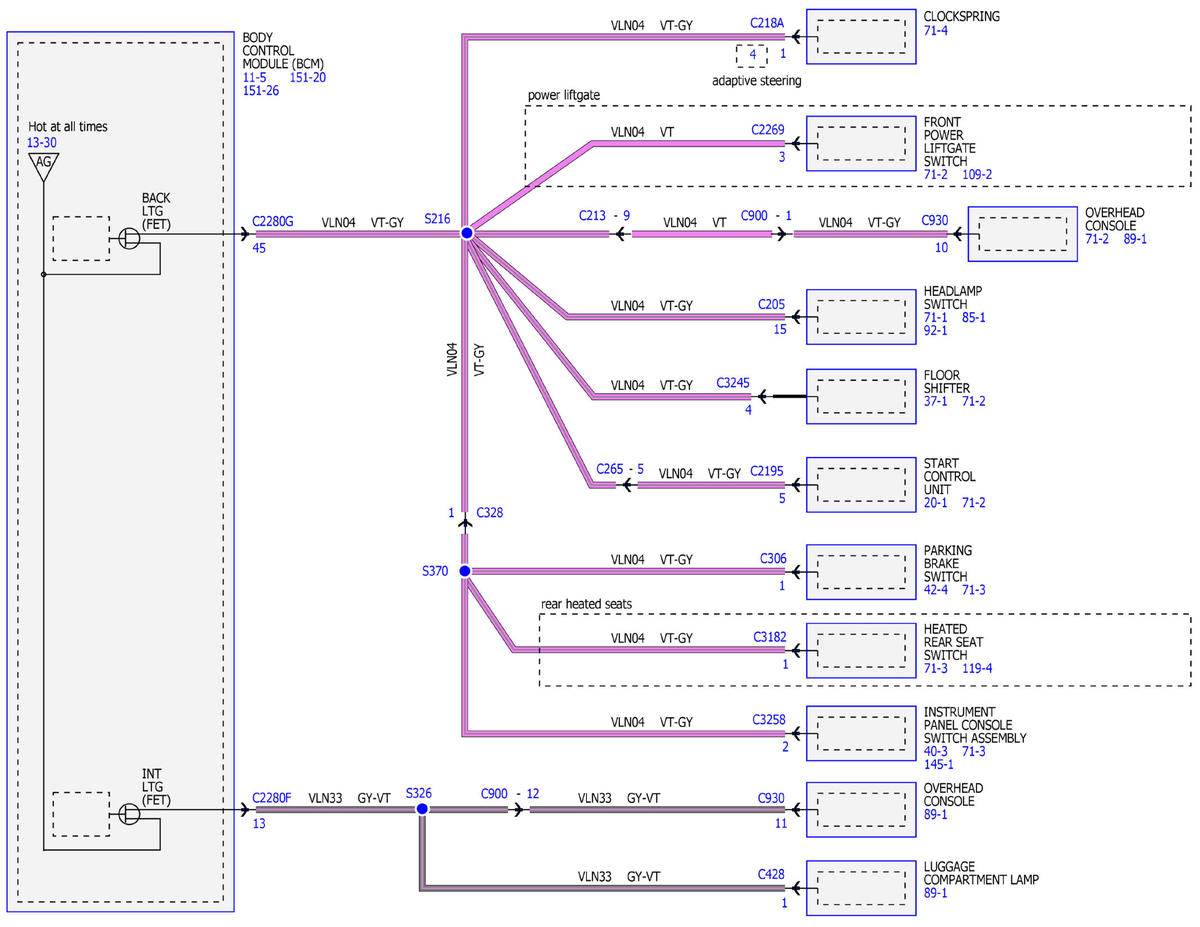

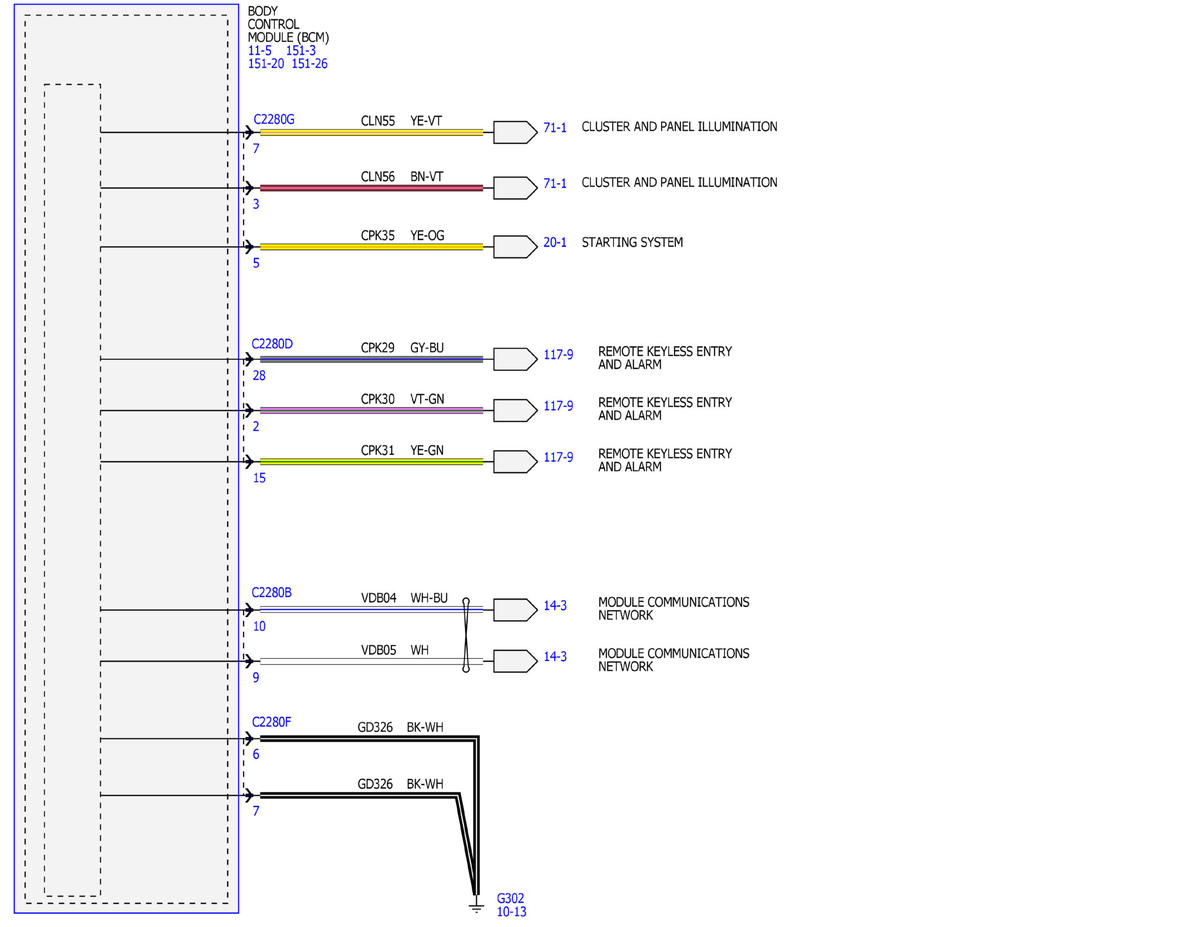

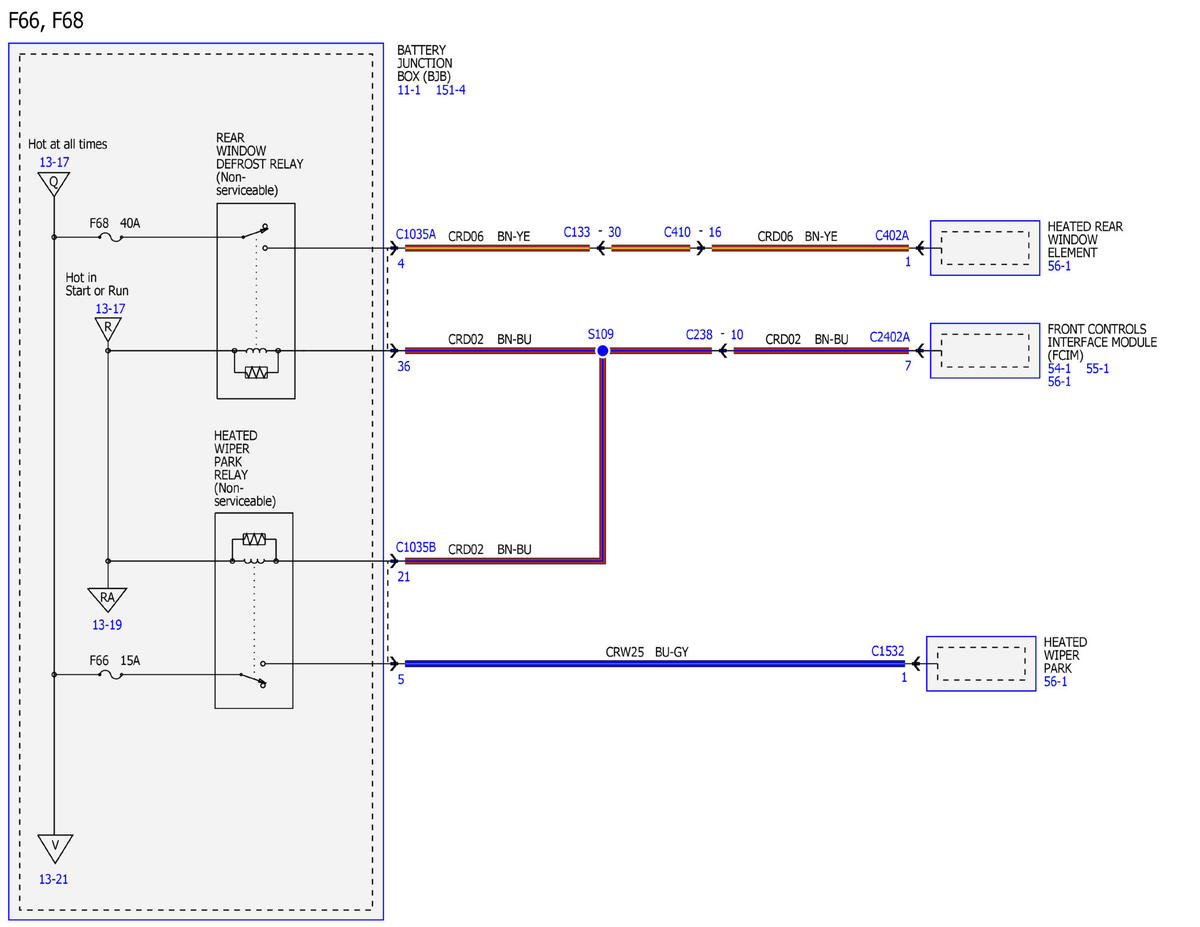

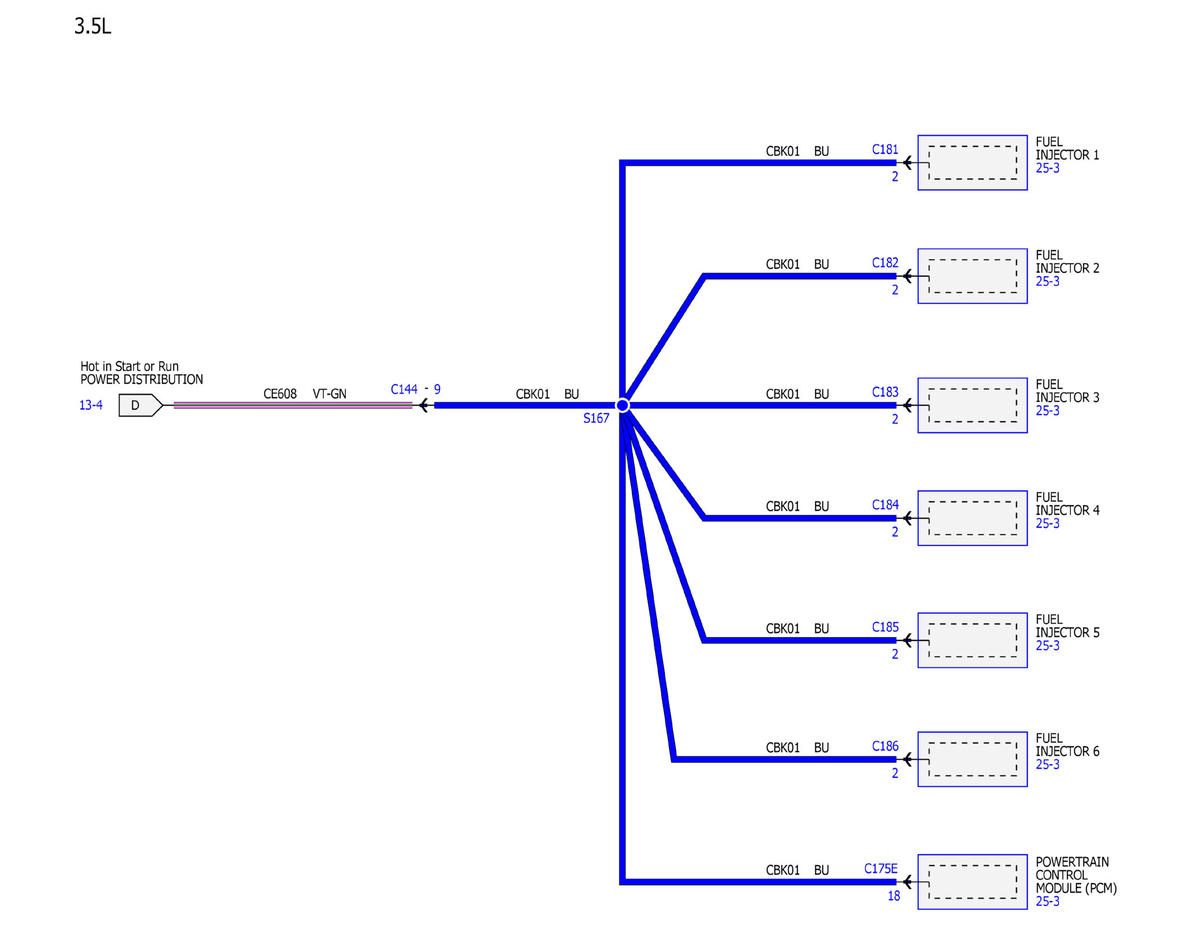

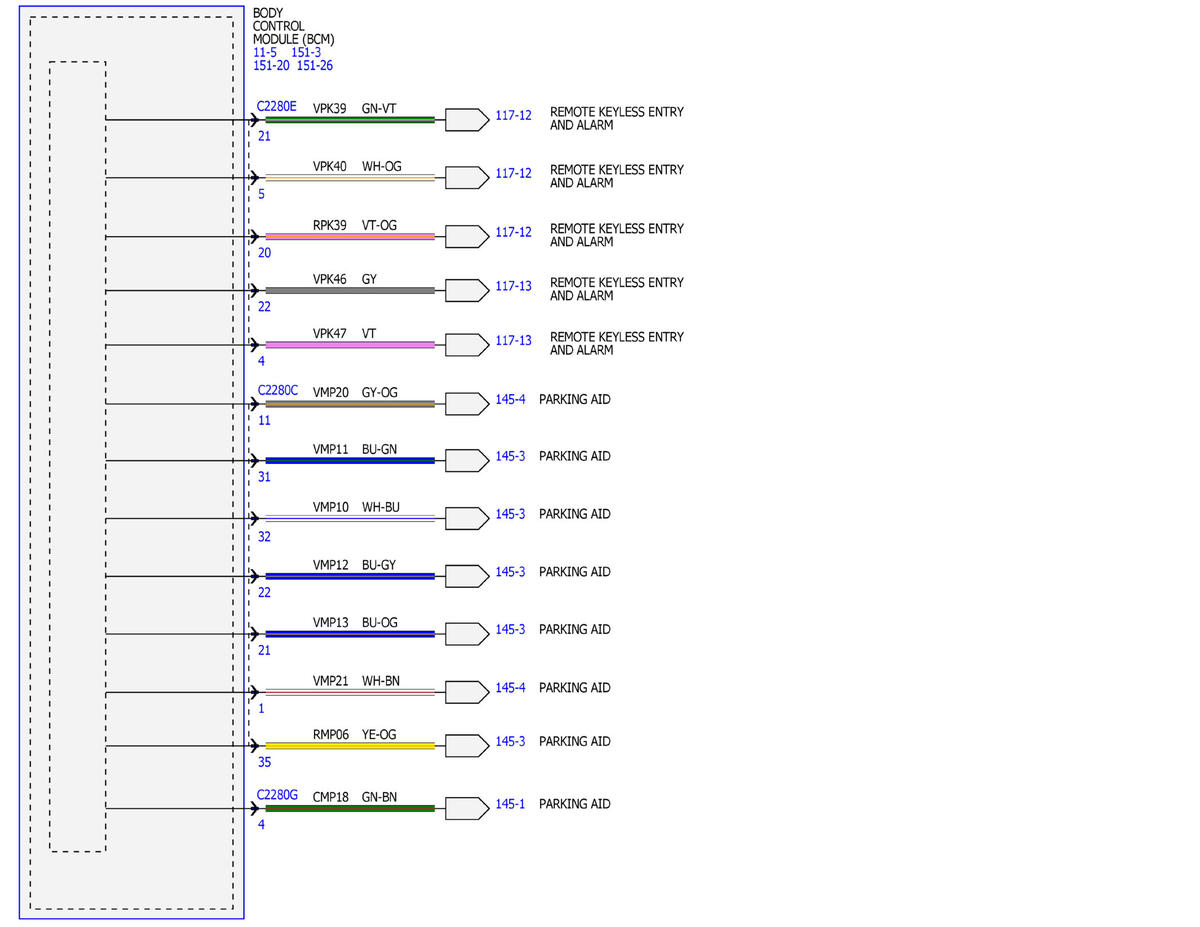

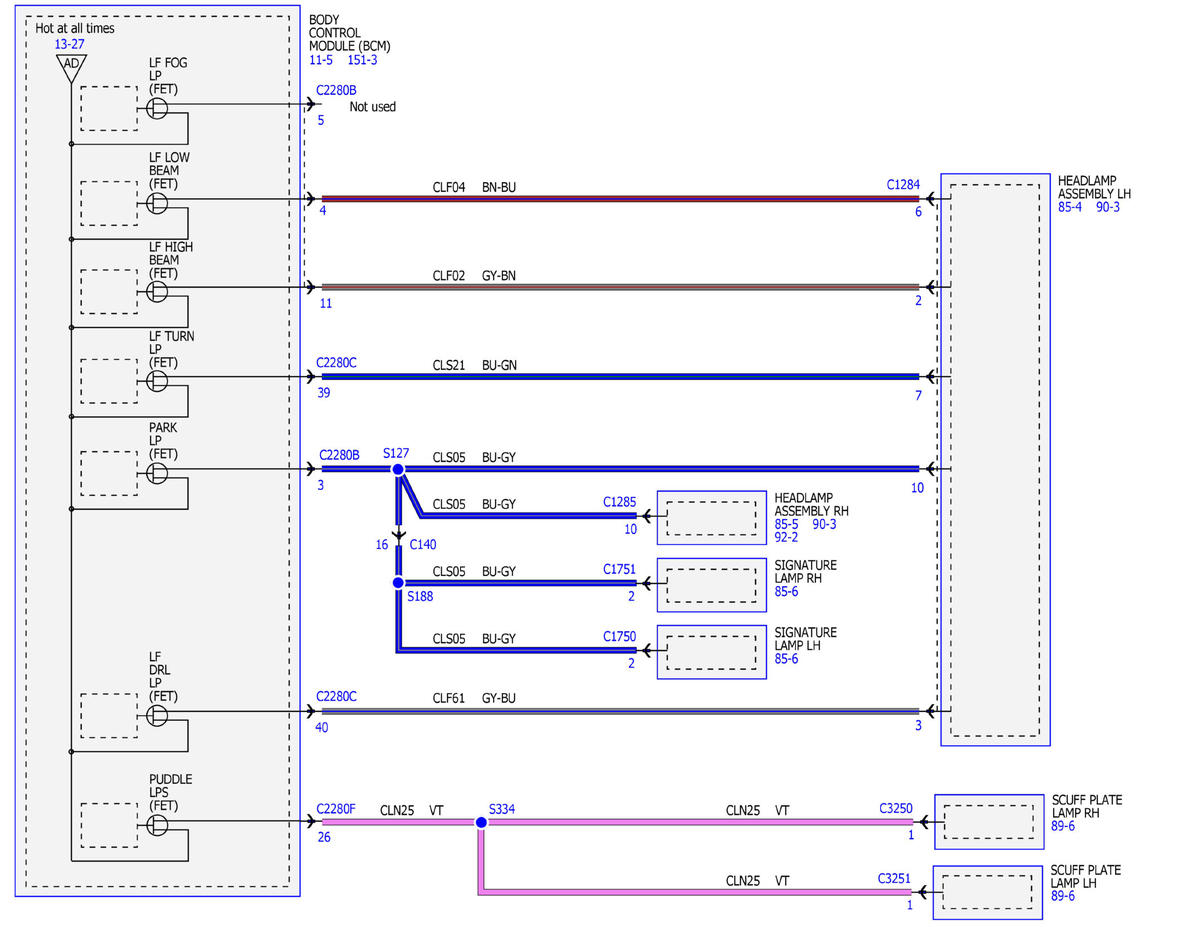

Fig 8: Power Distribution Wiring Diagrams (8 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution Wiring Diagrams (9 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution Wiring Diagrams (10 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution Wiring Diagrams (11 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution Wiring Diagrams (12 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution Wiring Diagrams (13 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution Wiring Diagrams (14 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution Wiring Diagrams (15 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution Wiring Diagrams (16 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution Wiring Diagrams (17 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution Wiring Diagrams (18 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution Wiring Diagrams (19 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution Wiring Diagrams (20 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution Wiring Diagrams (21 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution Wiring Diagrams (22 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution Wiring Diagrams (23 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution Wiring Diagrams (24 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution Wiring Diagrams (25 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution Wiring Diagrams (26 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution Wiring Diagrams (27 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution Wiring Diagrams (28 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution Wiring Diagrams (29 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution Wiring Diagrams (30 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution Wiring Diagrams (31 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution Wiring Diagrams (32 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution Wiring Diagrams (33 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution Wiring Diagrams (34 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution Wiring Diagrams (35 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution Wiring Diagrams (36 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution Wiring Diagrams (37 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution Wiring Diagrams (38 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution Wiring Diagrams (39 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution Wiring Diagrams (40 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution Wiring Diagrams (41 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution Wiring Diagrams (42 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution Wiring Diagrams (43 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution Wiring Diagrams (44 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 45: Power Distribution Wiring Diagrams (45 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 46: Power Distribution Wiring Diagrams (46 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 47: Power Distribution Wiring Diagrams (47 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 48: Power Distribution Wiring Diagrams (48 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 49: Power Distribution Wiring Diagrams (49 of 50)
Courtesy of FORD MOTOR COMPANY
Fig 50: Power Distribution Wiring Diagrams (50 of 50)
Courtesy of FORD MOTOR COMPANY
