Memory Seats

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

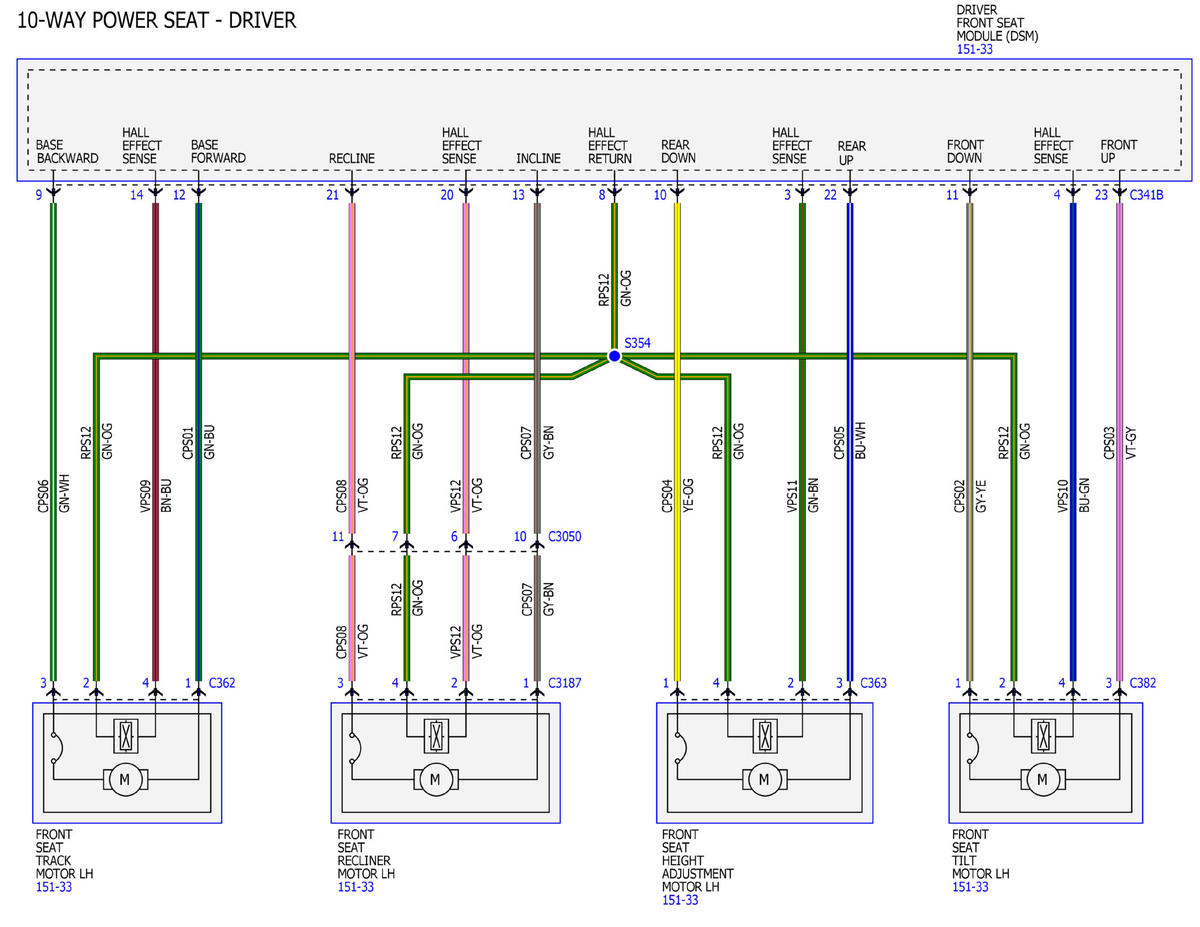

Fig 1: Memory Seats Wiring Diagrams (1 of 5)

Courtesy of FORD MOTOR COMPANY

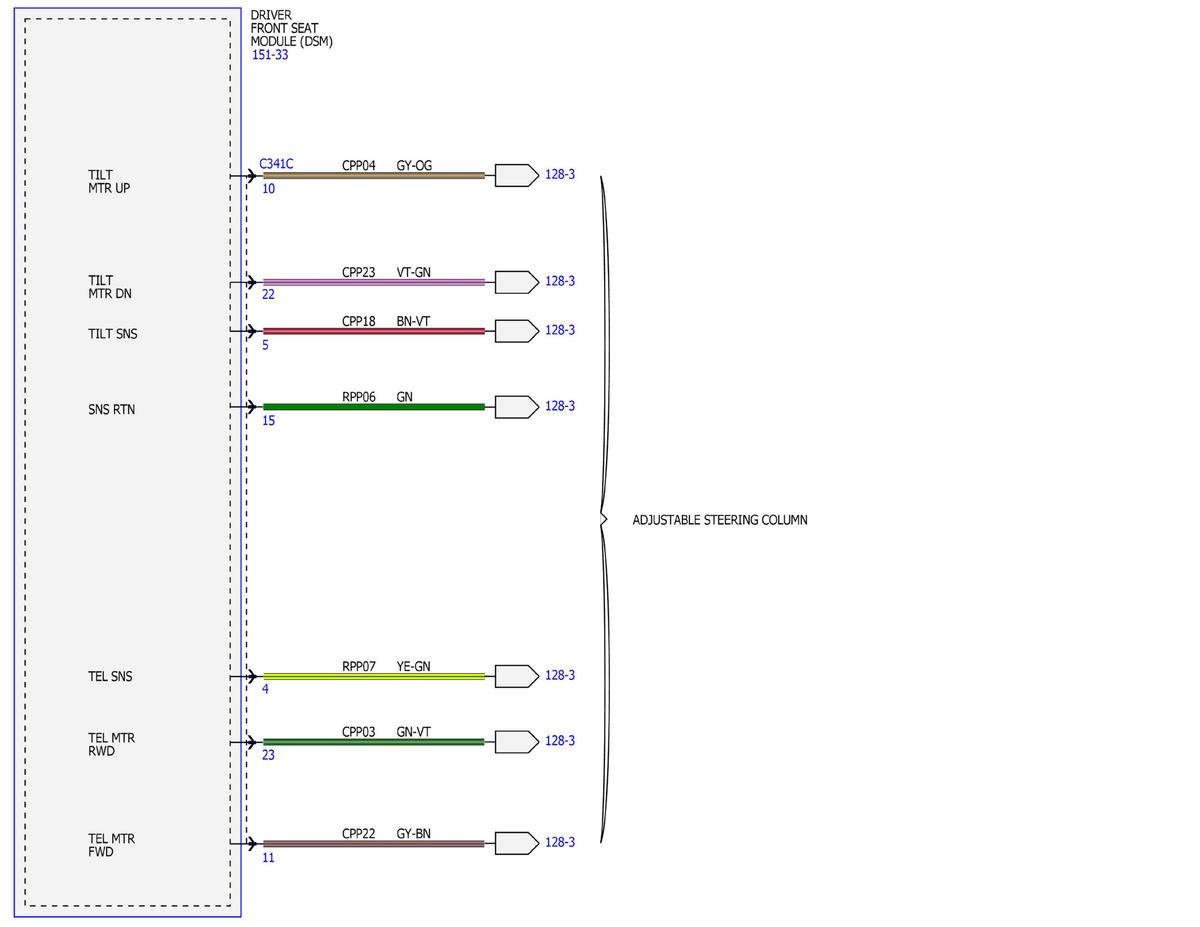

Fig 2: Memory Seats Wiring Diagrams (2 of 5)

Courtesy of FORD MOTOR COMPANY

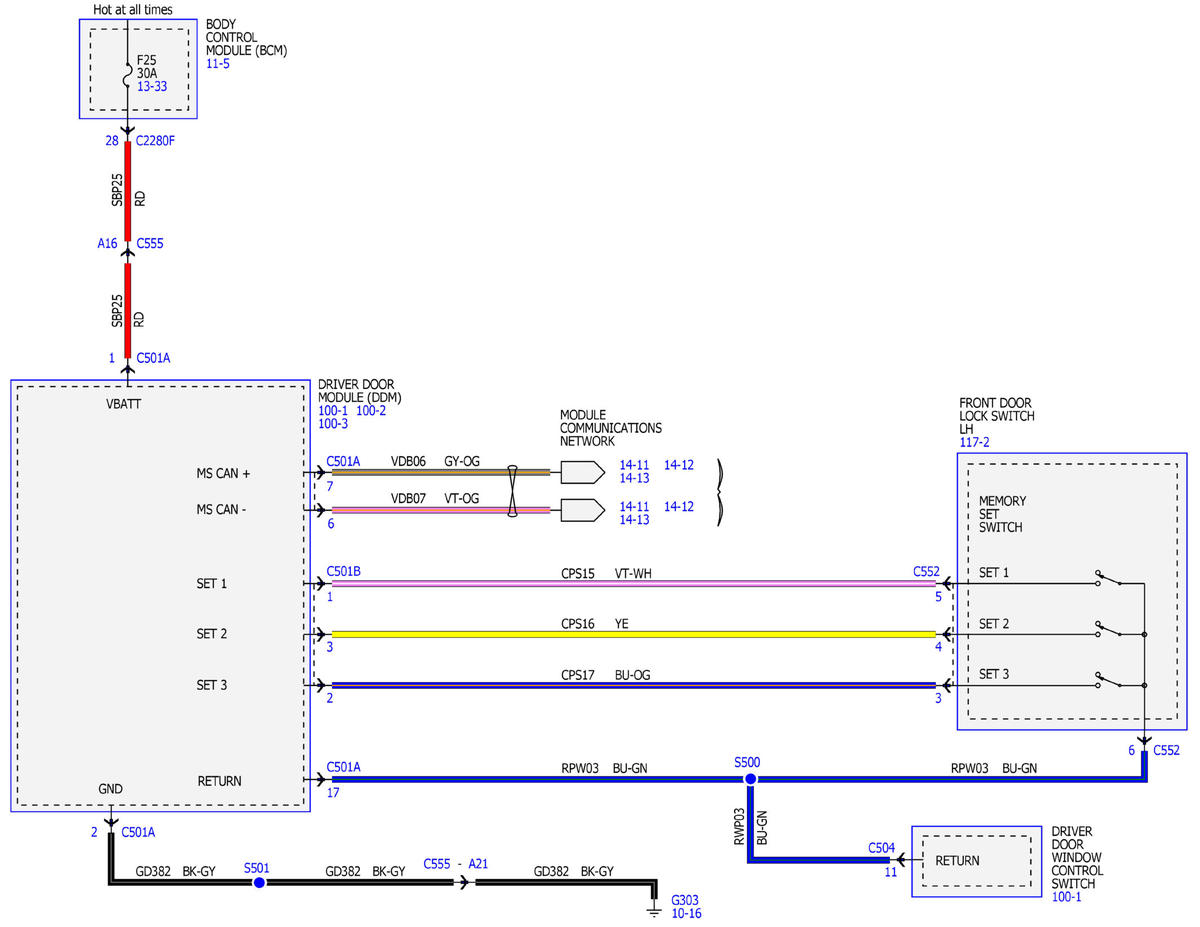

Fig 3: Memory Seats Wiring Diagrams (3 of 5)

Courtesy of FORD MOTOR COMPANY

Fig 4: Memory Seats Wiring Diagrams (4 of 5)

Courtesy of FORD MOTOR COMPANY

Fig 5: Memory Seats Wiring Diagrams (5 of 5)

Courtesy of FORD MOTOR COMPANY
