Manual Climate Control System

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

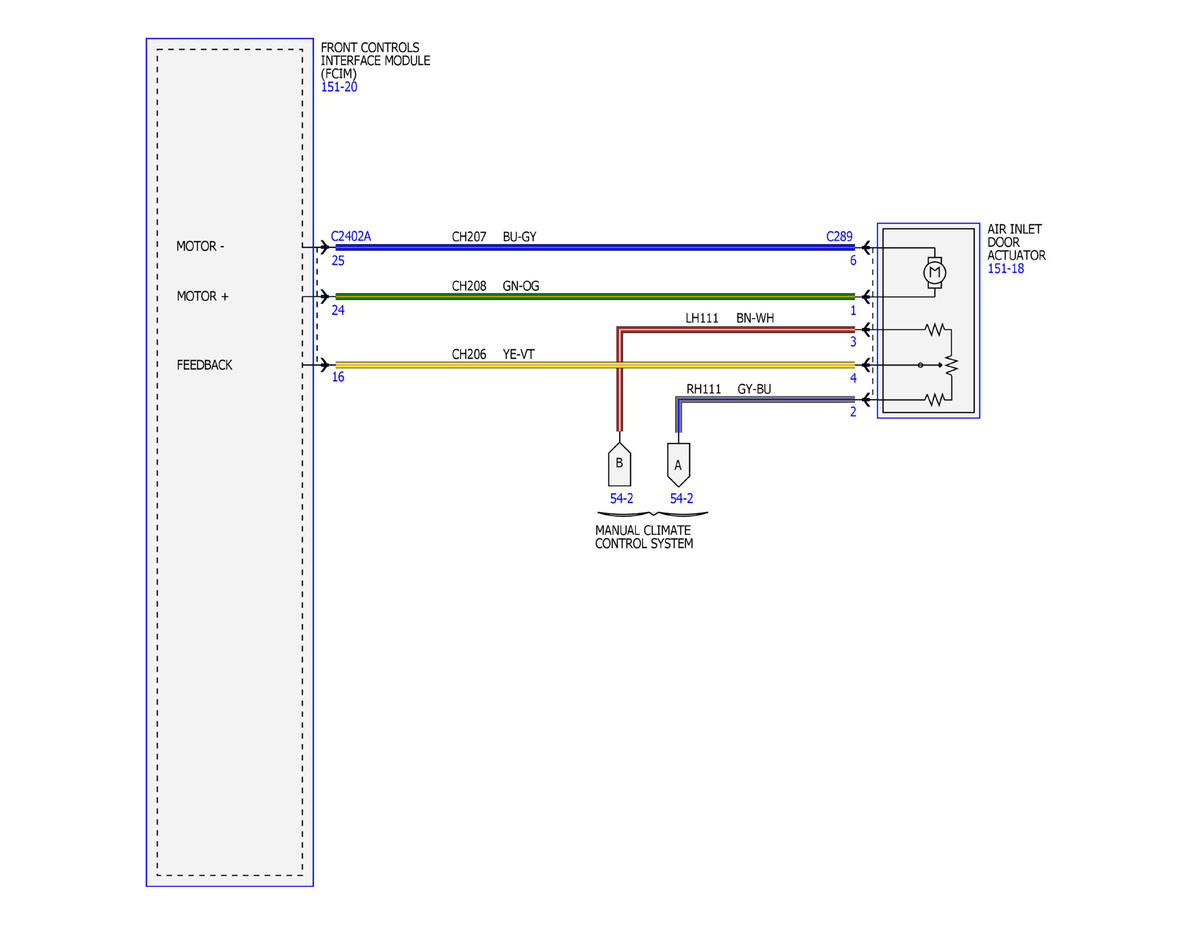

Fig 1: Manual Climate Control System Wiring Diagrams (1 of 7)

Courtesy of FORD MOTOR COMPANY

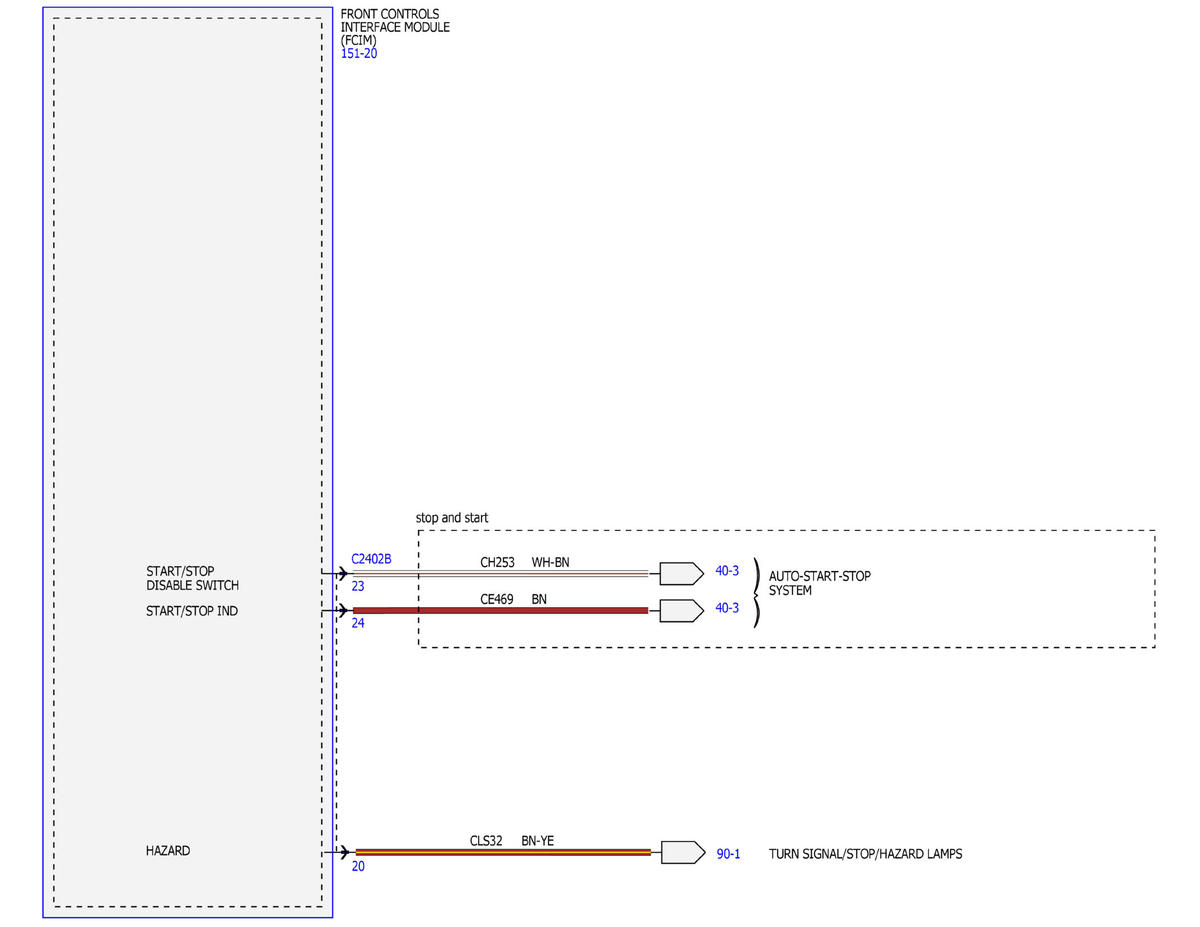

Fig 2: Manual Climate Control System Wiring Diagrams (2 of 7)

Courtesy of FORD MOTOR COMPANY

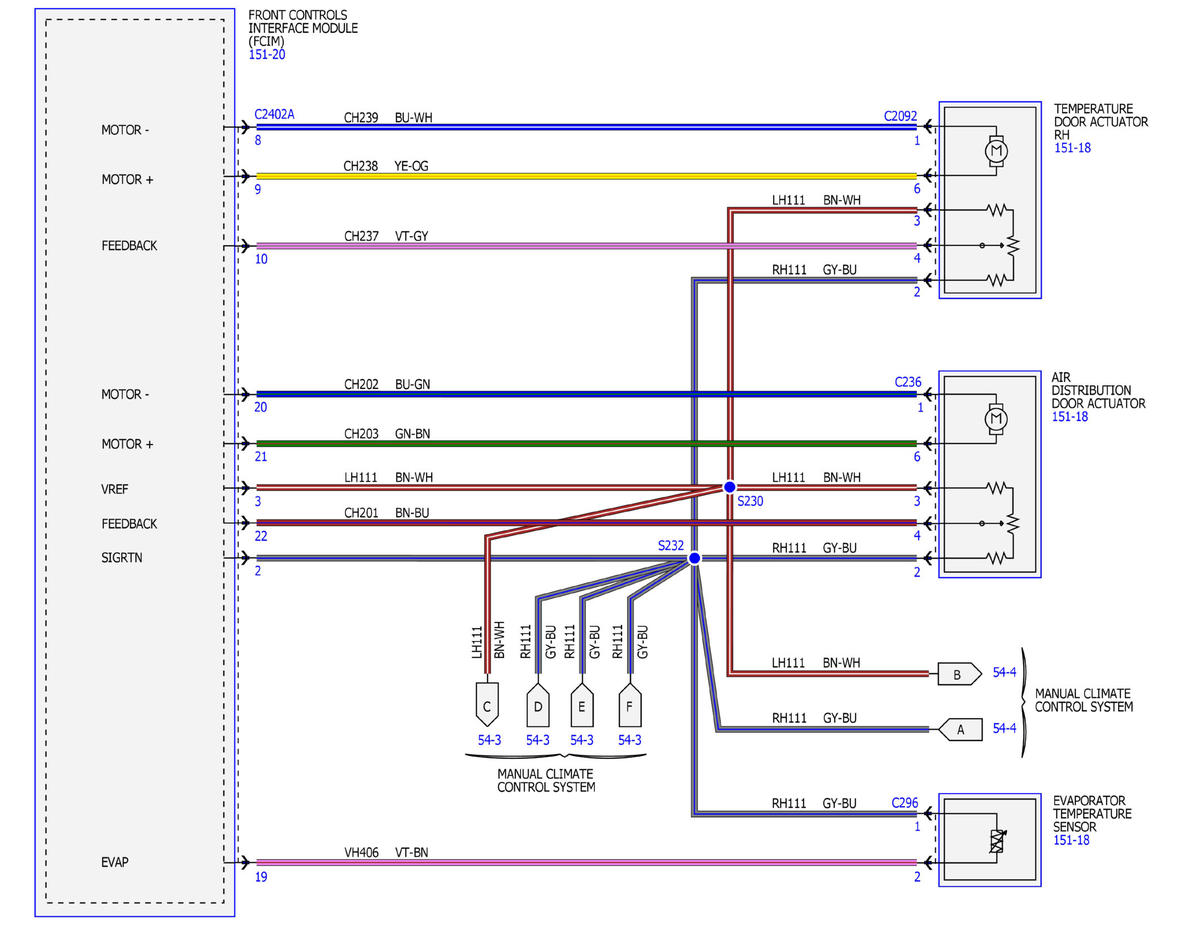

Fig 3: Manual Climate Control System Wiring Diagrams (3 of 7)

Courtesy of FORD MOTOR COMPANY

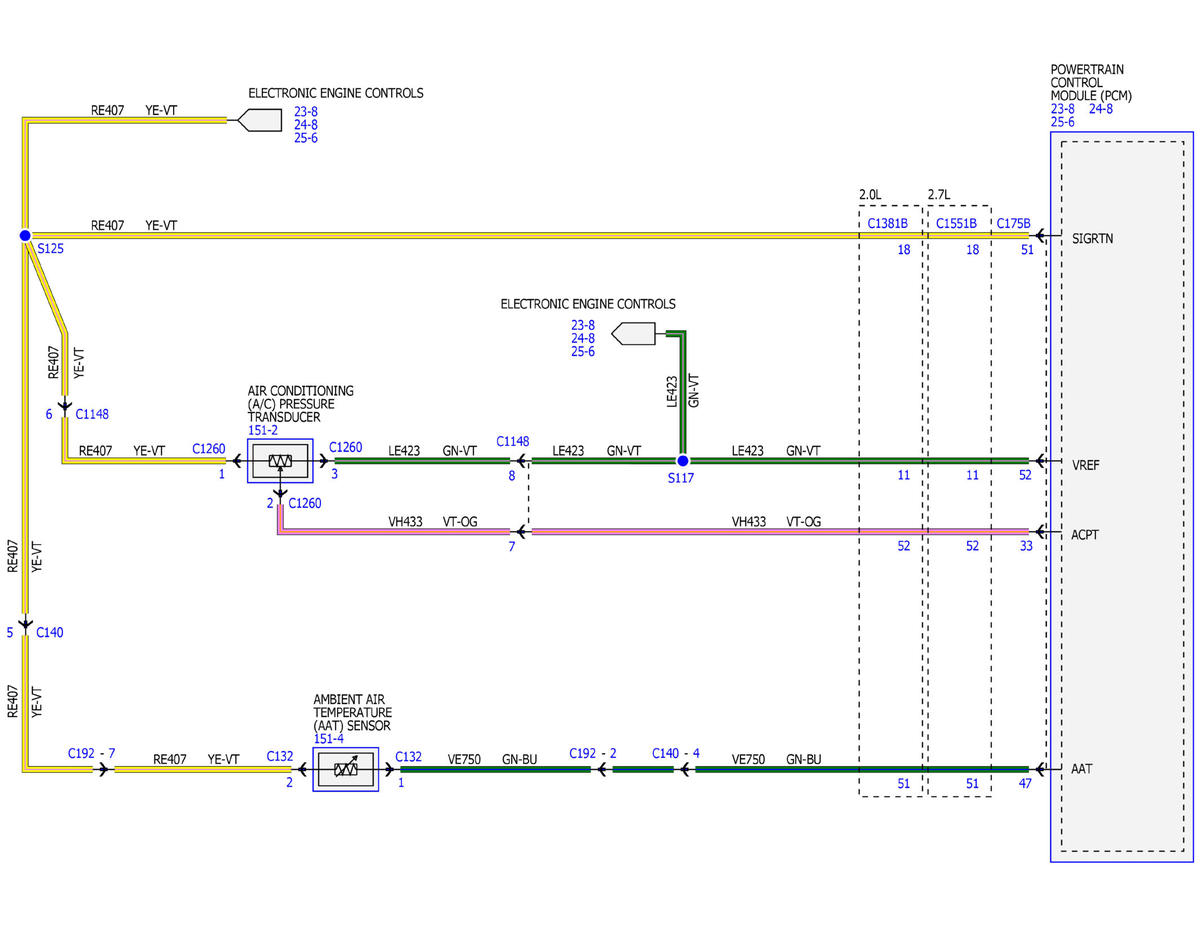

Fig 4: Manual Climate Control System Wiring Diagrams (4 of 7)

Courtesy of FORD MOTOR COMPANY

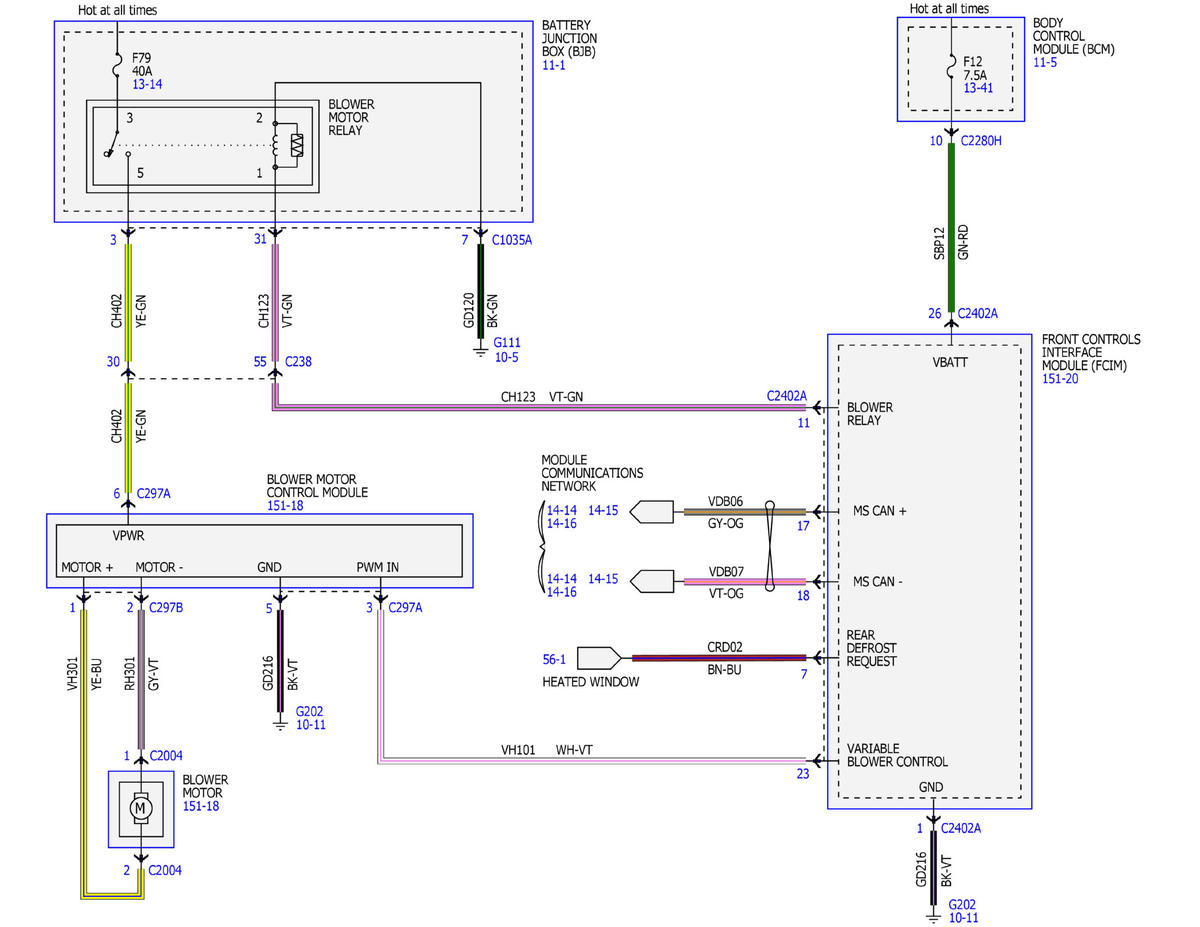

Fig 5: Manual Climate Control System Wiring Diagrams (5 of 7)

Courtesy of FORD MOTOR COMPANY

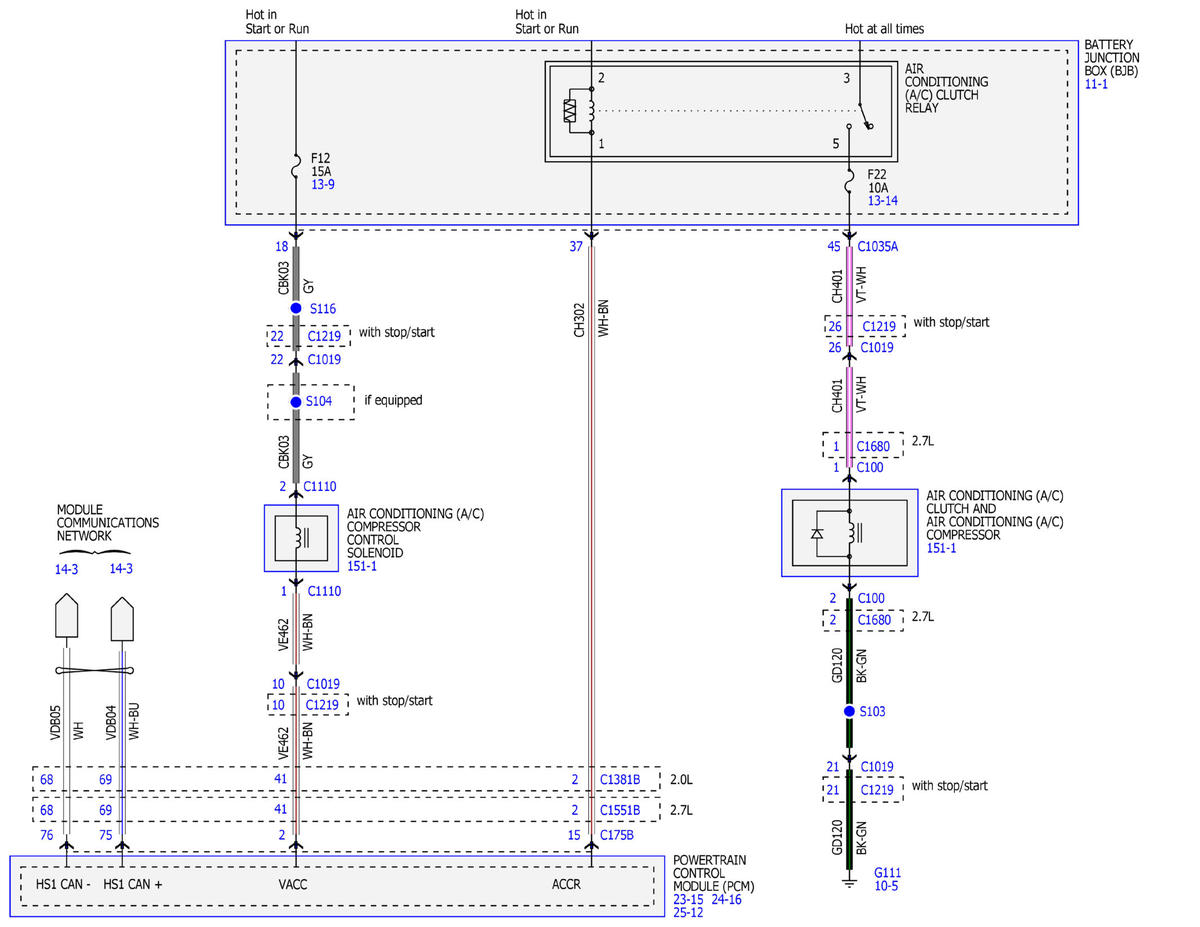

Fig 6: Manual Climate Control System Wiring Diagrams (6 of 7)

Courtesy of FORD MOTOR COMPANY

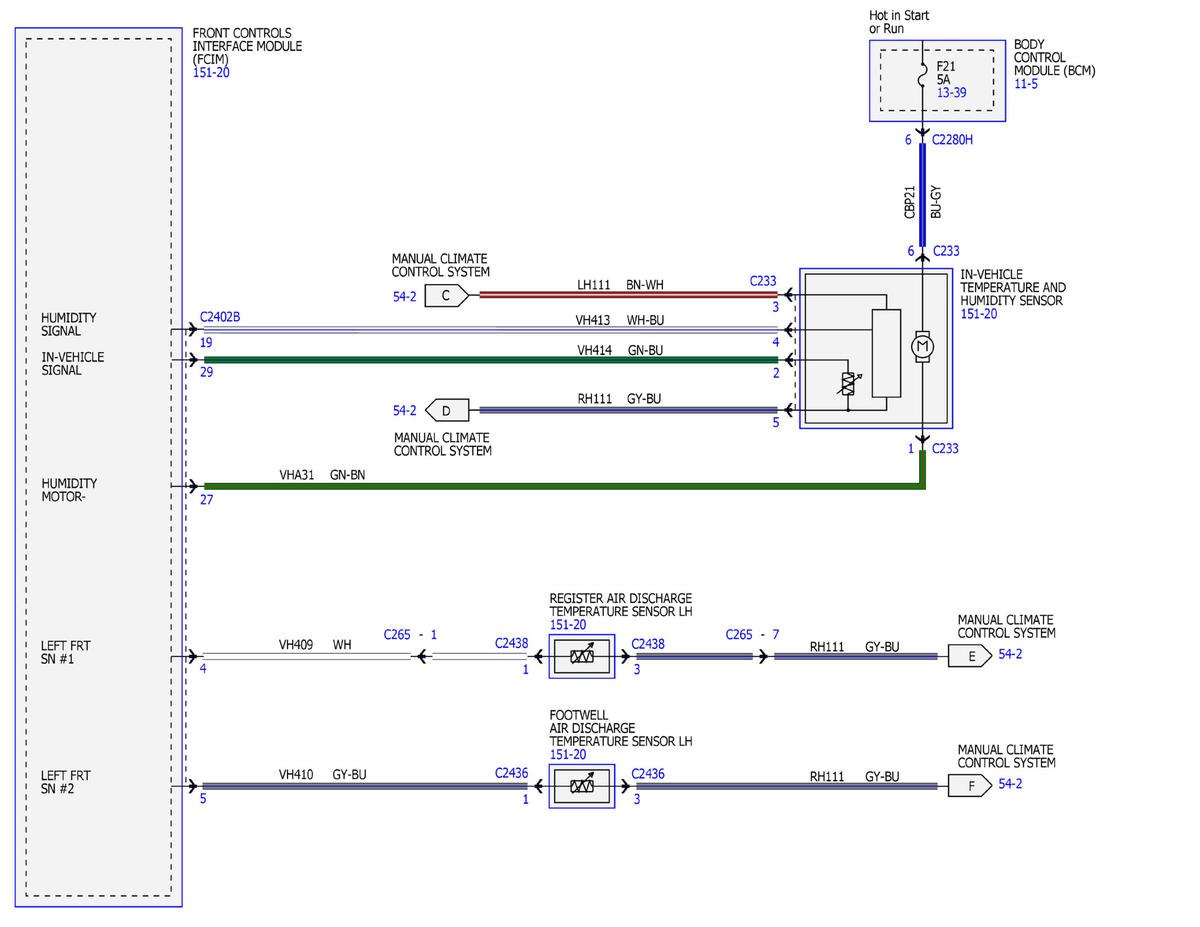

Fig 7: Manual Climate Control System Wiring Diagrams (7 of 7)

Courtesy of FORD MOTOR COMPANY
