Interior Lamps

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

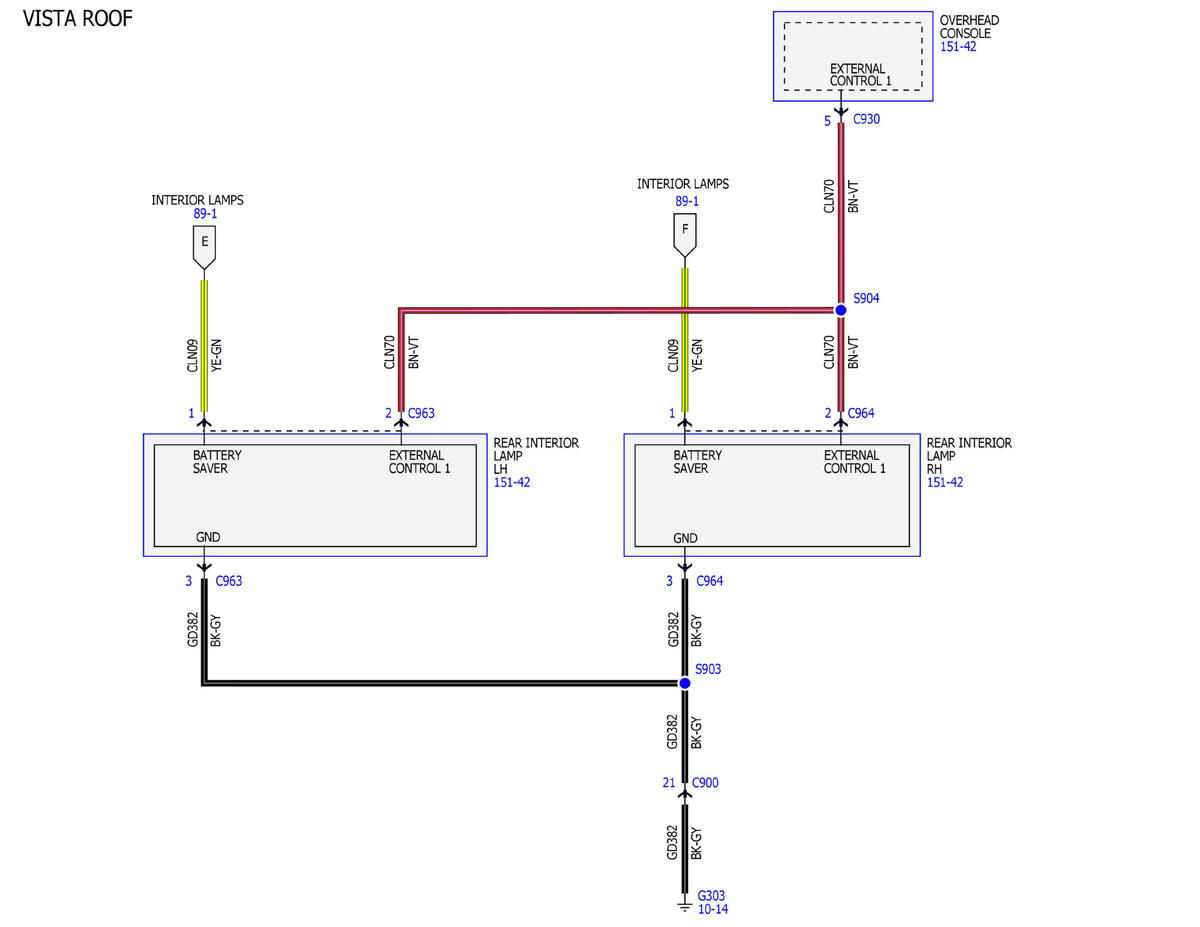

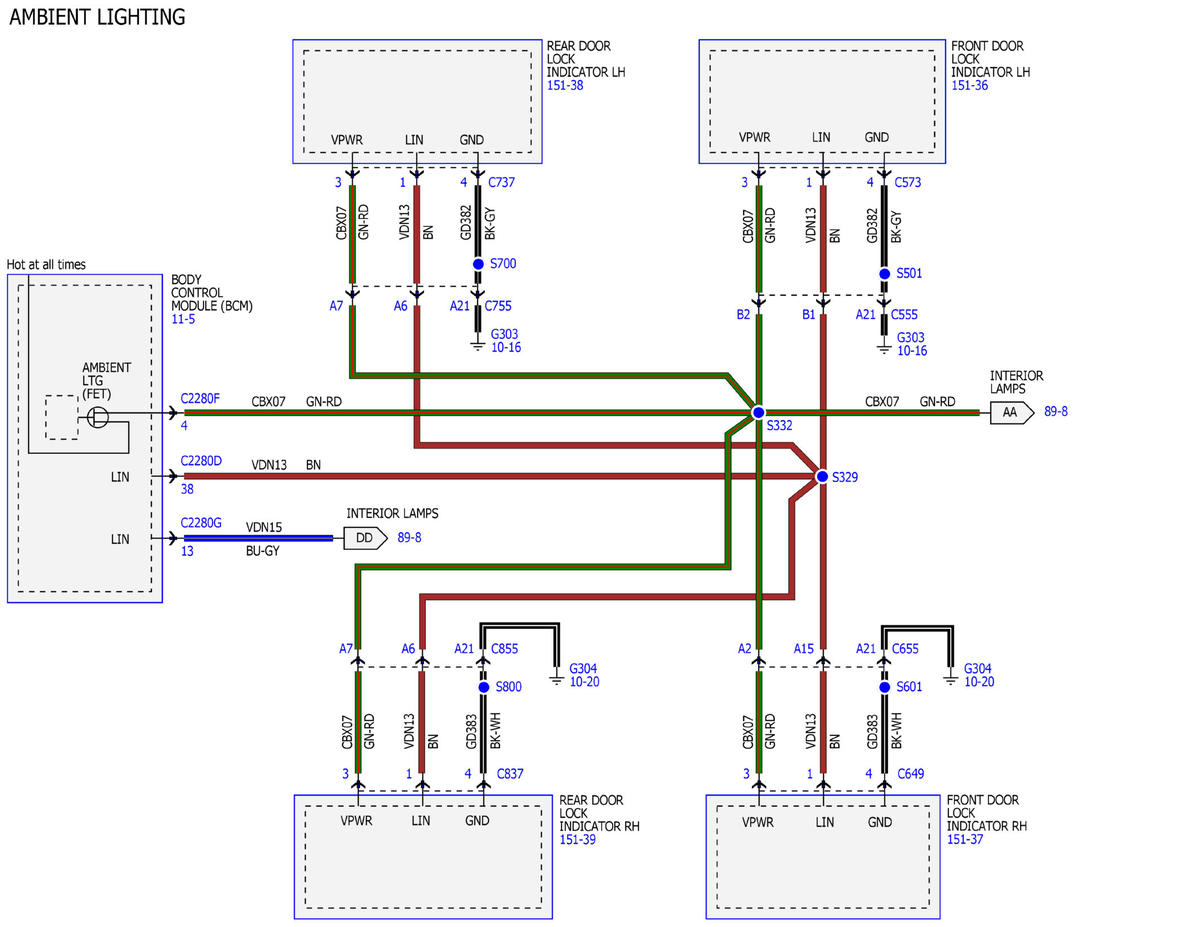

Fig 1: Interior Lamps Wiring Diagrams (1 of 9)

Courtesy of FORD MOTOR COMPANY

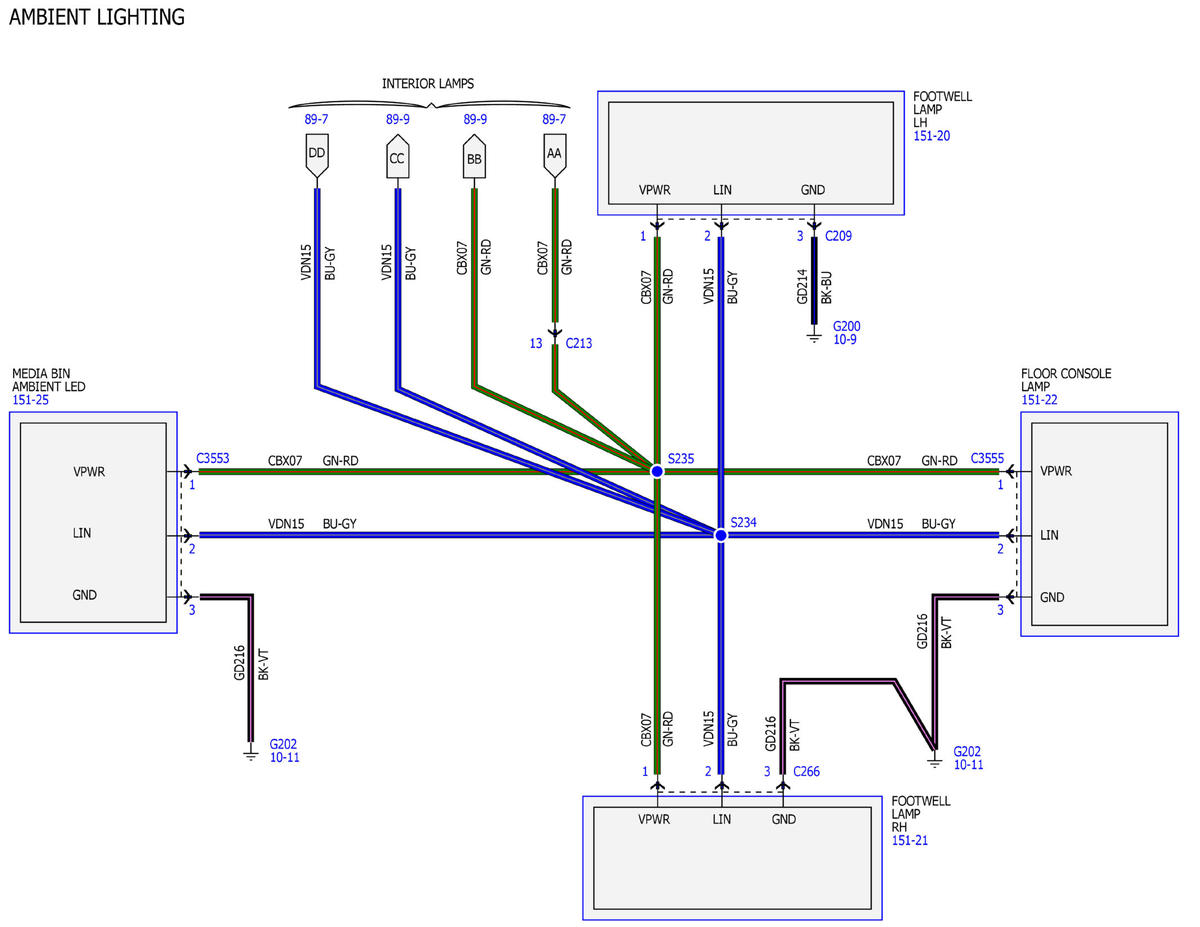

Fig 2: Interior Lamps Wiring Diagrams (2 of 9)

Courtesy of FORD MOTOR COMPANY

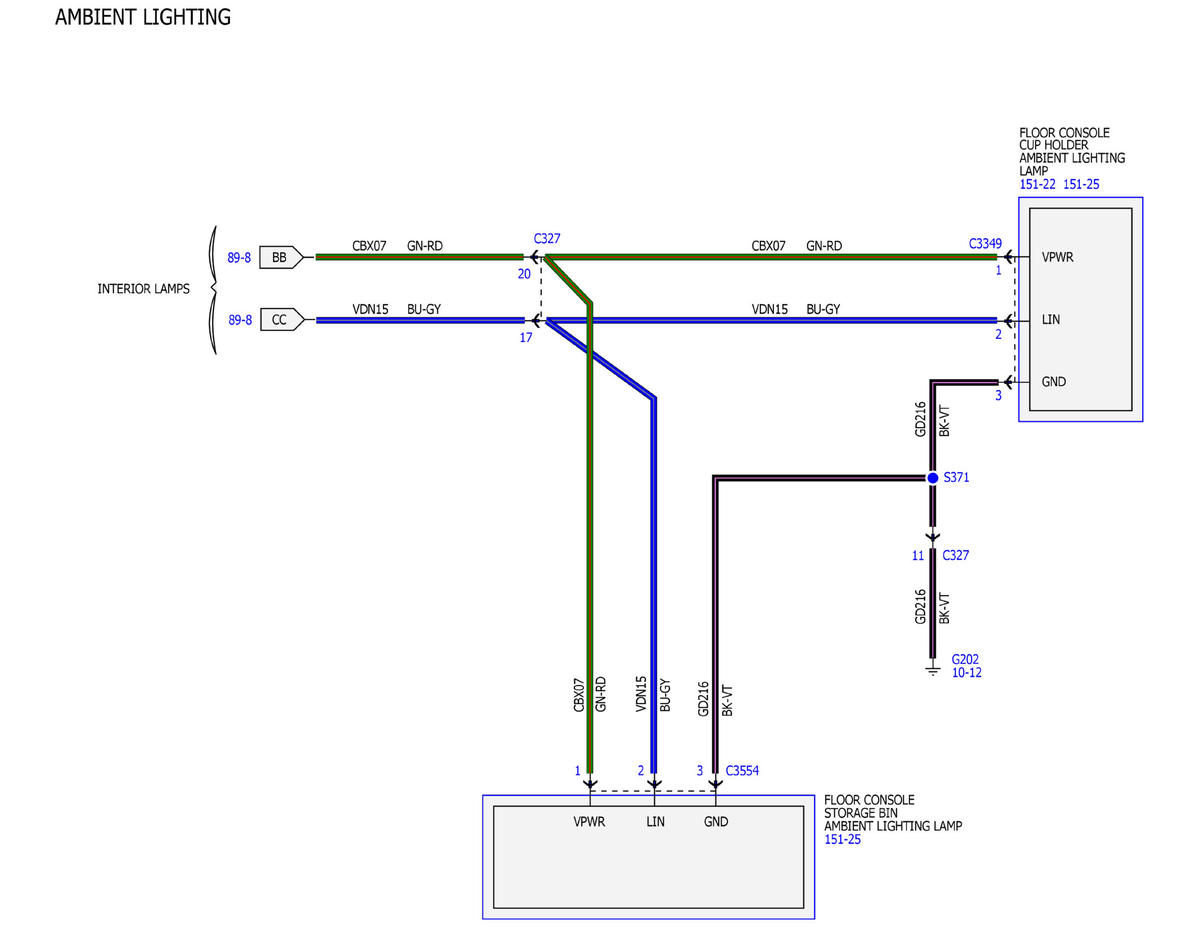

Fig 3: Interior Lamps Wiring Diagrams (3 of 9)

Courtesy of FORD MOTOR COMPANY

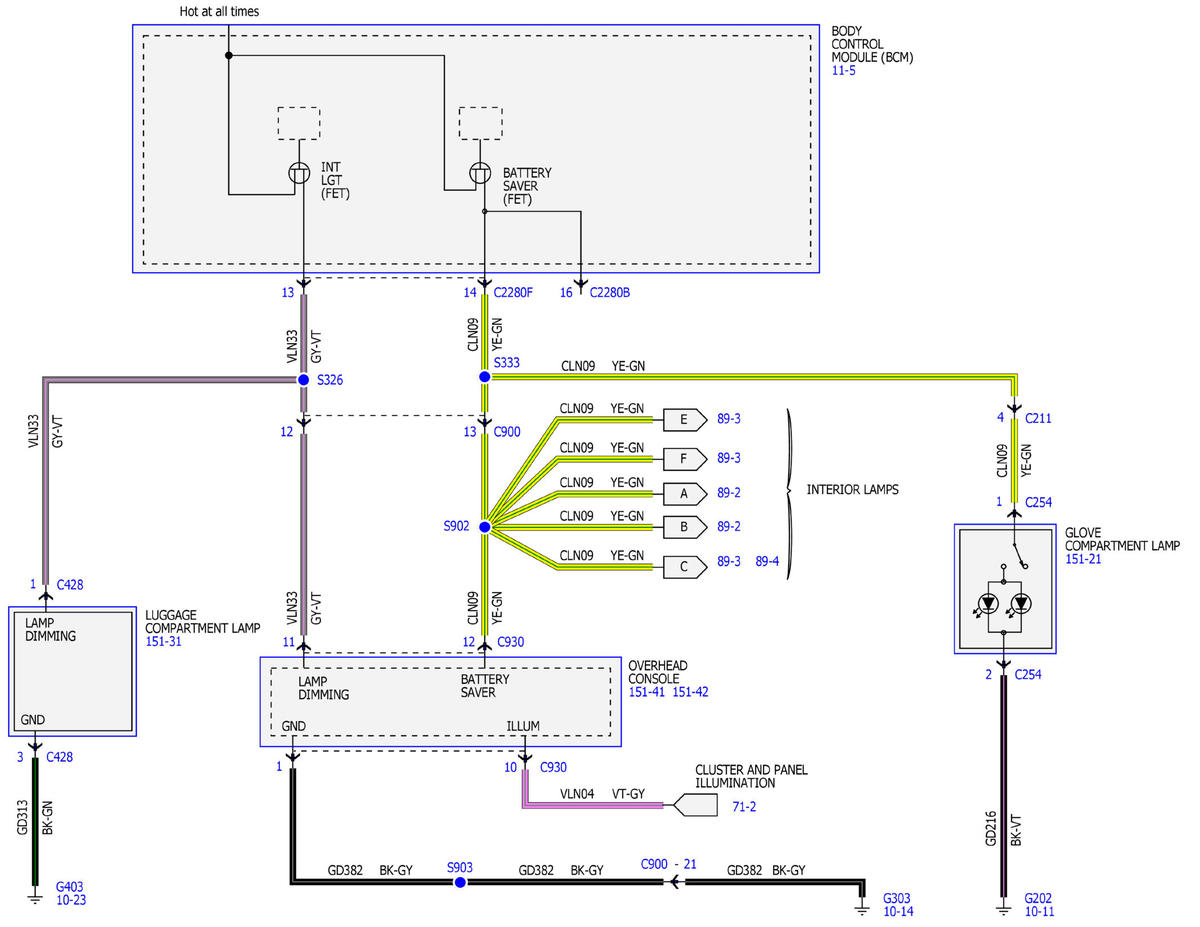

Fig 4: Interior Lamps Wiring Diagrams (4 of 9)

Courtesy of FORD MOTOR COMPANY

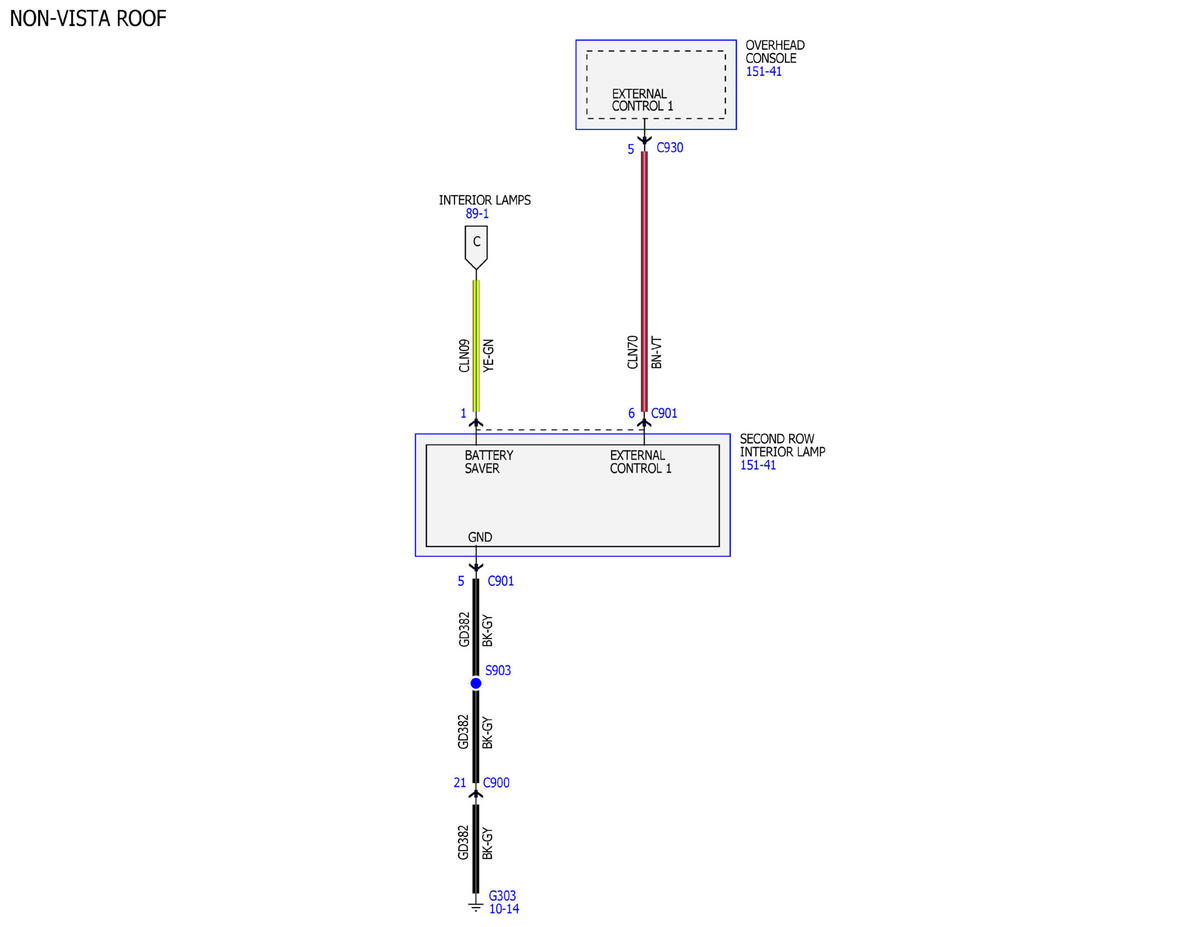

Fig 5: Interior Lamps Wiring Diagrams (5 of 9)

Courtesy of FORD MOTOR COMPANY

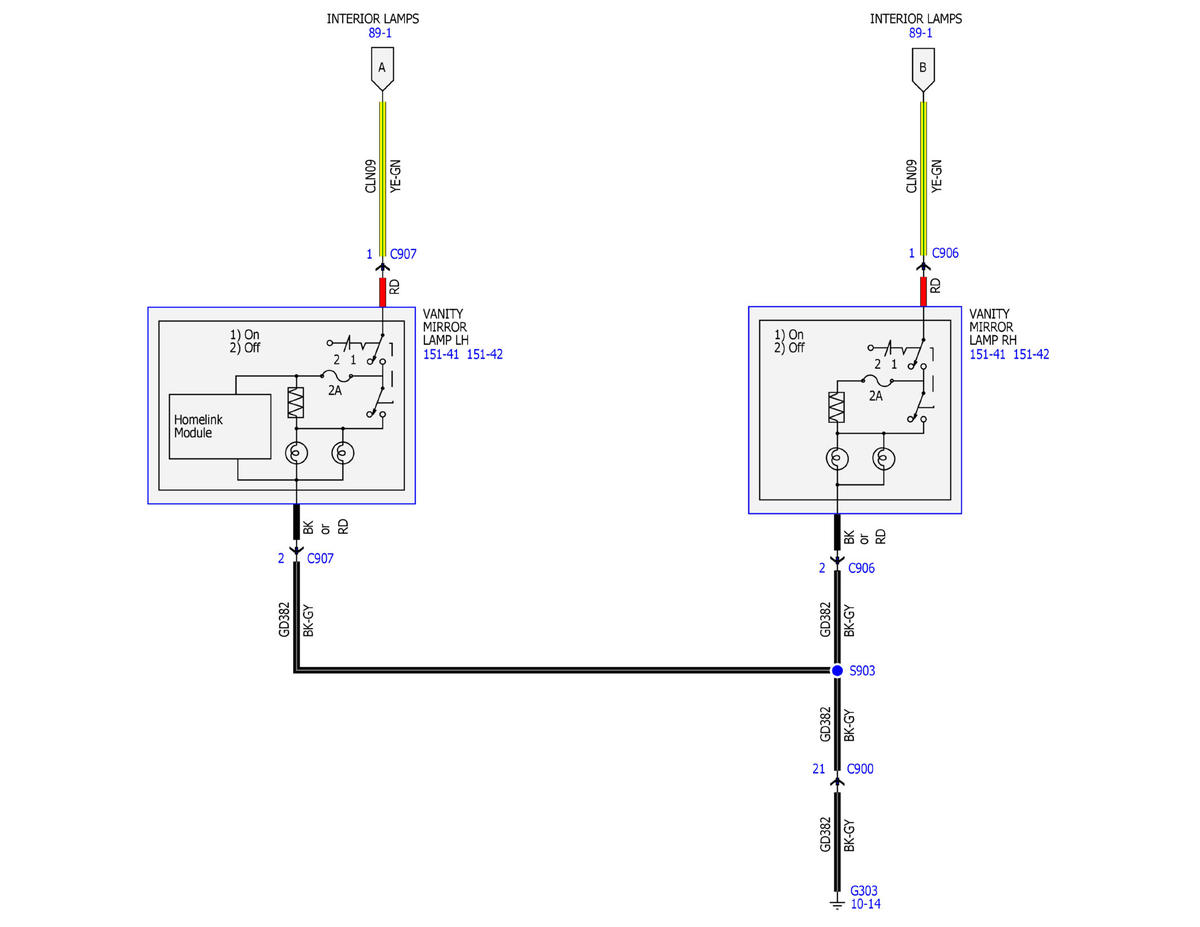

Fig 6: Interior Lamps Wiring Diagrams (6 of 9)

Courtesy of FORD MOTOR COMPANY

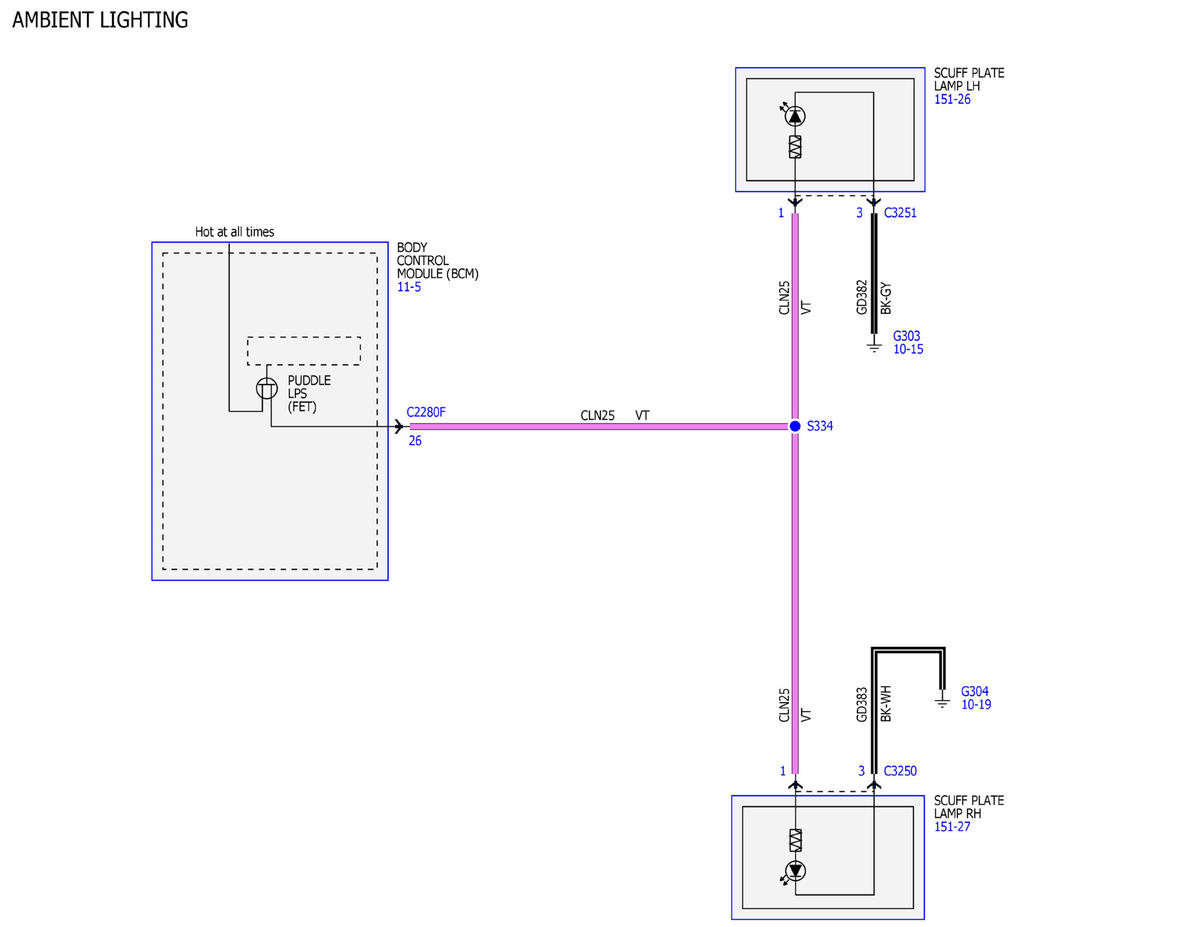

Fig 7: Interior Lamps Wiring Diagrams (7 of 9)

Courtesy of FORD MOTOR COMPANY

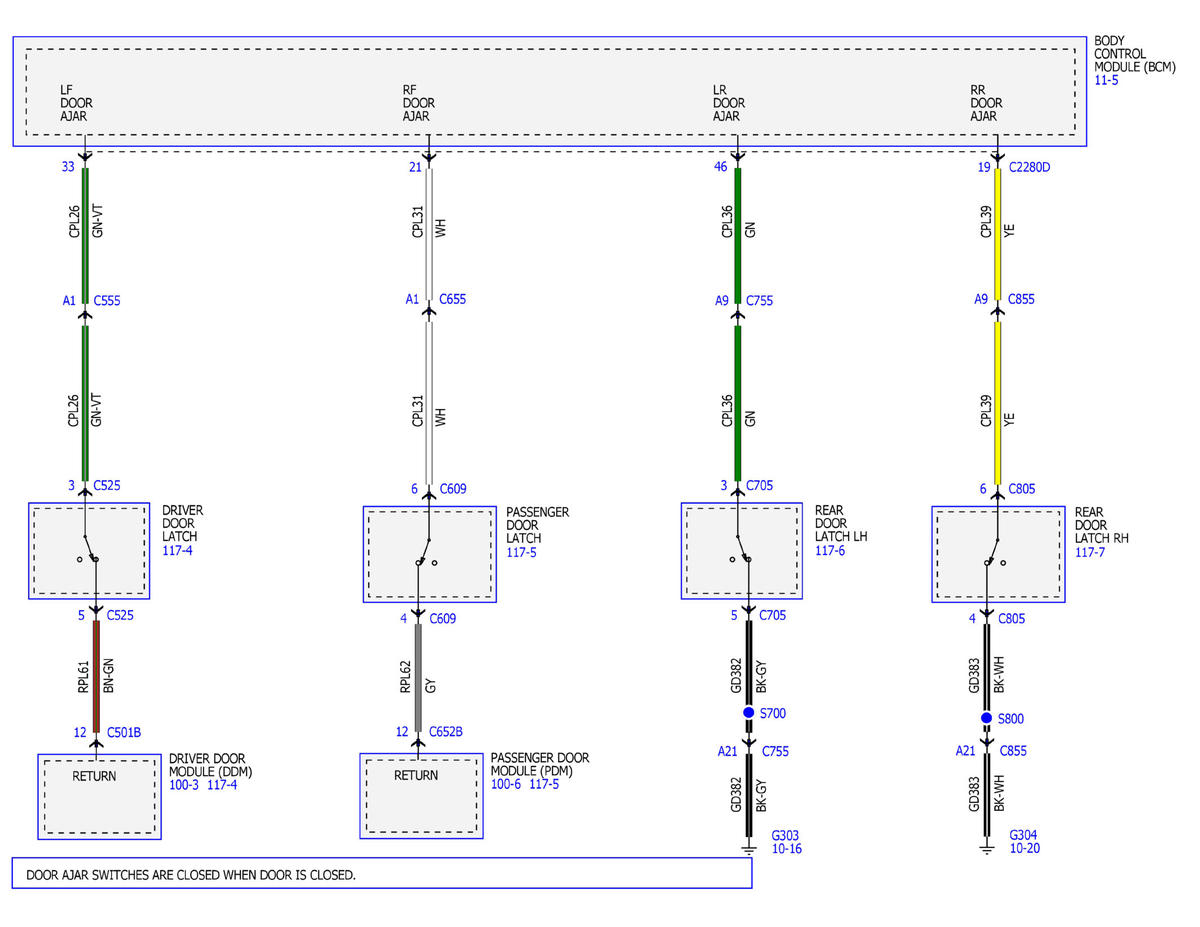

Fig 8: Interior Lamps Wiring Diagrams (8 of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Interior Lamps Wiring Diagrams (9 of 9)

Courtesy of FORD MOTOR COMPANY
