Instrument Cluster

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

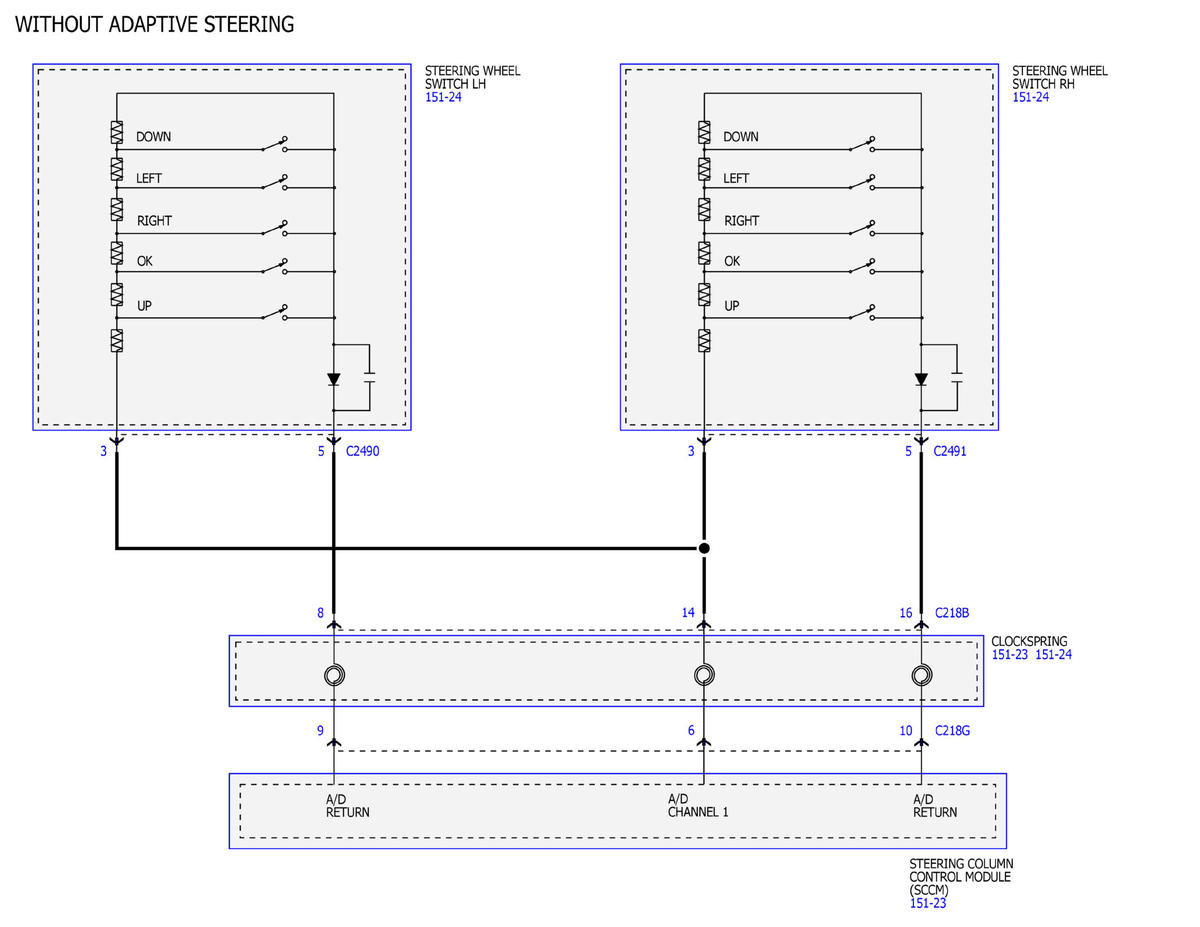

Fig 1: Instrument Cluster Wiring Diagrams (1 of 7)

Courtesy of FORD MOTOR COMPANY

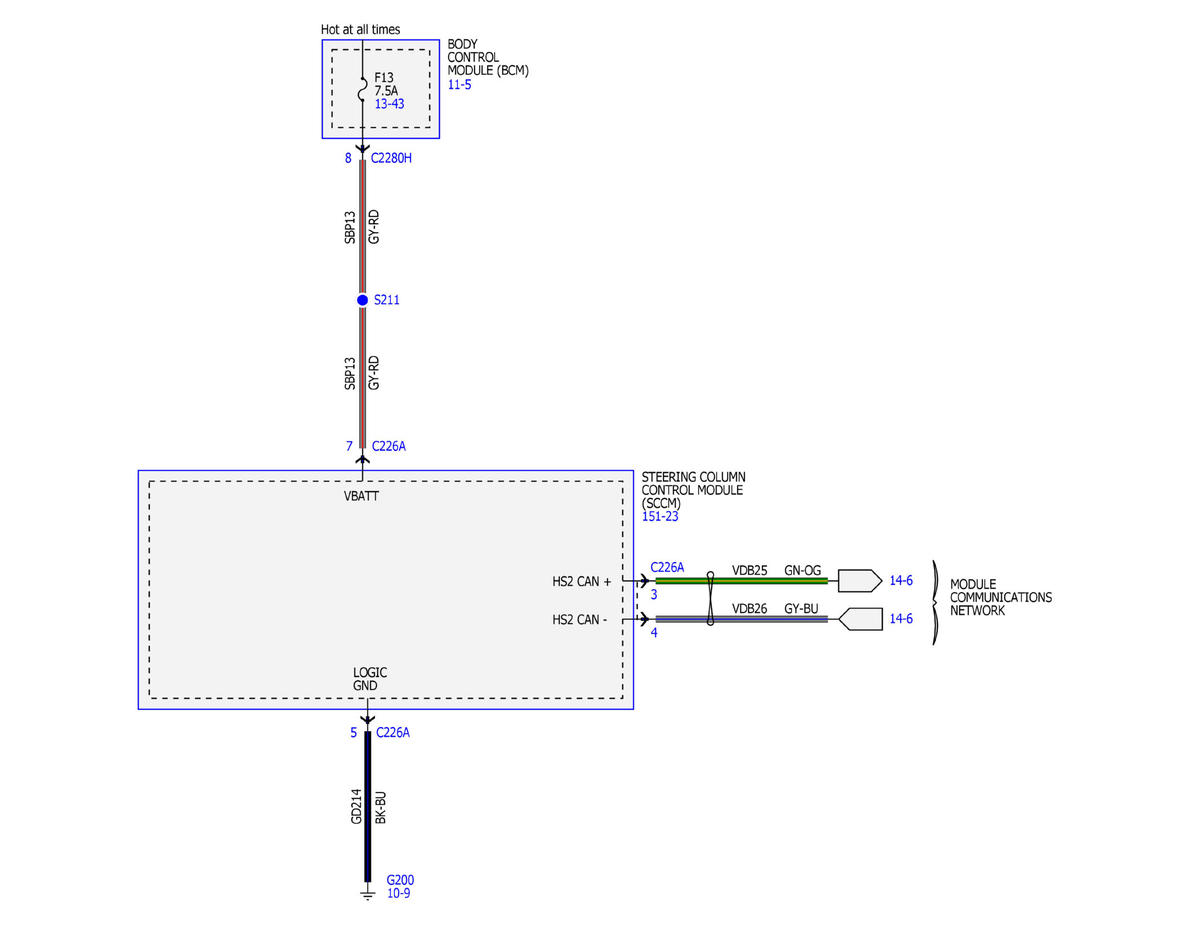

Fig 2: Instrument Cluster Wiring Diagrams (2 of 7)

Courtesy of FORD MOTOR COMPANY

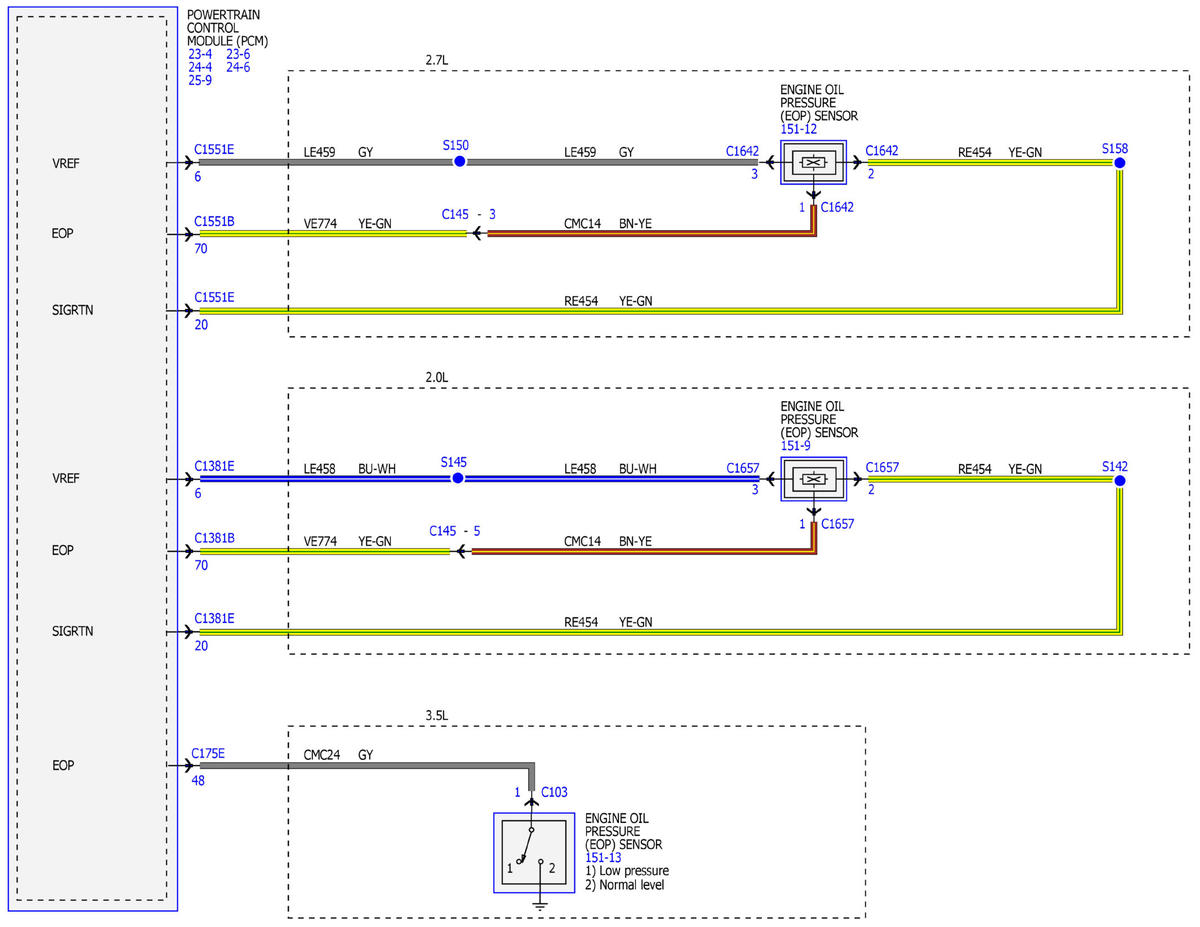

Fig 3: Instrument Cluster Wiring Diagrams (3 of 7)

Courtesy of FORD MOTOR COMPANY

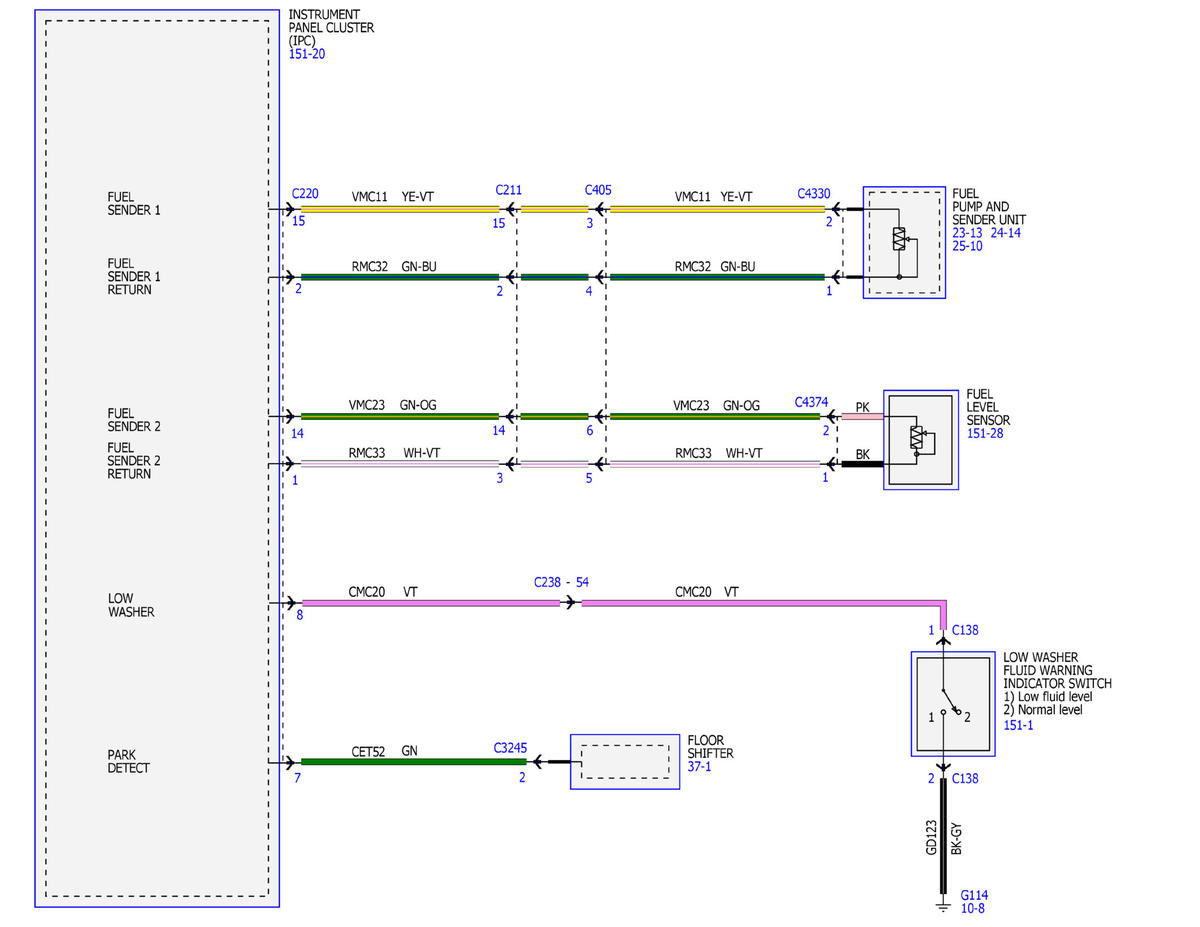

Fig 4: Instrument Cluster Wiring Diagrams (4 of 7)

Courtesy of FORD MOTOR COMPANY

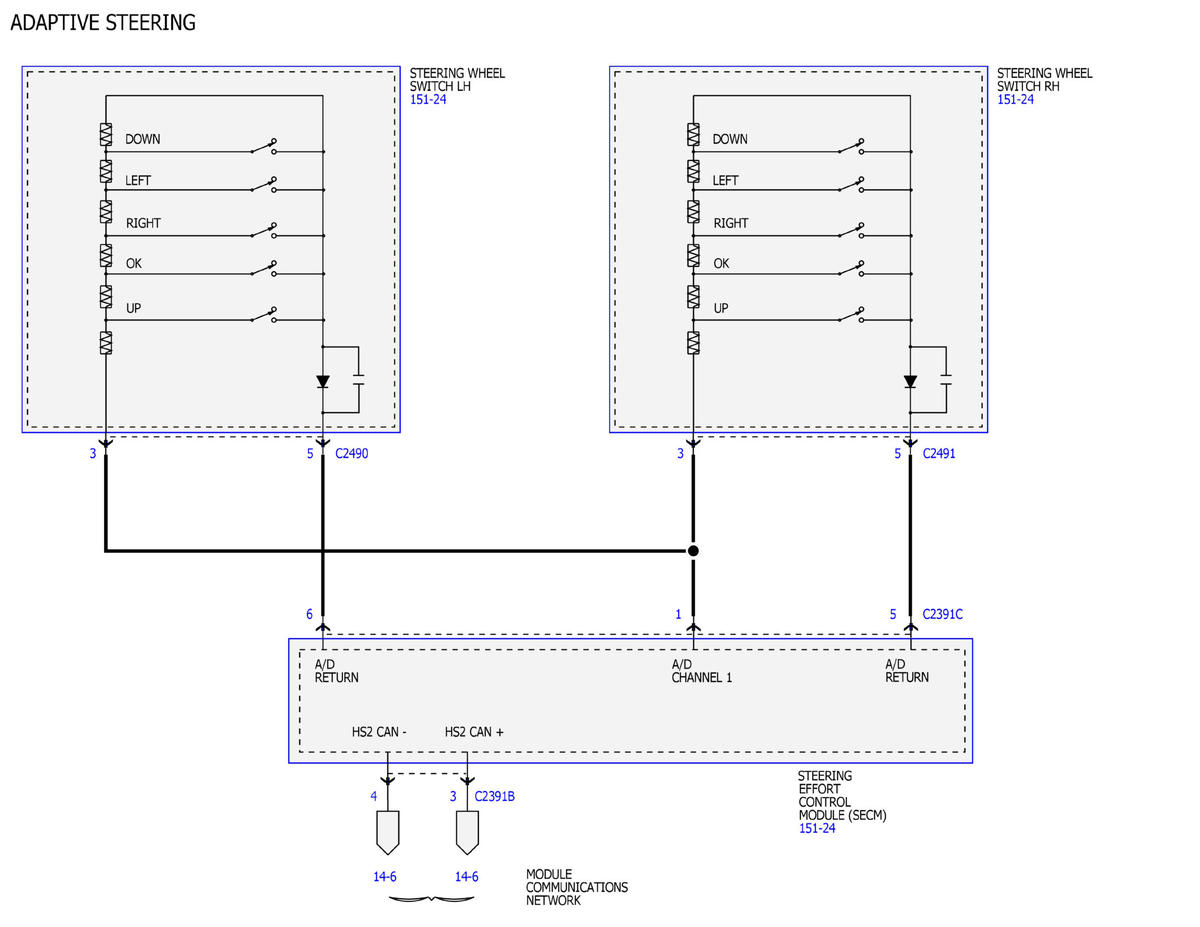

Fig 5: Instrument Cluster Wiring Diagrams (5 of 7)

Courtesy of FORD MOTOR COMPANY

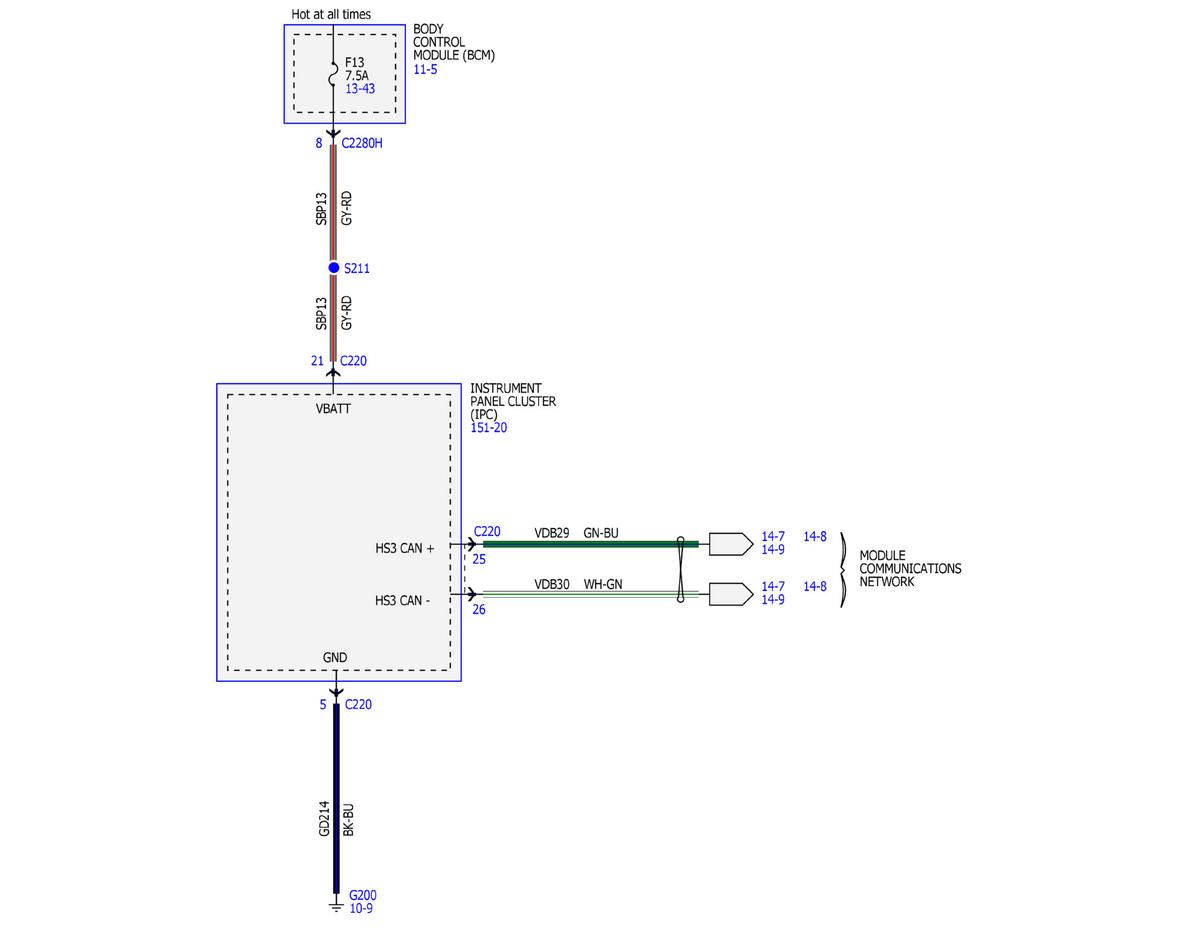

Fig 6: Instrument Cluster Wiring Diagrams (6 of 7)

Courtesy of FORD MOTOR COMPANY

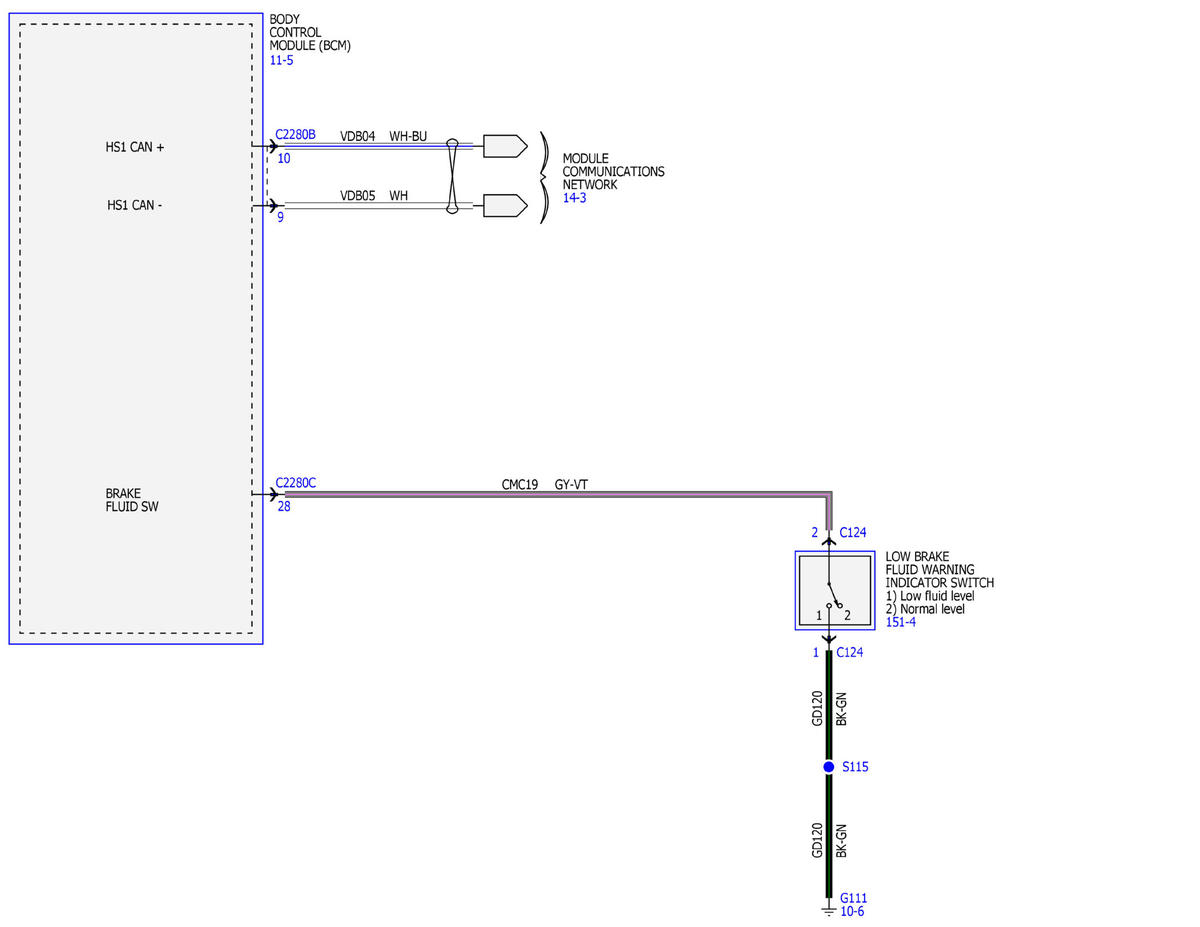

Fig 7: Instrument Cluster Wiring Diagrams (7 of 7)

Courtesy of FORD MOTOR COMPANY
