Section 6 (OEM Wiring Diagrams)
>>
Heated Window
Heated Window
WARNING:
This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Heated Window Wiring Diagrams (1 of 2)
Courtesy of FORD MOTOR COMPANY

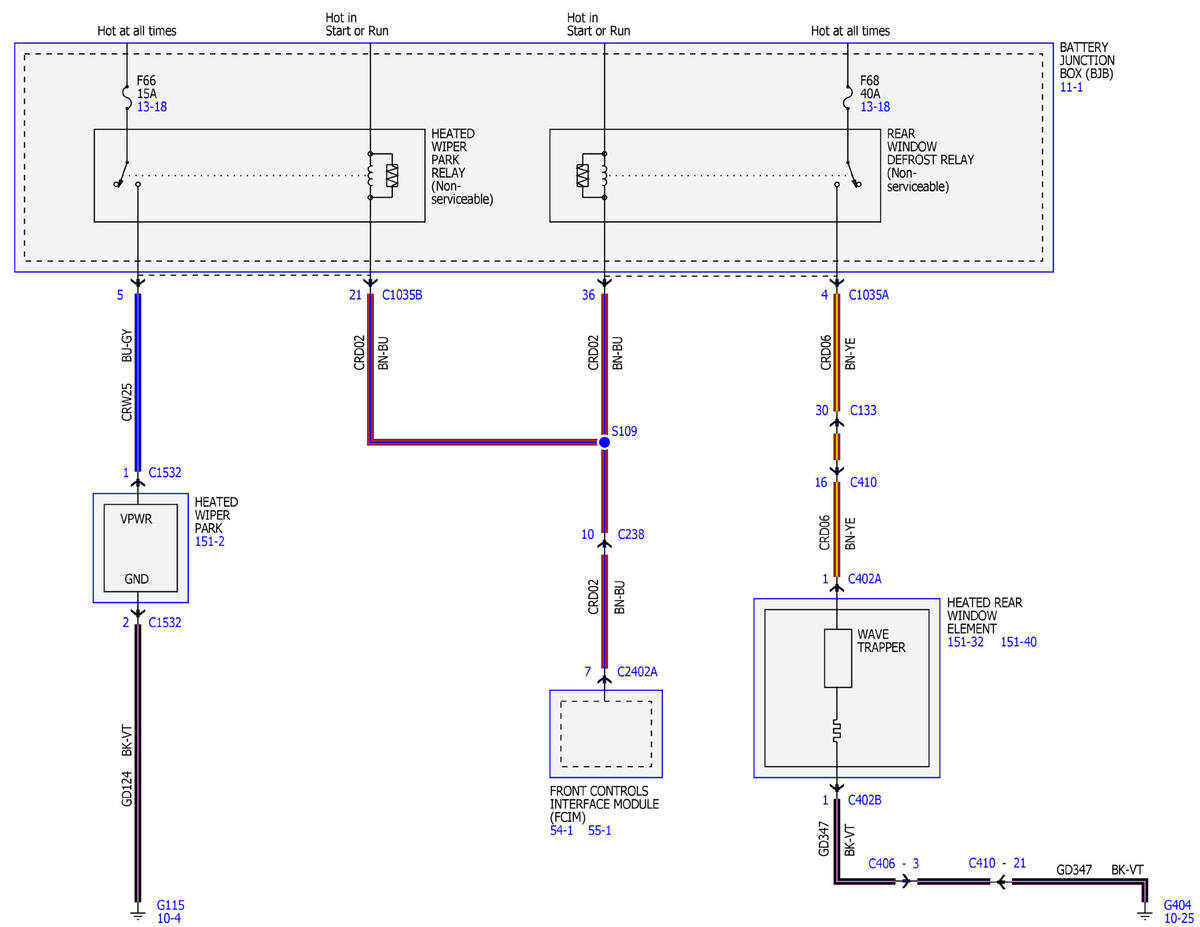

Fig 2: Heated Window Wiring Diagrams (2 of 2)
Courtesy of FORD MOTOR COMPANY
