Electronic Engine Controls - 3.5L

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

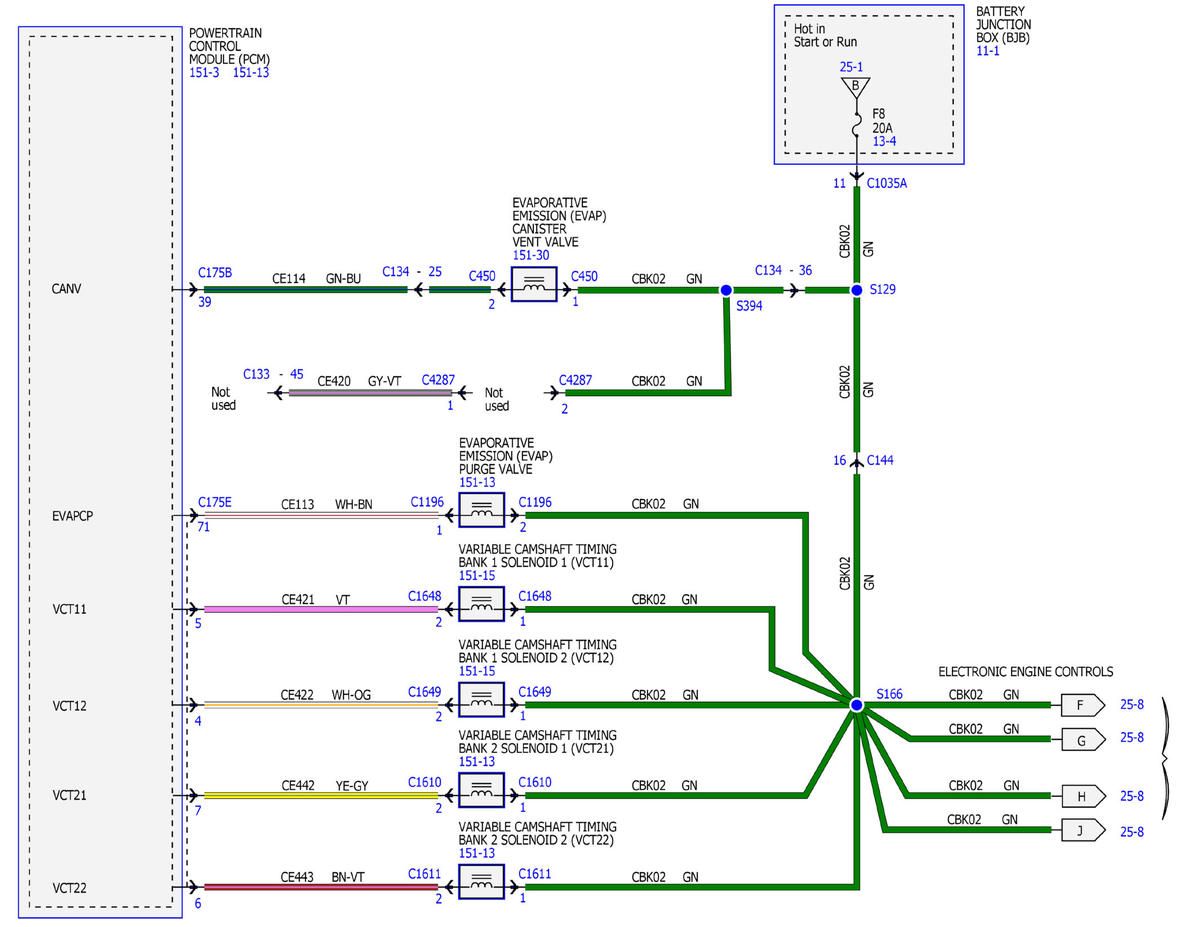

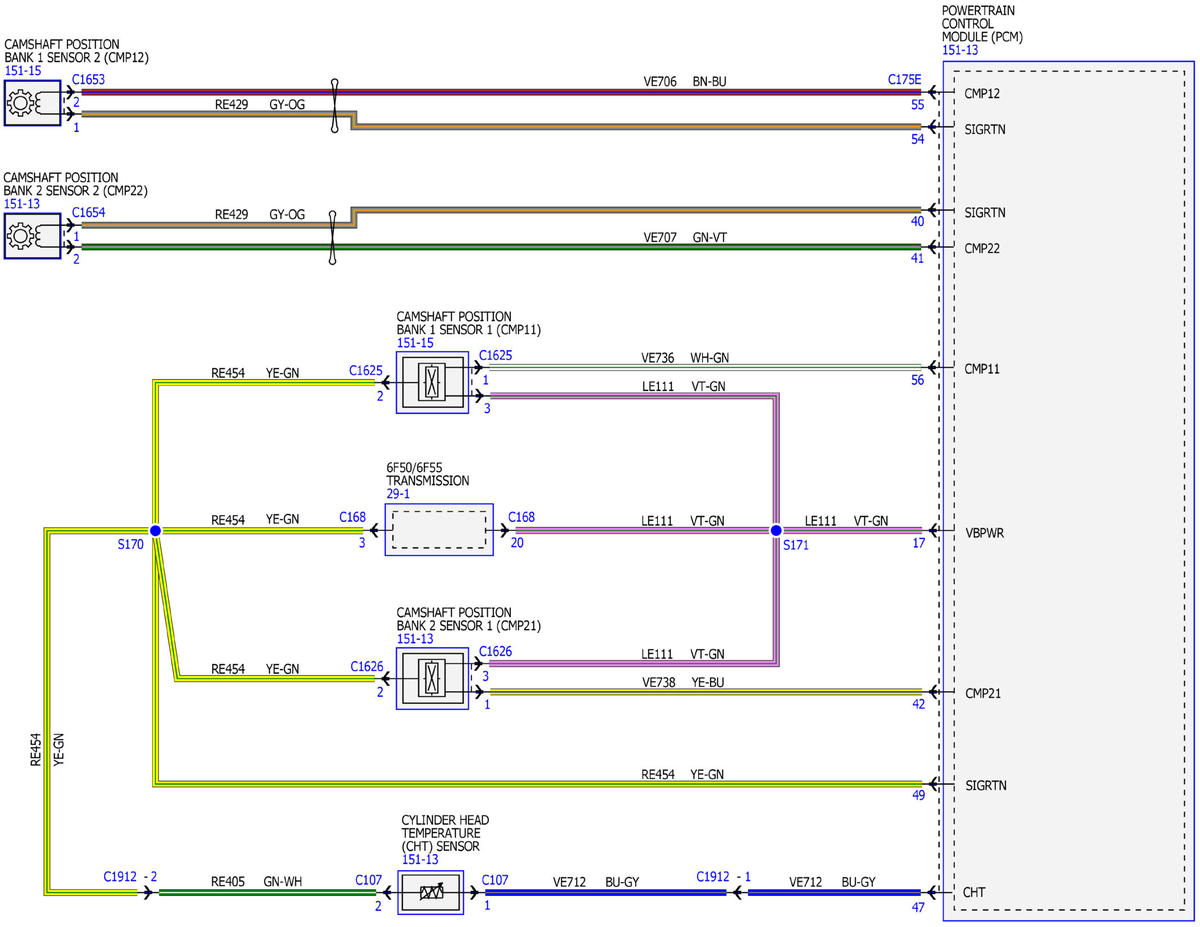

Fig 1: Electronic Engine Controls - 3.5L Wiring Diagrams (1 of 14)

Courtesy of FORD MOTOR COMPANY

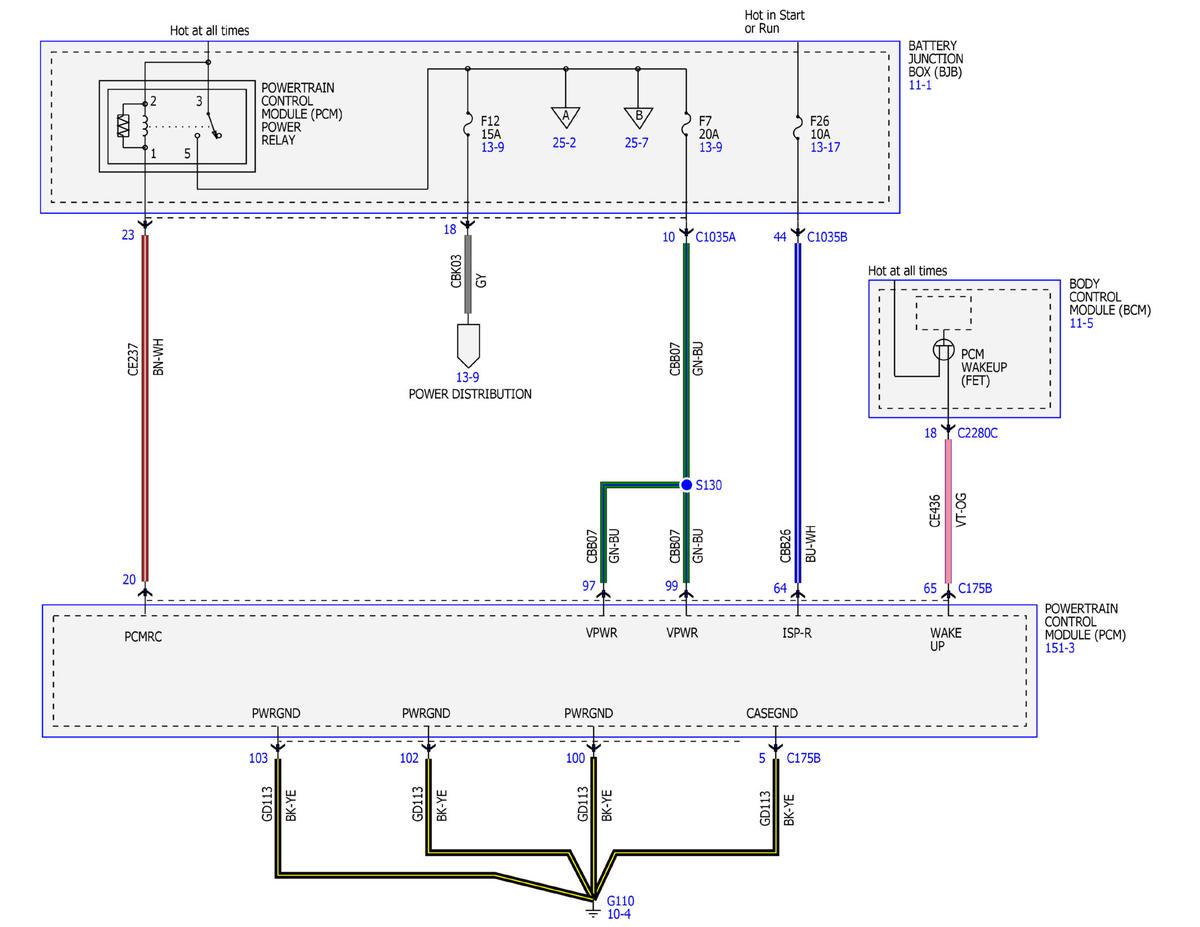

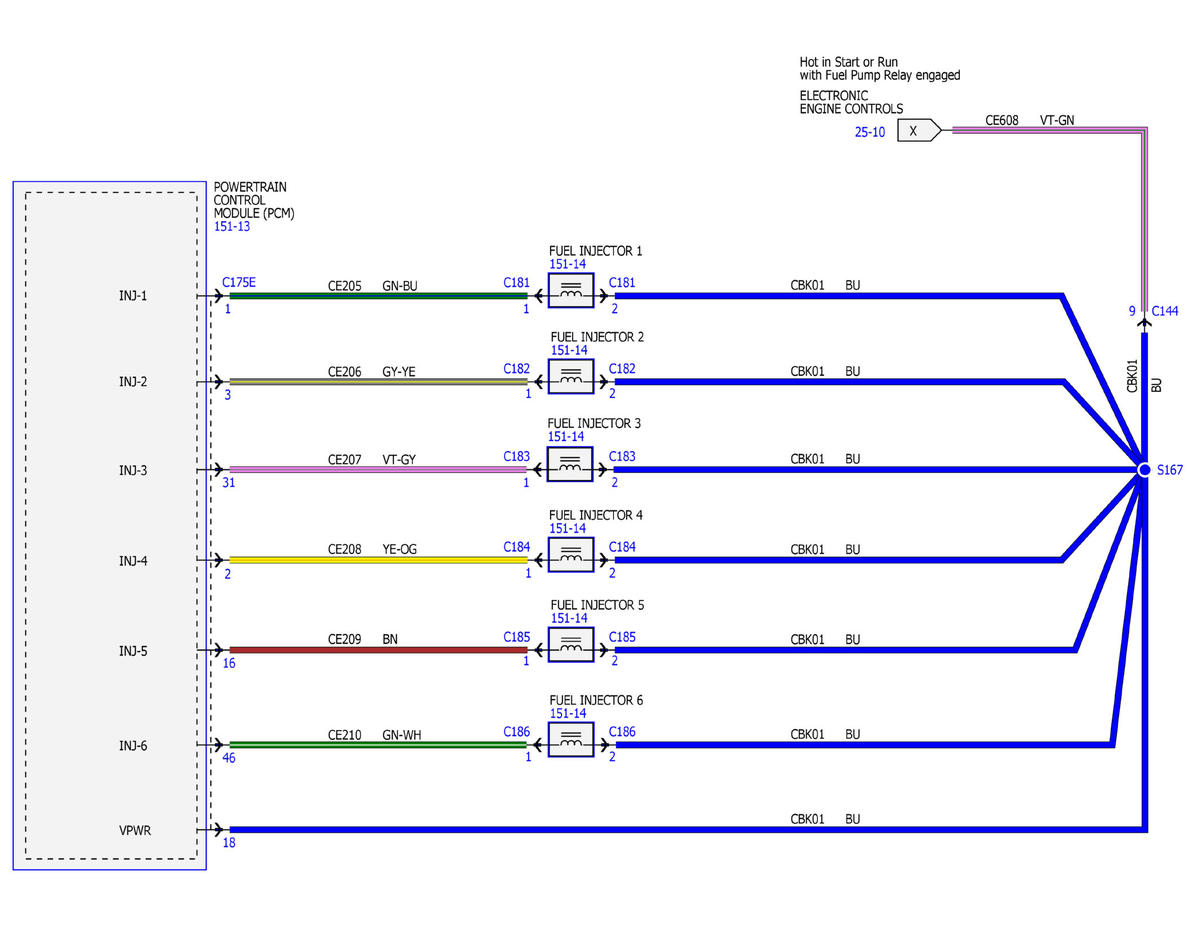

Fig 2: Electronic Engine Controls - 3.5L Wiring Diagrams (2 of 14)

Courtesy of FORD MOTOR COMPANY

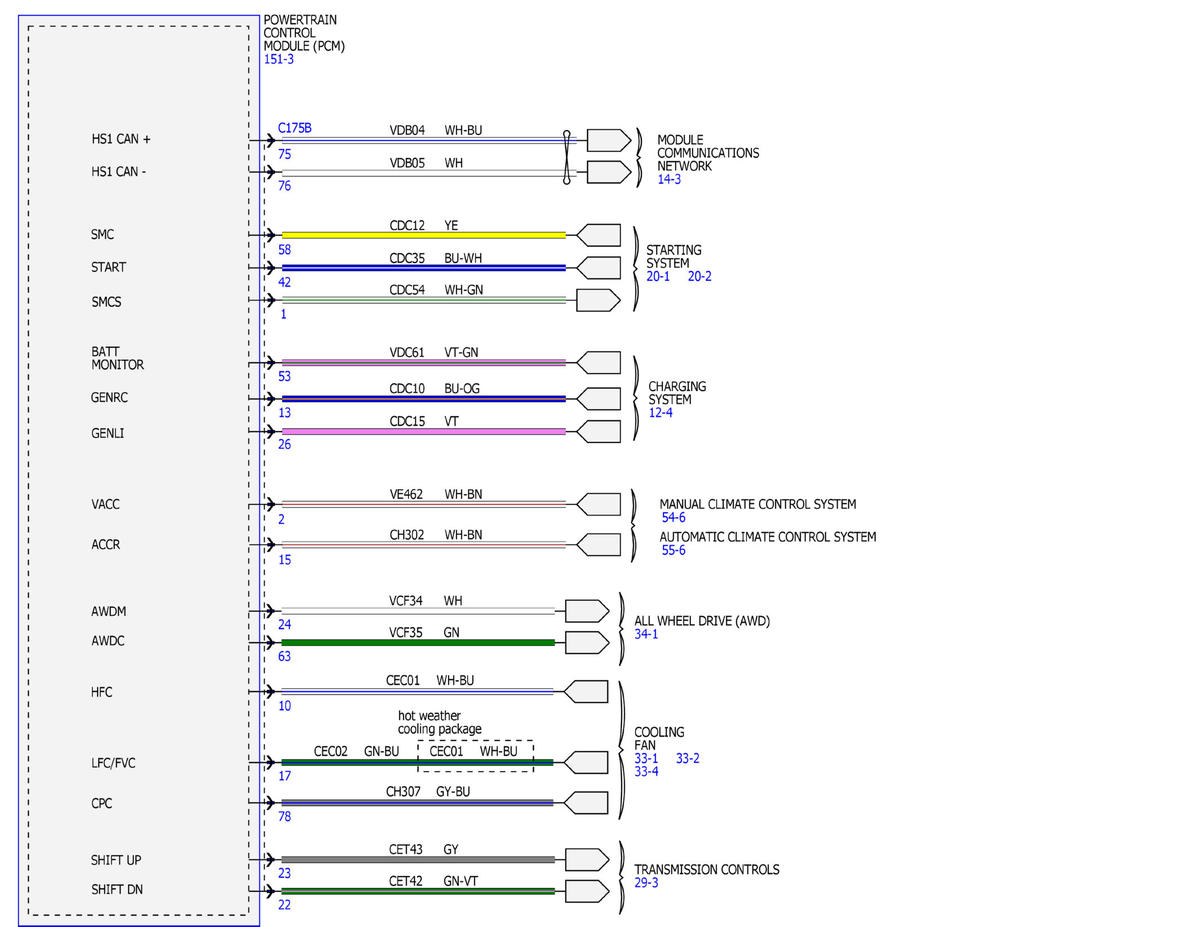

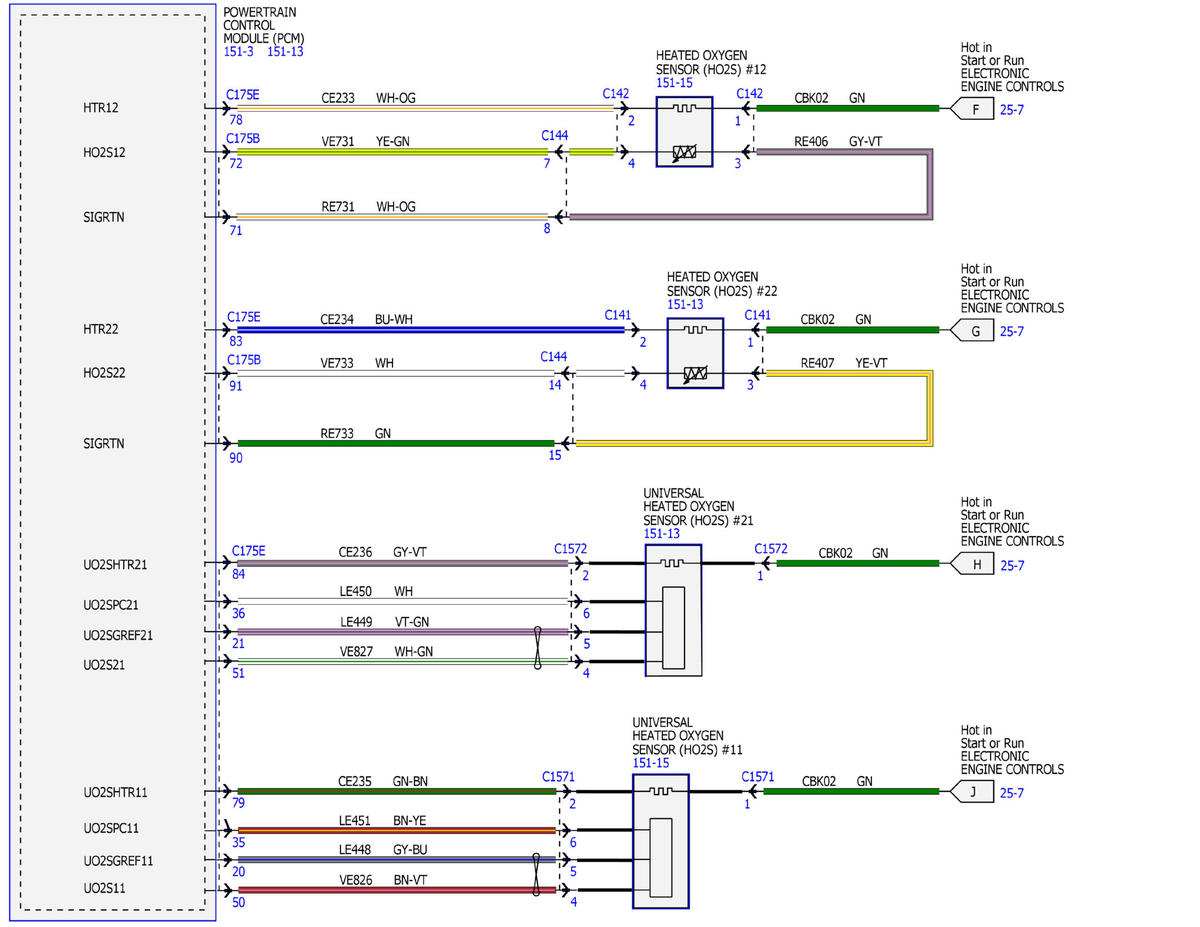

Fig 3: Electronic Engine Controls - 3.5L Wiring Diagrams (3 of 14)

Courtesy of FORD MOTOR COMPANY

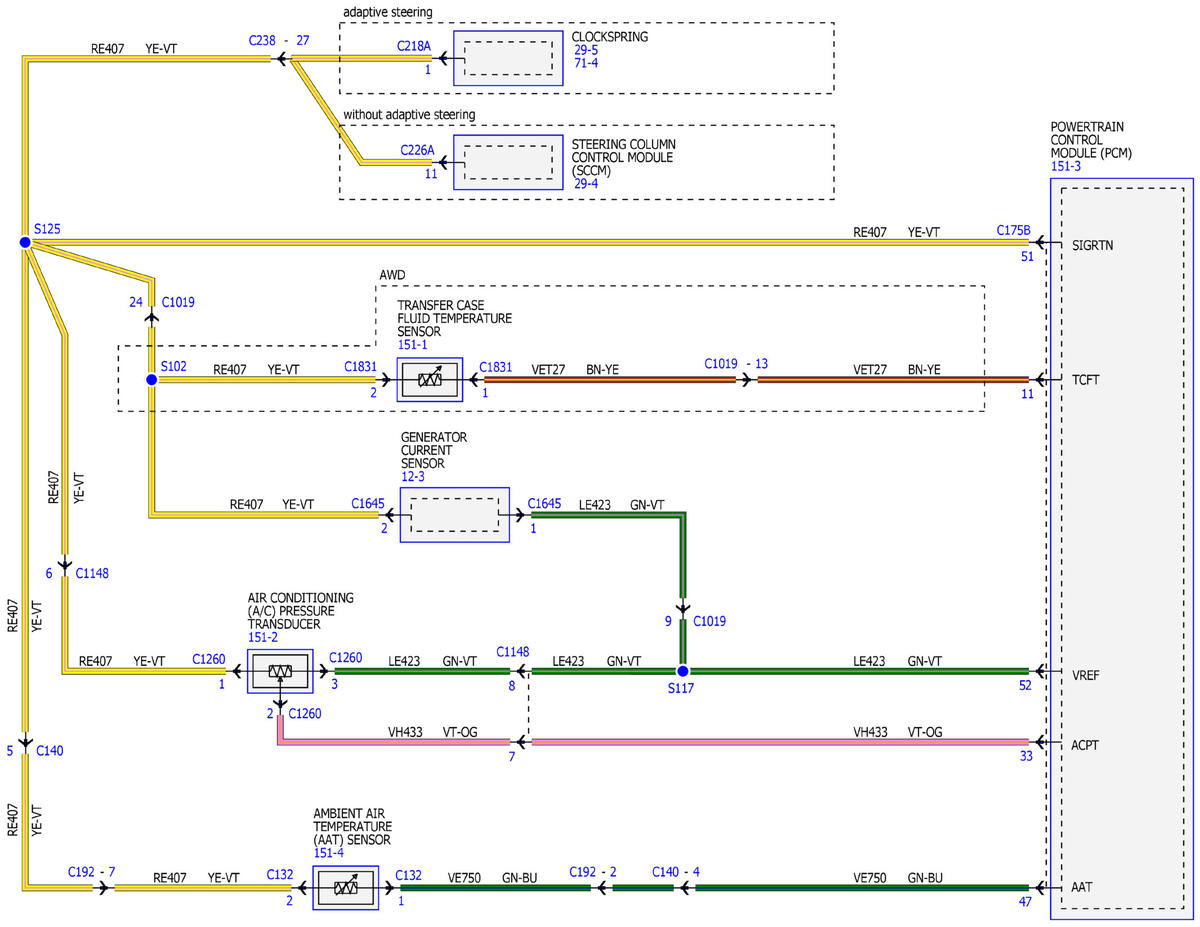

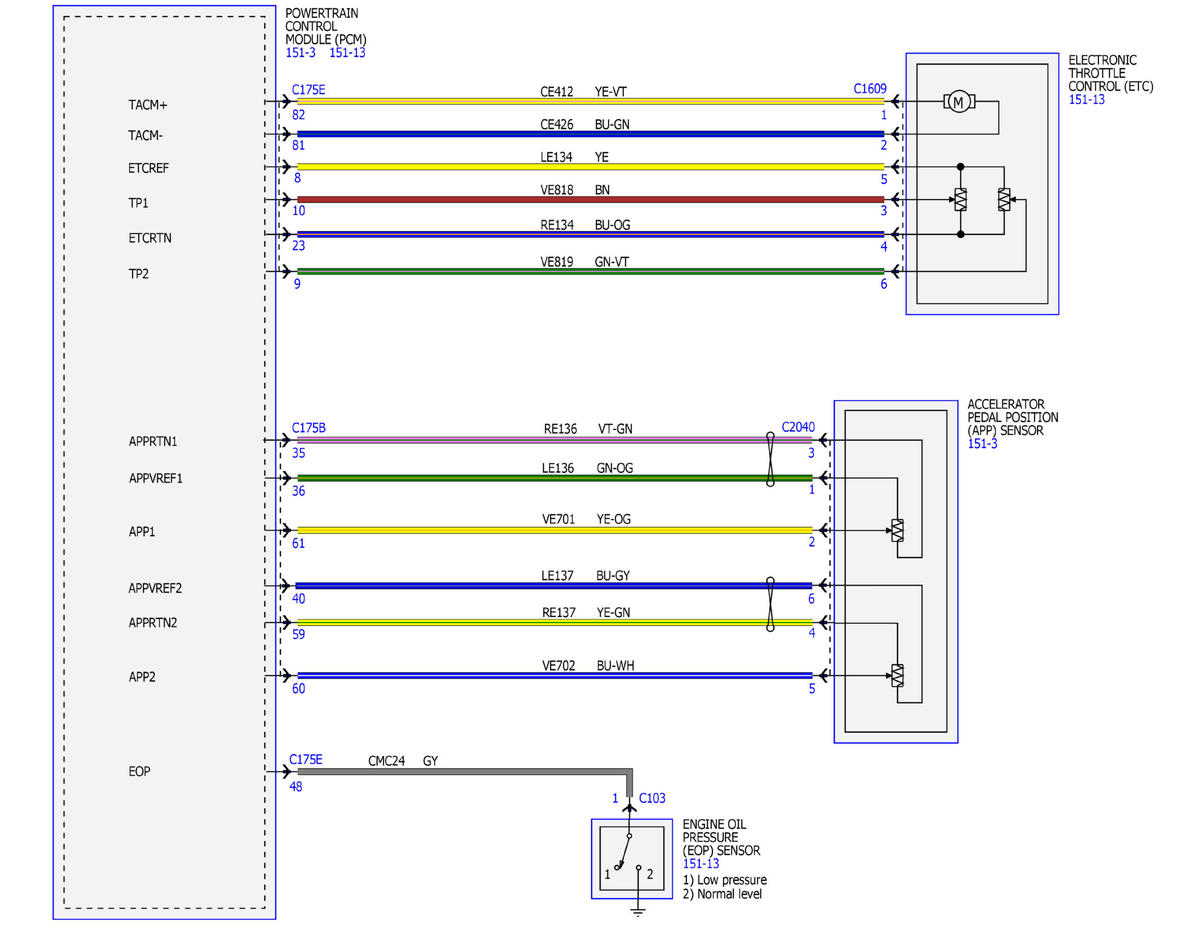

Fig 4: Electronic Engine Controls - 3.5L Wiring Diagrams (4 of 14)

Courtesy of FORD MOTOR COMPANY

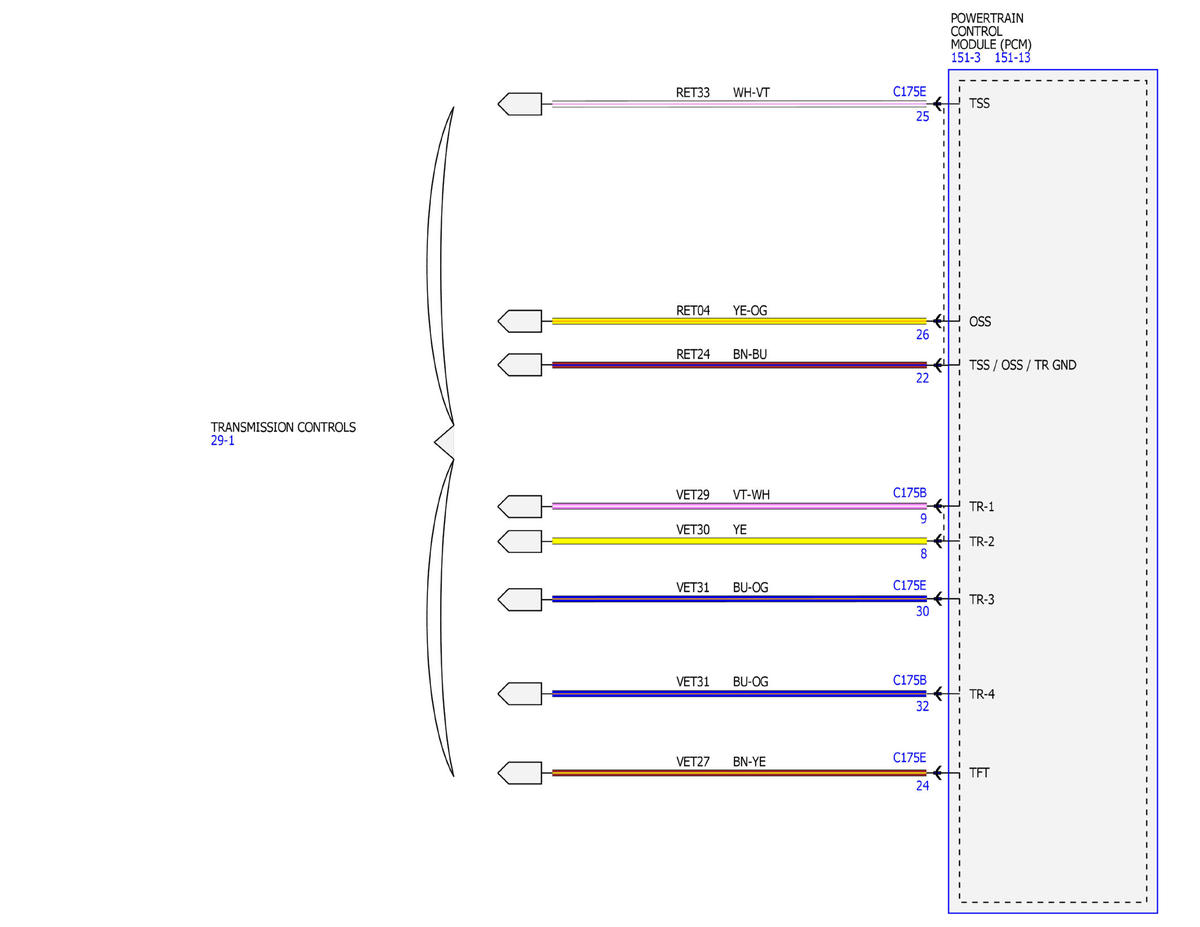

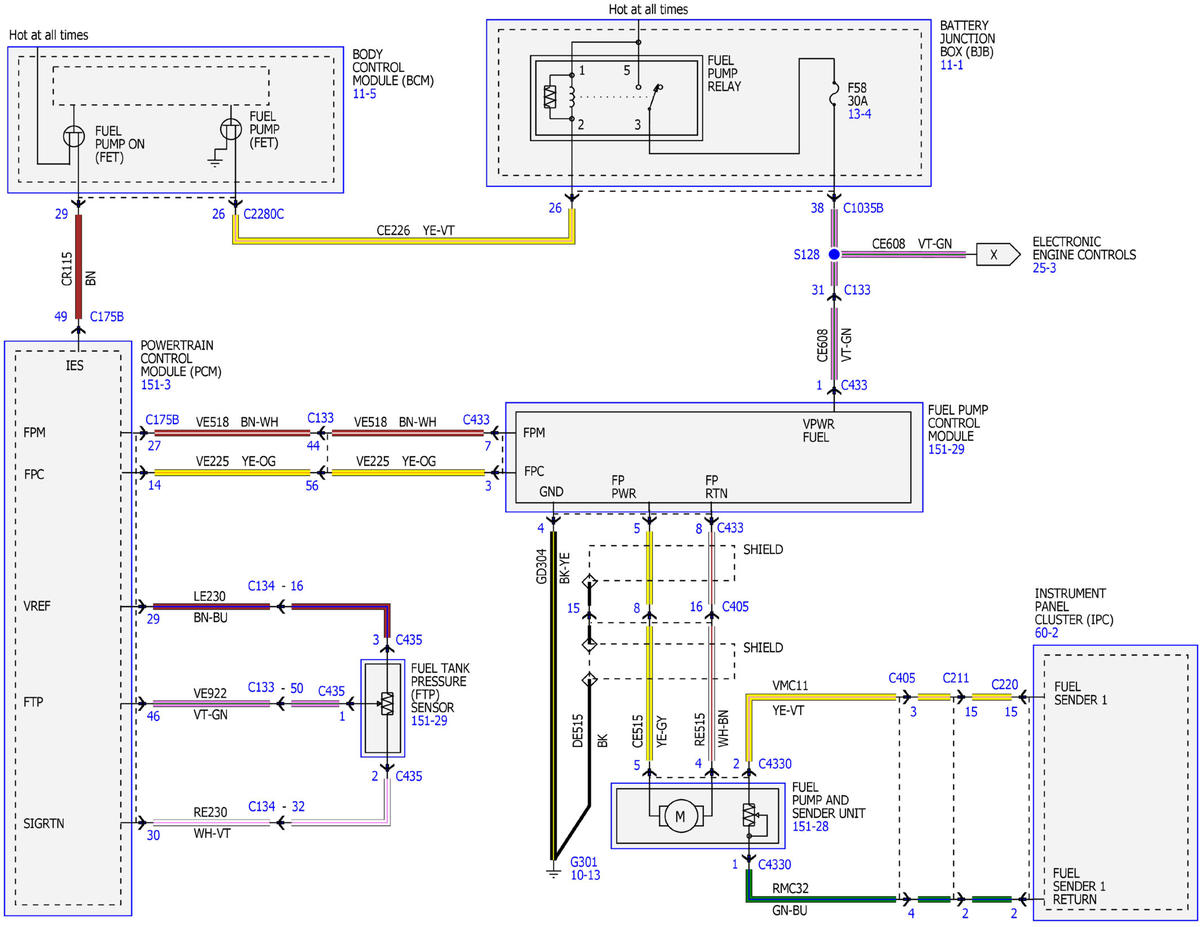

Fig 5: Electronic Engine Controls - 3.5L Wiring Diagrams (5 of 14)

Courtesy of FORD MOTOR COMPANY

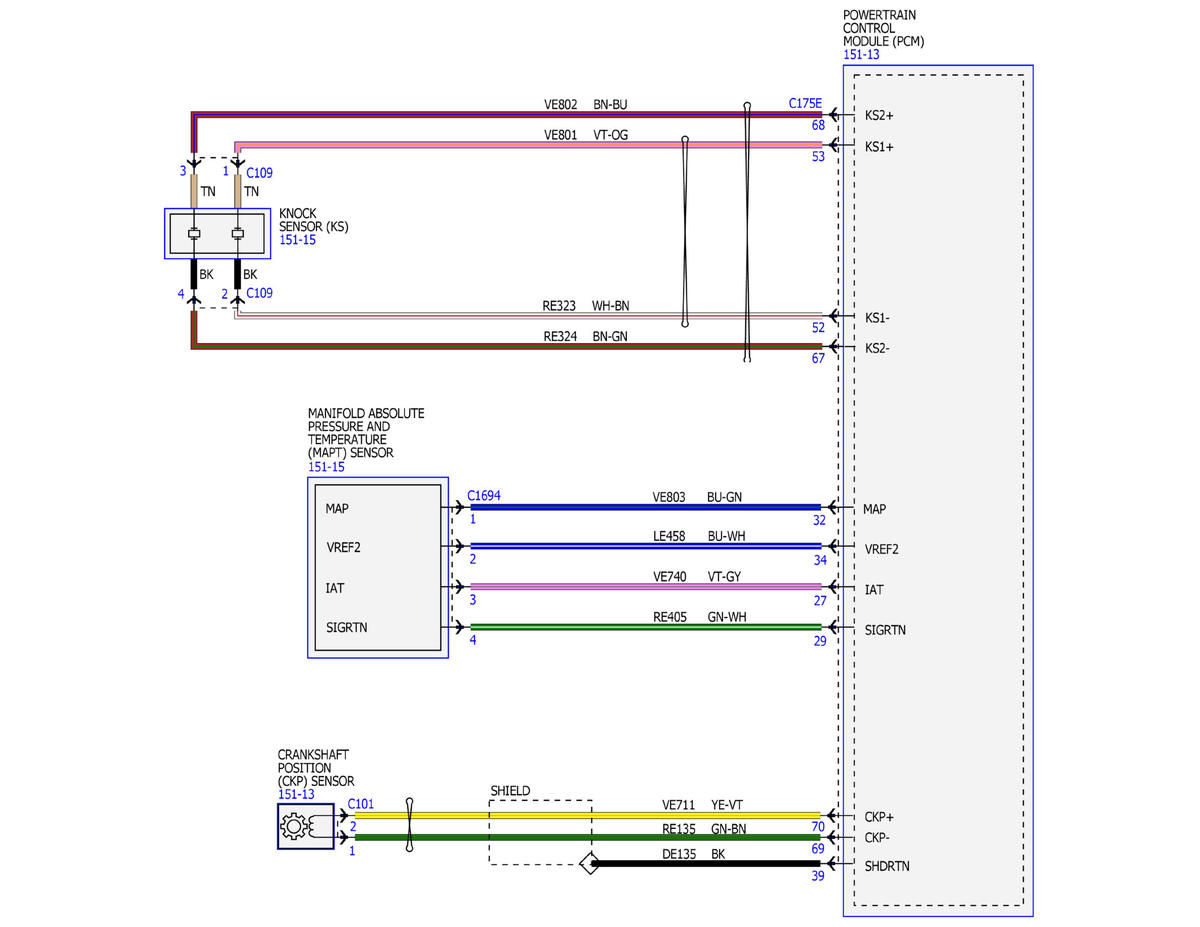

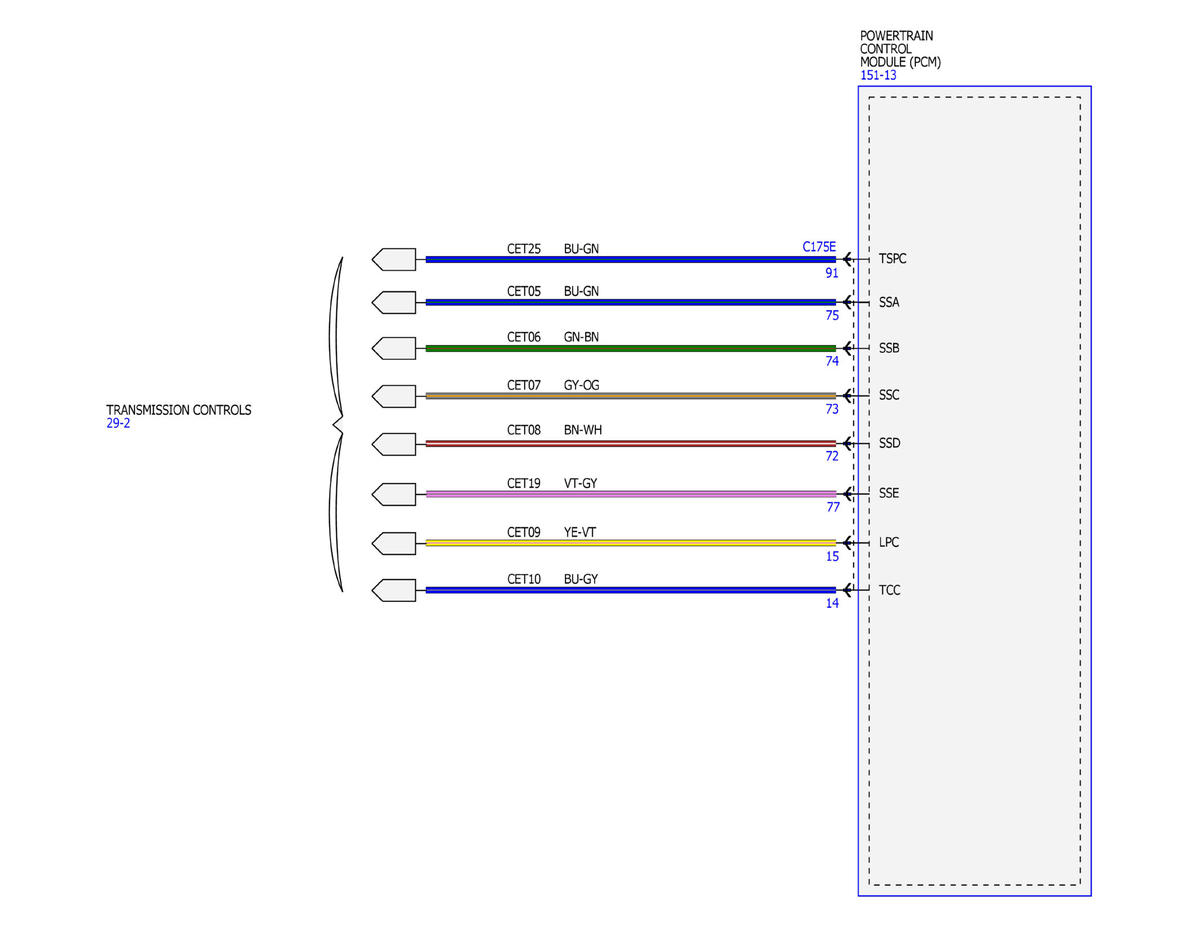

Fig 6: Electronic Engine Controls - 3.5L Wiring Diagrams (6 of 14)

Courtesy of FORD MOTOR COMPANY

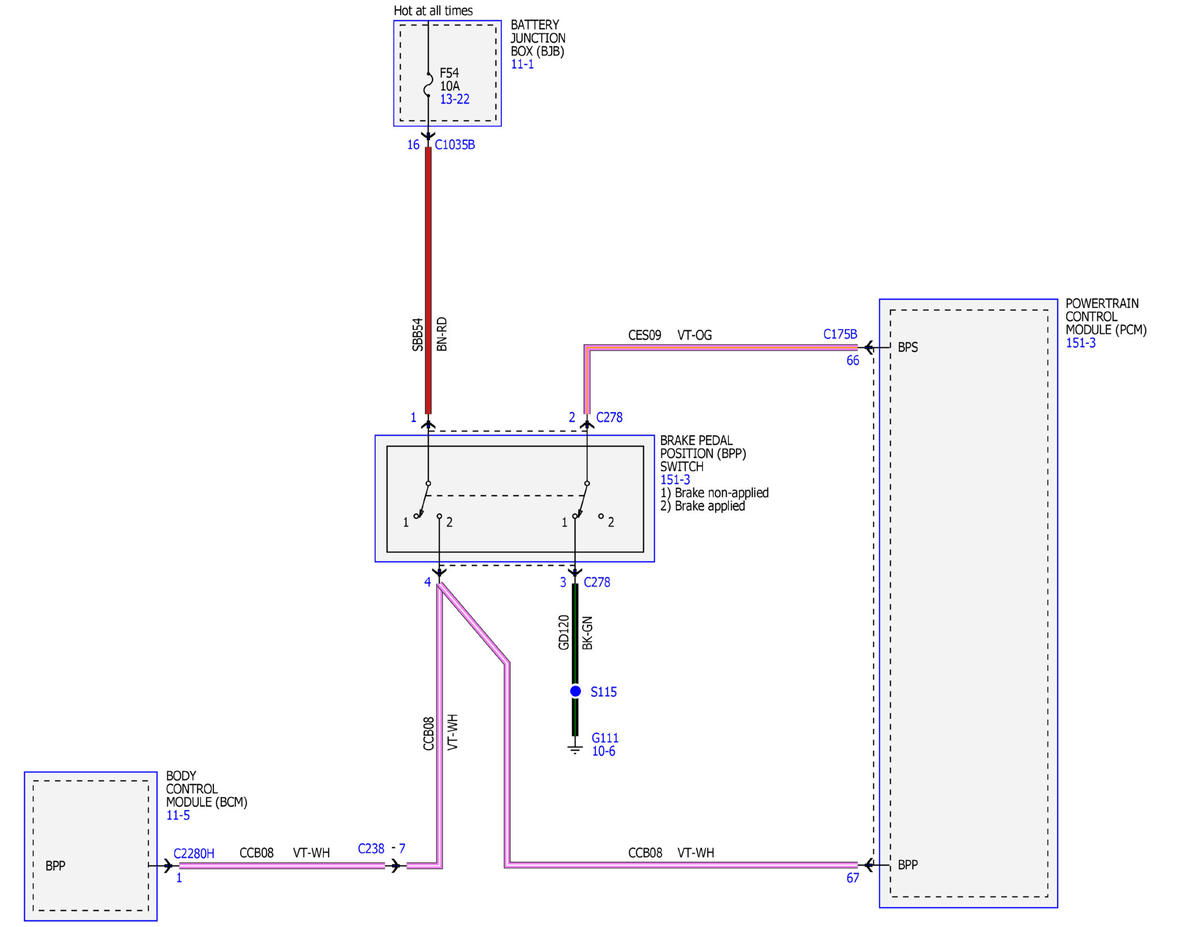

Fig 7: Electronic Engine Controls - 3.5L Wiring Diagrams (7 of 14)

Courtesy of FORD MOTOR COMPANY

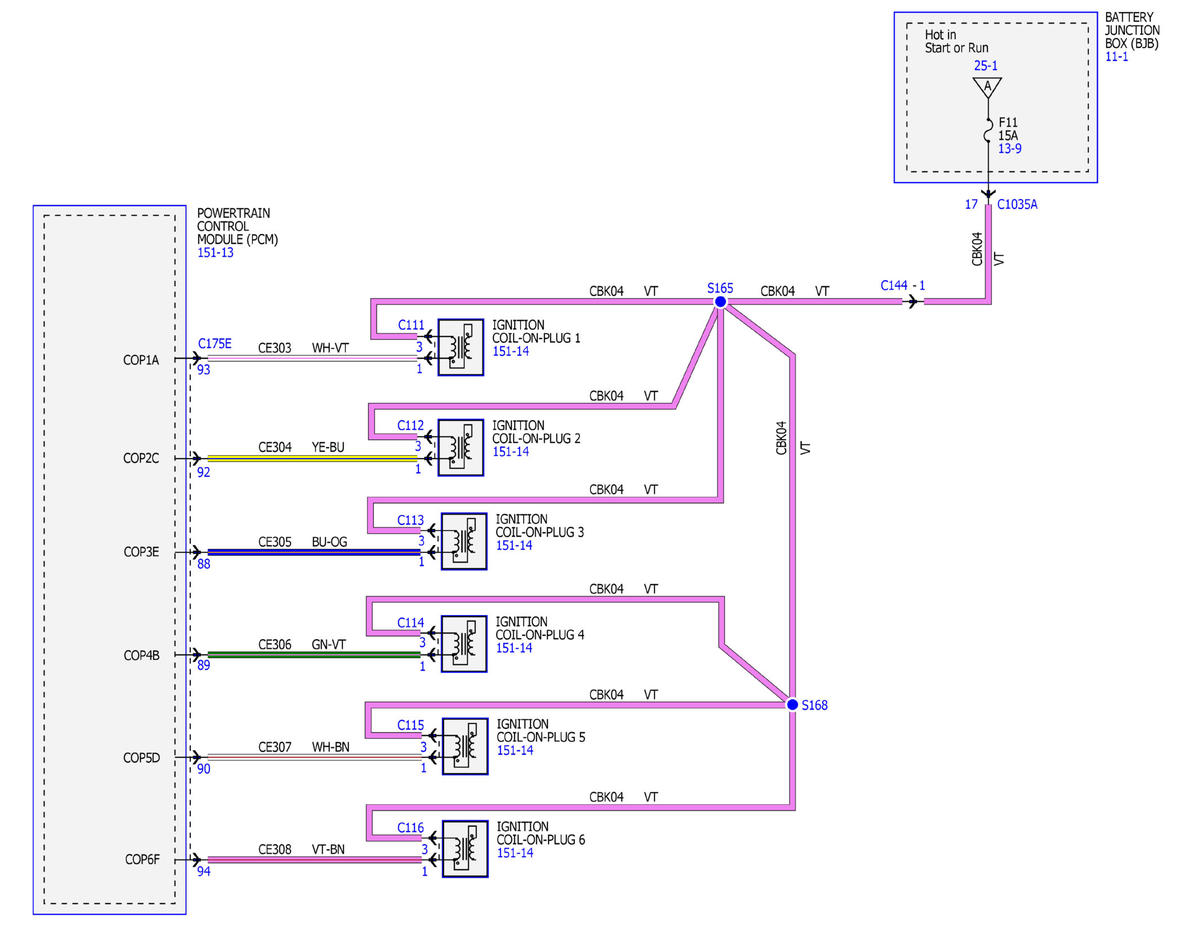

Fig 8: Electronic Engine Controls - 3.5L Wiring Diagrams (8 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 3.5L Wiring Diagrams (9 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 3.5L Wiring Diagrams (10 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 3.5L Wiring Diagrams (11 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 3.5L Wiring Diagrams (12 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls - 3.5L Wiring Diagrams (13 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls - 3.5L Wiring Diagrams (14 of 14)

Courtesy of FORD MOTOR COMPANY
