Electronic Engine Controls - 2.0L

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

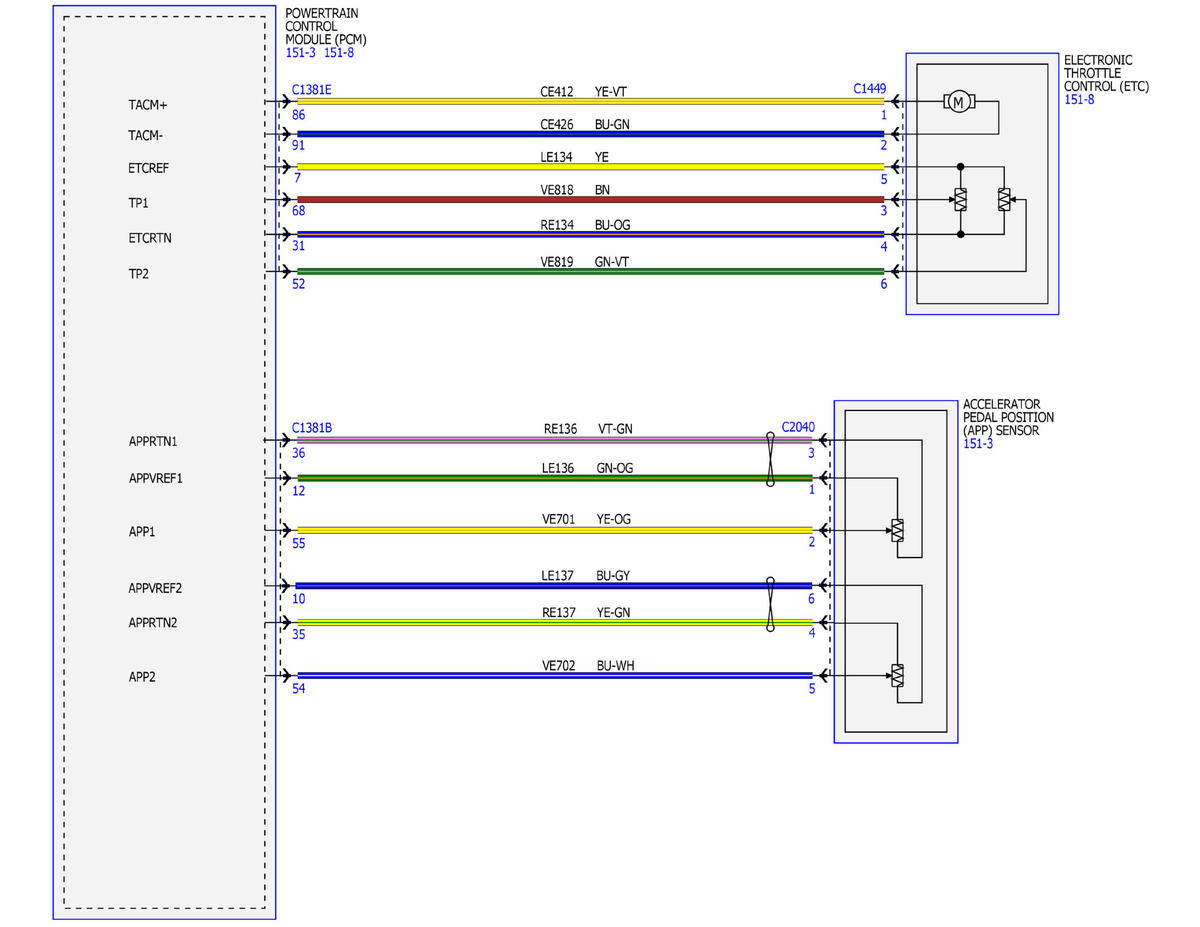

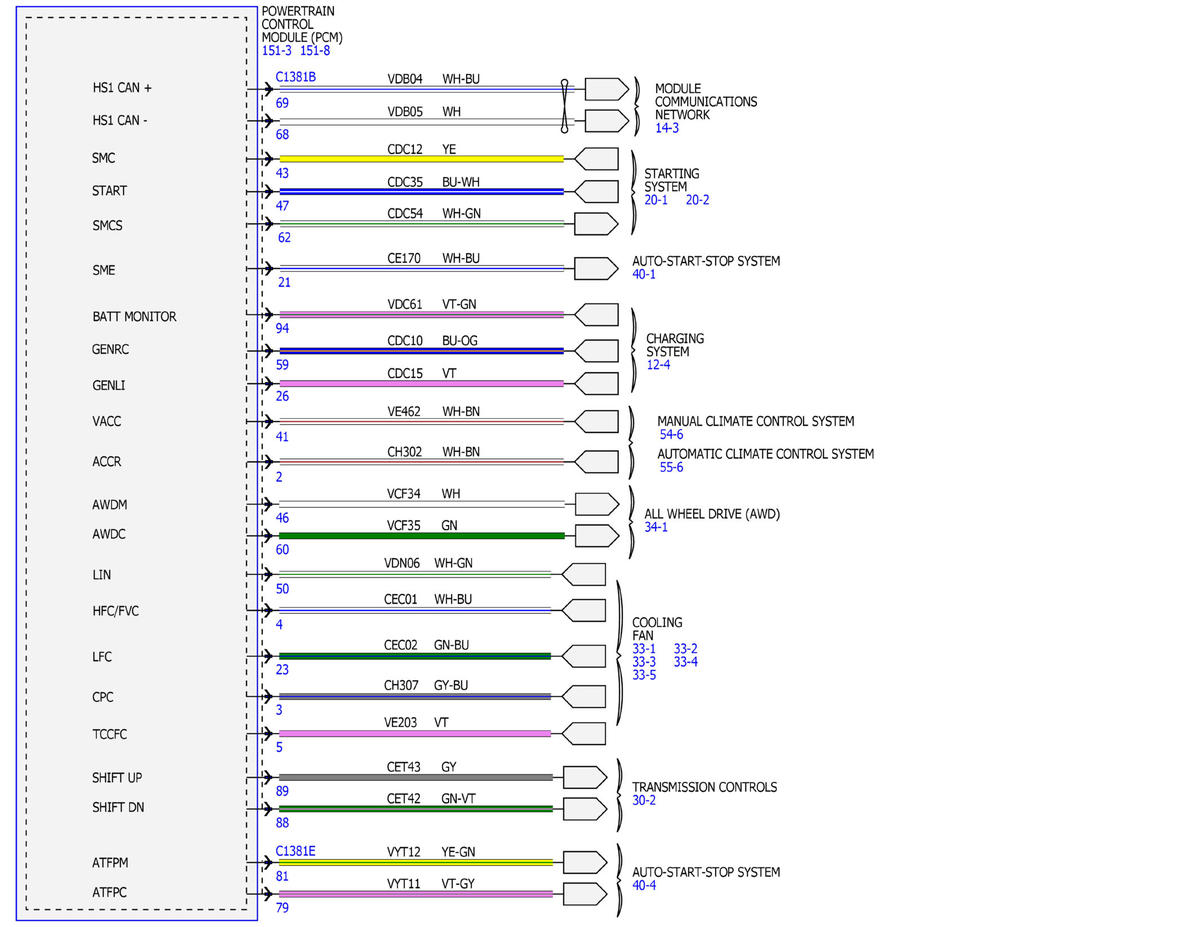

Fig 1: Electronic Engine Controls - 2.0L Wiring Diagrams (1 of 17)

Courtesy of FORD MOTOR COMPANY

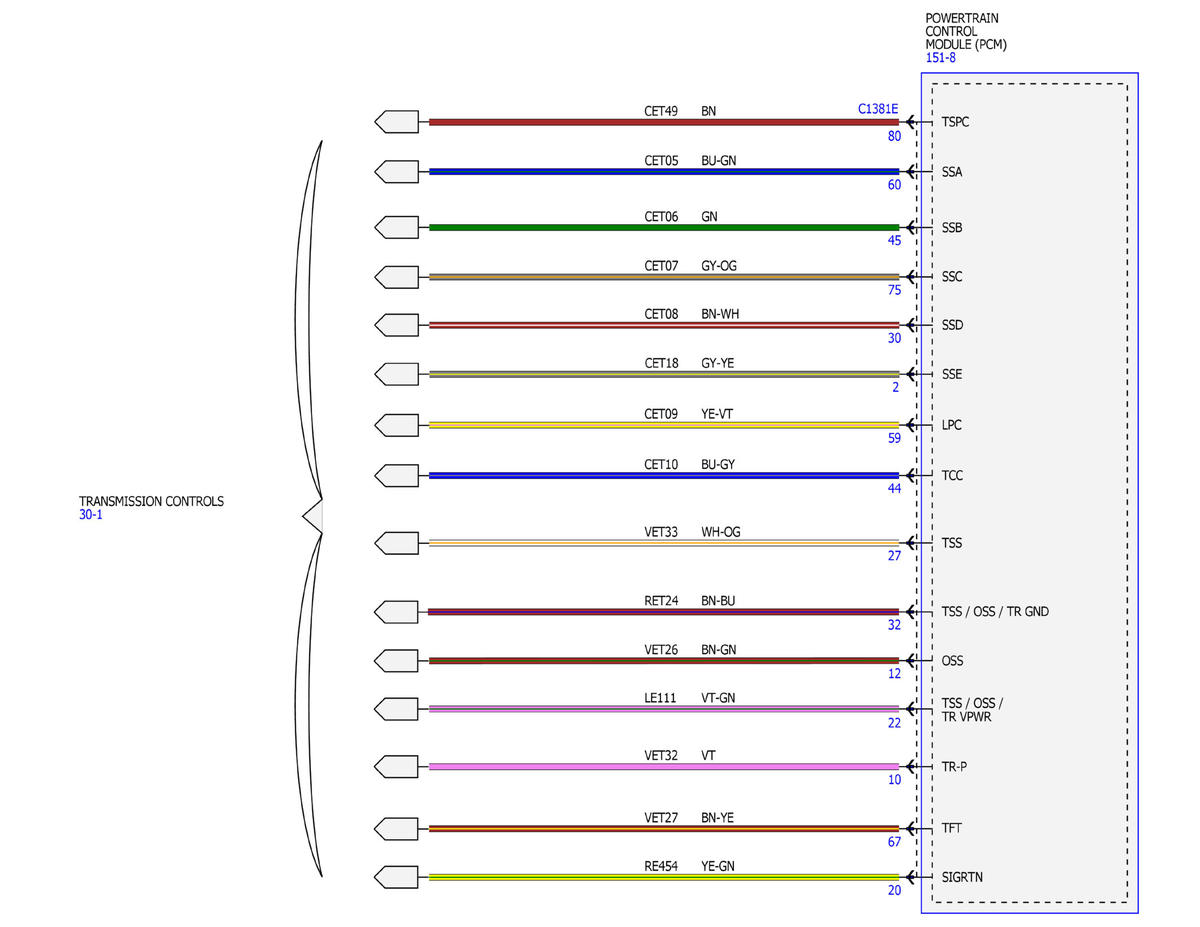

Fig 2: Electronic Engine Controls - 2.0L Wiring Diagrams (2 of 17)

Courtesy of FORD MOTOR COMPANY

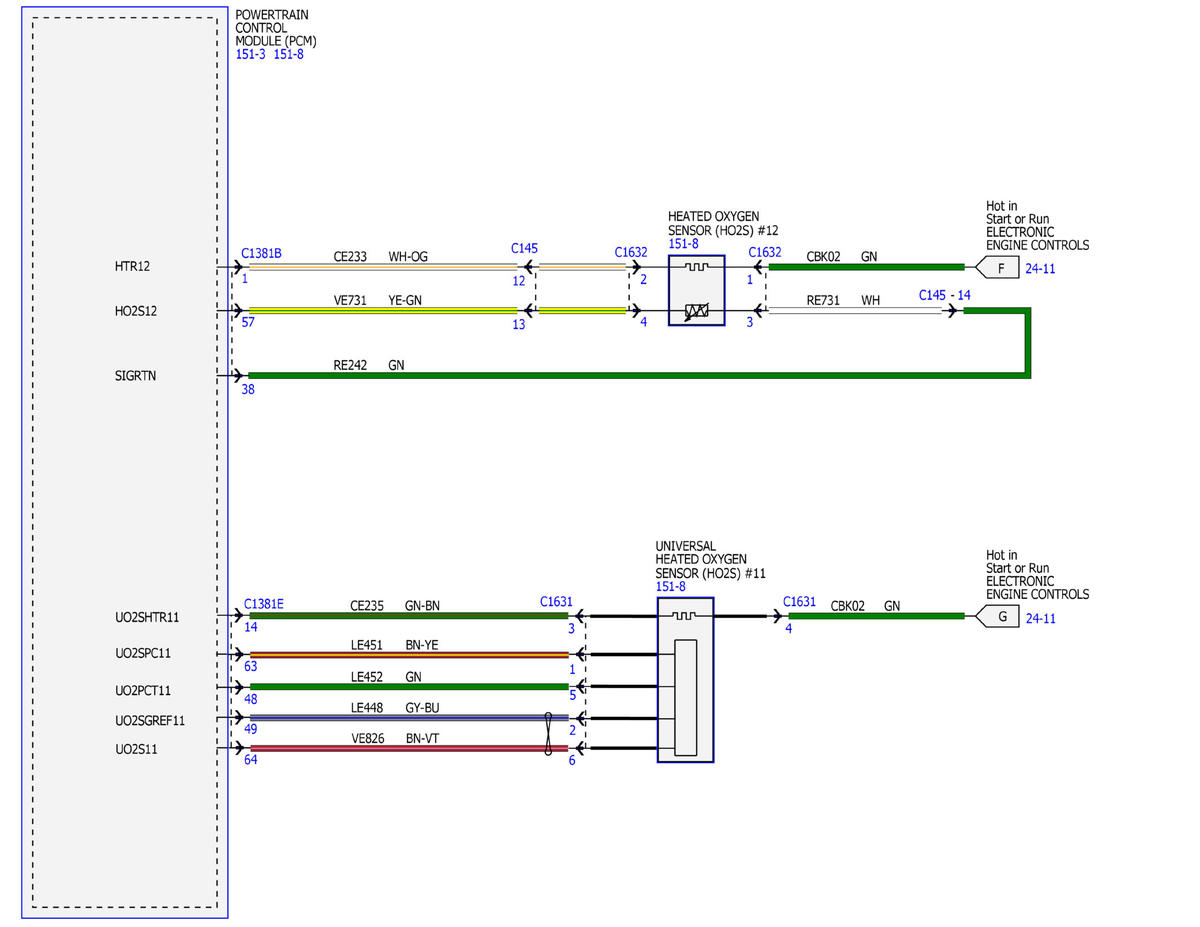

Fig 3: Electronic Engine Controls - 2.0L Wiring Diagrams (3 of 17)

Courtesy of FORD MOTOR COMPANY

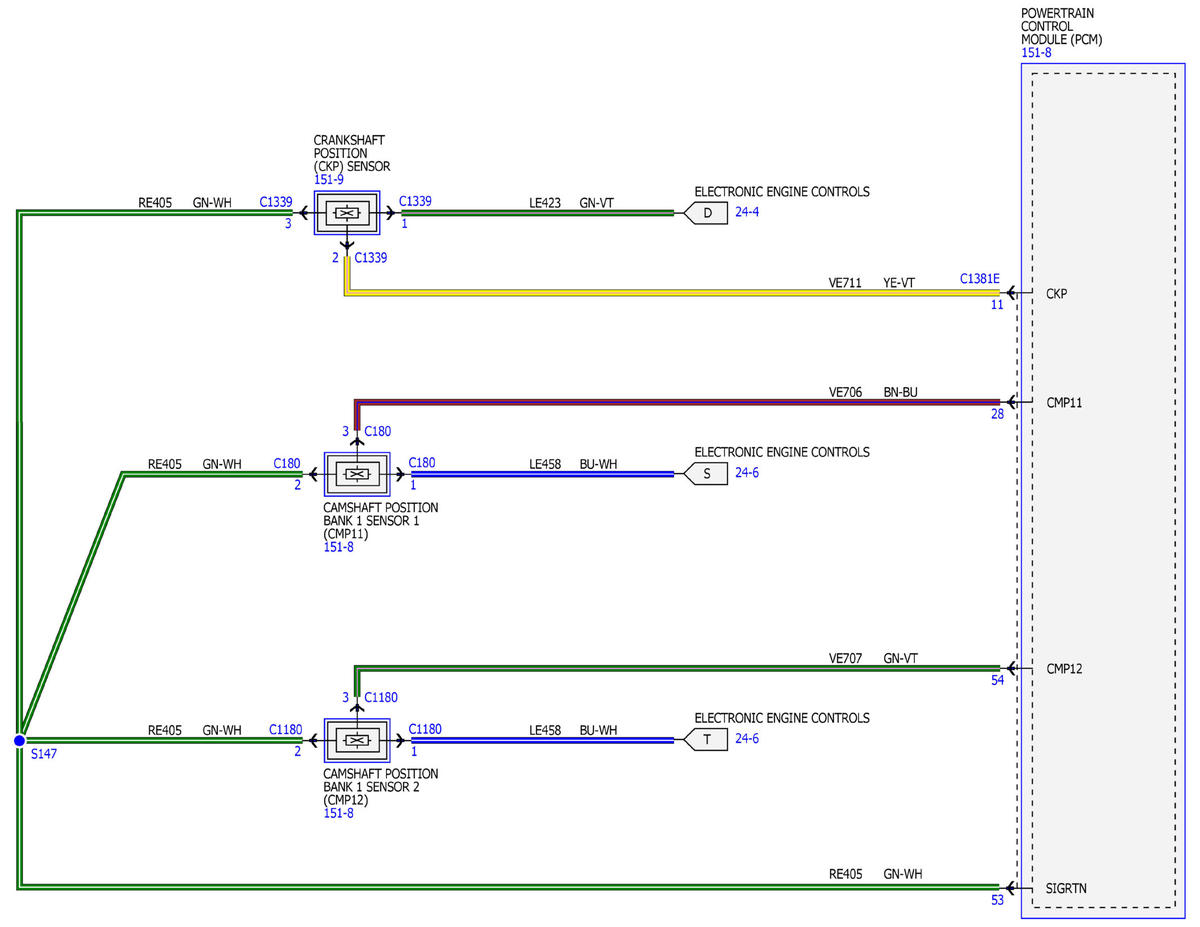

Fig 4: Electronic Engine Controls - 2.0L Wiring Diagrams (4 of 17)

Courtesy of FORD MOTOR COMPANY

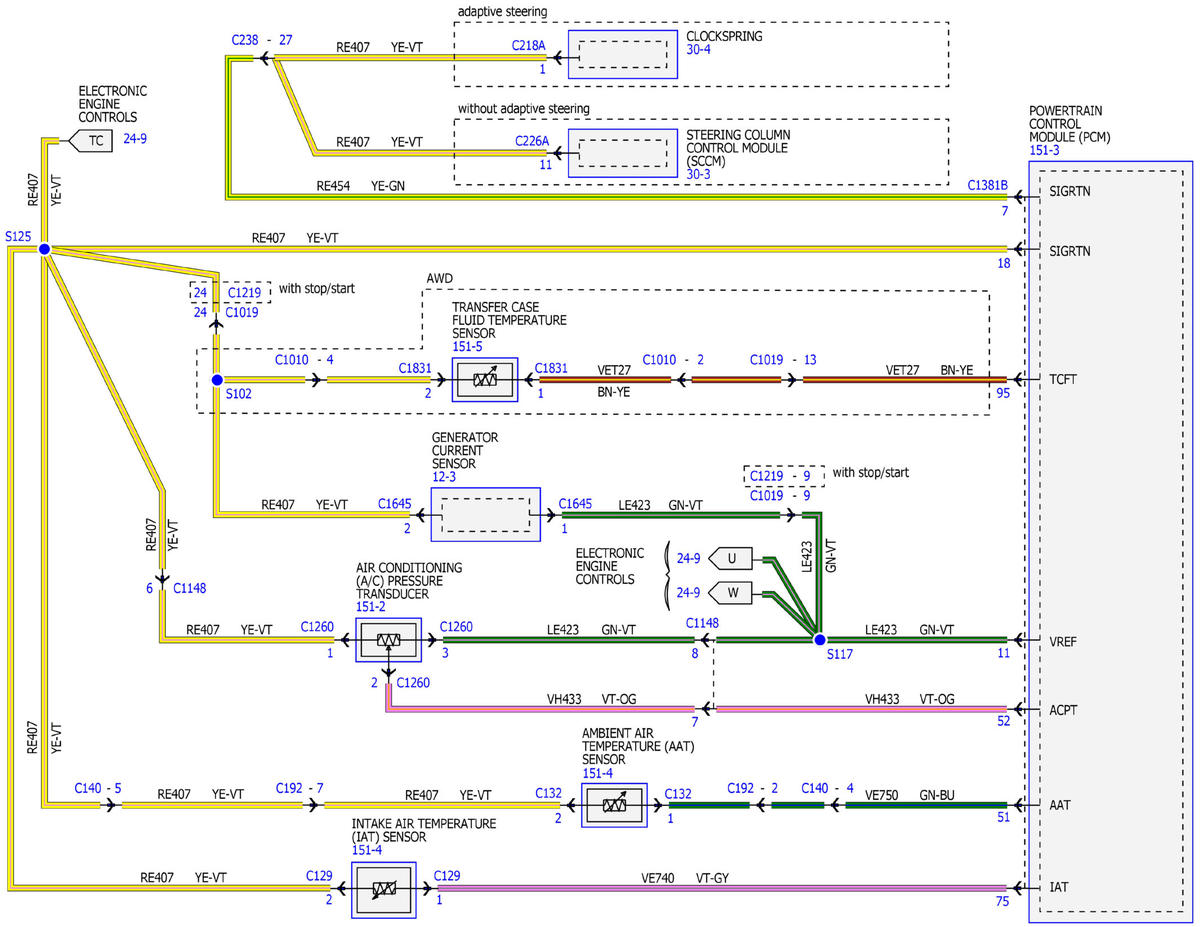

Fig 5: Electronic Engine Controls - 2.0L Wiring Diagrams (5 of 17)

Courtesy of FORD MOTOR COMPANY

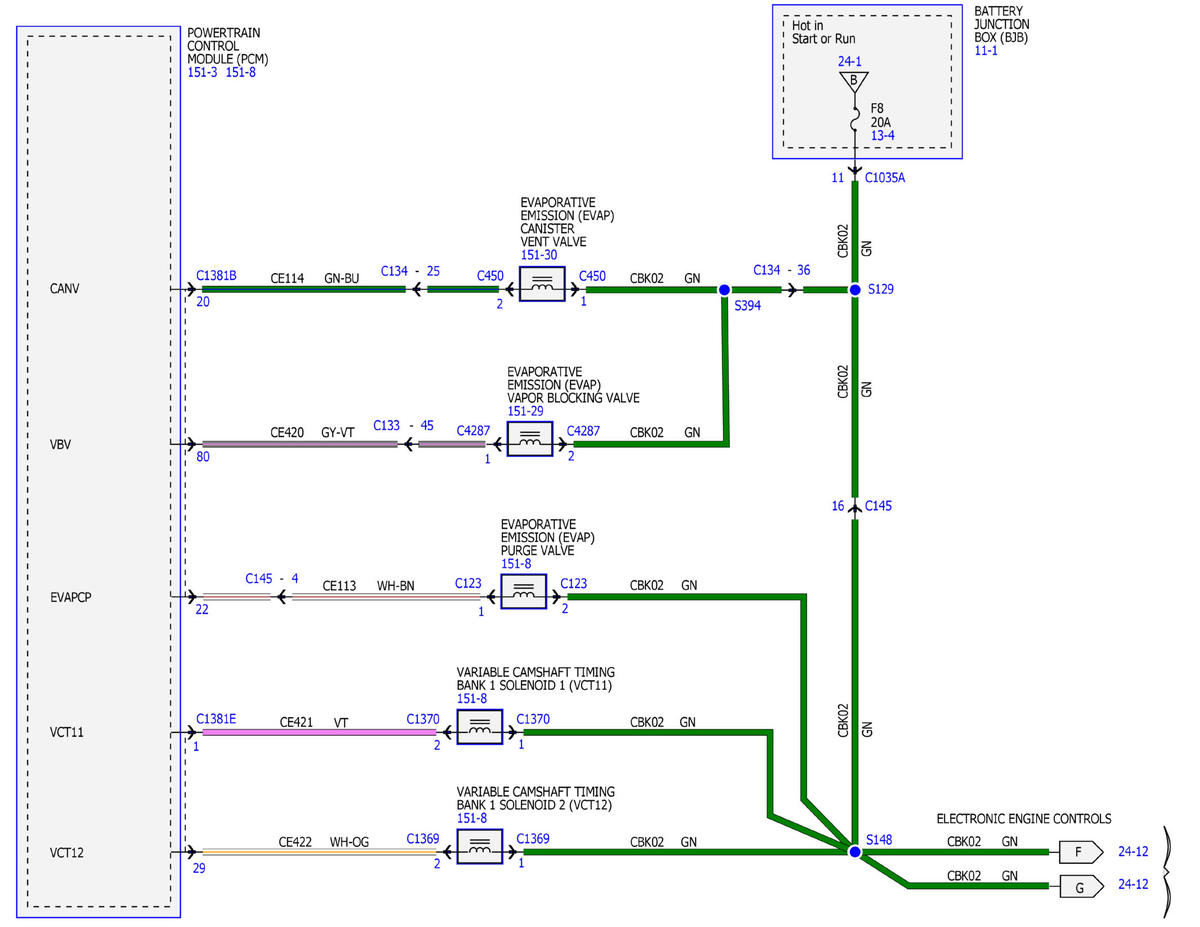

Fig 6: Electronic Engine Controls - 2.0L Wiring Diagrams (6 of 17)

Courtesy of FORD MOTOR COMPANY

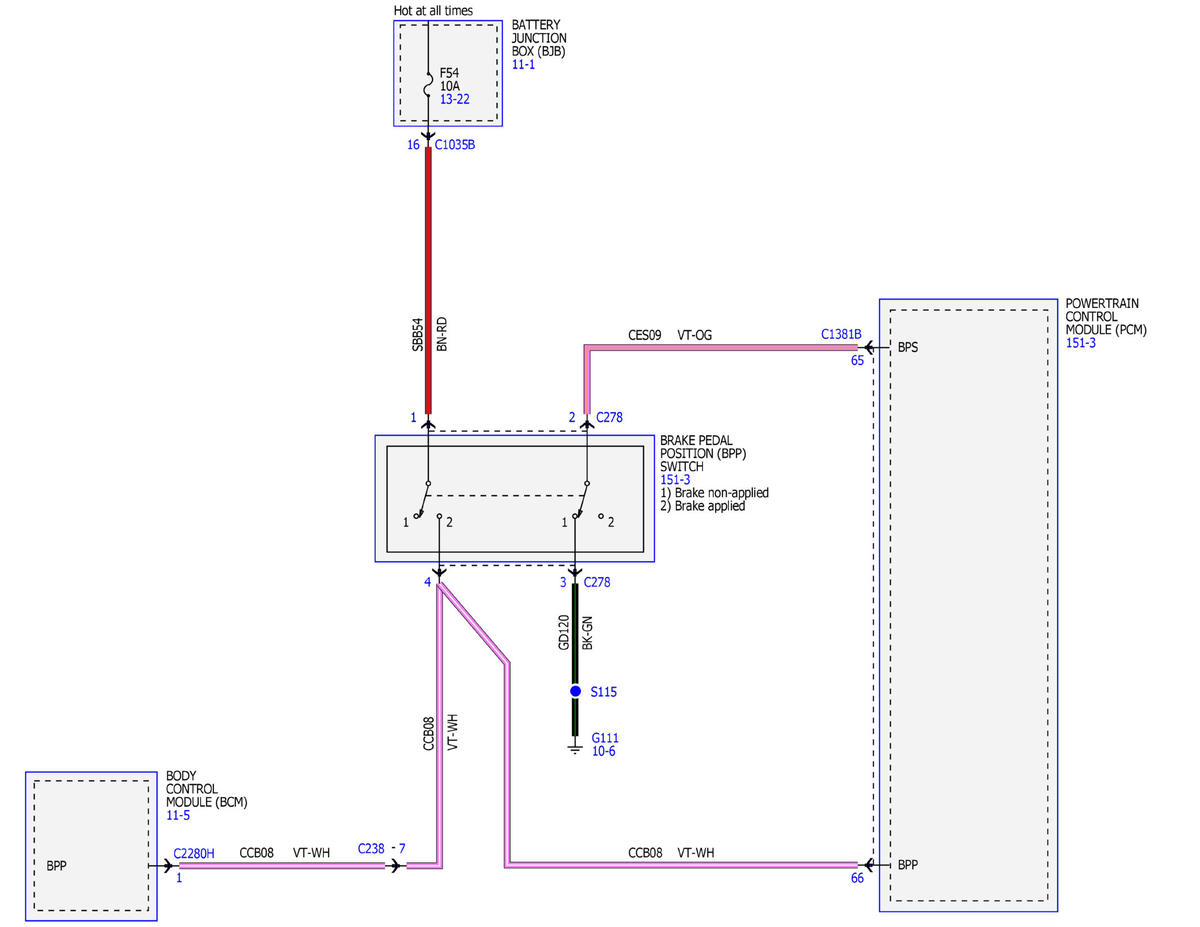

Fig 7: Electronic Engine Controls - 2.0L Wiring Diagrams (7 of 17)

Courtesy of FORD MOTOR COMPANY

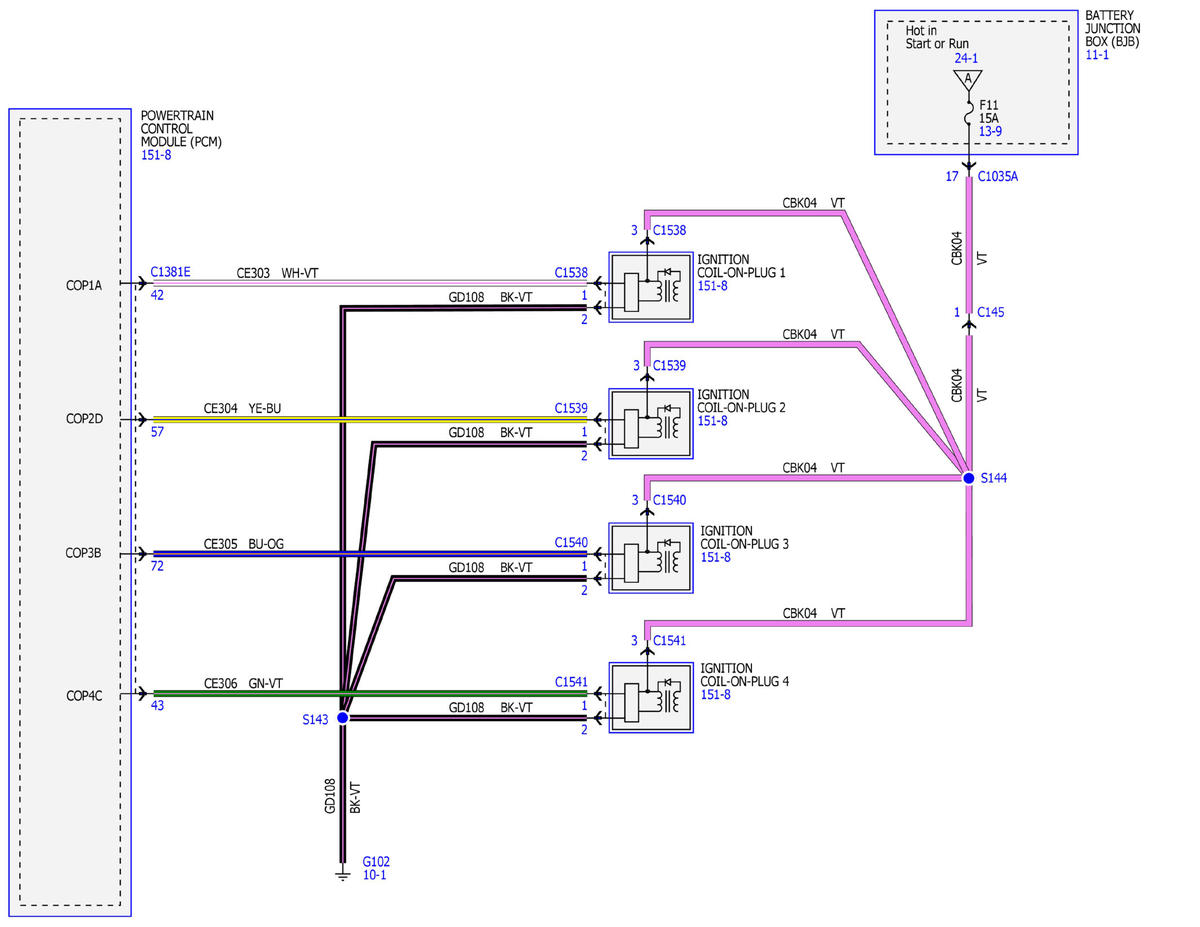

Fig 8: Electronic Engine Controls - 2.0L Wiring Diagrams (8 of 17)

Courtesy of FORD MOTOR COMPANY

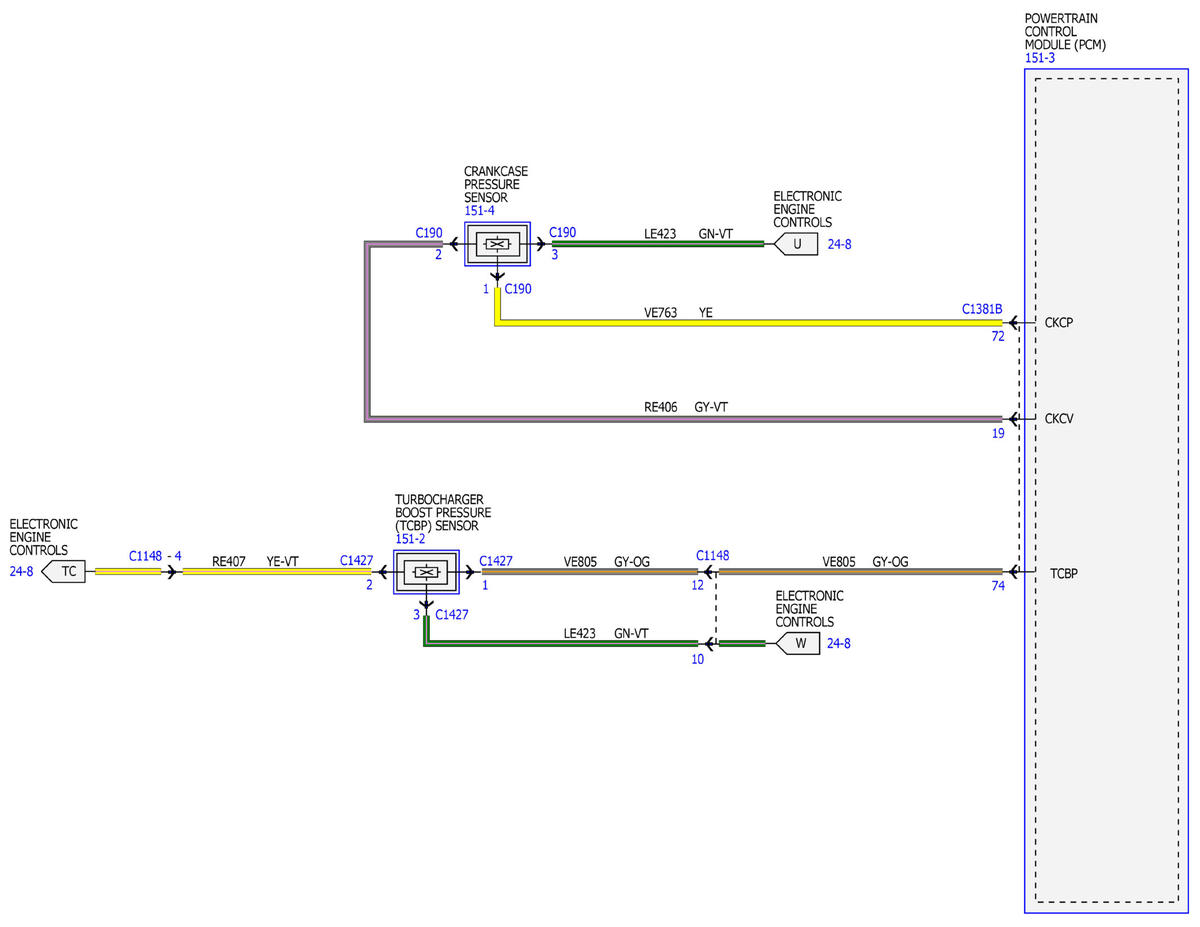

Fig 9: Electronic Engine Controls - 2.0L Wiring Diagrams (9 of 17)

Courtesy of FORD MOTOR COMPANY

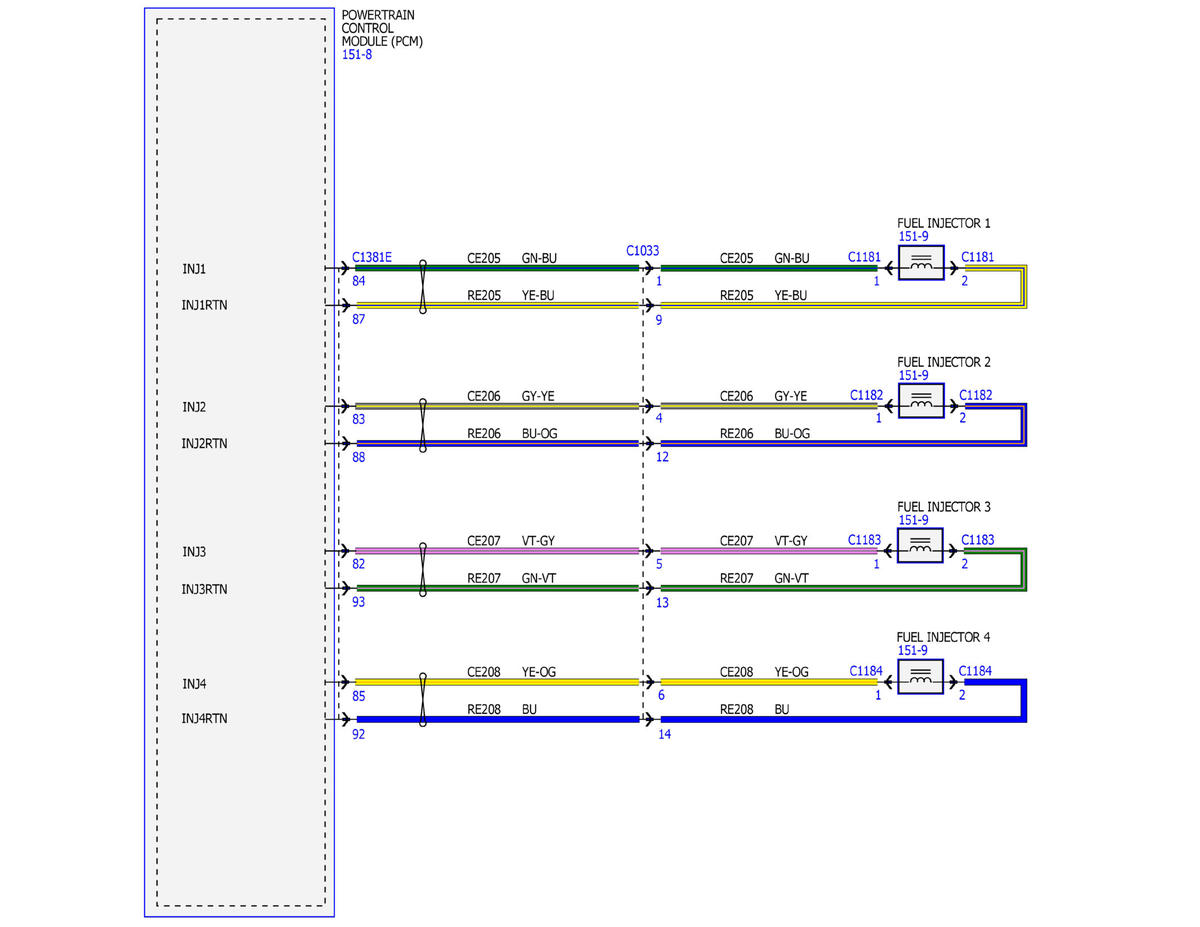

Fig 10: Electronic Engine Controls - 2.0L Wiring Diagrams (10 of 17)

Courtesy of FORD MOTOR COMPANY

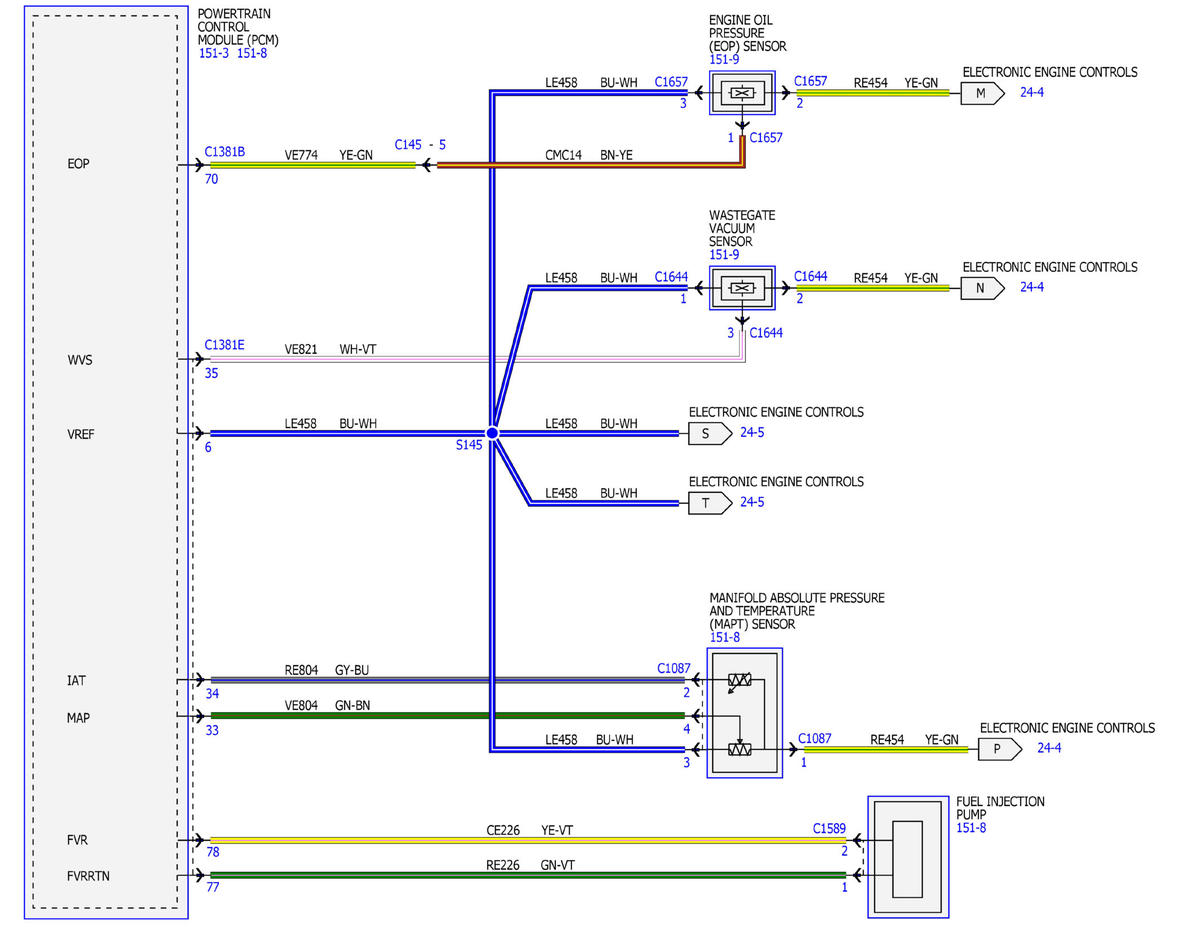

Fig 11: Electronic Engine Controls - 2.0L Wiring Diagrams (11 of 17)

Courtesy of FORD MOTOR COMPANY

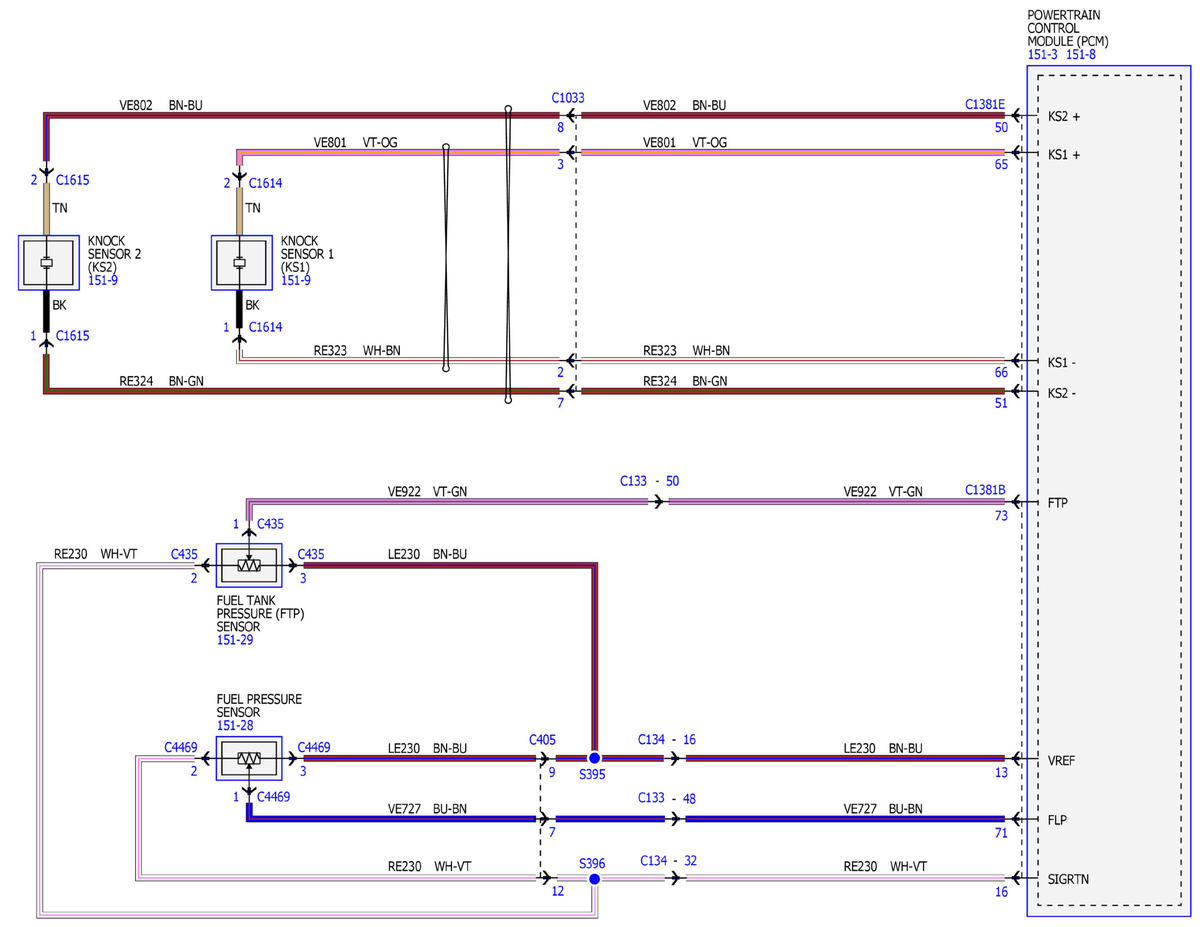

Fig 12: Electronic Engine Controls - 2.0L Wiring Diagrams (12 of 17)

Courtesy of FORD MOTOR COMPANY

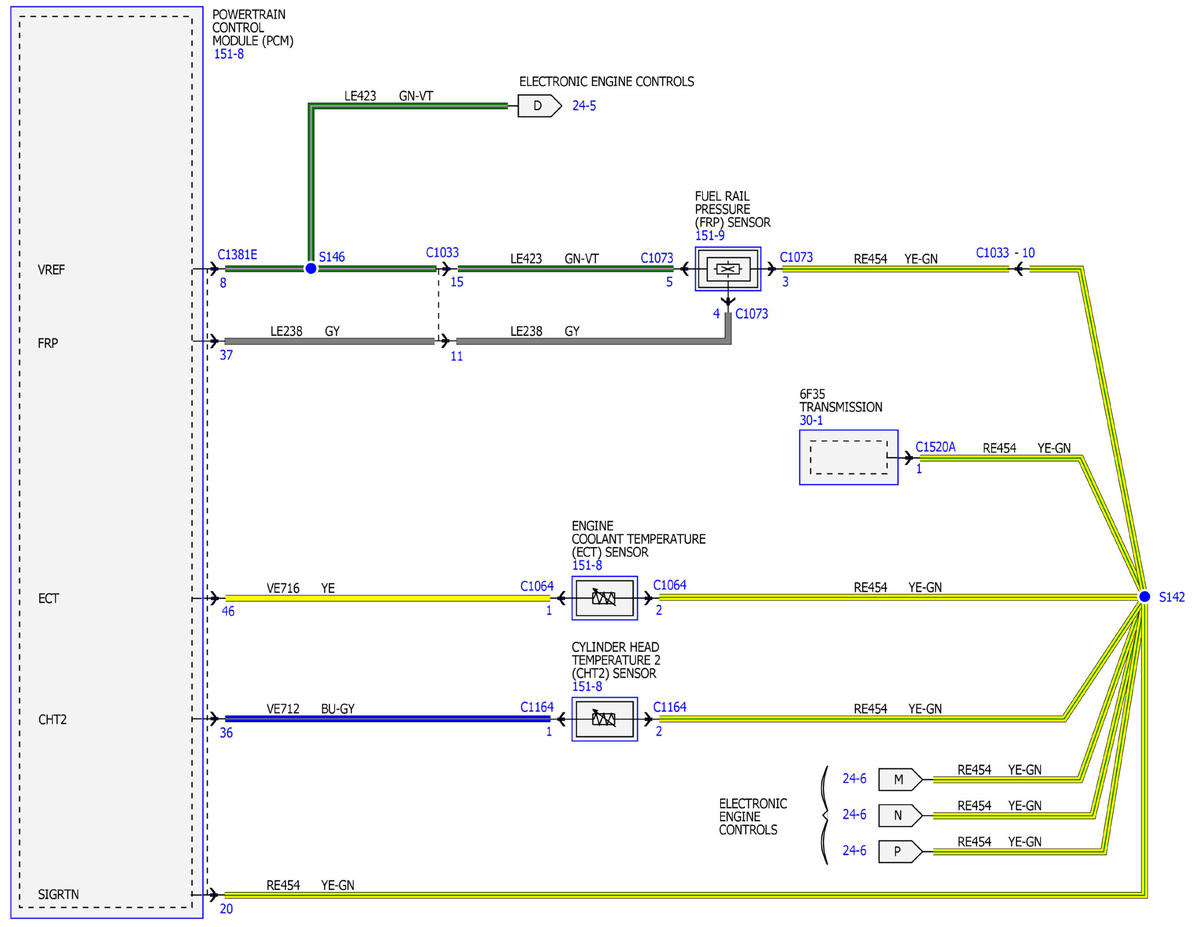

Fig 13: Electronic Engine Controls - 2.0L Wiring Diagrams (13 of 17)

Courtesy of FORD MOTOR COMPANY

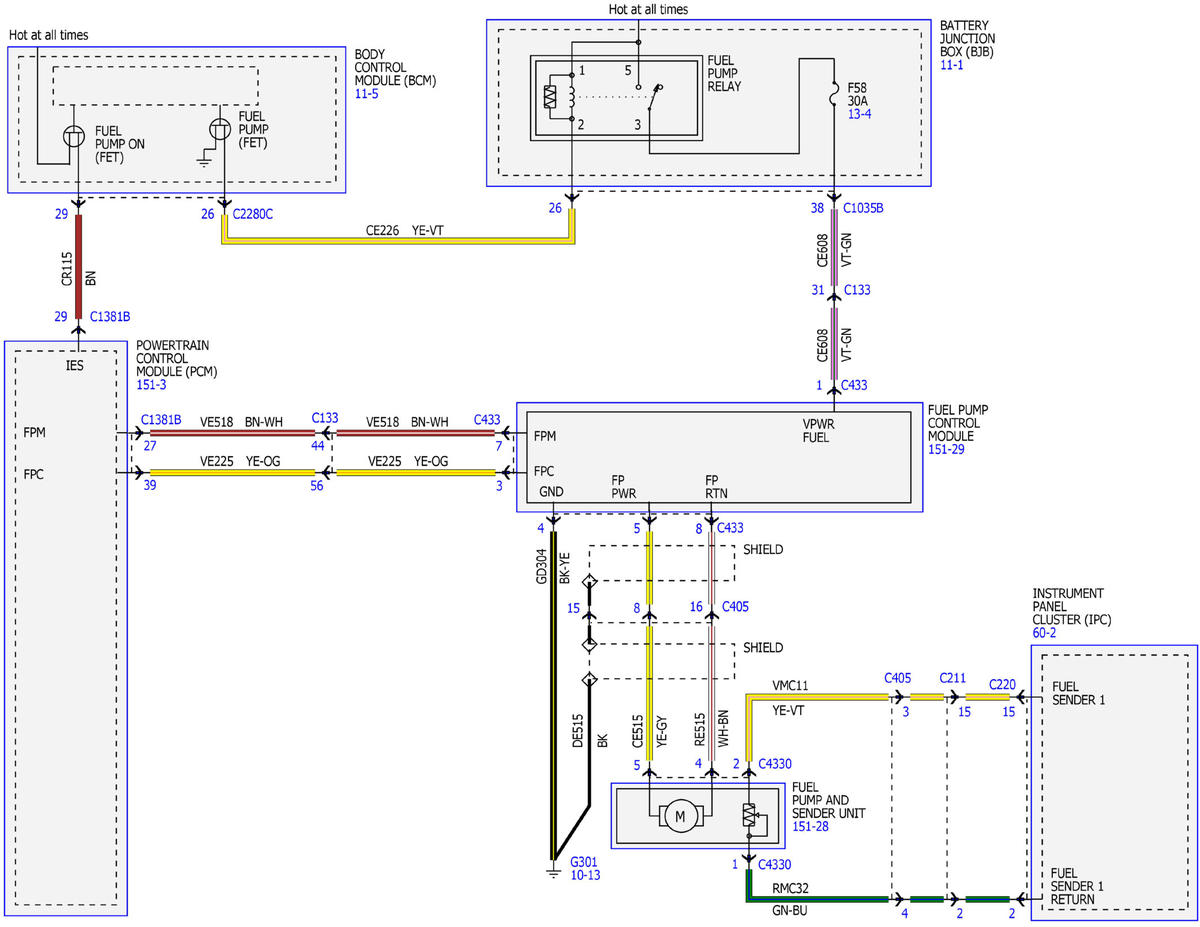

Fig 14: Electronic Engine Controls - 2.0L Wiring Diagrams (14 of 17)

Courtesy of FORD MOTOR COMPANY

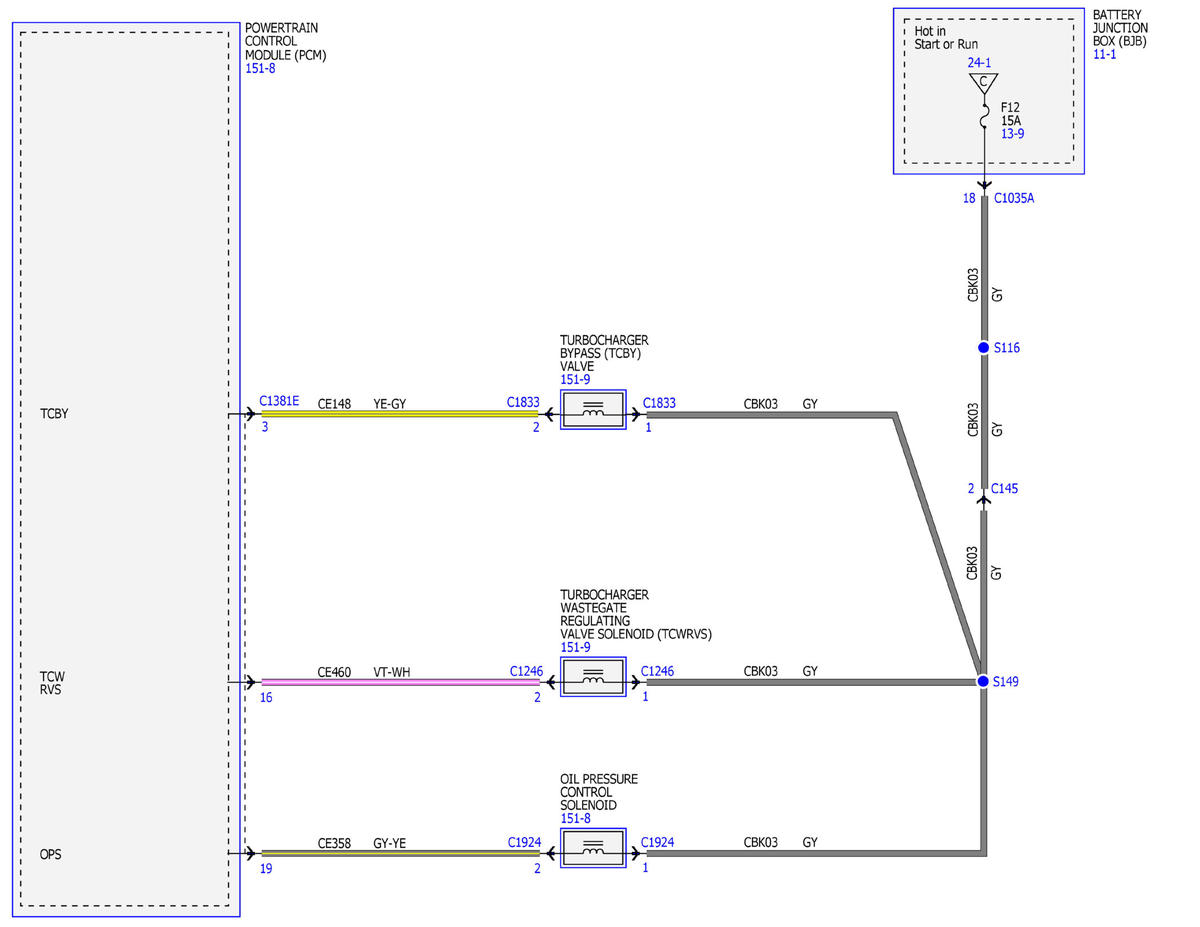

Fig 15: Electronic Engine Controls - 2.0L Wiring Diagrams (15 of 17)

Courtesy of FORD MOTOR COMPANY

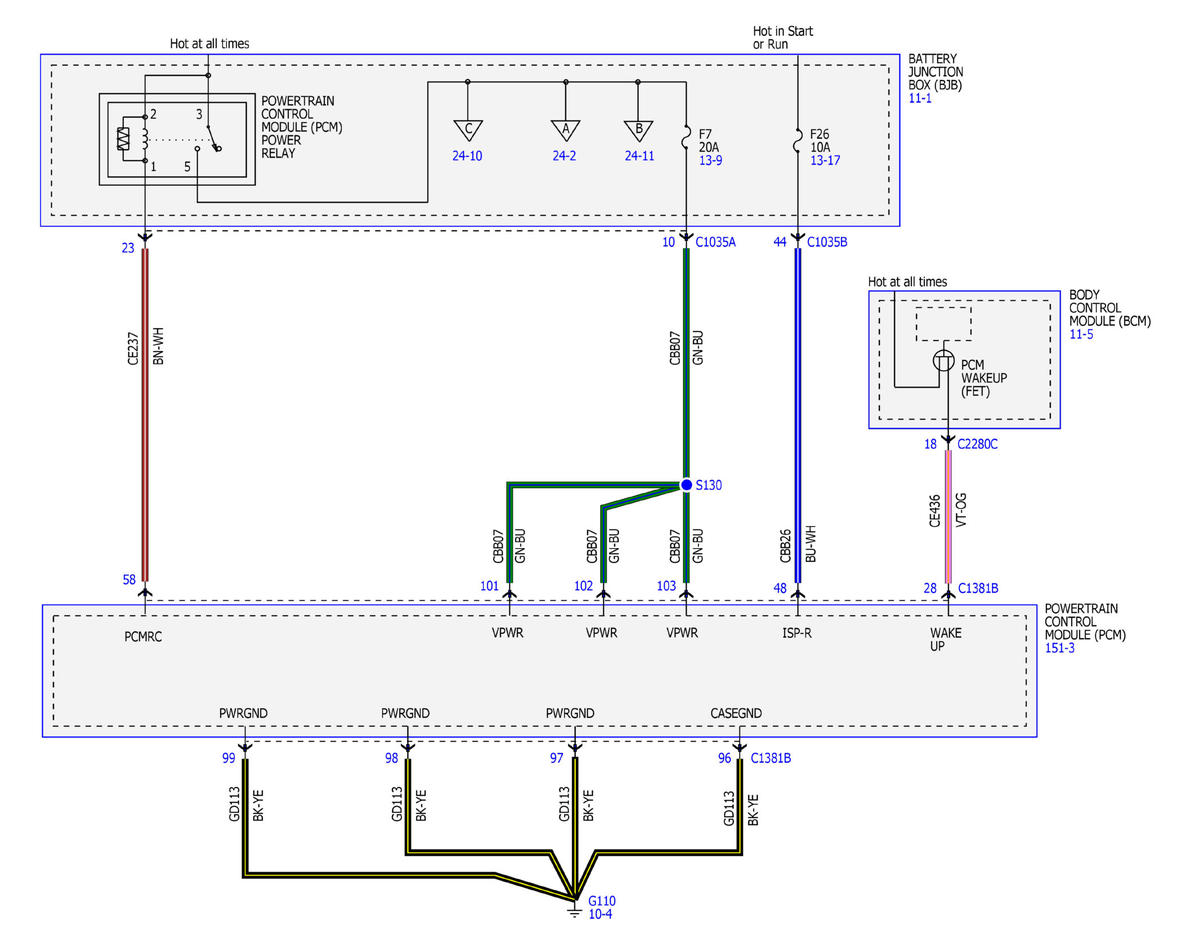

Fig 16: Electronic Engine Controls - 2.0L Wiring Diagrams (16 of 17)

Courtesy of FORD MOTOR COMPANY

Fig 17: Electronic Engine Controls - 2.0L Wiring Diagrams (17 of 17)

Courtesy of FORD MOTOR COMPANY
