Cruise Control

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

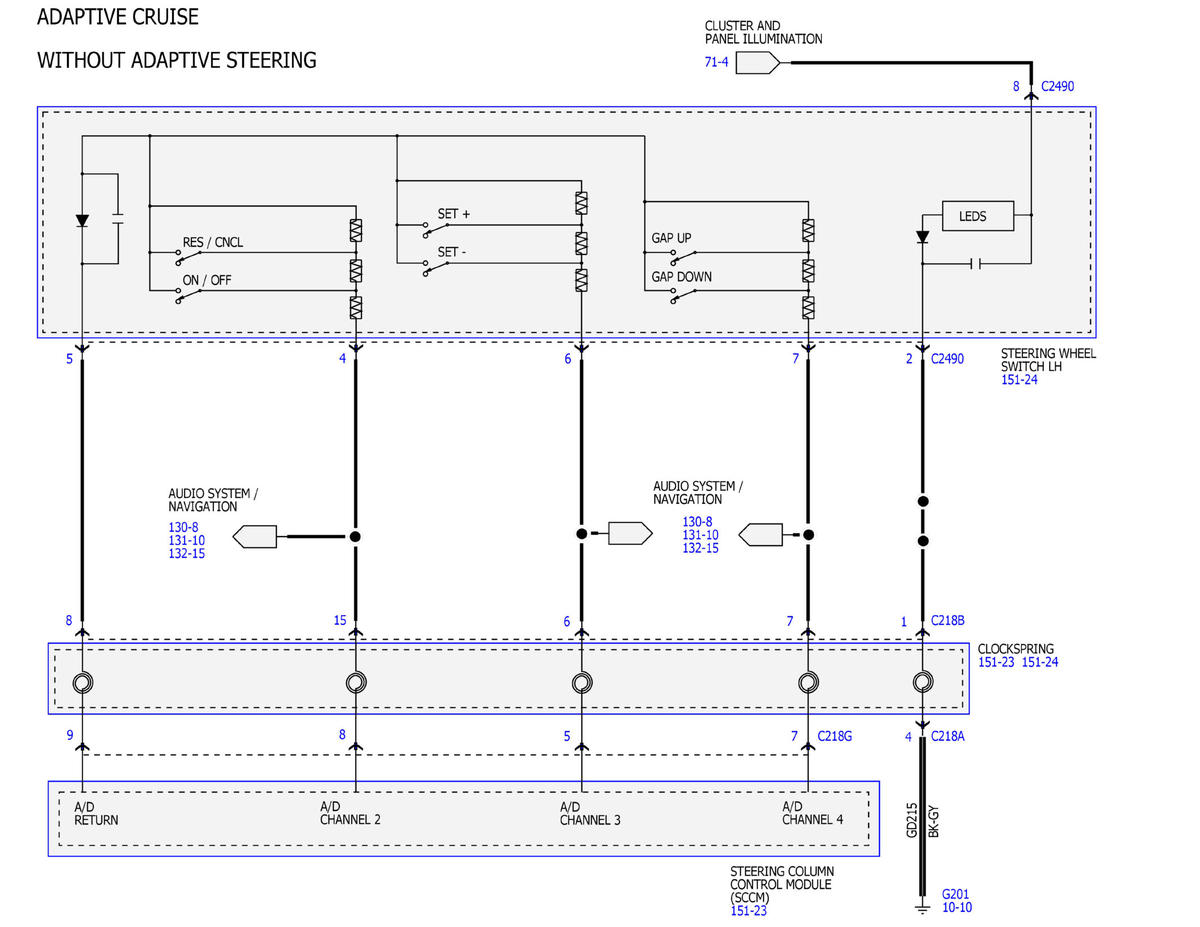

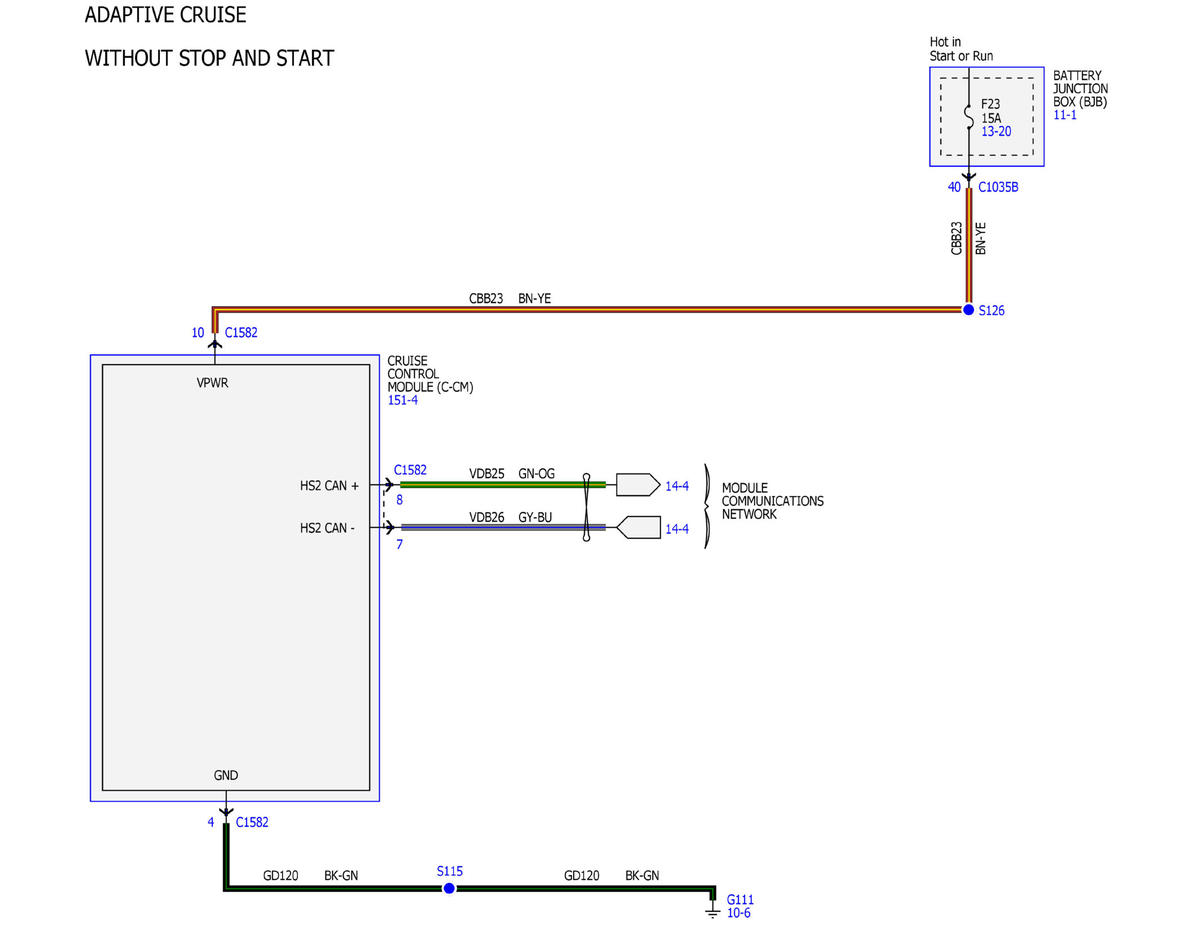

Fig 1: Cruise Control Wiring Diagrams (1 of 9)

Courtesy of FORD MOTOR COMPANY

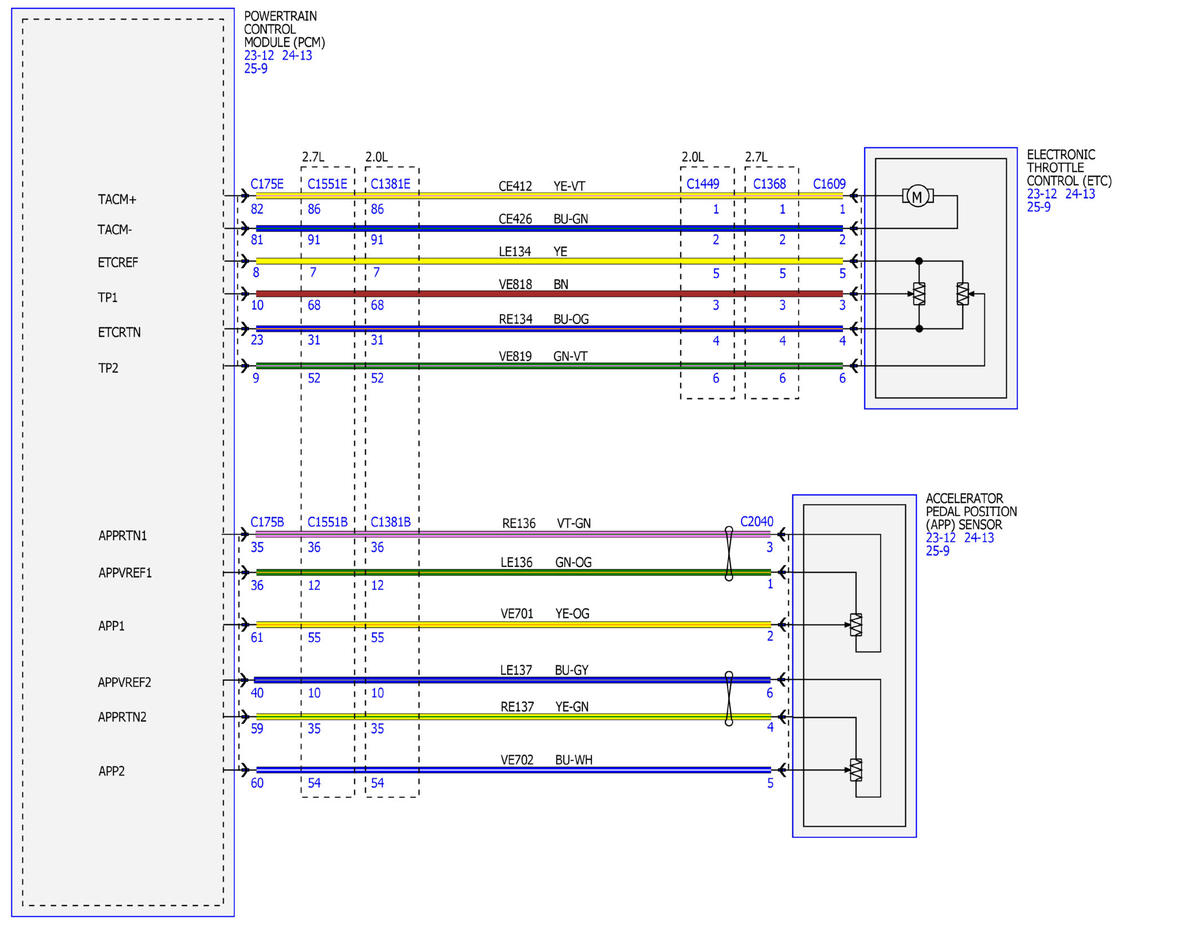

Fig 2: Cruise Control Wiring Diagrams (2 of 9)

Courtesy of FORD MOTOR COMPANY

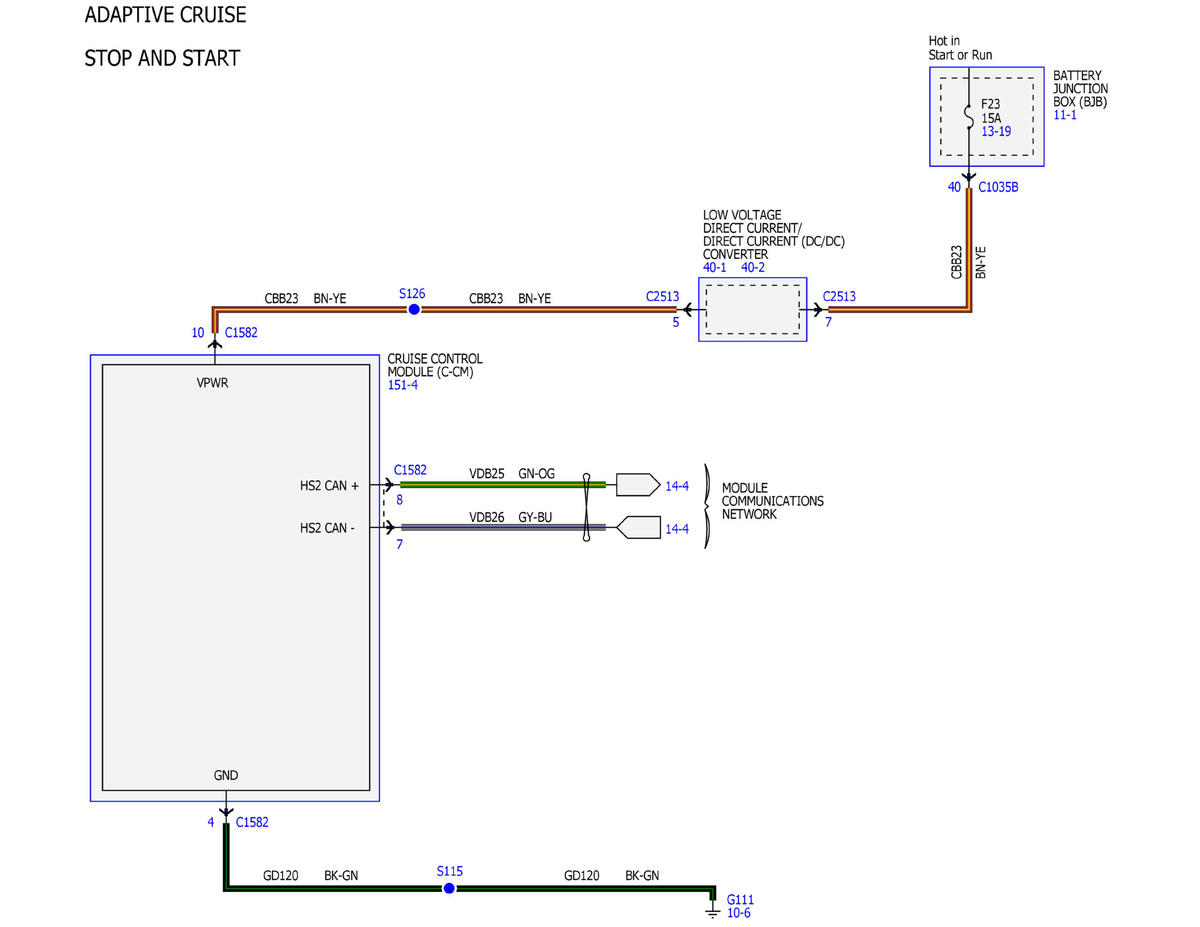

Fig 3: Cruise Control Wiring Diagrams (3 of 9)

Courtesy of FORD MOTOR COMPANY

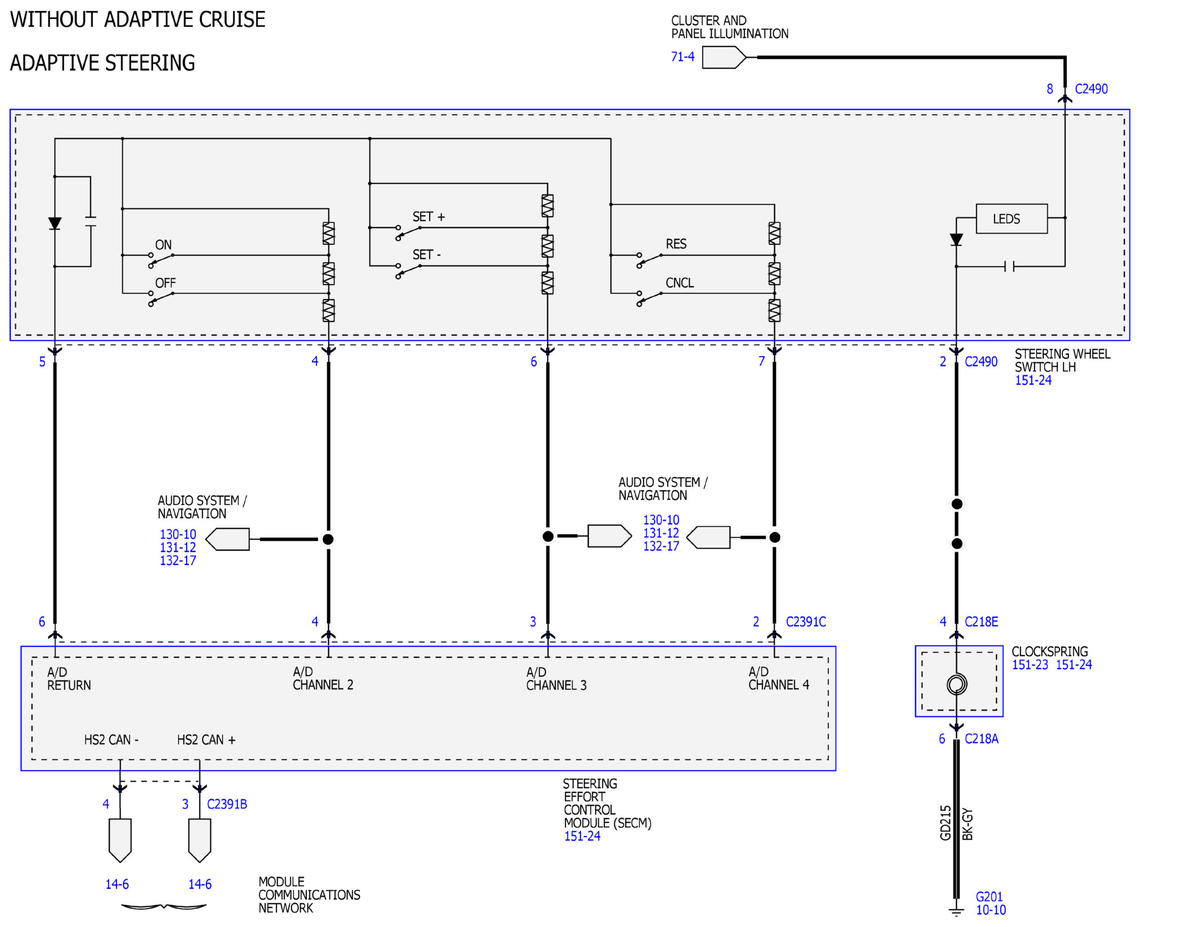

Fig 4: Cruise Control Wiring Diagrams (4 of 9)

Courtesy of FORD MOTOR COMPANY

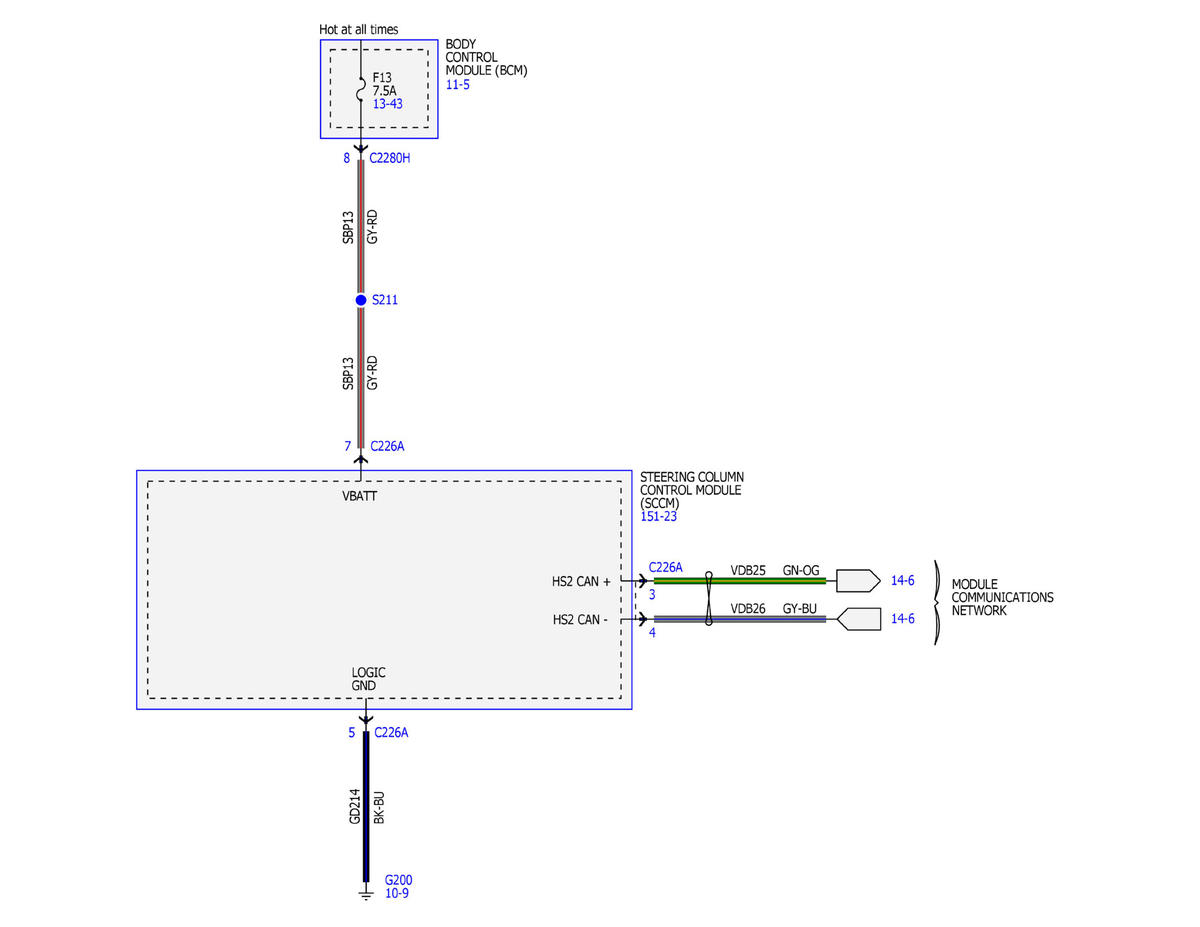

Fig 5: Cruise Control Wiring Diagrams (5 of 9)

Courtesy of FORD MOTOR COMPANY

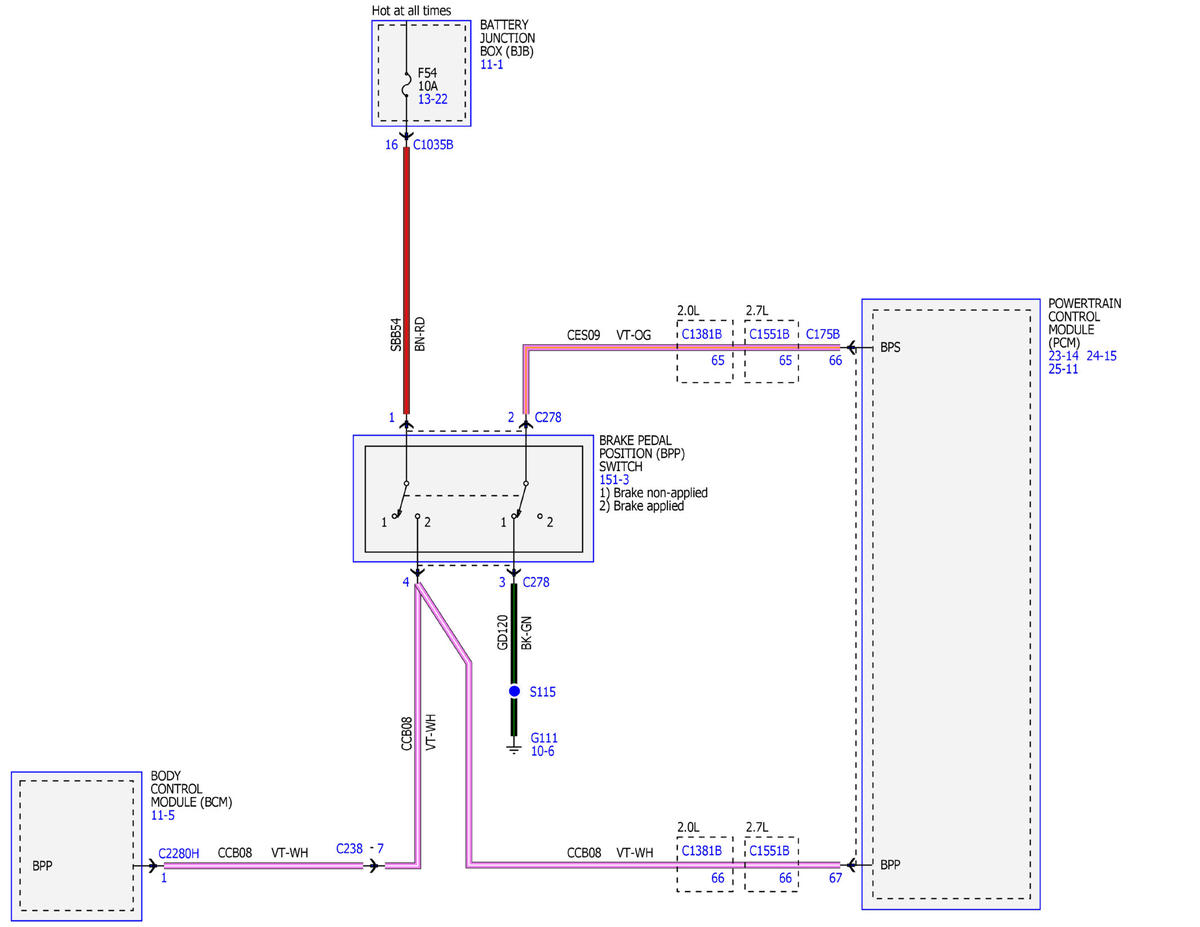

Fig 6: Cruise Control Wiring Diagrams (6 of 9)

Courtesy of FORD MOTOR COMPANY

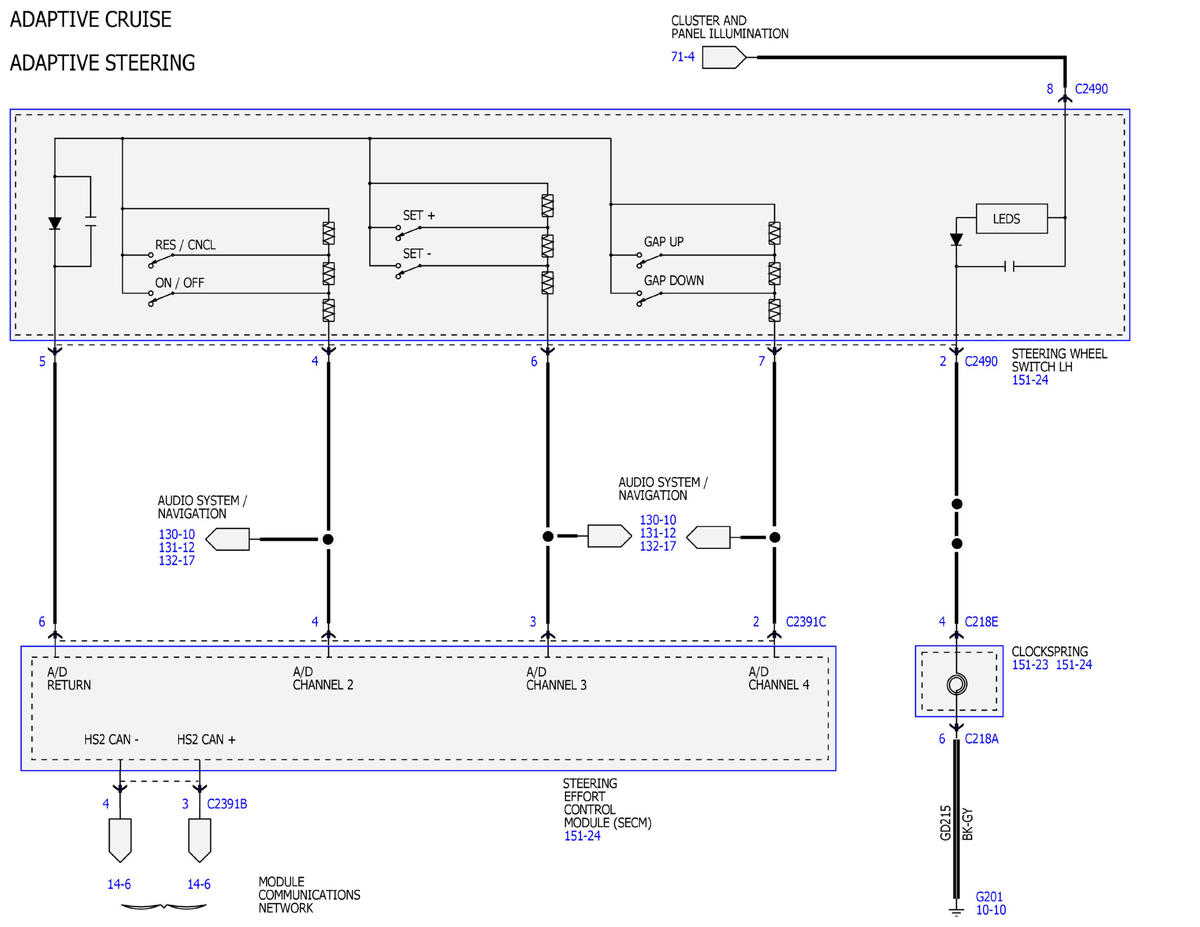

Fig 7: Cruise Control Wiring Diagrams (7 of 9)

Courtesy of FORD MOTOR COMPANY

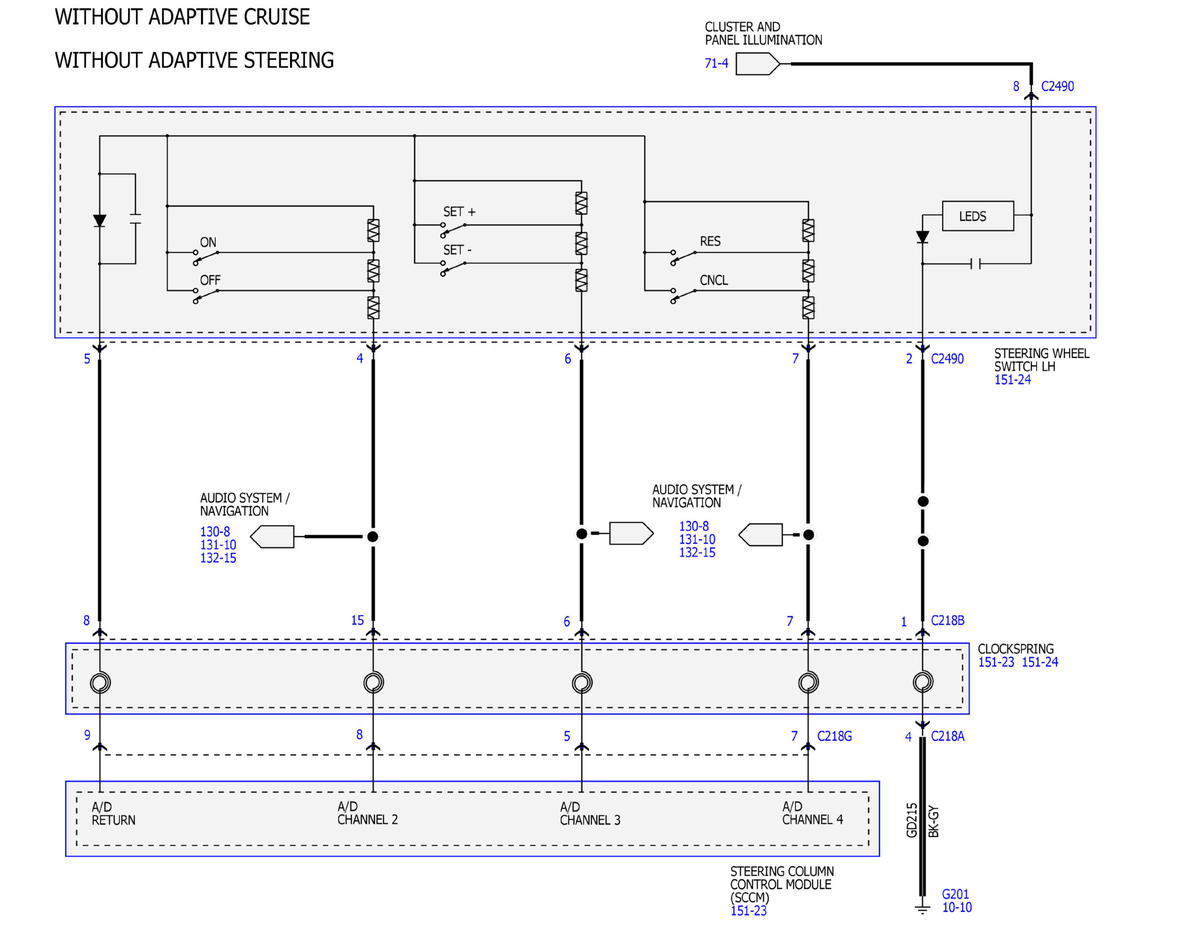

Fig 8: Cruise Control Wiring Diagrams (8 of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Cruise Control Wiring Diagrams (9 of 9)

Courtesy of FORD MOTOR COMPANY
