Cooling Fan

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

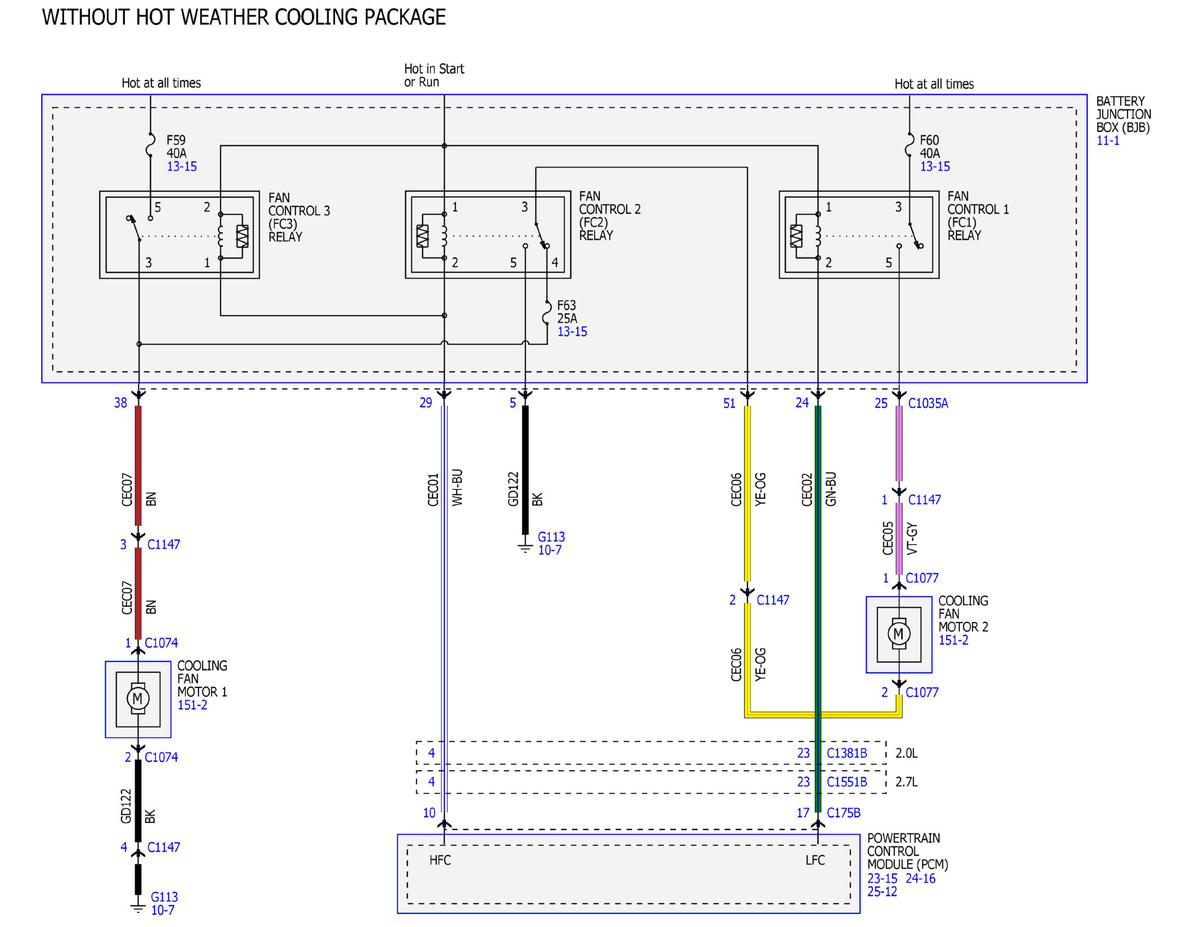

Fig 1: Cooling Fan Wiring Diagrams (1 of 5)

Courtesy of FORD MOTOR COMPANY

Fig 2: Cooling Fan Wiring Diagrams (2 of 5)

Courtesy of FORD MOTOR COMPANY

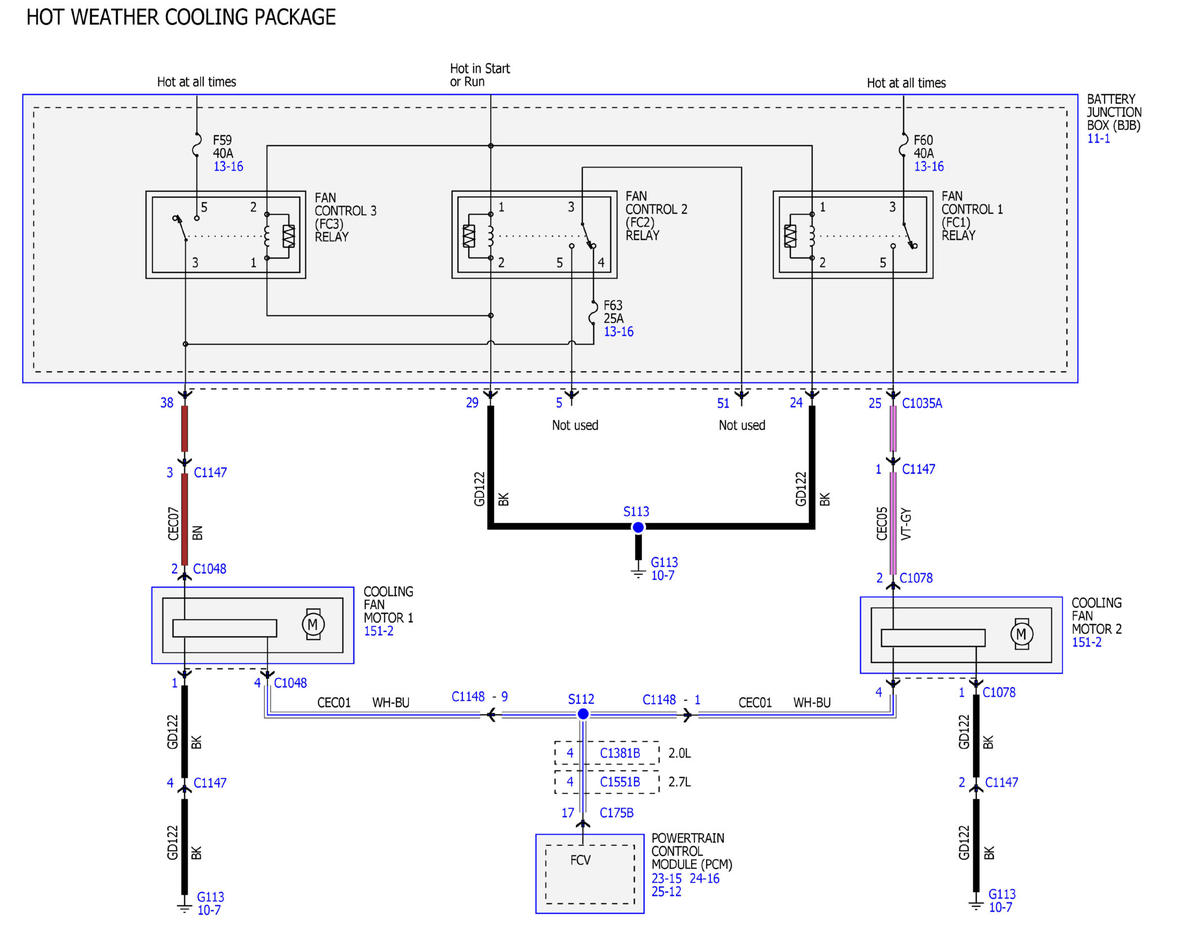

Fig 3: Cooling Fan Wiring Diagrams (3 of 5)

Courtesy of FORD MOTOR COMPANY

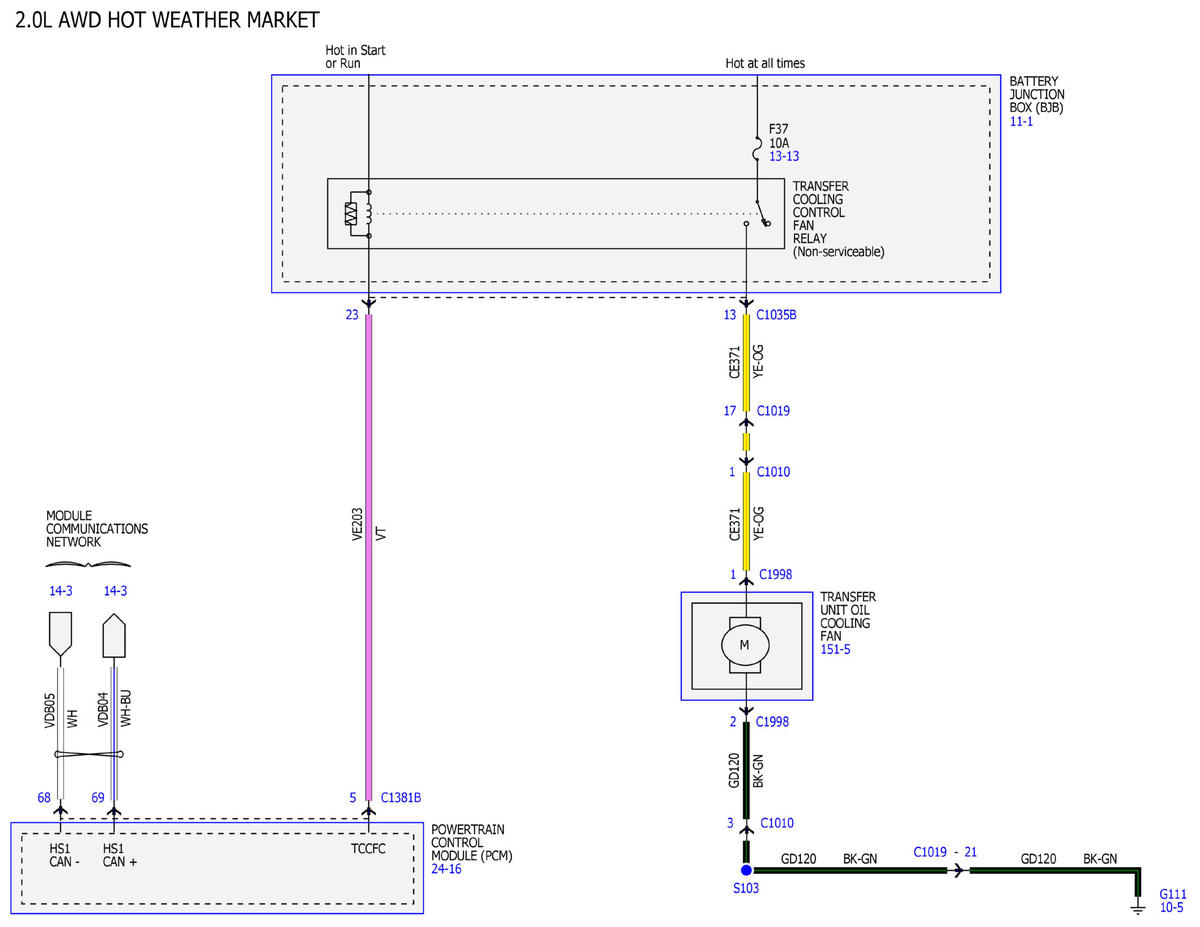

Fig 4: Cooling Fan Wiring Diagrams (4 of 5)

Courtesy of FORD MOTOR COMPANY

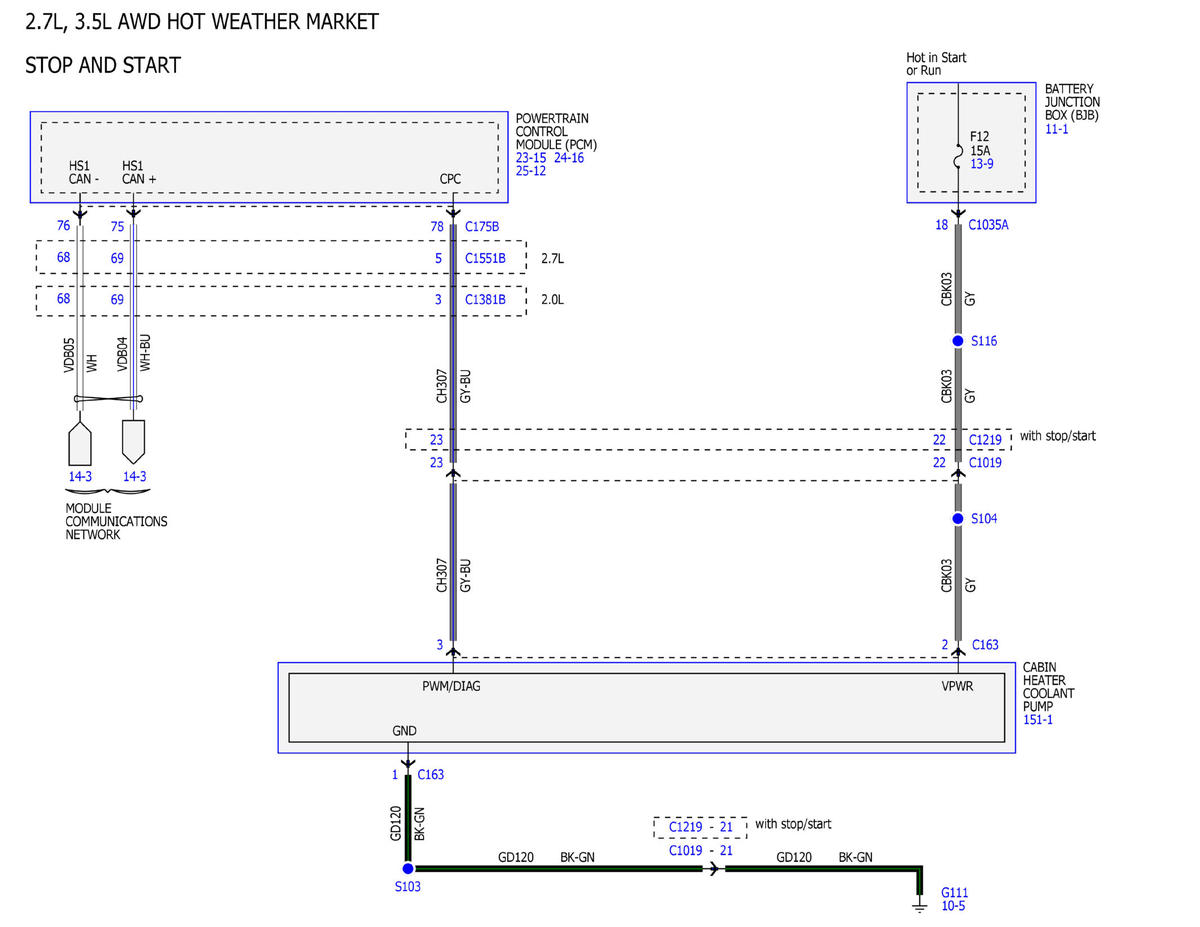

Fig 5: Cooling Fan Wiring Diagrams (5 of 5)

Courtesy of FORD MOTOR COMPANY
