Audio System/Navigation - Without Touchscreen

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

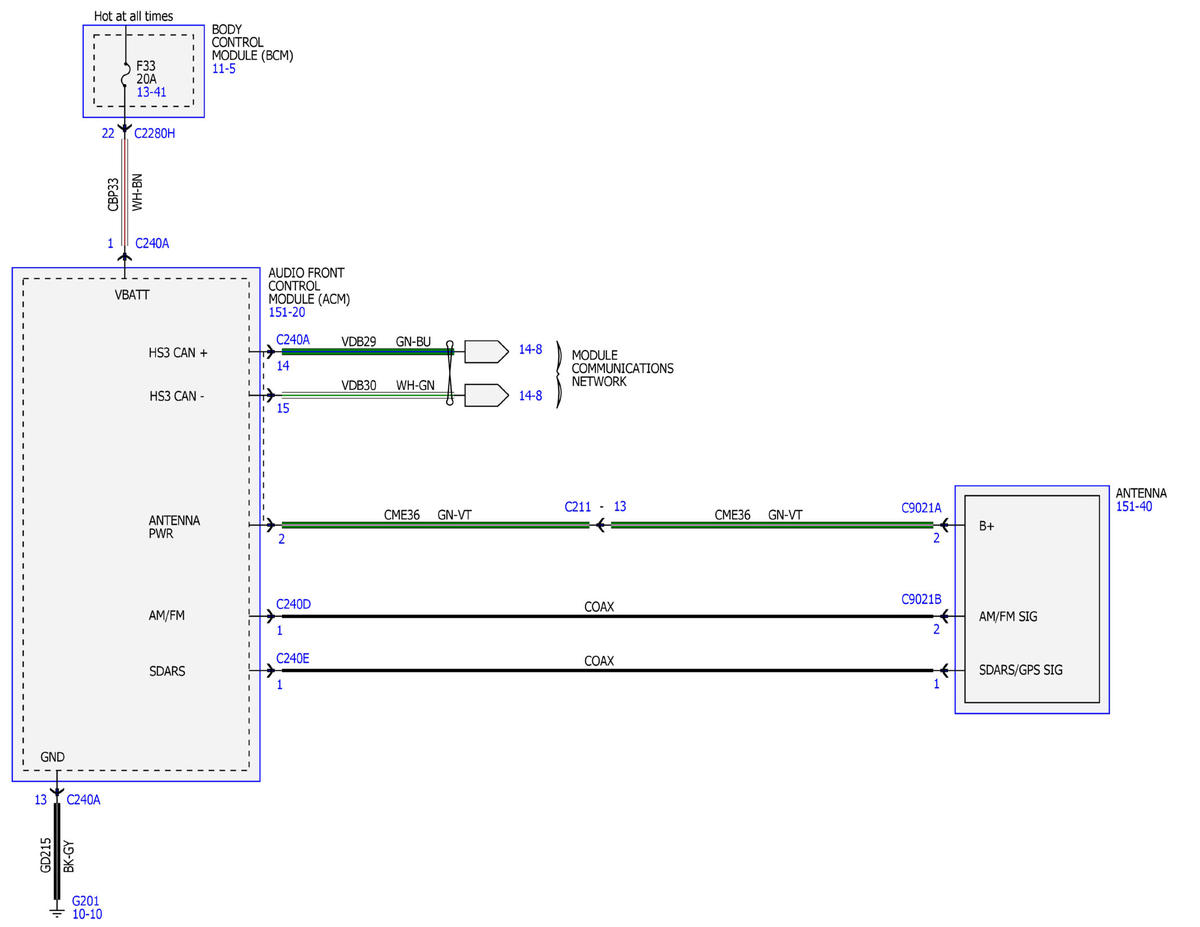

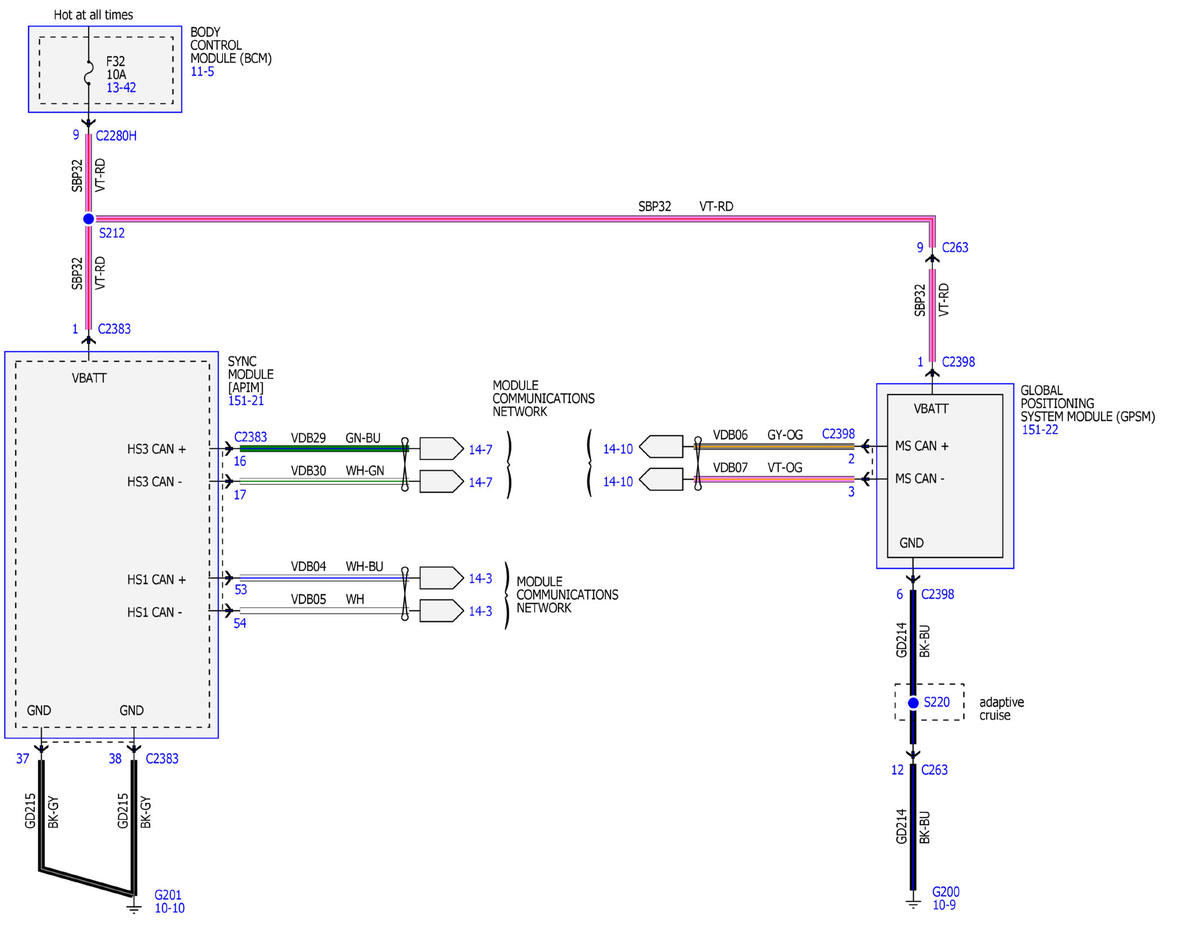

Fig 1: Audio System/Navigation - Without Touchscreen Wiring Diagrams (1 of 10)

Courtesy of FORD MOTOR COMPANY

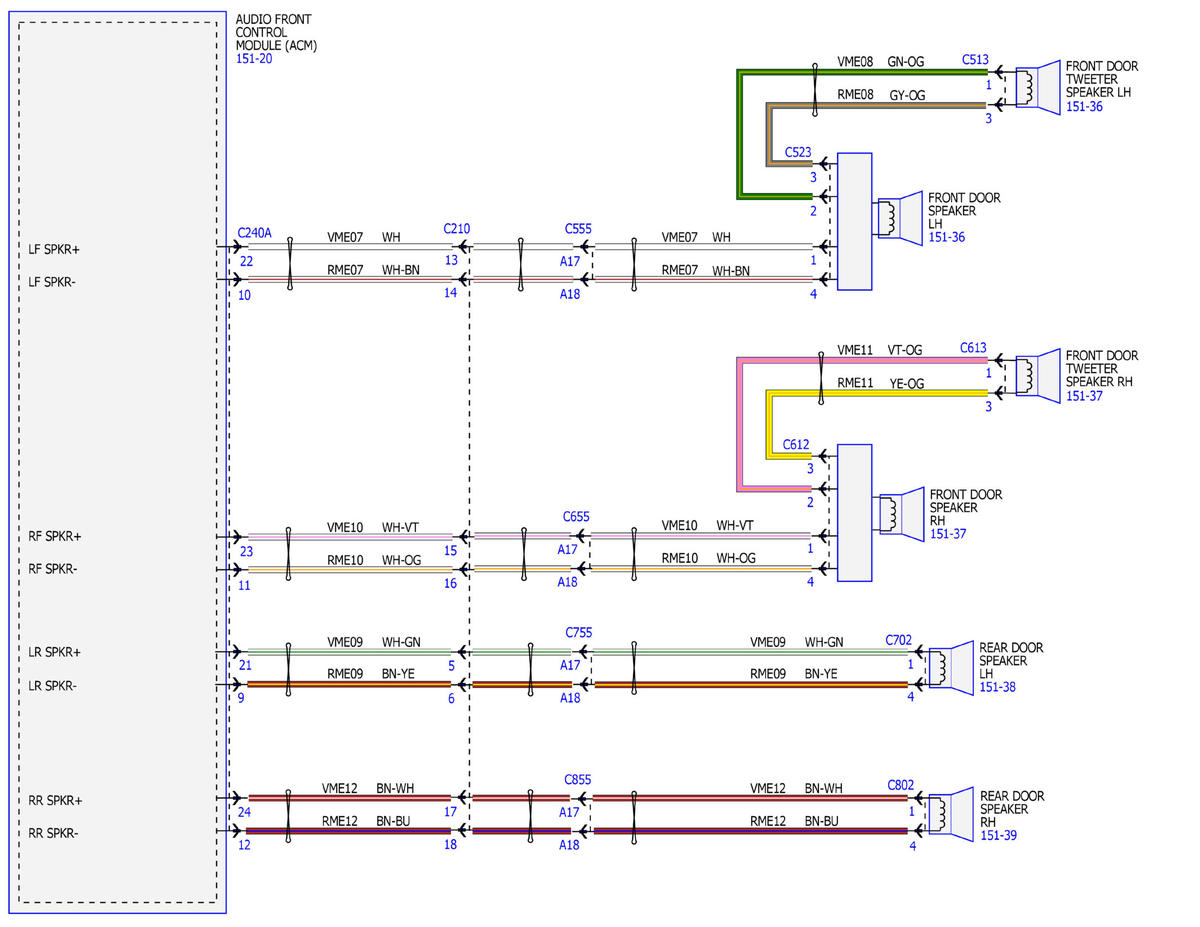

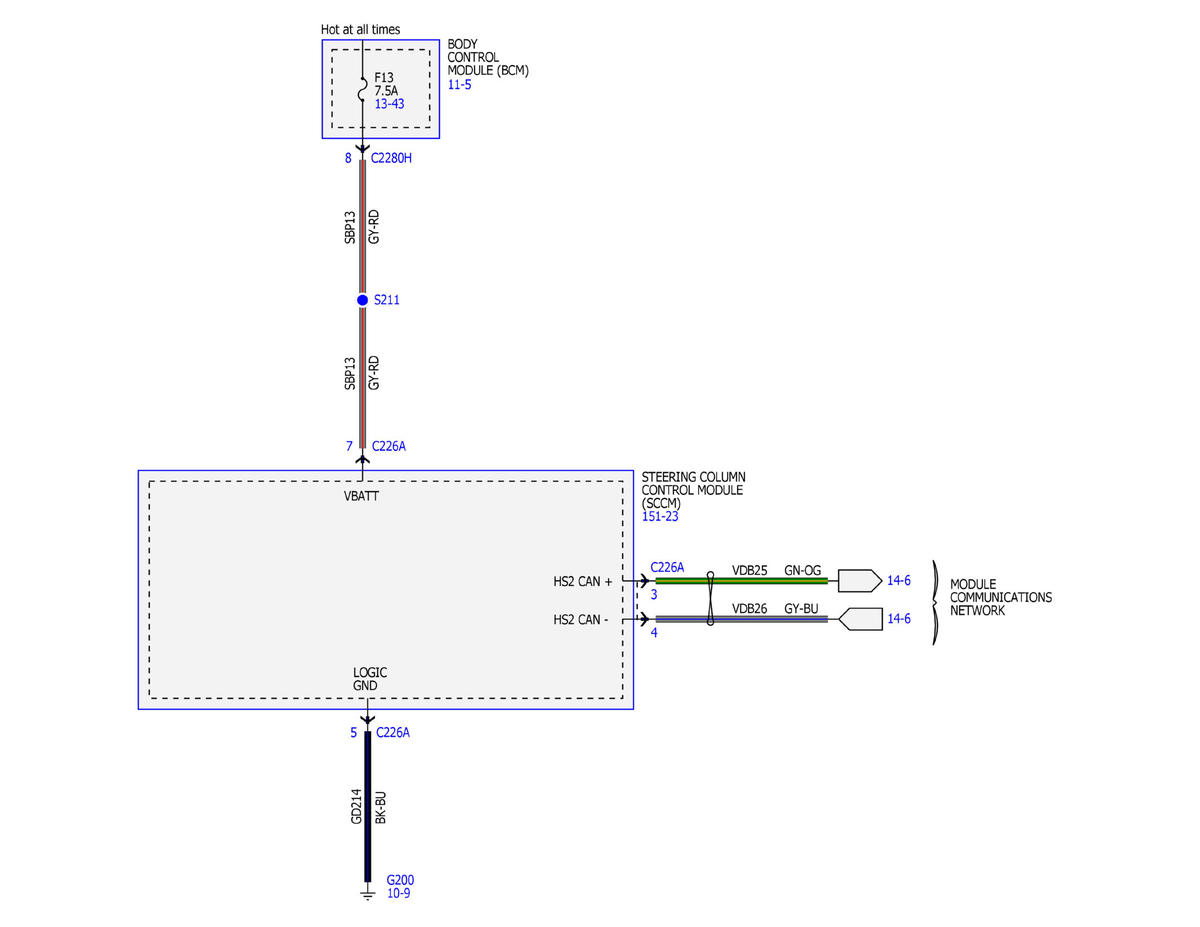

Fig 2: Audio System/Navigation - Without Touchscreen Wiring Diagrams (2 of 10)

Courtesy of FORD MOTOR COMPANY

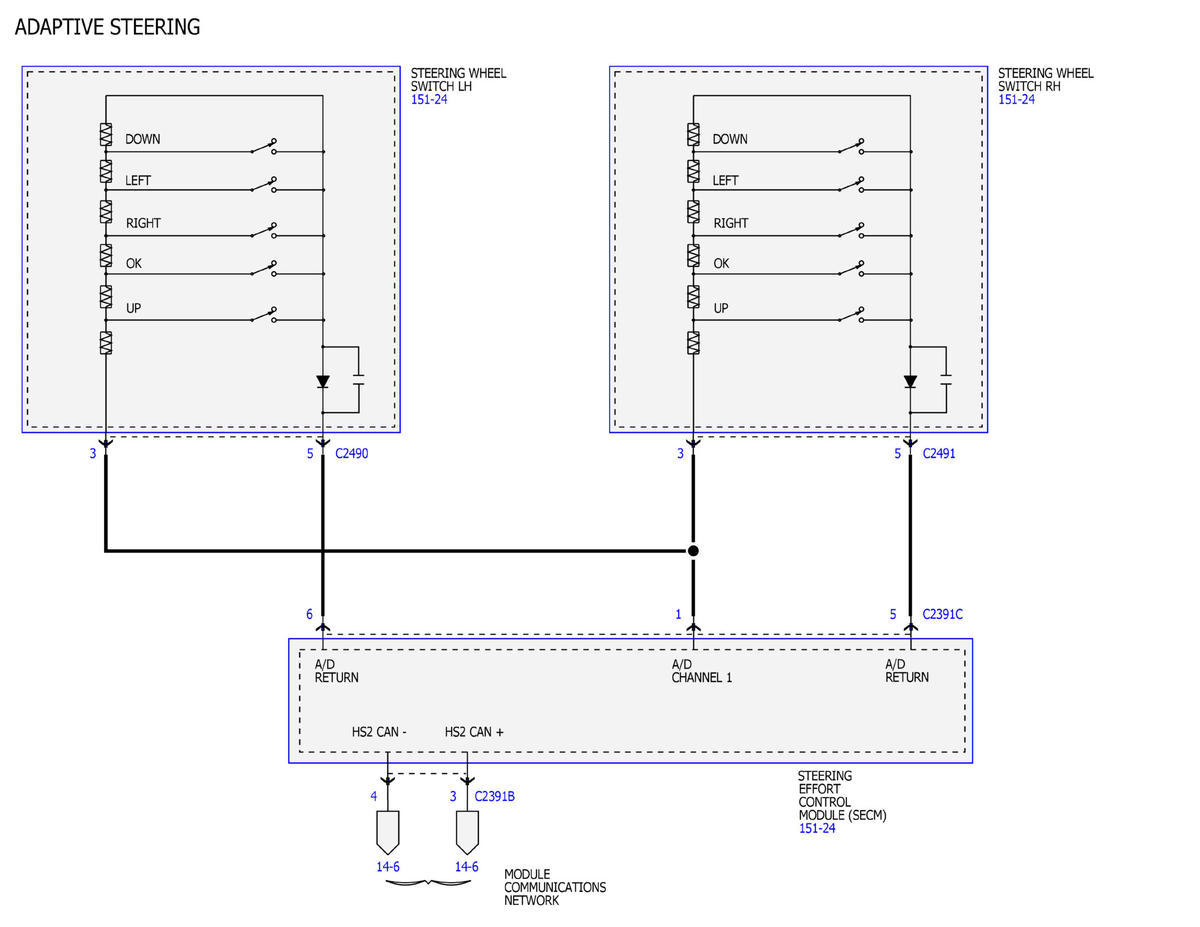

Fig 3: Audio System/Navigation - Without Touchscreen Wiring Diagrams (3 of 10)

Courtesy of FORD MOTOR COMPANY

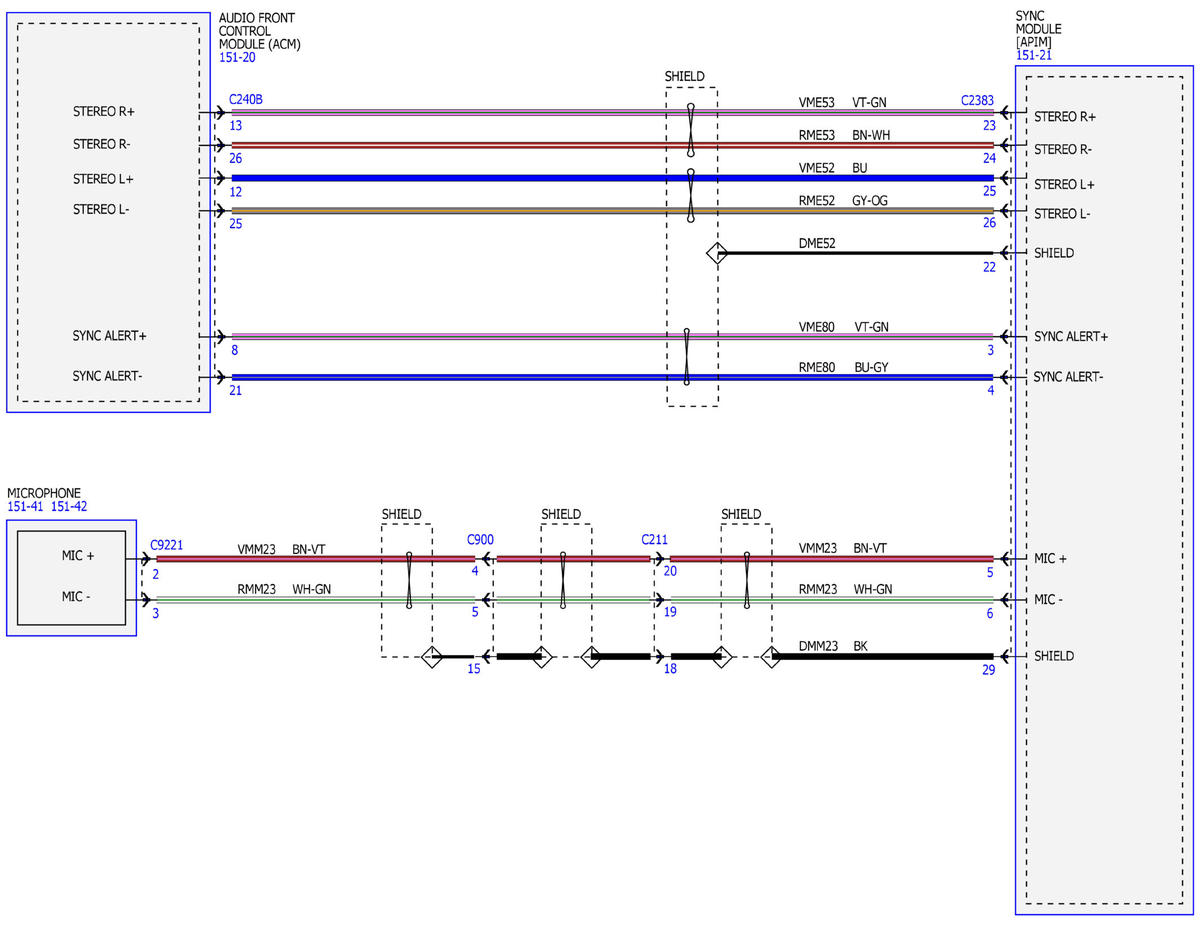

Fig 4: Audio System/Navigation - Without Touchscreen Wiring Diagrams (4 of 10)

Courtesy of FORD MOTOR COMPANY

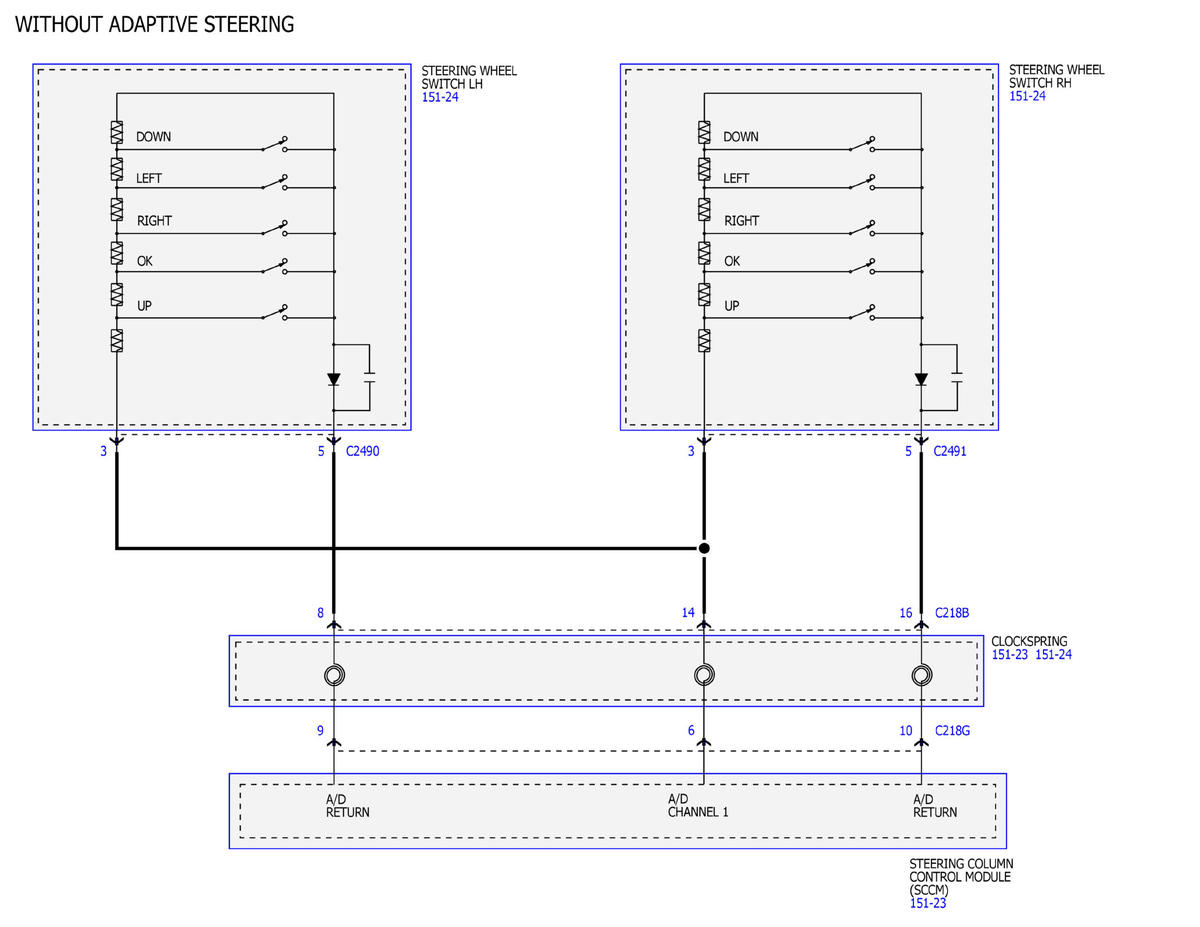

Fig 5: Audio System/Navigation - Without Touchscreen Wiring Diagrams (5 of 10)

Courtesy of FORD MOTOR COMPANY

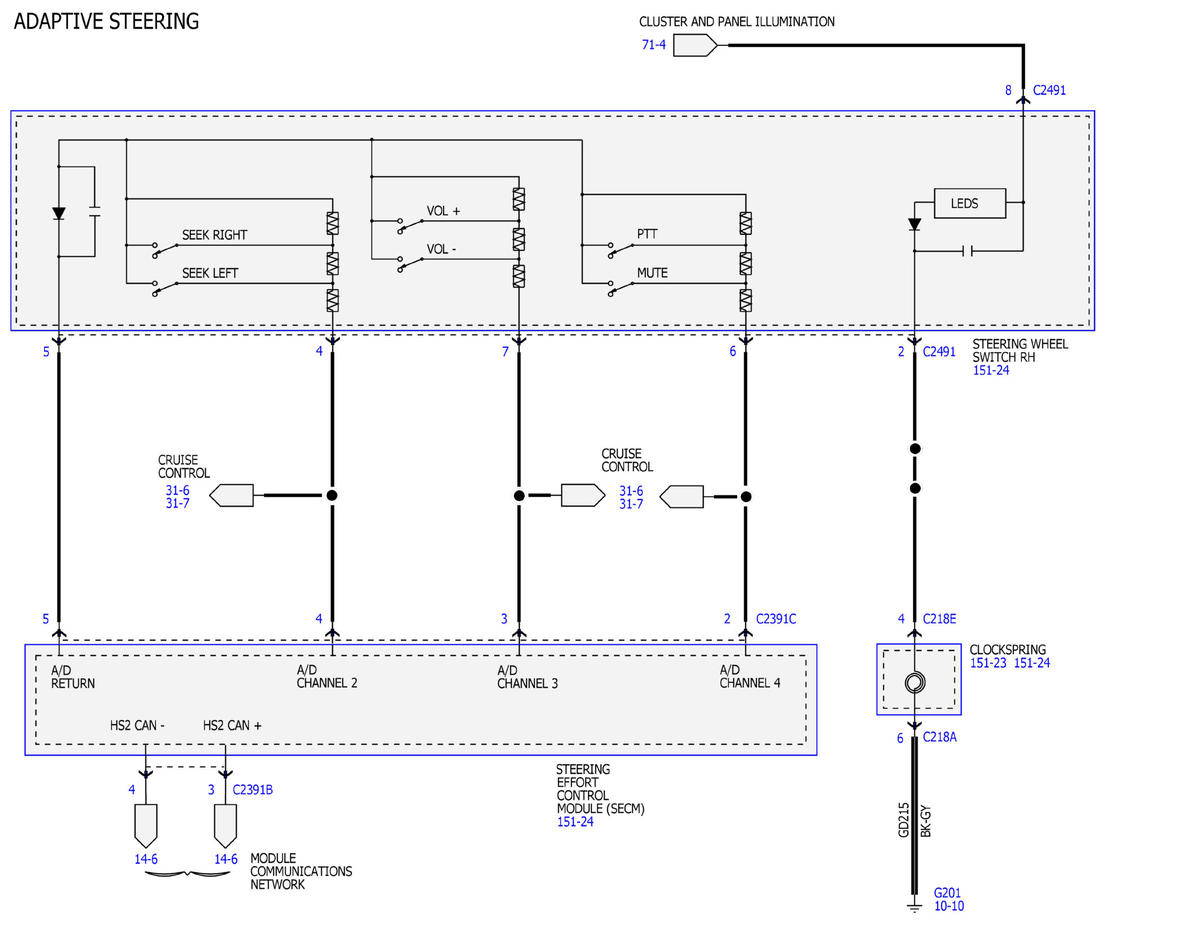

Fig 6: Audio System/Navigation - Without Touchscreen Wiring Diagrams (6 of 10)

Courtesy of FORD MOTOR COMPANY

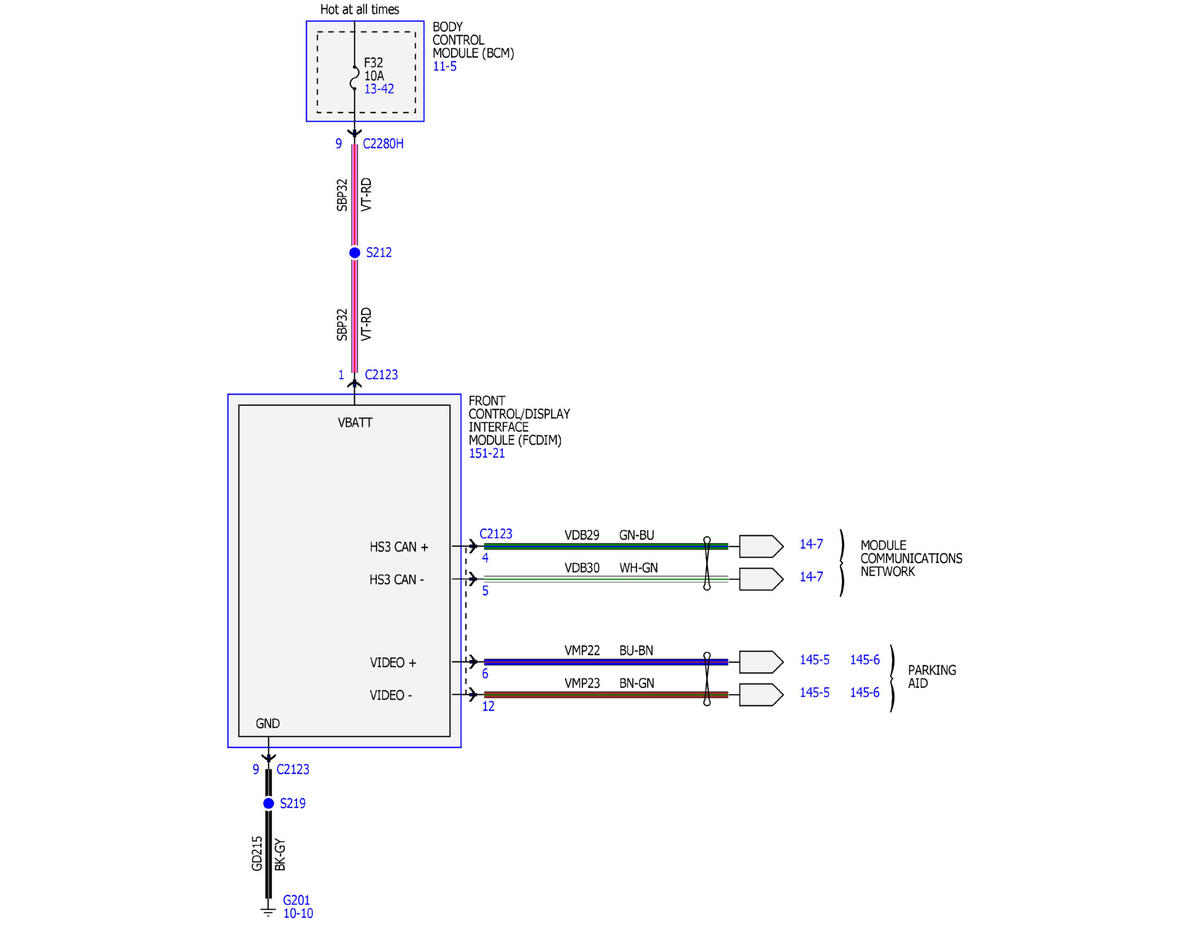

Fig 7: Audio System/Navigation - Without Touchscreen Wiring Diagrams (7 of 10)

Courtesy of FORD MOTOR COMPANY

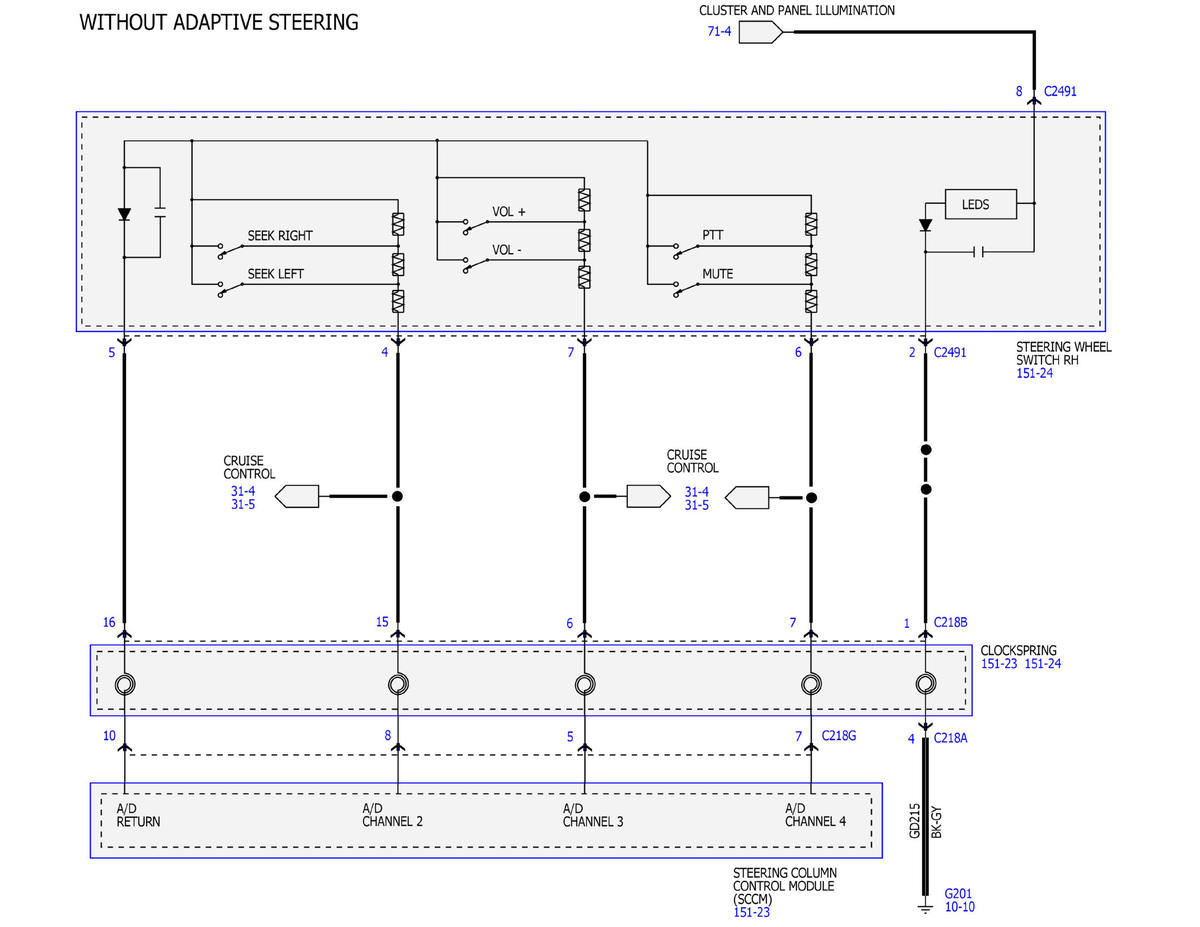

Fig 8: Audio System/Navigation - Without Touchscreen Wiring Diagrams (8 of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - Without Touchscreen Wiring Diagrams (9 of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - Without Touchscreen Wiring Diagrams (10 of 10)

Courtesy of FORD MOTOR COMPANY
