Audio System/Navigation - With Touchscreen/Without SONY

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

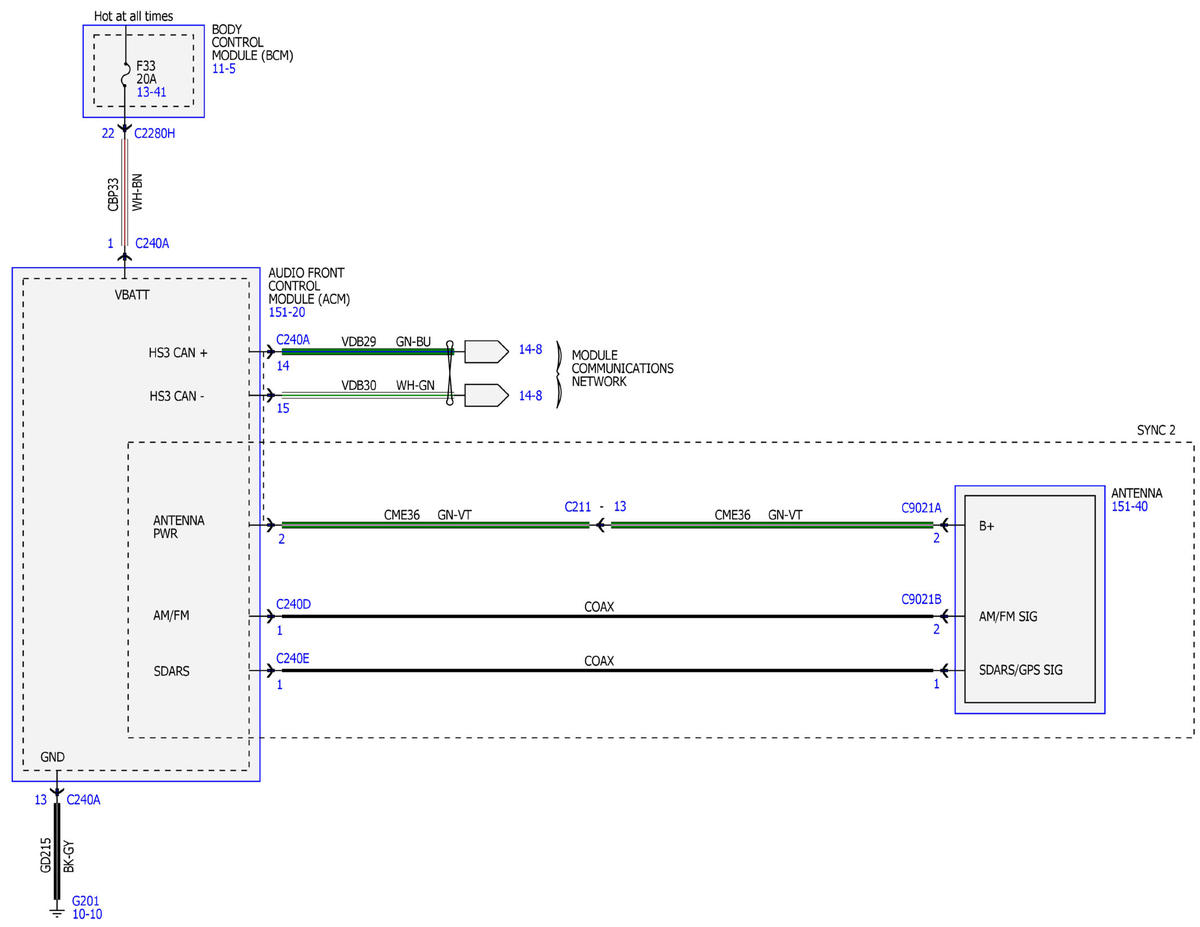

Fig 1: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (1 of 12)

Courtesy of FORD MOTOR COMPANY

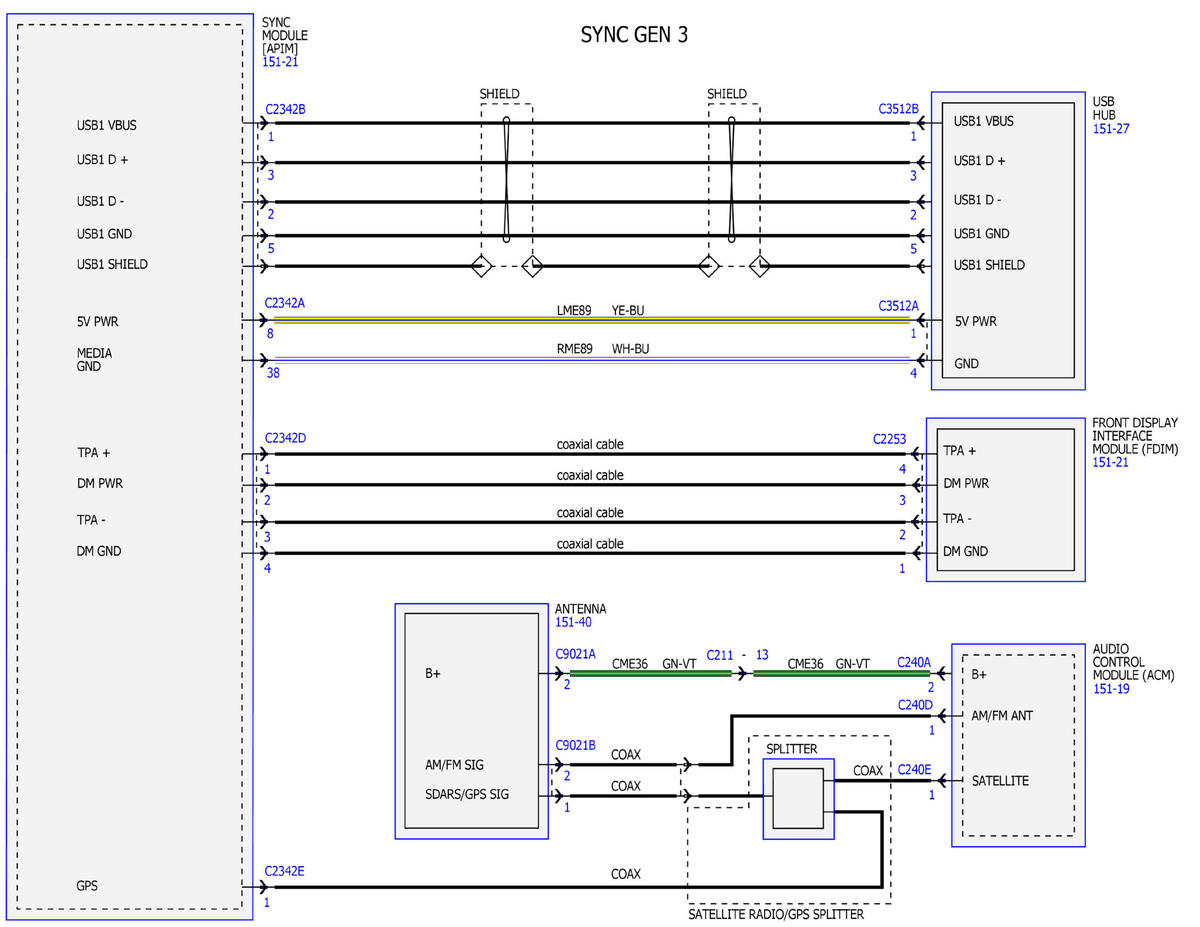

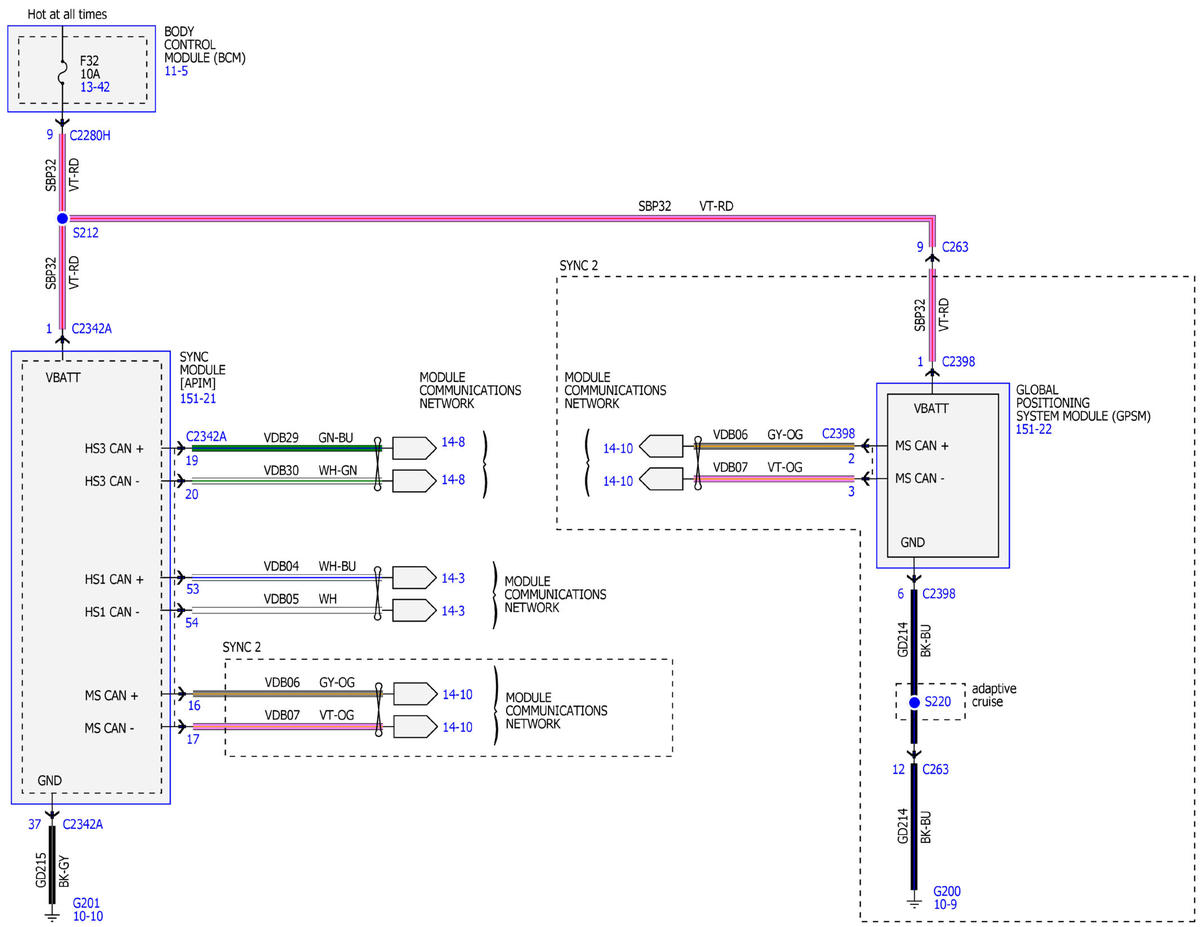

Fig 2: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (2 of 12)

Courtesy of FORD MOTOR COMPANY

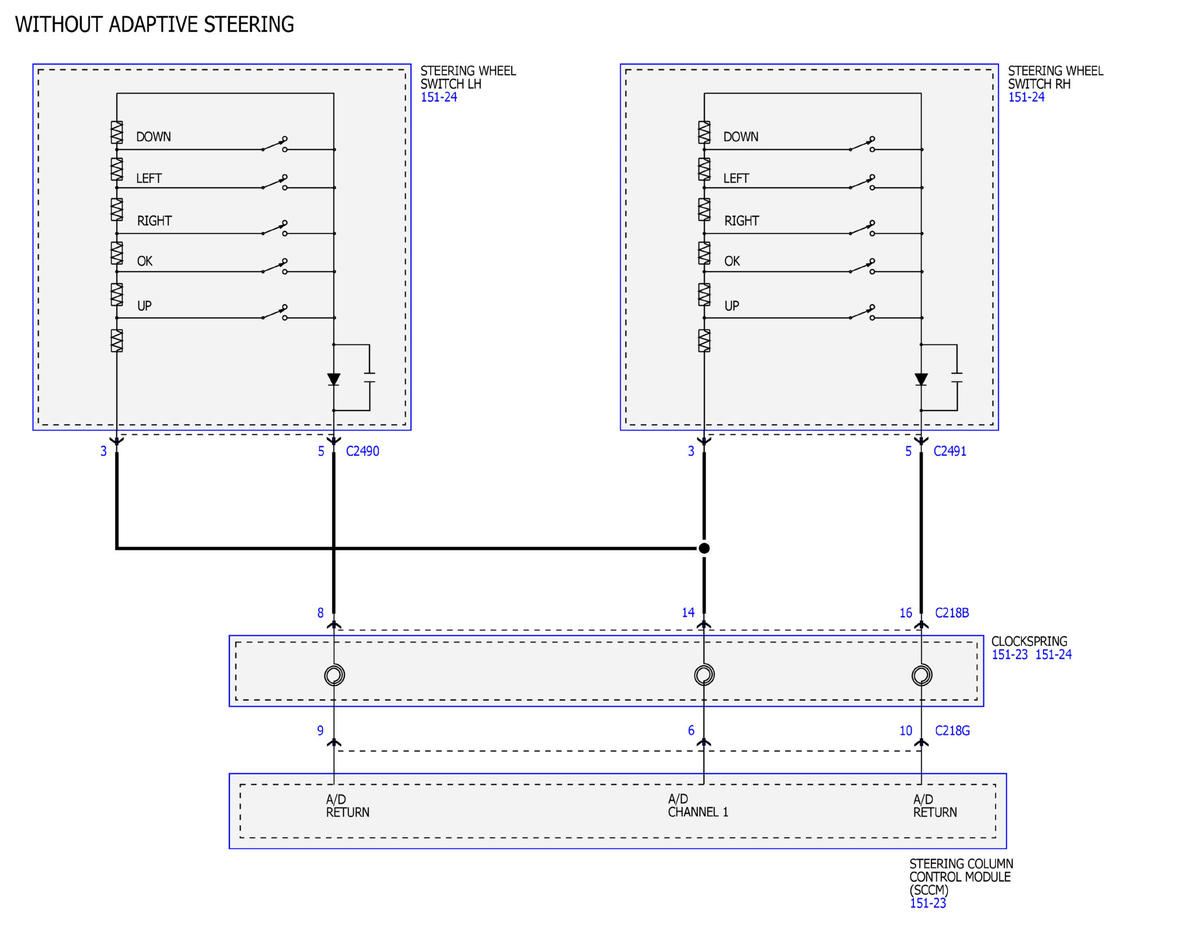

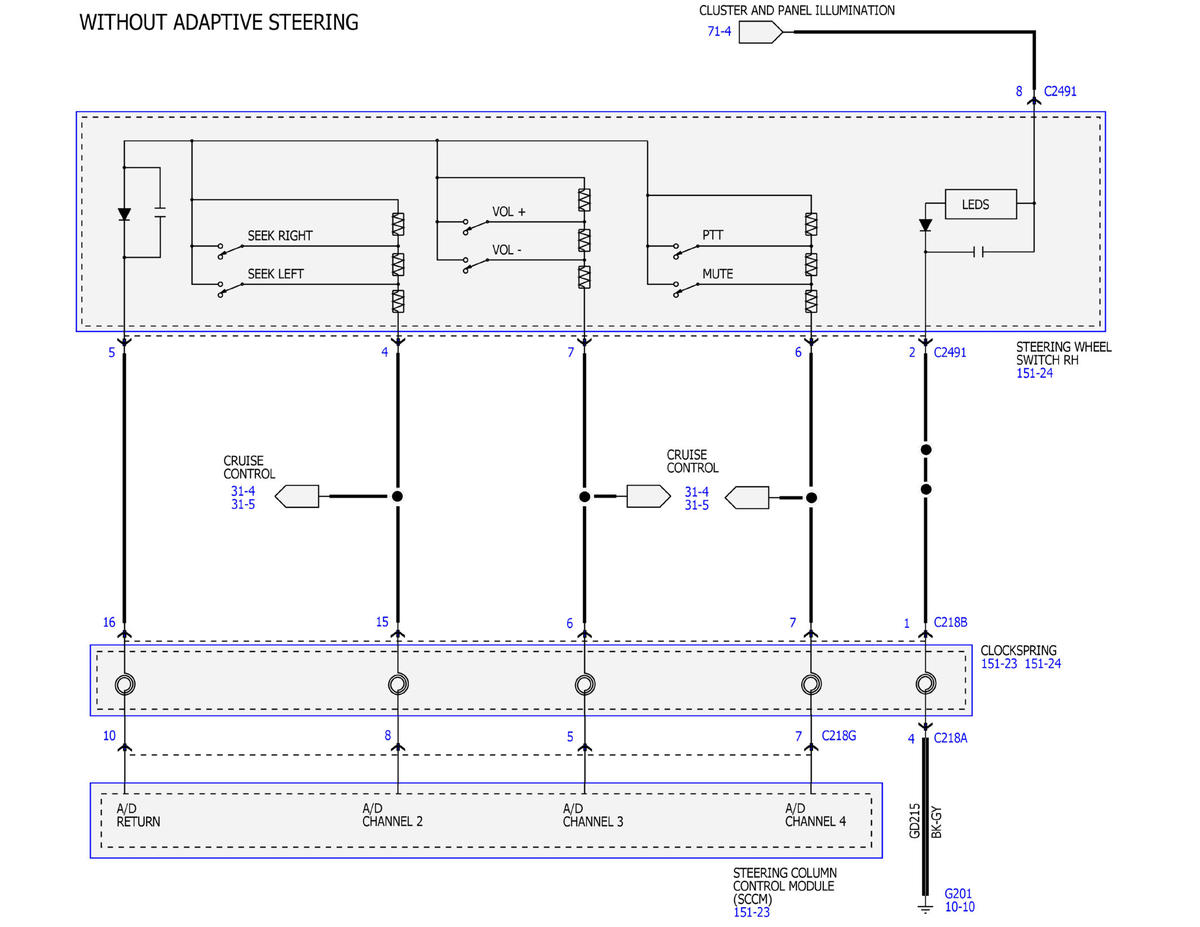

Fig 3: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (3 of 12)

Courtesy of FORD MOTOR COMPANY

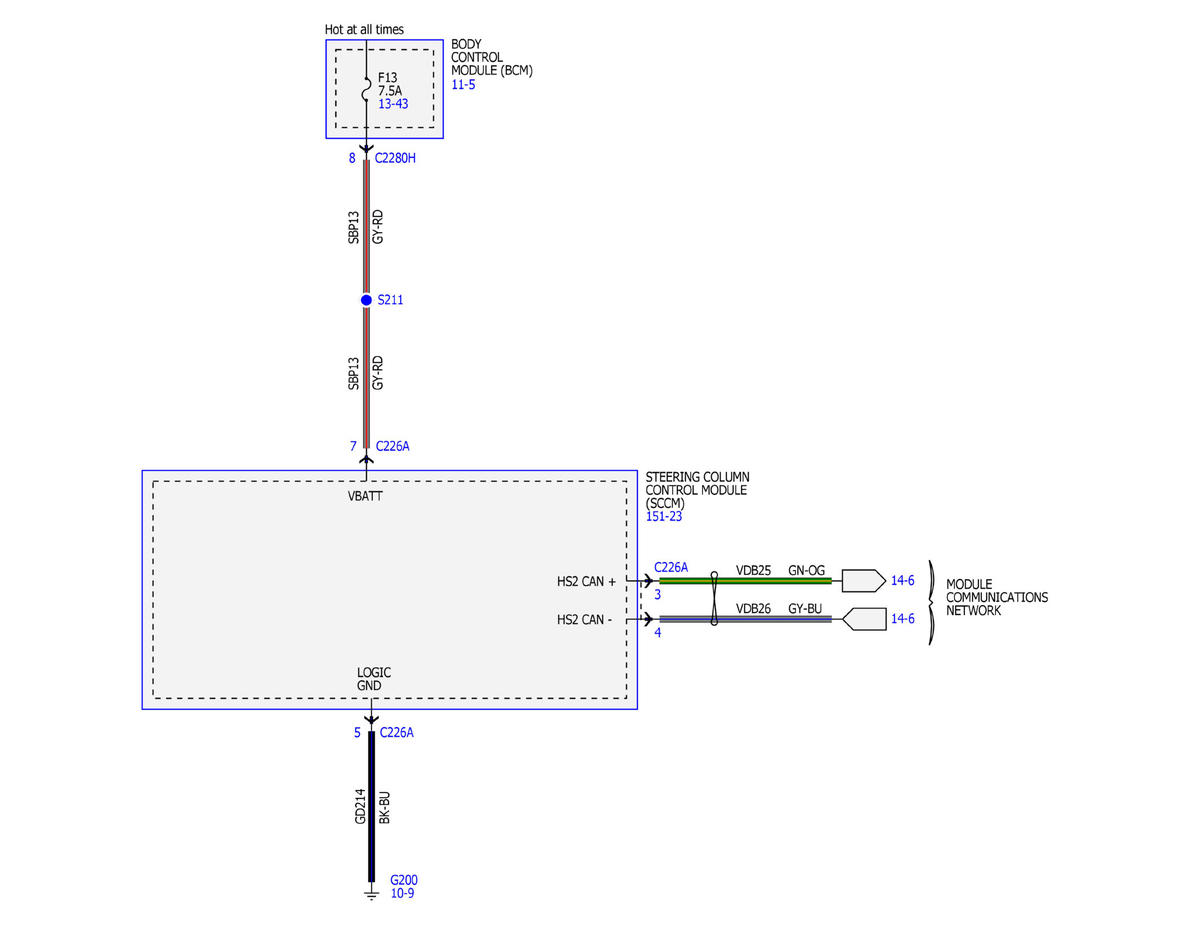

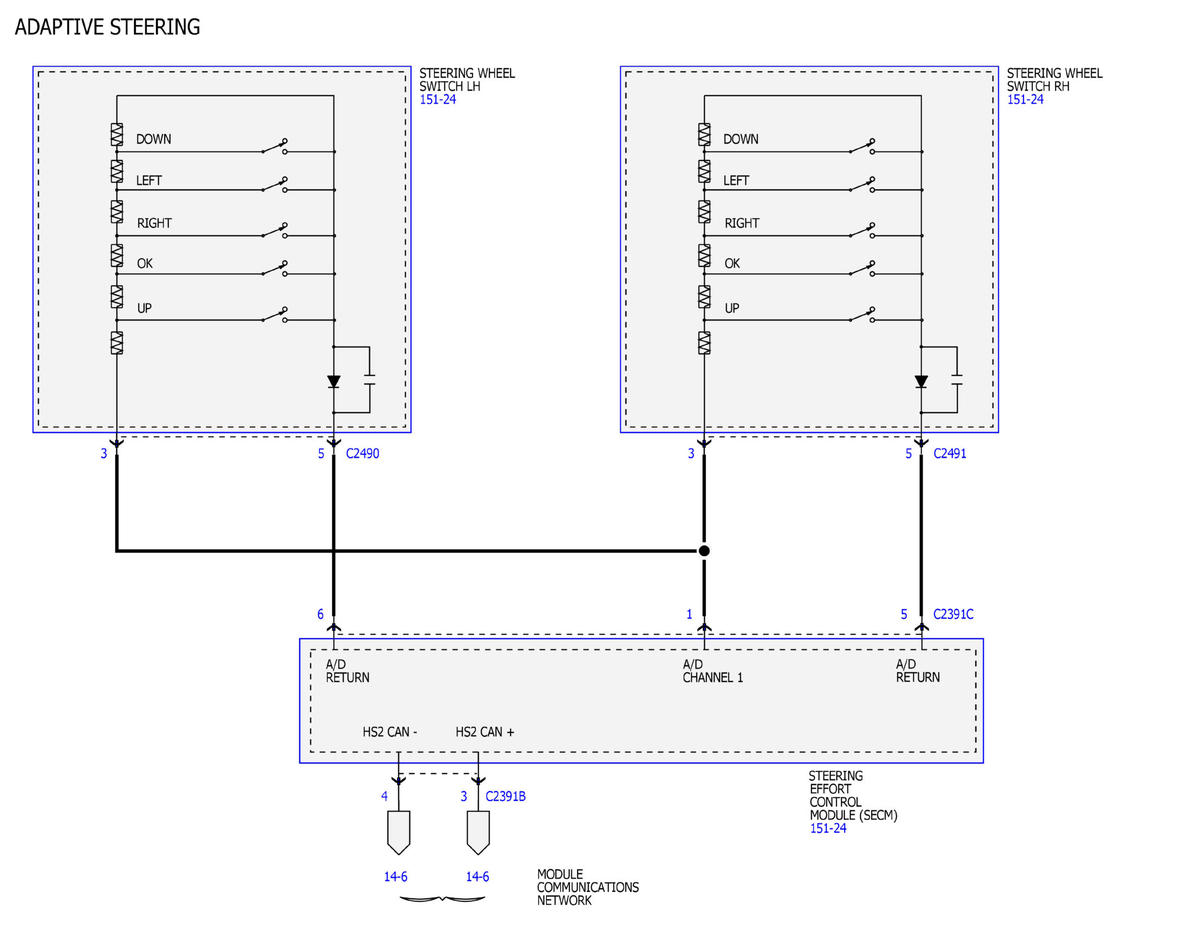

Fig 4: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (4 of 12)

Courtesy of FORD MOTOR COMPANY

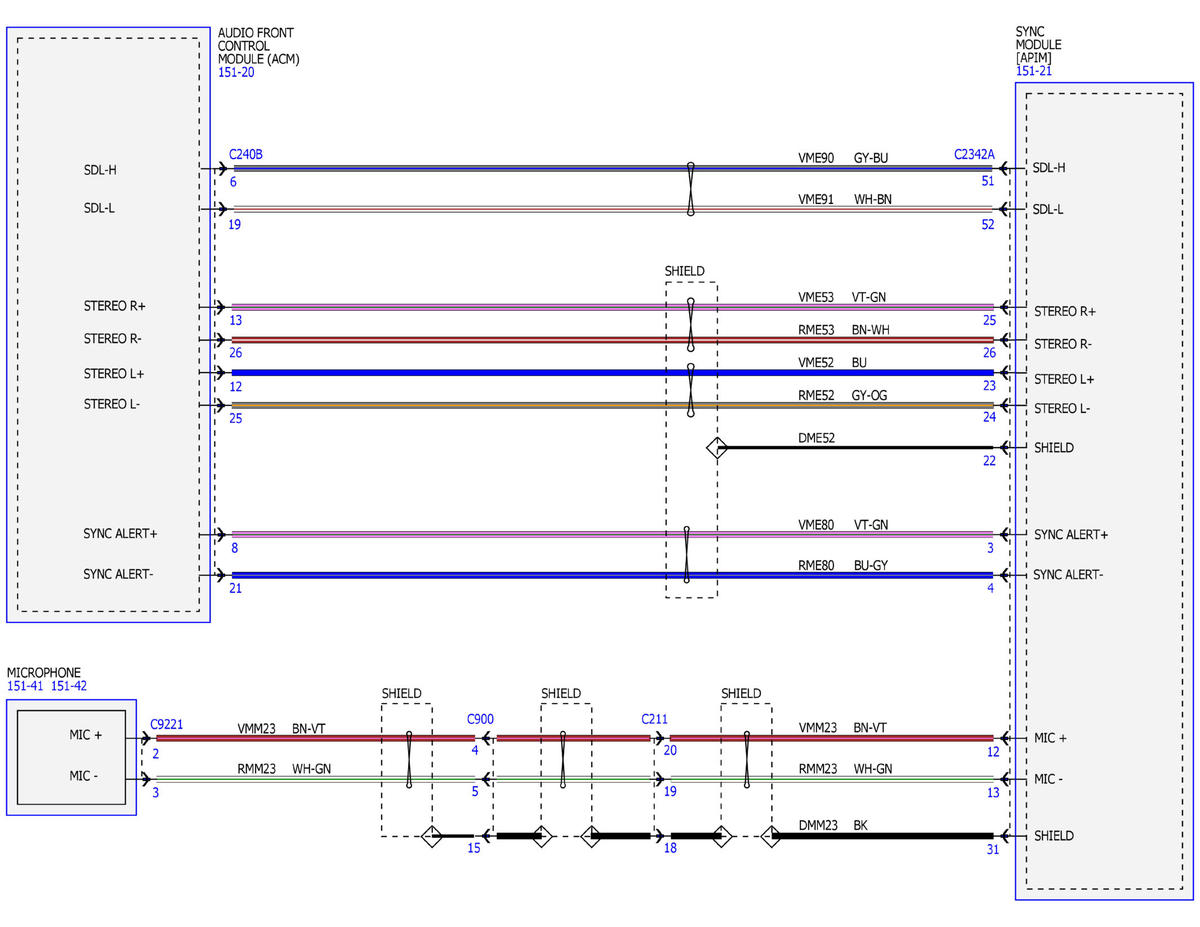

Fig 5: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (5 of 12)

Courtesy of FORD MOTOR COMPANY

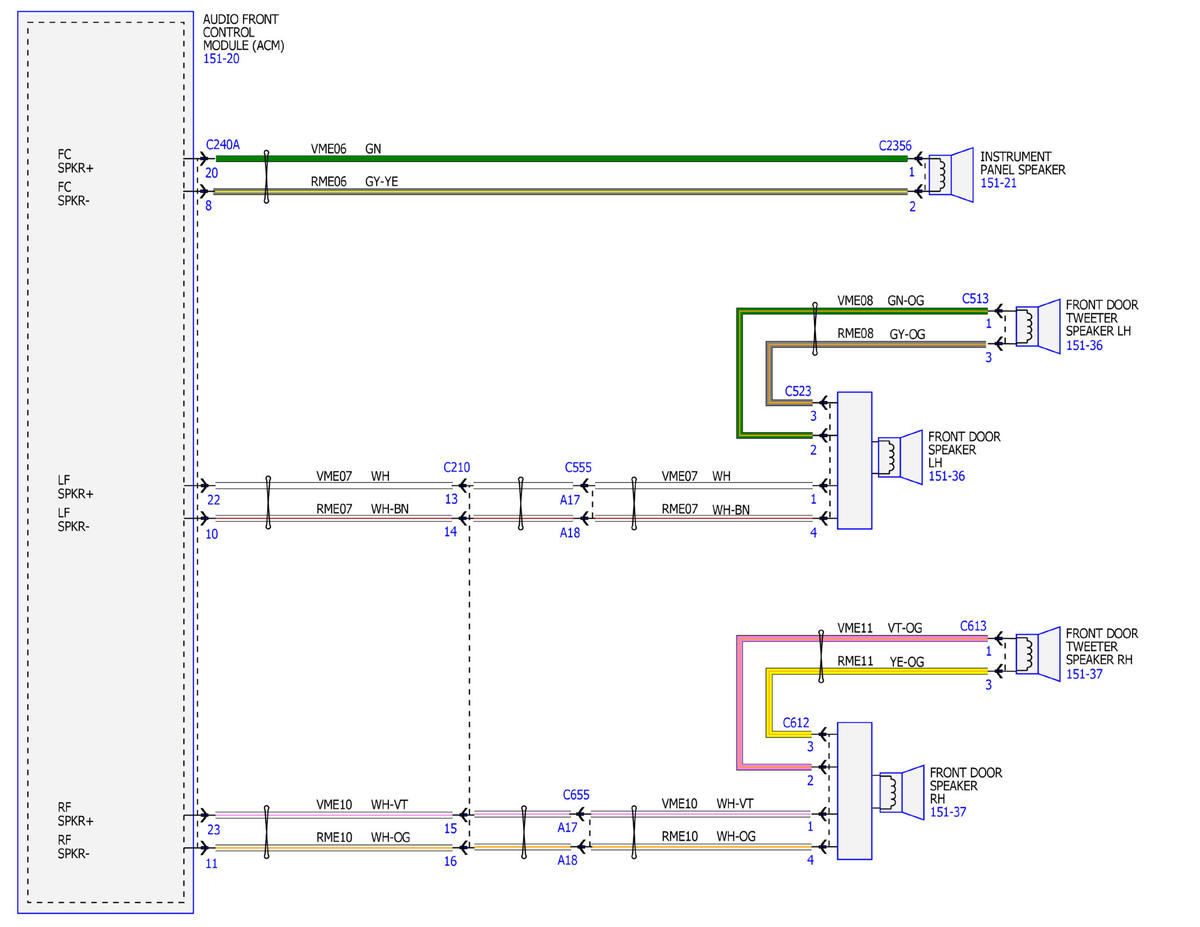

Fig 6: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (6 of 12)

Courtesy of FORD MOTOR COMPANY

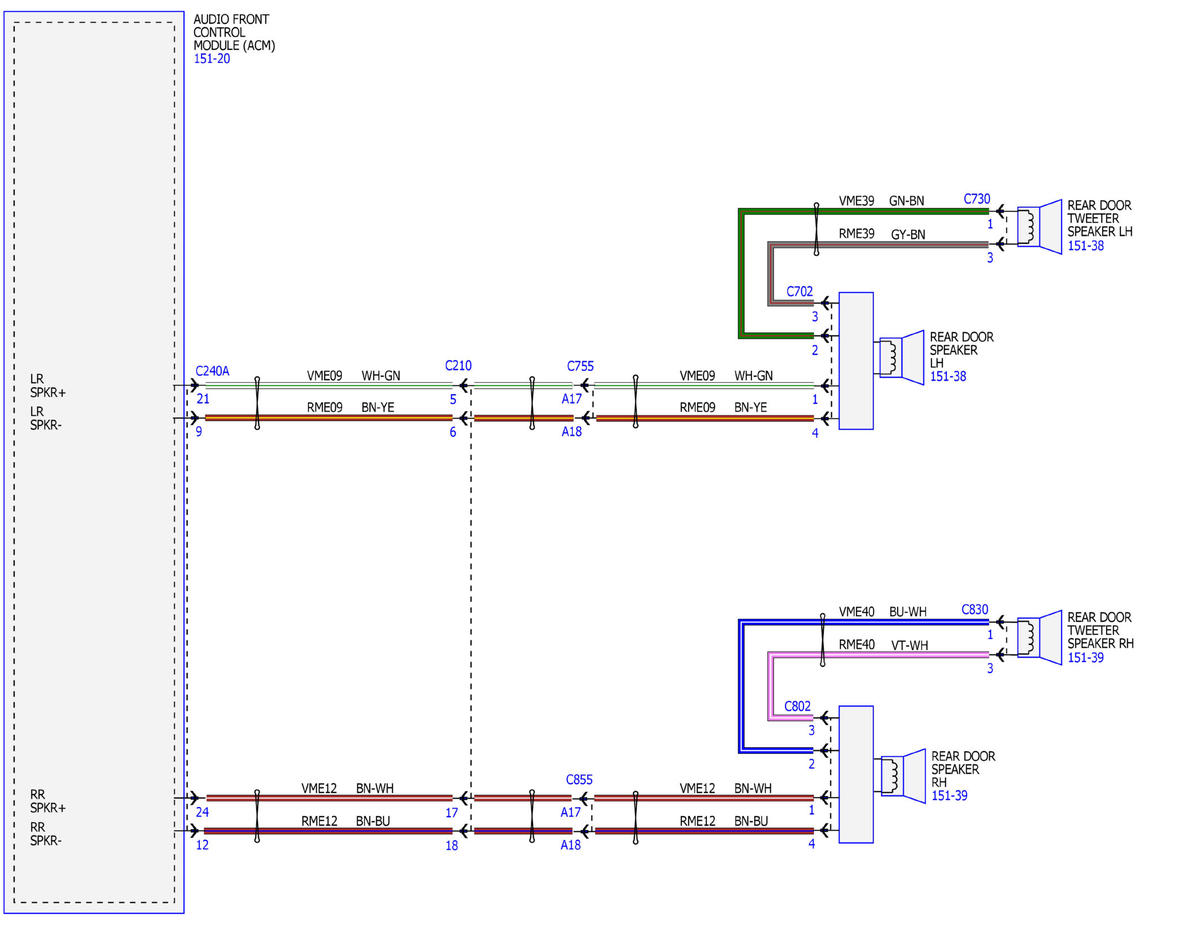

Fig 7: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (7 of 12)

Courtesy of FORD MOTOR COMPANY

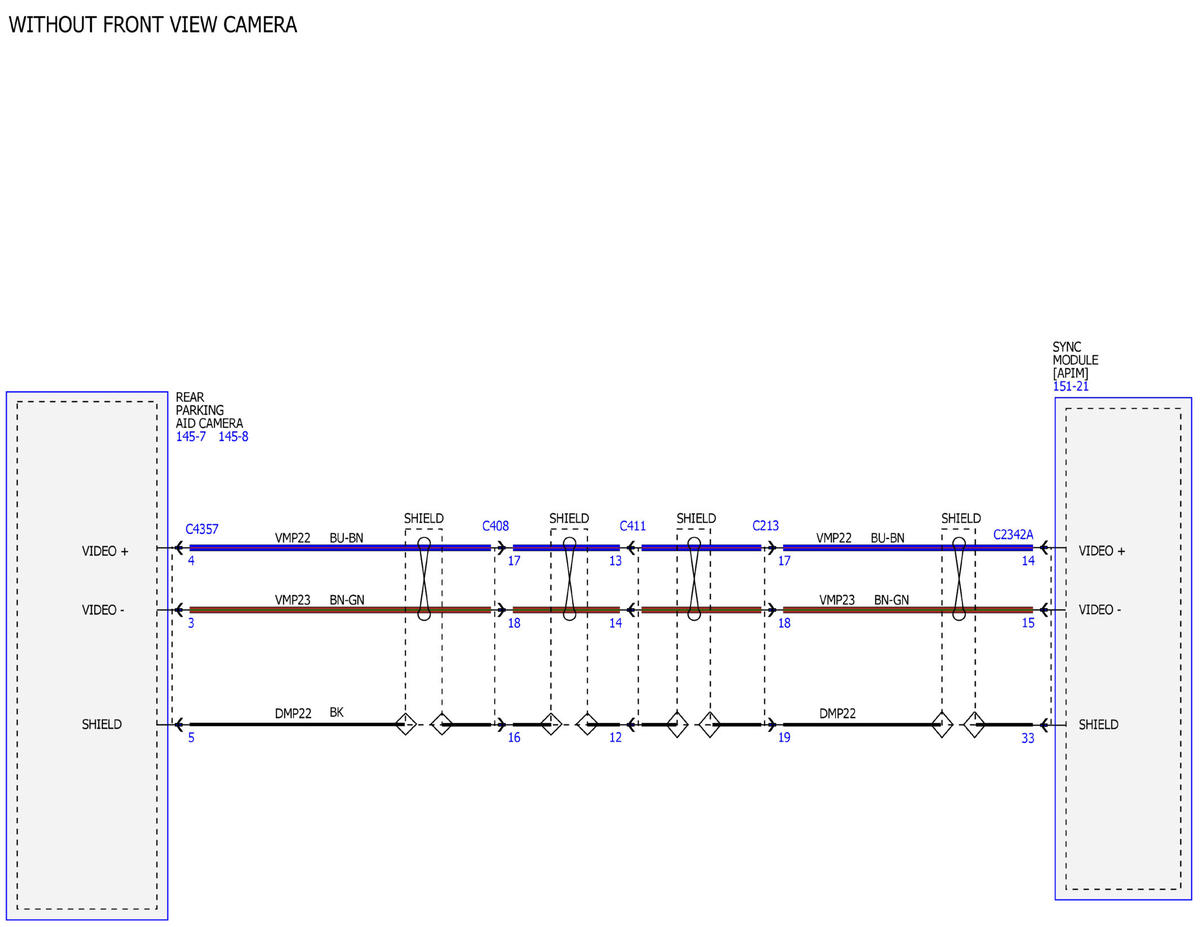

Fig 8: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (8 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (9 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (10 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (11 of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (12 of 12)

Courtesy of FORD MOTOR COMPANY
