Section 6 (OEM Wiring Diagrams)
>>
All Wheel Drive (AWD)
All Wheel Drive (AWD)
WARNING:
This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

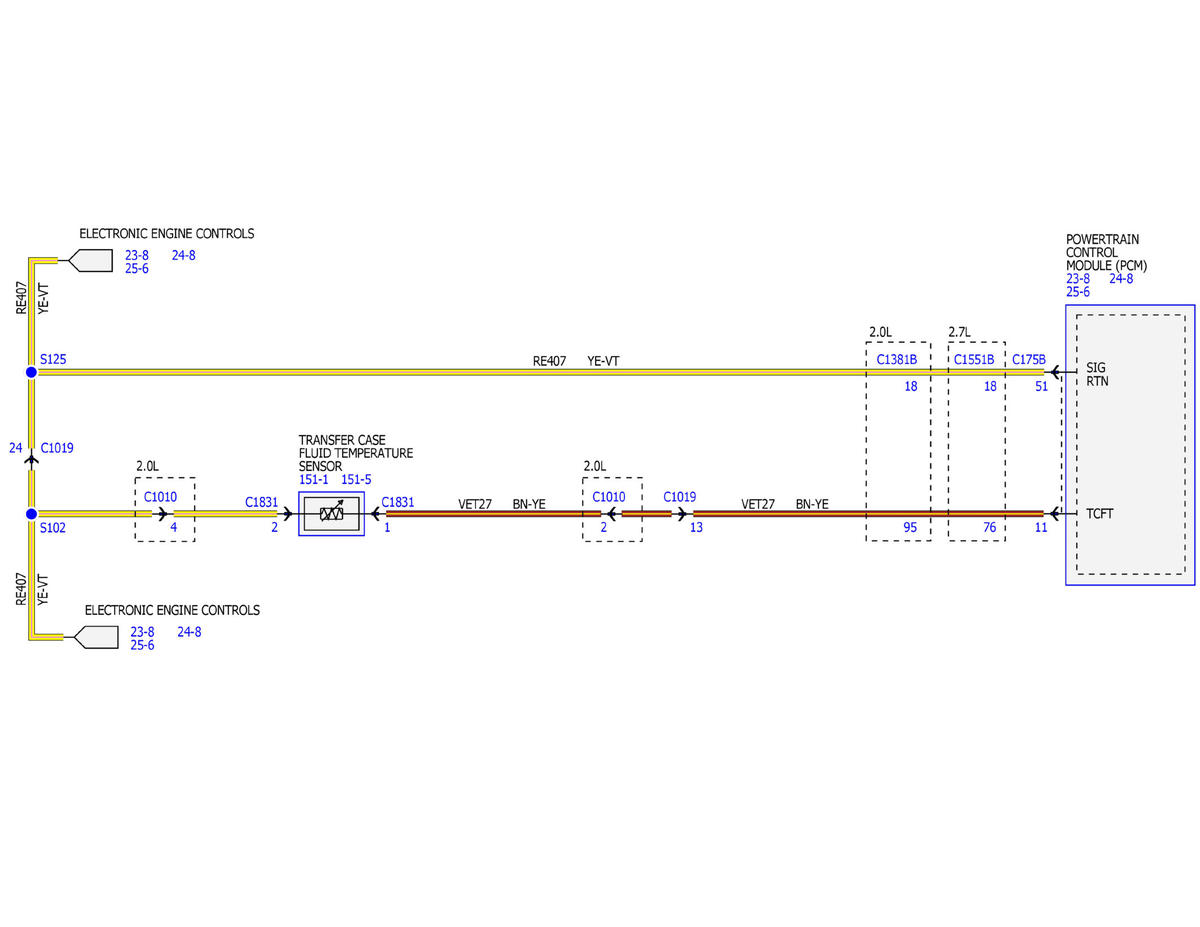

Fig 1: All Wheel Drive (AWD) Wiring Diagrams (1 of 2)
Courtesy of FORD MOTOR COMPANY

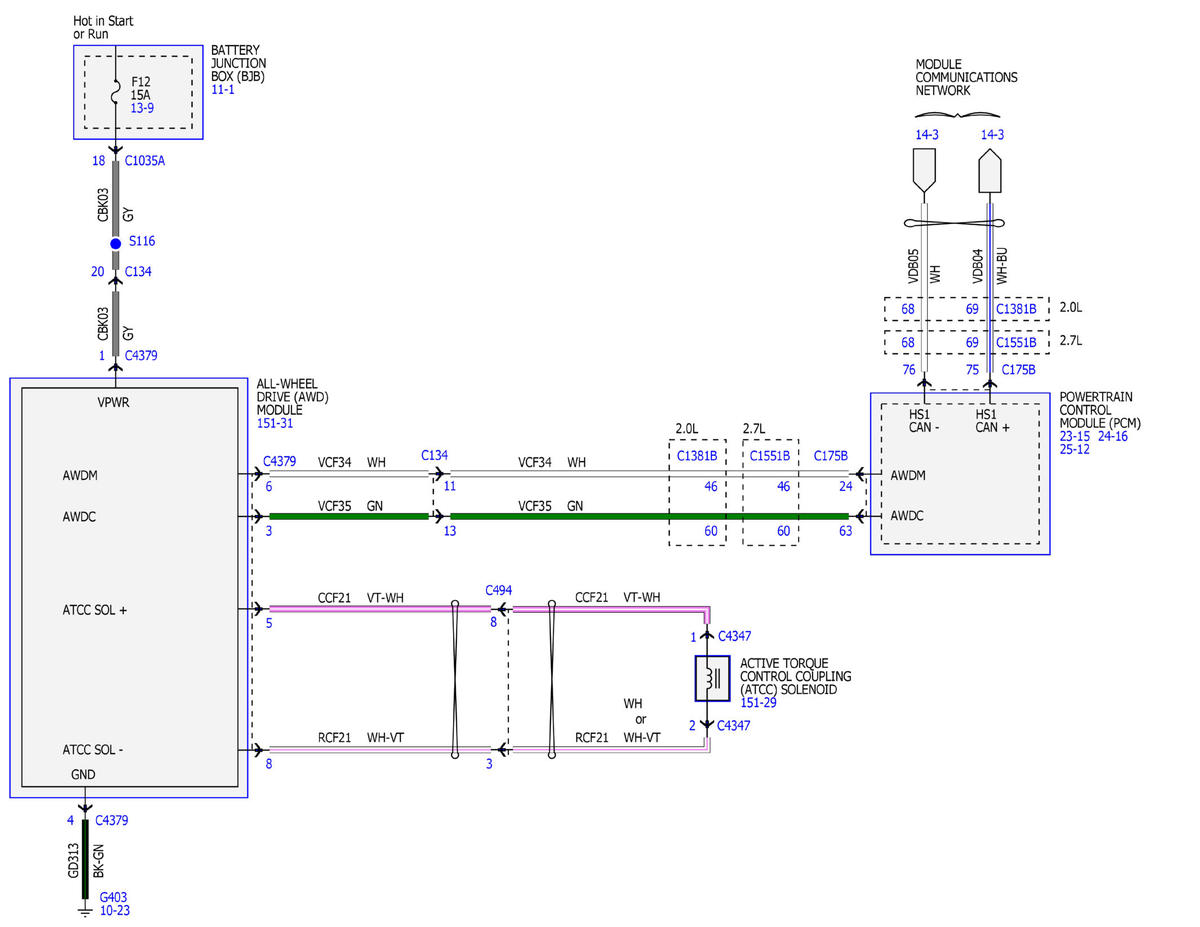

Fig 2: All Wheel Drive (AWD) Wiring Diagrams (2 of 2)
Courtesy of FORD MOTOR COMPANY
