Adjustable Steering Column

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

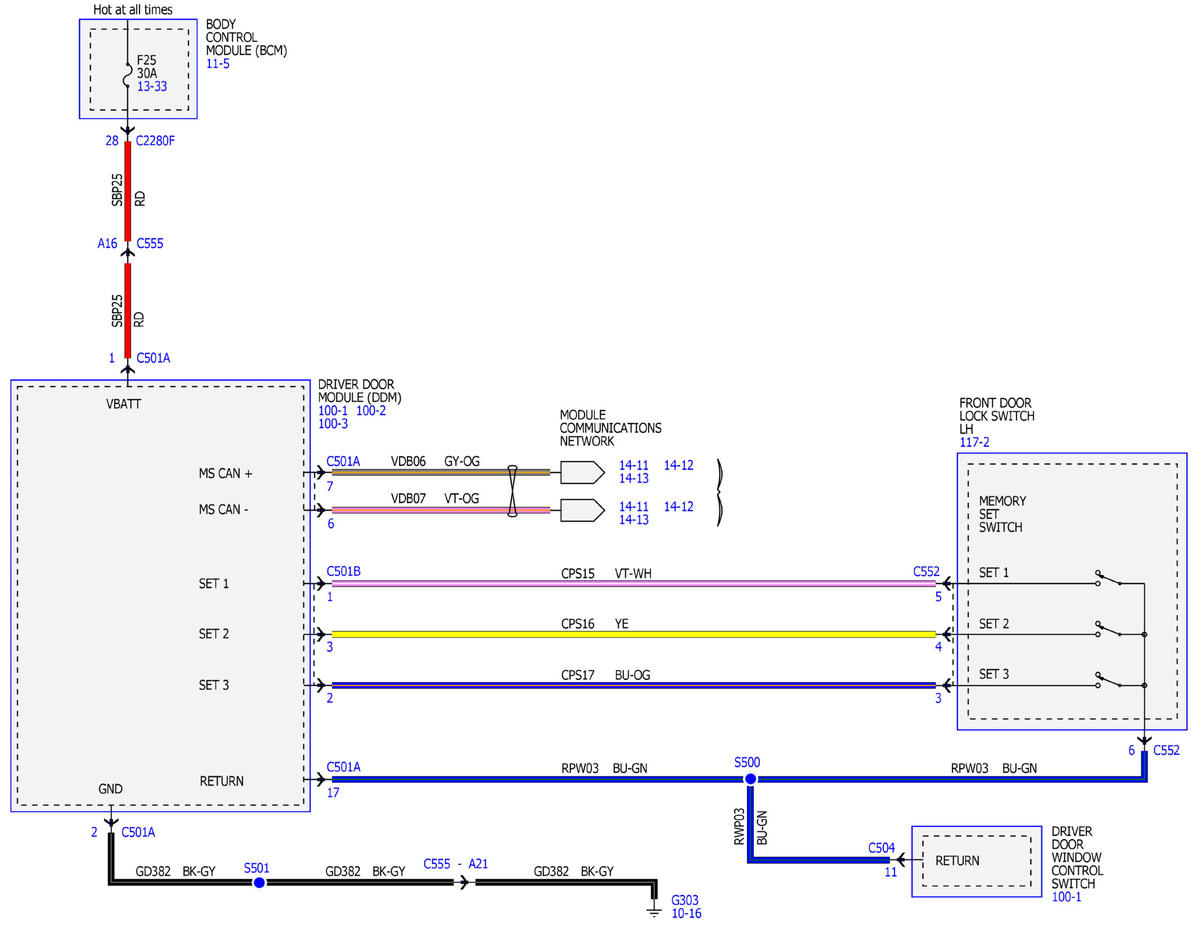

Fig 1: Adjustable Steering Column Wiring Diagrams (1 of 4)

Courtesy of FORD MOTOR COMPANY

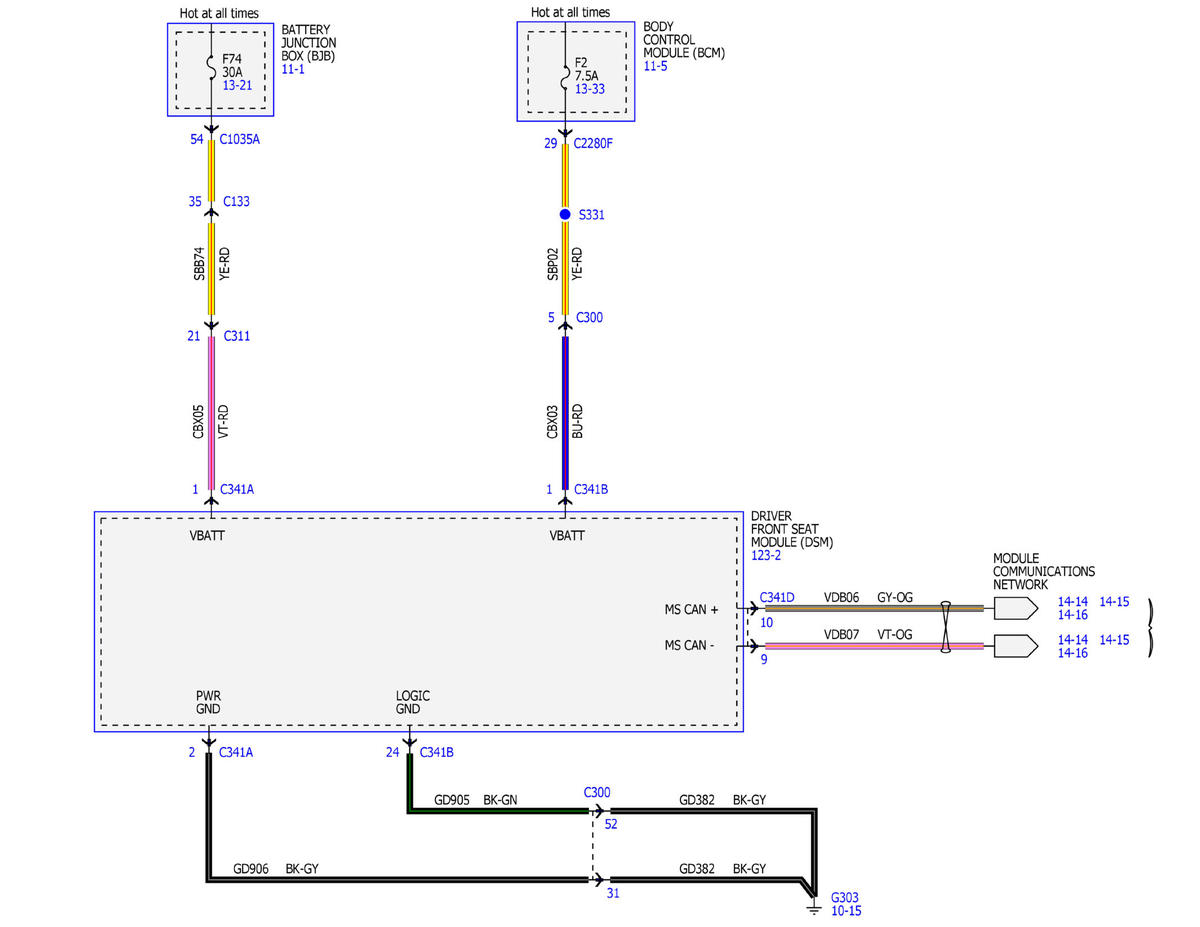

Fig 2: Adjustable Steering Column Wiring Diagrams (2 of 4)

Courtesy of FORD MOTOR COMPANY

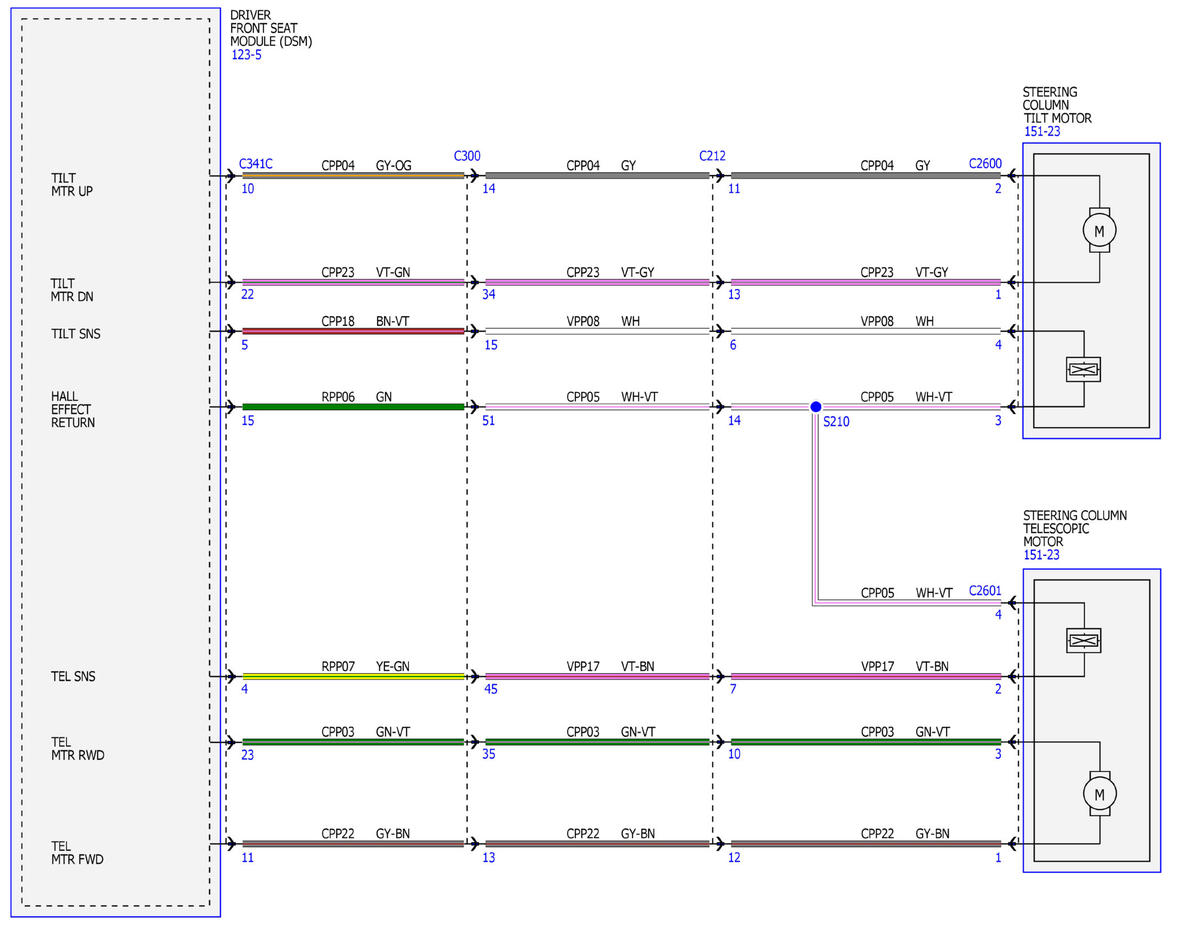

Fig 3: Adjustable Steering Column Wiring Diagrams (3 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 4: Adjustable Steering Column Wiring Diagrams (4 of 4)

Courtesy of FORD MOTOR COMPANY
