Turbocharger Bypass Valve: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

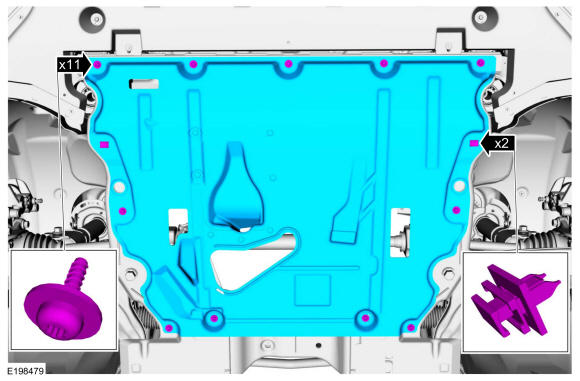

- Remove the retainers and the underbody shield.

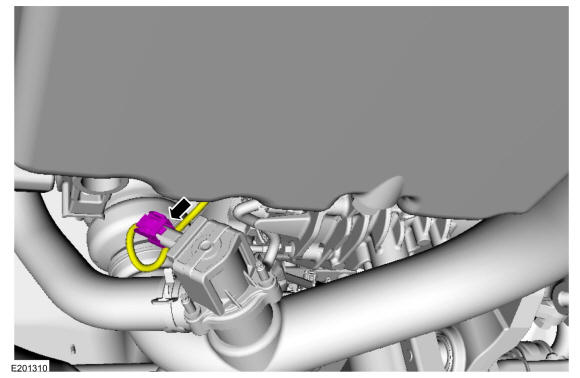

- Disconnect the turbocharger bypass valve electrical connector.

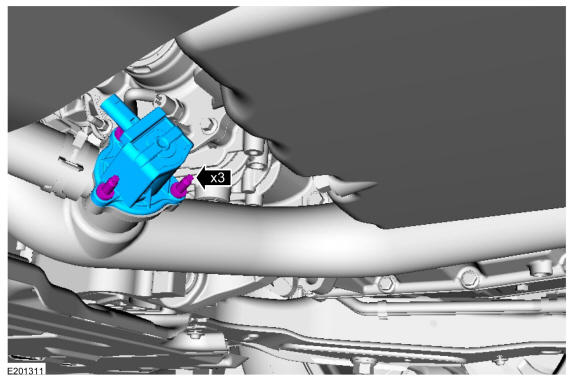

- Remove the retainers and the turbocharger bypass valve.
Torque: 62 lb.in (7 Nm)
