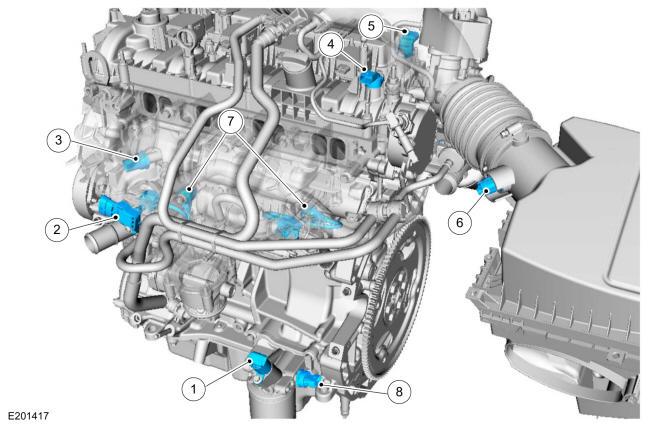

Electronic Engine Controls- Front

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Oil pressure control solenoid
2	MAP sensor
3	FRP sensor
4	Intake CMP sensor
5	Exhaust CMP sensor
6	IAT sensor
7	KS
8	EOP sensor
