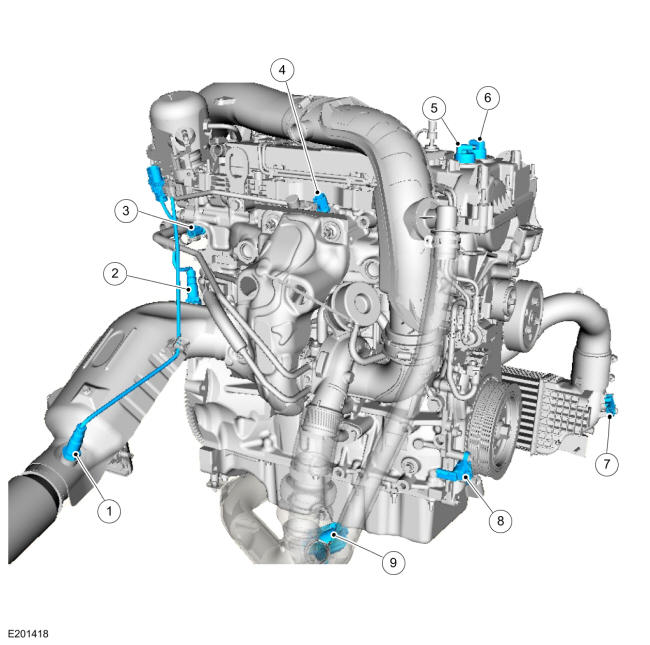

Electronic Engine Controls - Rear
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Catalyst monitor sensor |
| 2 |
HO2S |
| 3 |
ECT sensor |
| 4 |
CHT sensor |
| 5 |
Exhaust VCT oil control solenoid |
| 6 |
Intake VCT oil control solenoid |
| 7 |
Turbocharger boost pressure sensor |
| 8 |
CKP sensor |
| 9 |
Turbocharger bypass valve |
