Evaporative Emission Canister: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect
.
AWD
- Remove the LH rear halfshaft. Refer to: Rear Halfshaft .

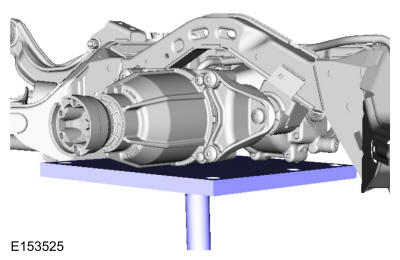

- Position and secure a transmission jack under the RDU. Use the General Equipment: Transmission Jack

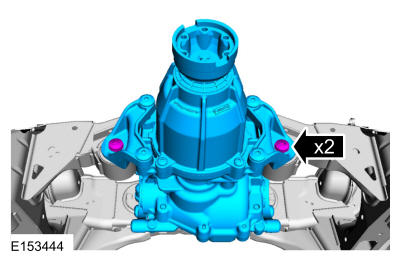

- Remove the rear RDU mounting bolts.
Torque: 66 lb.ft (90 Nm)

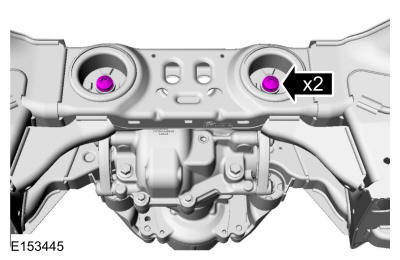

- Remove the front RDU mounting bolts and using the transmission jack, slightly lower the RDU. Use the General Equipment: Transmission Jack
Torque: 66 lb.ft (90 Nm)
All vehicles
-

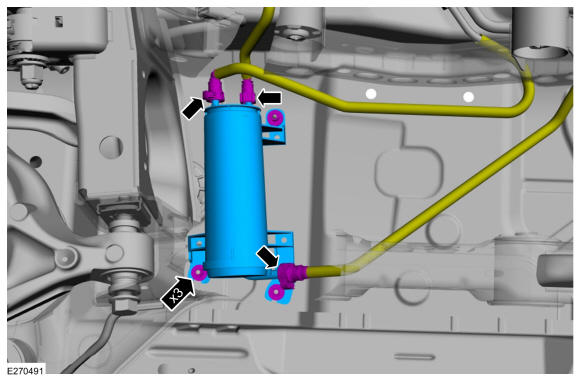

- Disconnect the EVAP canister quick connect couplings. Refer to: Quick Release Coupling .
- Remove the nuts and the EVAP canister.
Torque: 44 lb.in (5 Nm)
