Evaporative Emission Canister Purge Valve: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

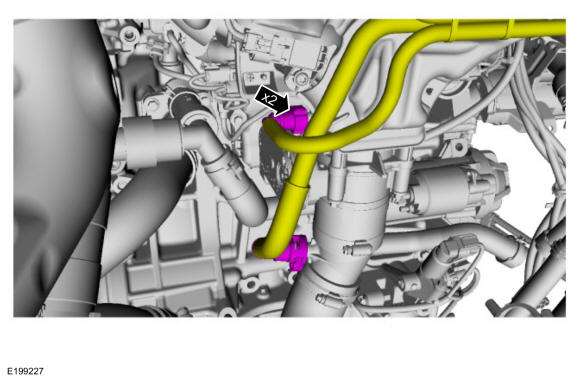

- Disconnect the quick release couplings. Refer to: Quick Release Coupling
.

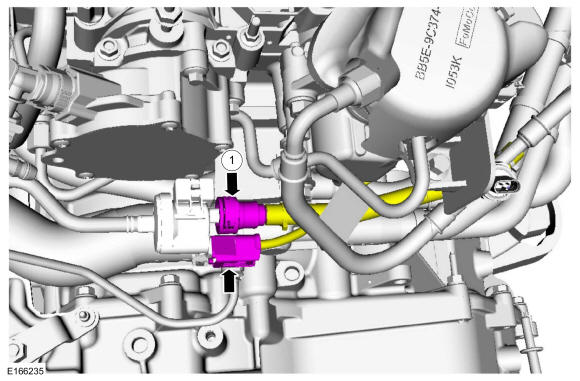

- Disconnect the quick release coupling and disconnect the electrical connector. Refer to: Quick Release Coupling
.

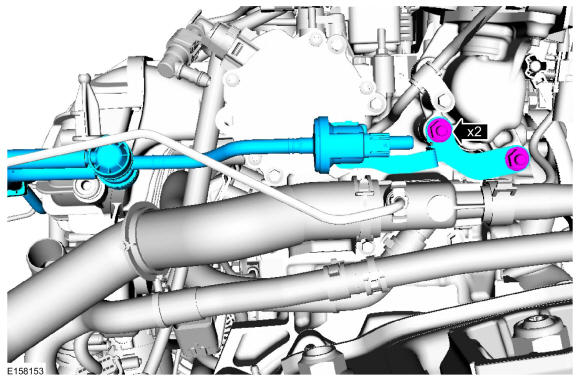

- Remove the nuts and the evaporative emission canister purge valve.
Torque: 97 lb.in (11 Nm)
