Evaporative Emission Blocking Valve: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

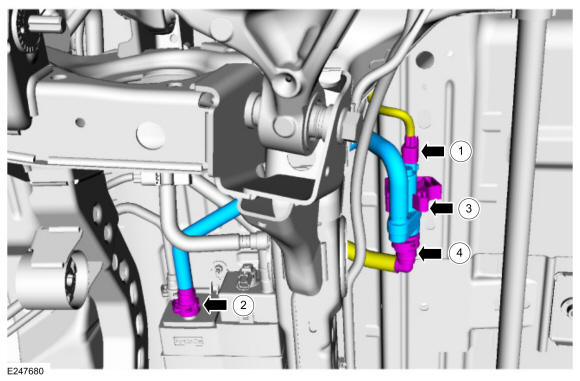

1. Disconnect the EVAP blocking valve electrical connector.
2. Disconnect the EVAP quick connect coupling to the canister. Refer to: Quick Release Coupling .
3. Detach the EVAP blocking valve from the bracket retainer on the body.
4. Disconnect the EVAP quick connect coupling and remove the EVAP blocking valve. Refer to: Quick Release Coupling .
