Ignition Coil-On-Plug: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Both sides
- Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assembly's.
Right side

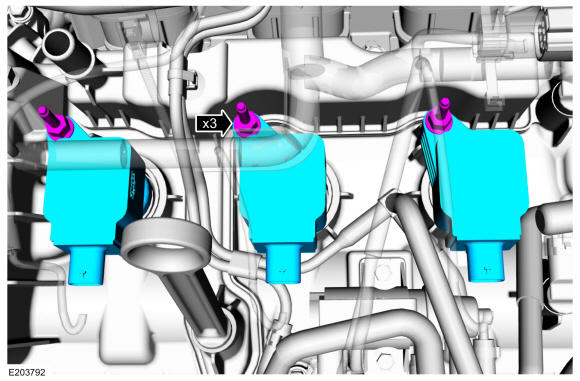

- Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.
Torque: 53 lb.in (6 Nm)

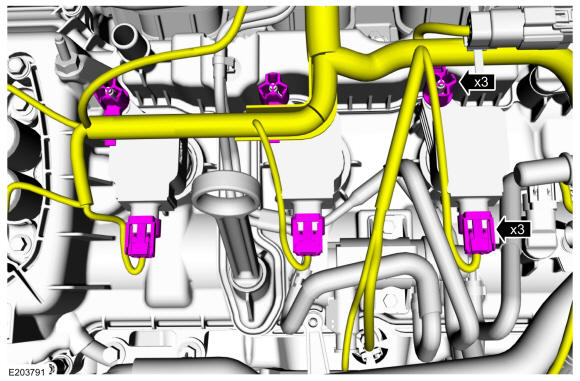

- Connect the ignition coil-on-plug electrical connectors.
- Attach the wire harness retainers to the studbolts.
- Install the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

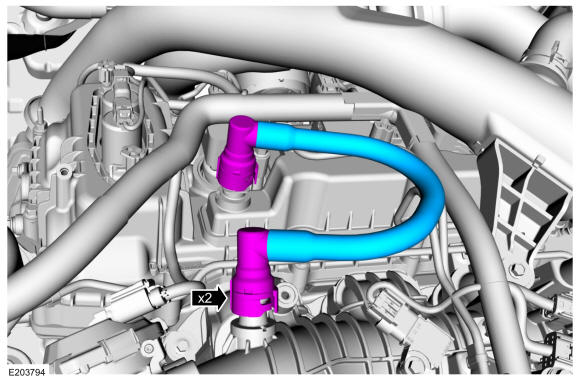

- Install the crankcase ventilation hose and then connect the quick release couplings. Refer to: Quick Release Coupling
.
Left side

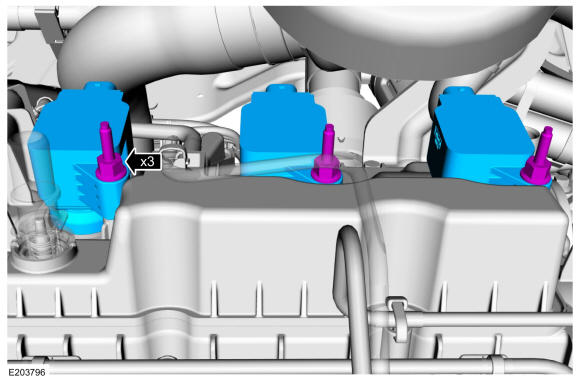

- Install the ignition coil-on-plugs, then install and tighten the ignition coil-on-plug studbolts.
Torque: 53 lb.in (6 Nm)

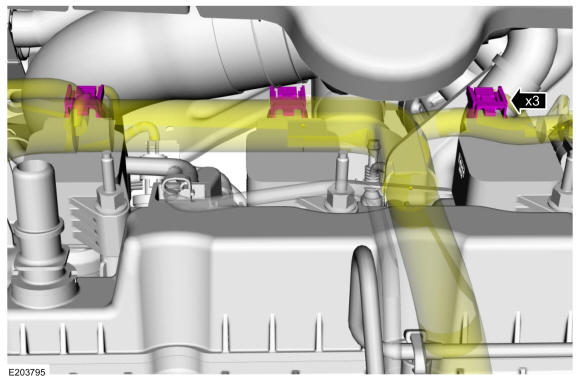

- Connect the ignition coil-on-plug electrical connectors. Attach the electrical harness retainers to the ignition coil-on-plug studbolts.
- Connect the quick release couplings. Refer to: Quick Release Coupling
.
Both sides
- Install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque: 1: 42 lb.in (4.8 Nm) 2: 97 lb.in (11 Nm)
