Accessory Drive - Component Location

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

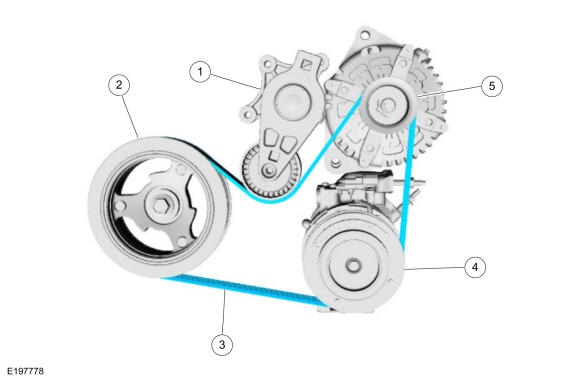

Fig 1: Accessory Drive Belt Routing (3.5L Duratec)

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Accessory drive belt tensioner
2	Crankshaft belt pulley
3	Accessory drive belt
4	Pulley - A/C compressor
5	Generator pulley
