Accessory Drive Belt Tensioner: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .

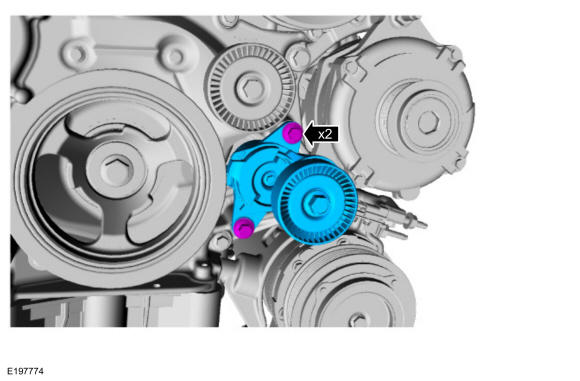

- Remove the bolts and the accessory drive belt tensioner.
Torque
: 18 lb.ft (25 Nm)
