Air Conditioning (A/C) Compressor Belt: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Under no circumstances should the accessory drive belt, tensioner or pulleys be lubricated as potential damage to the belt material and tensioner damping mechanism will occur. Do not apply any fluids or belt dressing to the accessory drive belt or pulleys.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the retainers and the underbody shield.
    GFD280084Courtesy of FORD MOTOR COMPANY
  3. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
  4. NOTE: Typical application shown.

    1. By turning the crankshaft pulley bolt clockwise, feed the Stretchy Belt Tool on to the crankshaft pulley approximately 90 degrees. Install Special Service Tool: 303-1419 Remover, 3.5L / 3.7L Stretchy Belt.
    2. Fold the Stretchy Belt Tool under the inside of the A/C compressor belt as shown.
    3. In one quick motion, firmly pull the Stretchy Belt Remover out of the RH fender well, removing the A/C compressor belt.

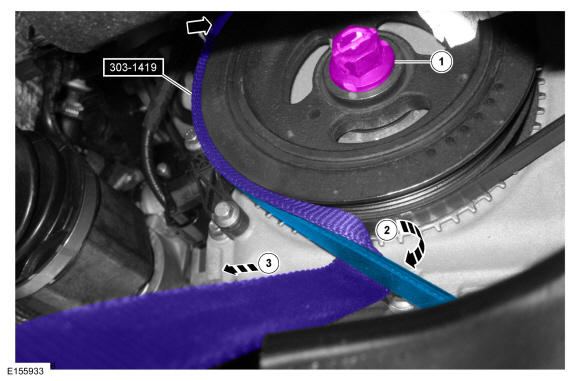

GFD280085Courtesy of FORD MOTOR COMPANY
