Turbocharger RH: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Make sure that the mating faces are clean and free of foreign material.

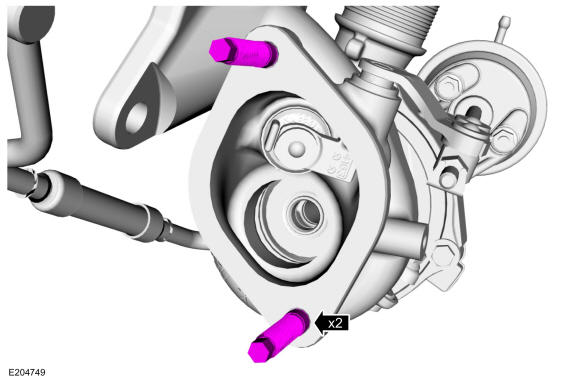

  1. If removed install and then tighten the TC exhaust flange studbolts.

    Torque: 30 lb.ft (40 Nm)

    GFD280057Courtesy of FORD MOTOR COMPANY
  2. NOTE: Install short end of stud into engine cylinder head.

    If removed install and then tighten the TC mounting studs.

    Torque: 106 lb.in (12 Nm)

    GFD280037Courtesy of FORD MOTOR COMPANY

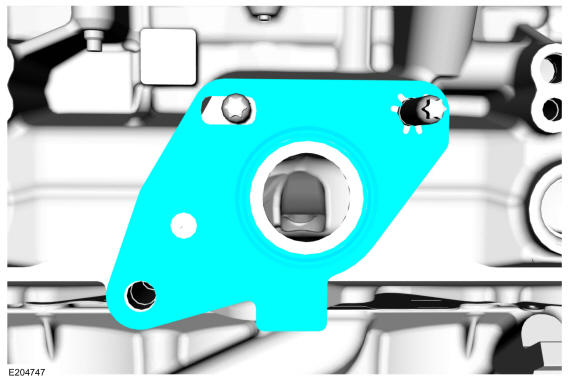

  3. Install the new TC gasket.
    GFD280058Courtesy of FORD MOTOR COMPANY
  4. Install a new turbocharger coolant supply tube O-ring seal and lubricate with clean engine coolant. Refer to: Specifications .
    GFD280040Courtesy of FORD MOTOR COMPANY
  5. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Install the turbocharger coolant supply tube to the engine block while installing the turbocharger.
    NOTE: Install the turbocharger and then loosely install the turbocharger retainers. Install the turbocharger coolant supply tube to the engine block while installing the turbocharger.

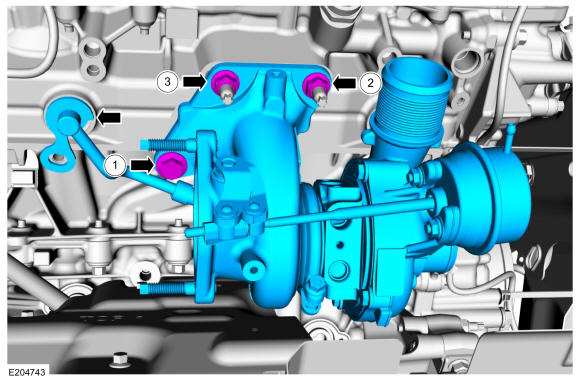

    Tighten the turbocharger retainers in the following sequence.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 1: 44 lb.ft (60 Nm) 2: 44 lb.ft (60 Nm) 3: 27 lb.ft (37 Nm) Re-tighten 1: 44 lb.ft (60 Nm) Re-tighten 2: 44 lb.ft (60 Nm) Re-tighten 3: 27 lb.ft (37 Nm)

    GFD280059Courtesy of FORD MOTOR COMPANY

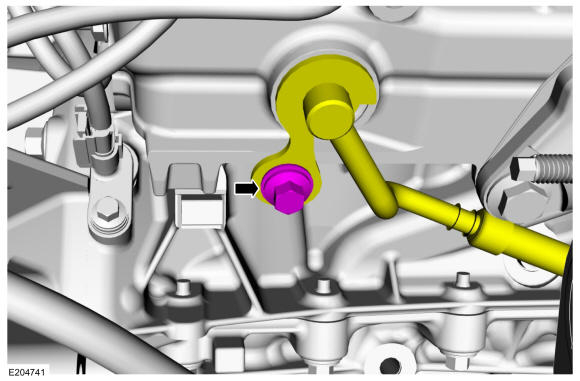

  6. Install and tighten the TC coolant supply tube bolt.

    Torque: 18 lb.ft (24 Nm)

    GFD280054Courtesy of FORD MOTOR COMPANY
  7. Install the new TC oil return tube-to-engine block gasket.
    GFD280042Courtesy of FORD MOTOR COMPANY
  8. Install a new turbocharger oil return tube O-ring seal and lubricate with clean engine oil. Refer to: Specifications .
    GFD280043Courtesy of FORD MOTOR COMPANY
  9. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: AWD (all-wheel drive) shown, FWD (front wheel drive) is similar.

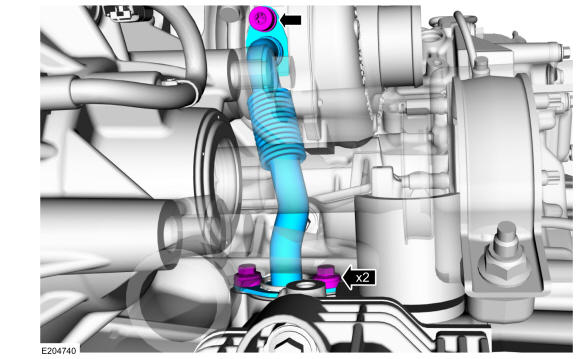

    Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube retainers.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    GFD280053Courtesy of FORD MOTOR COMPANY

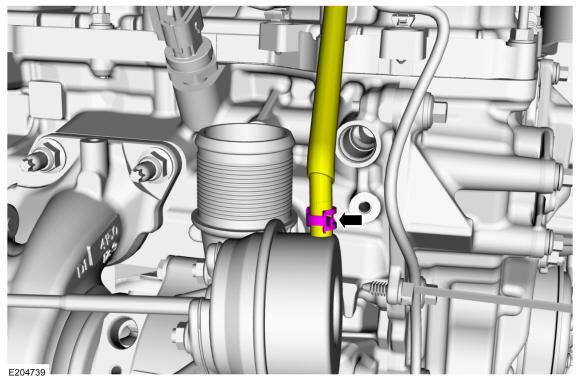

  10. Connect the TC wastegate control hose and clamp.
    GFD280052Courtesy of FORD MOTOR COMPANY
  11. Install a new turbocharger coolant return tube O-ring seal and lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .
    GFD280060Courtesy of FORD MOTOR COMPANY
  12. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

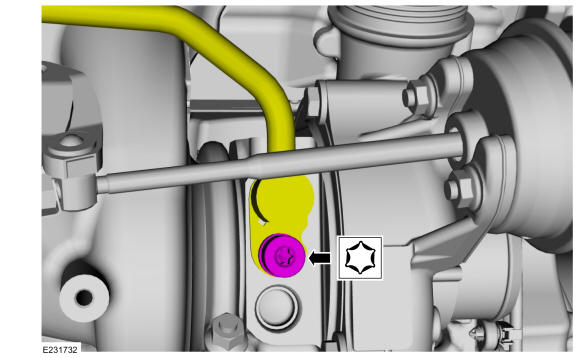

    Install the turbocharger coolant return tube, then install and tighten the turbocharger coolant return tube bolt.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    GFD280050Courtesy of FORD MOTOR COMPANY
  13. Install the catalytic converter RH. Refer to: Catalytic Converter RH .

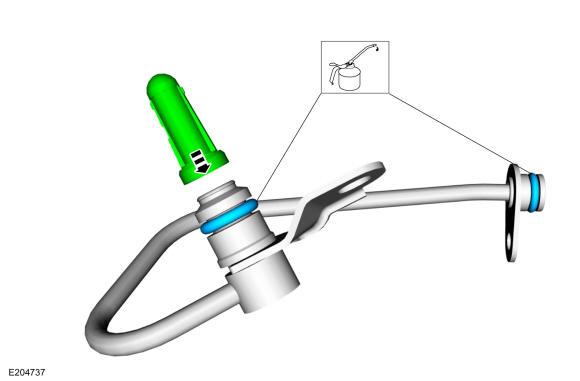

  14. Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the O-ring seals with clean engine oil. Refer to: Specifications .
    GFD280061Courtesy of FORD MOTOR COMPANY
  15. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.

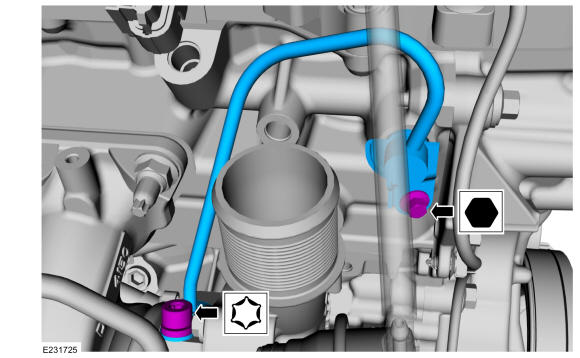

    Install the turbocharger oil supply tube, then install and tighten the turbocharger oil supply tube bolts.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    GFD280062Courtesy of FORD MOTOR COMPANY

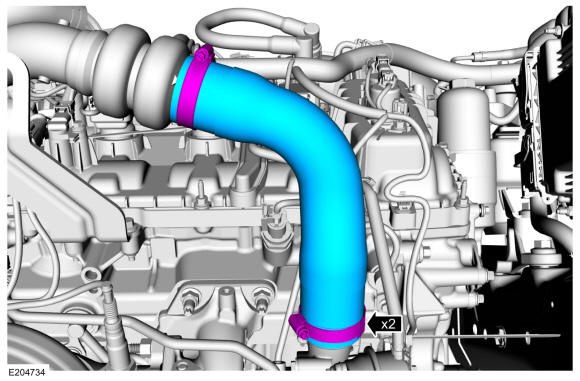

  16. Install the lower RH - CAC intake pipe and then tighten the clamps.

    Torque: 44 lb.in (5 Nm)

    GFD280047Courtesy of FORD MOTOR COMPANY
  17. Install the lower air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

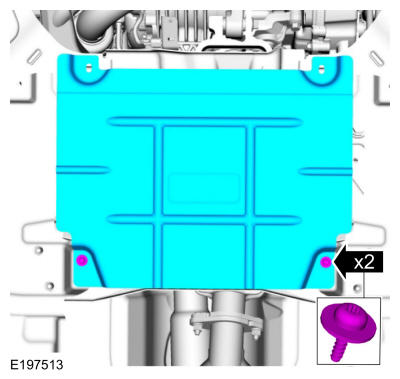

  18. If equipped, install the underbody shields and the retainers.
    GFD280046Courtesy of FORD MOTOR COMPANY
  19. Install the underbody shields and the retainers.
    GFD280021Courtesy of FORD MOTOR COMPANY
  20. Install the RH front wheel and tire. Refer to: Wheel and Tire .
  21. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
  22. Install the engine appearance cover, then install and tighten the engine appearance cover retainers.

    Torque: 1: 42 lb.in (4.8 Nm) 2: 97 lb.in (11 Nm)

    GFD279947Courtesy of FORD MOTOR COMPANY
  23. Check and top off the engine oil level as needed. Refer to: Specifications .
