Turbocharger Oil Supply Tube RH: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the O-ring seals with clean engine oil. Refer to: Specifications
.
-
NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.
Install the turbocharger oil supply tube, then install and tighten the turbocharger oil supply tube bolts.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
Torque: 89 lb.in (10 Nm)
- Install the lower RH - CAC intake pipe and then tighten the clamps.
Torque: 44 lb.in (5 Nm)
- Install the lower air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

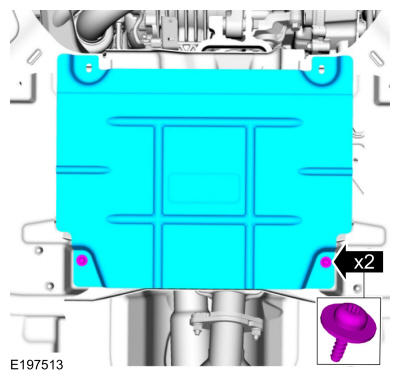

- If equipped, install the underbody shields and the retainers.
- Install the underbody shields and the retainers.
- Install the RH front tire. Refer to: Wheel and Tire .
- Install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque: 1: 42 lb.in (4.8 Nm) 2: 97 lb.in (11 Nm)
- Check and top off the engine oil level as needed. Refer to: Specifications .
