Wastegate Vacuum Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

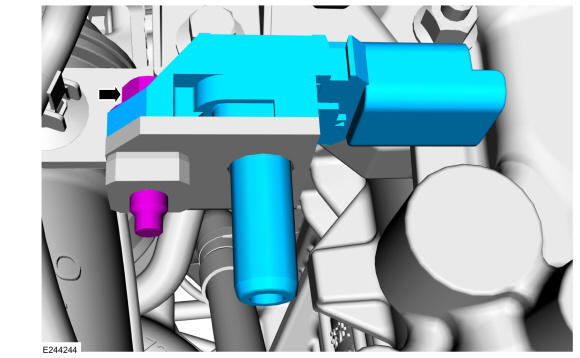

  1. Install the wastegate pressure sensor, then install and tighten the wastegate pressure sensor retainer.

    Torque: 53 lb.in (6 Nm)

    GFD280018Courtesy of FORD MOTOR COMPANY

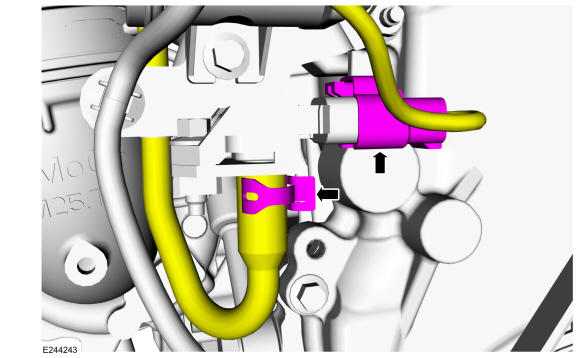

  2. Connect the wastegate pressure sensor hose and the wastegate pressure sensor electrical connector. Use the General Equipment: Hose Clamp Remover/Installer
    GFD280017Courtesy of FORD MOTOR COMPANY

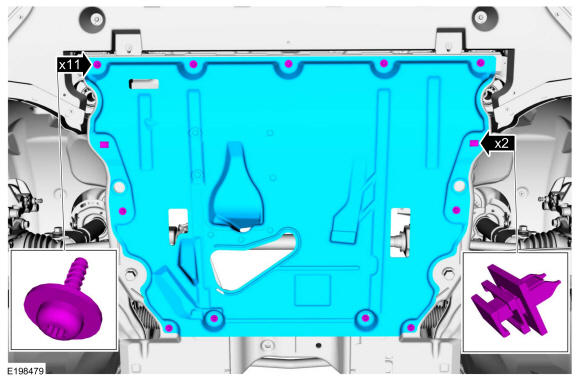

  3. Install the underbody shield and the retainers.
GFD280016Courtesy of FORD MOTOR COMPANY
