Wastegate Control Valve Solenoid: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

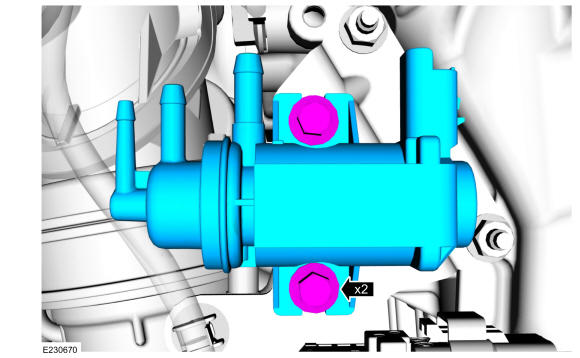

- Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.
Torque: 89 lb.in (10 Nm)

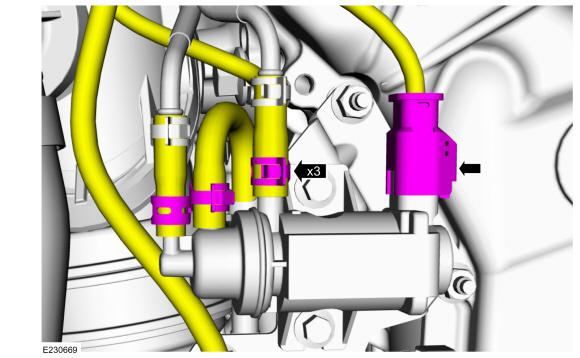

- Connect the wastegate control valve solenoid hoses and the wastegate control valve solenoid electrical connector. Use the General Equipment: Hose Clamp Remover/Installer

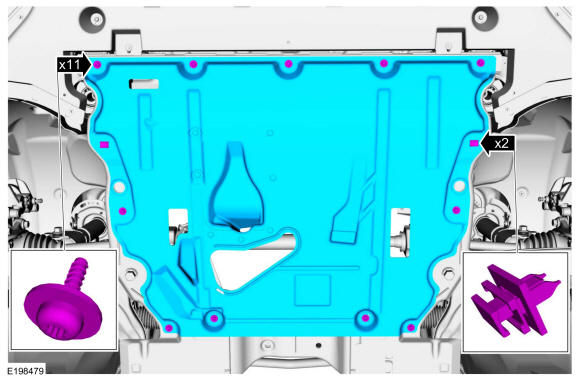

- Install the underbody shield and the retainers.
- Install the Powertrain Control Module (PCM). Refer to: Powertrain Control Module (PCM) .
