Turbocharger Oil Supply Tube: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.

NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

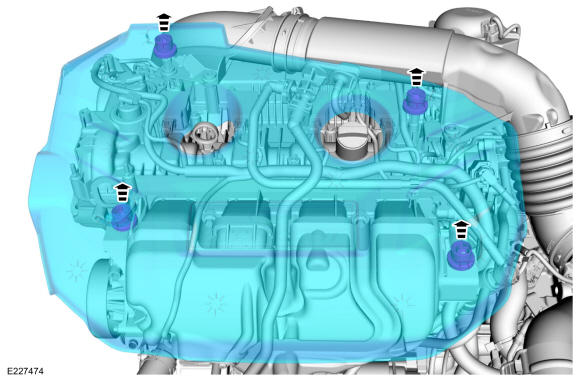

1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY
Remove the RHF wheel and tire. Refer to: Wheel and Tire .
Remove the underbody shield retainers and then remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the underbody shield retainers and then remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the TC bypass valve electrical connector and detach the harness retainer from the stud bolt. Disconnect the TC bypass hose clamp and the TC bypass hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Remove the TC outlet pipe retaining nuts. Loosen the TC outlet pipe clamps and then remove the TC outlet pipe.

Courtesy of FORD MOTOR COMPANY
Disconnect the crankcase vent tube quick release coupling. Remove the TC inlet pipe retainers. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Loosen the clamps and then remove the TC inlet pipe.

Courtesy of FORD MOTOR COMPANY
Remove the upper TC mounting nuts.

Courtesy of FORD MOTOR COMPANY
Remove the upper TC mounting studs, remove the lower TC heat shield retaining bolt and then position aside the TC heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the TC oil supply tube retaining bolts and then remove the TC oil supply tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

NOTE: Inspect the banjo bolt, the line surface for flatness and square-ness and the sealing surface for damage. ALWAYS USE NEW SEALING WASHERS. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

Remove and discard the turbocharger oil supply tube O-ring seal and the turbocharger oil supply tube bolt sealing washers.

Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
Remove and discard the TC oil filter.

Courtesy of FORD MOTOR COMPANY
