3.5L Duratec

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

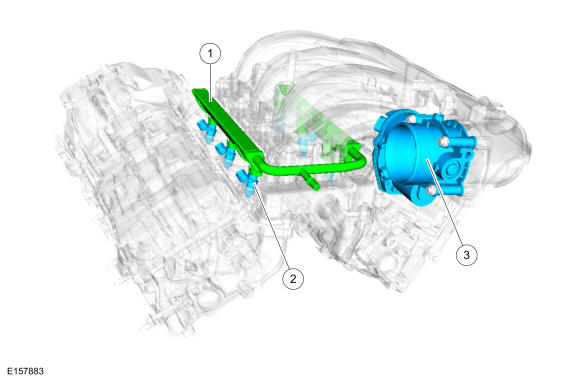

GFD279952Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel rail
2 Fuel injector
3 Throttle Body (TB)
