High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the mating faces are clean and free of foreign material.

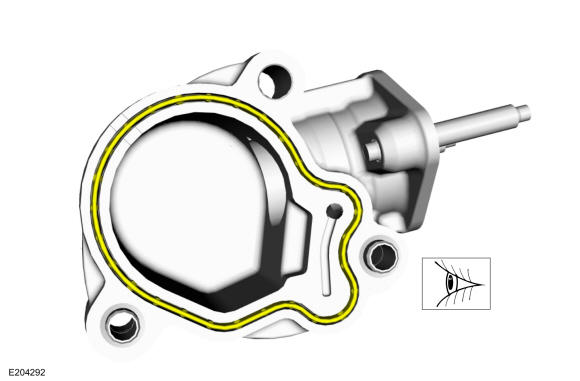

- Inspect and replace the high-pressure fuel pump drive unit gasket as needed.

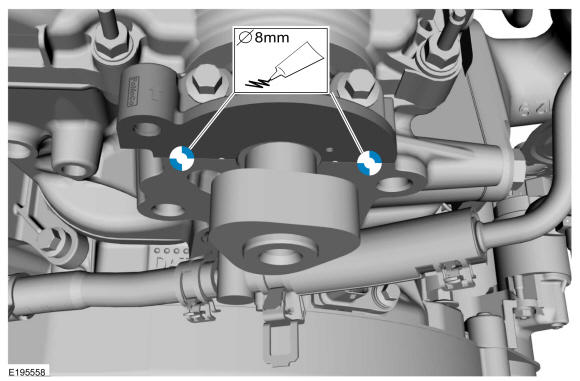

- Apply 8 mm dots of sealant to the camshaft bearing cap and cylinder head seam as shown.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

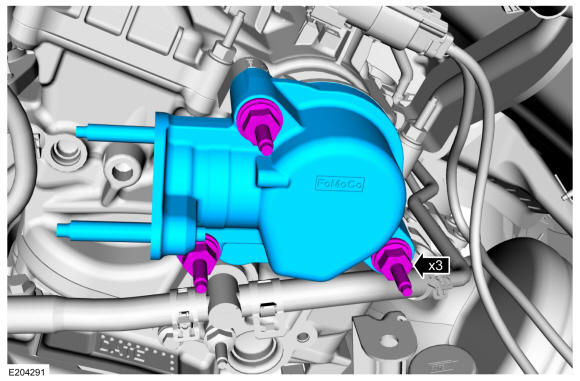

- Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit studbolts in the following 2 stages.
Torque: Stage 1: 177 lb.in (20 Nm) Stage 2: 45 deg.

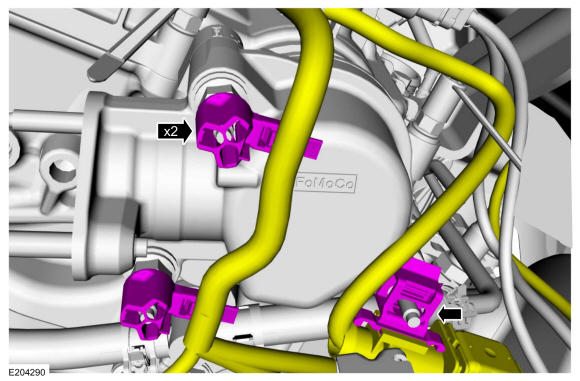

- Attach the wiring harness retainers to the high-pressure fuel pump drive unit studbolts.
- Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
