Fuel Charging and Controls - Component Location: FPDM

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

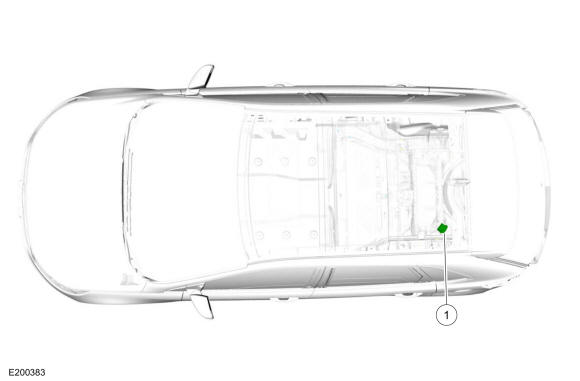

GFD279910Courtesy of FORD MOTOR COMPANY
Item Description
1 FPDM. (The FPDM is attached to the underside of the rear floor above the rear subframe on the LH side.
