High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the high-pressure fuel pump tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install new components as necessary.
    GFD279893Courtesy of FORD MOTOR COMPANY
  2. Remove the RH front tire. Refer to: Wheel and Tire .
  3. Remove the fasteners and position the fender splash shield aside.
    GFD277715Courtesy of FORD MOTOR COMPANY
  4. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

    Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump cam lobe is at BDC.

    GFD277807Courtesy of FORD MOTOR COMPANY
  5. Position the fender splash shield and install the retainers.
    GFD277715Courtesy of FORD MOTOR COMPANY
  6. Install the RH front tire. Refer to: Wheel and Tire .

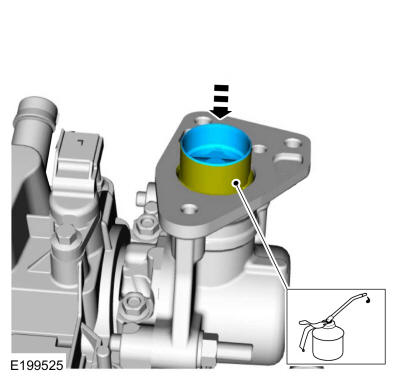

  7. Apply clean engine oil to the high-pressure fuel pump drive unit bore and the drive lobe and the roller tappet. Install the high-pressure fuel pump tappet.

    Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD279894Courtesy of FORD MOTOR COMPANY

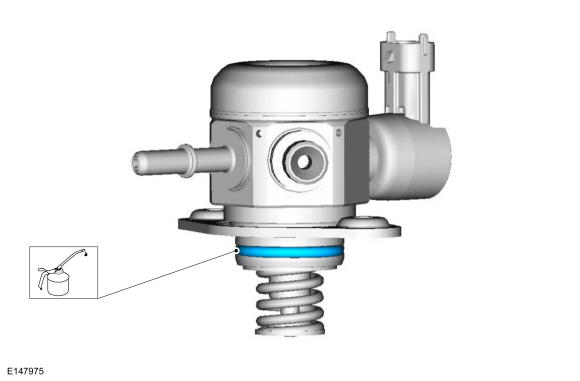

  8. Install a new high-pressure fuel pump O-ring seal.

    Material: Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    GFD279895Courtesy of FORD MOTOR COMPANY
  9. NOTE: Install new high-pressure fuel pump bolts.

    Install the high-pressure fuel pump and the new high-pressure fuel pump bolts. Alternately tighten each bolt one complete revolution until seated and then tighten in the following 2 stages.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 55 deg.

    GFD279896Courtesy of FORD MOTOR COMPANY

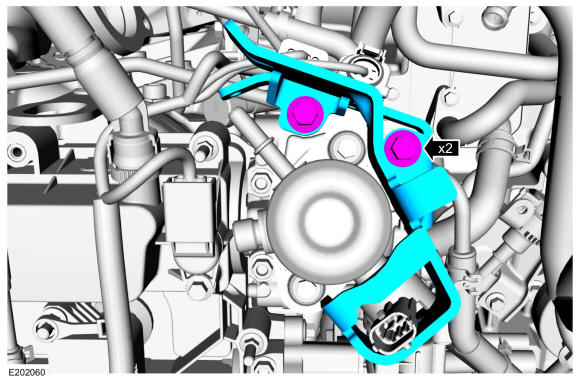

  10. Install the high-pressure fuel pump bracket and the high-pressure fuel pump bracket bolts.

    Torque: 150 lb.in (17 Nm)

    GFD279890Courtesy of FORD MOTOR COMPANY

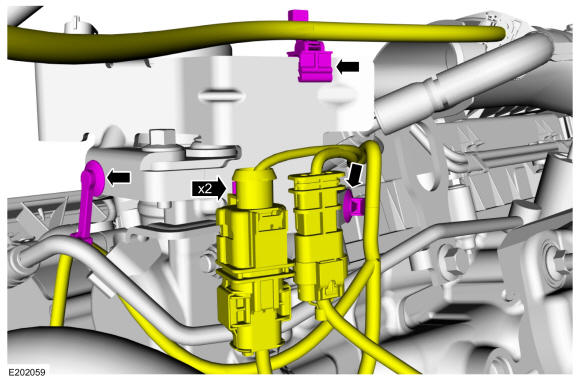

  11. Connect the harness retainers to the high-pressure fuel pump bracket.
    GFD279889Courtesy of FORD MOTOR COMPANY

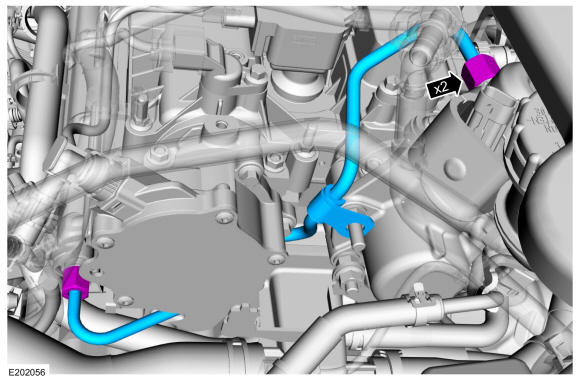

  12. NOTE: Make sure that a new high pressure fuel tube is installed.

    Install the high-pressure fuel tube and only tighten the high pressure fuel tube flare nuts finger tight at this stage.

    GFD279897Courtesy of FORD MOTOR COMPANY
  13. Install the high-pressure fuel tube nut and bolt. Only tighten finger tight at this stage.
    GFD279870Courtesy of FORD MOTOR COMPANY
  14. NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the illustration.

    Tighten the high pressure fuel tube flare nuts in the following 3 stages.

    Torque:

    Stage 1: 62 lb.in (7 Nm)

    Stage 2: 133 lb.in (15 Nm)

    Stage 3: 30 deg.

    G00468730Courtesy of FORD MOTOR COMPANY
    GFD279885Courtesy of FORD MOTOR COMPANY
    1. Tighten the high-pressure fuel tube nut.

      Torque: 89 lb.in (10 Nm)

    2. Tighten the high-pressure fuel tube bolt.

      Torque: 89 lb.in (10 Nm)

    GFD279870Courtesy of FORD MOTOR COMPANY
  15. Install the evaporative emission canister purge valve and mounting bracket, then install and tighten the evaporative emission canister purge valve retaining nuts.

    Torque: 97 lb.in (11 Nm)

    GFD279869Courtesy of FORD MOTOR COMPANY

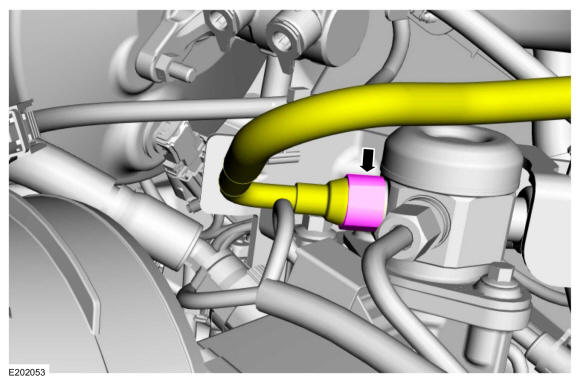

  16. Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .
    GFD279888Courtesy of FORD MOTOR COMPANY
  17. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the high-pressure fuel pump noise insulator.

    GFD279886Courtesy of FORD MOTOR COMPANY
  18. Connect the high-pressure fuel pump electrical connector.
    GFD279867Courtesy of FORD MOTOR COMPANY
  19. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    GFD277547Courtesy of FORD MOTOR COMPANY
  20. Connect the battery. Refer to: Battery Disconnect and Connect .
  21. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
