High-Pressure Fuel Pump Drive Unit: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure that the mating faces are clean and free of foreign material.

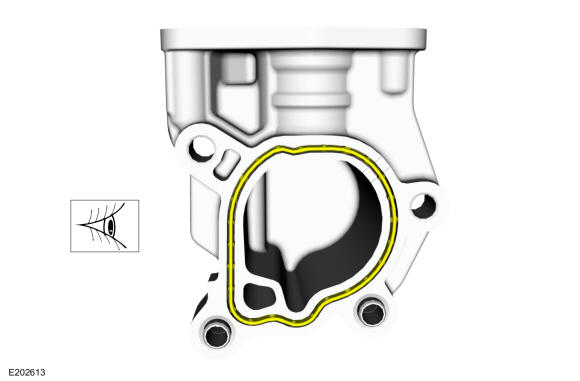

- Inspect and replace the high-pressure fuel pump drive unit gasket as needed.

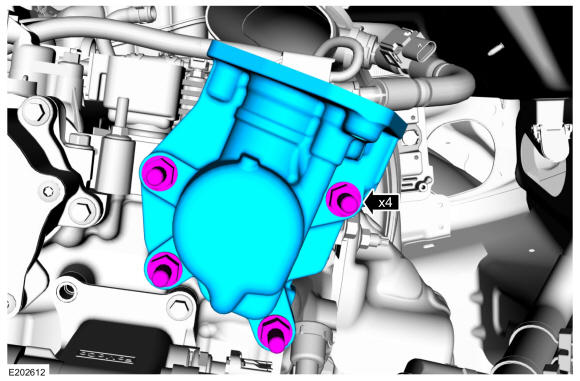

- Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit studbolts in the following 2 stages.
Torque:
Stage 1: 133 lb.in (15 Nm)
Stage 2: 60 deg.

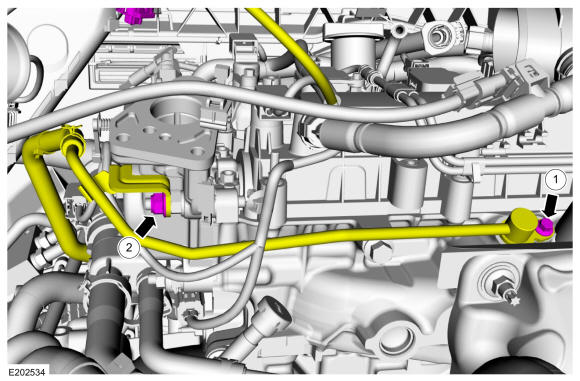

- Inspect the coolant tube O-ring seal and replace as needed. Lube the coolant tube O-ring seal with clean coolant.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
-
NOTE: The coolant tube must be fully seated prior to tighten the bolt.
Torque:
1: 97 lb.in (11 Nm)
2: 115 lb.in (13 Nm)
- Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
