Section 41 (ENGINE CONTROLS - FUEL CHARGING AND CONTROLS - 2.0L ECOBOOST (184kW/250PS) - MI4)
>>
Description And Operation
>>

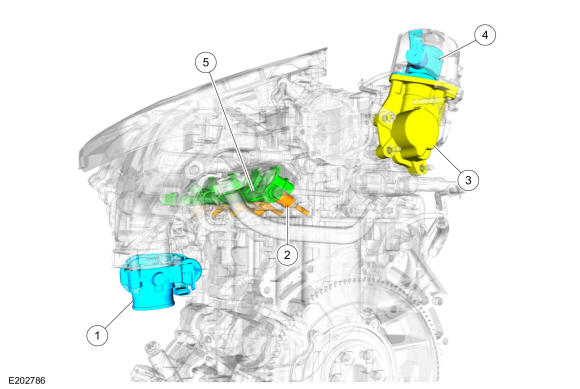

Fuel Charging and Controls - Component Location
>>
2.0L EcoBoost
2.0L EcoBoost
WARNING:
This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle Body (TB)
2
Fuel injector
3
High-pressure fuel pump drive unit
4
High-pressure fuel pump
5
Fuel rail
