Removal And Installation: Thermostat: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Engine Cooling System Health and Safety Precautions .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the following items:
1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
2. Remove the air cleaner. Refer to: Air Cleaner .

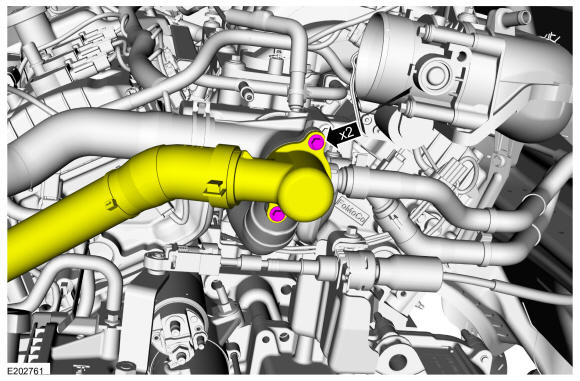

Remove the bolts and position the coolant outlet aside.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

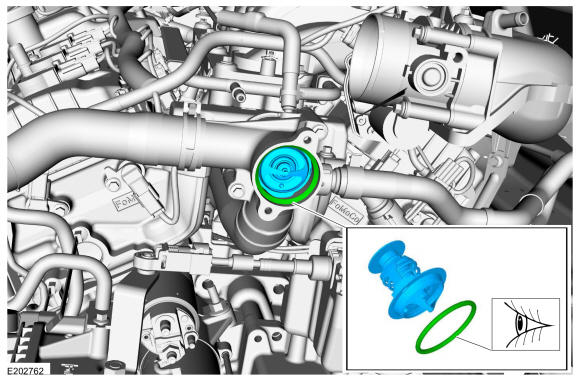

Remove the thermostat. Inspect the O-ring seal and replace if necessary.

Courtesy of FORD MOTOR COMPANY
