Thermostat Housing: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the engine appearance cover.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
-

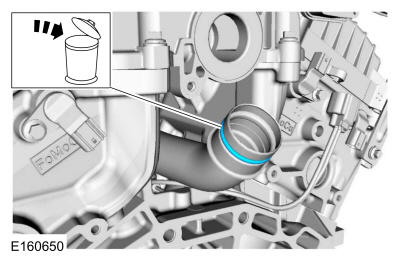

NOTE: Do not pull the other end of the coolant tube out of the engine block when separating the thermostat housing.

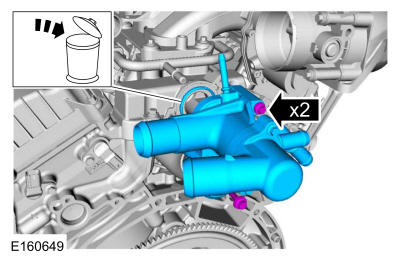

Remove the bolts and remove the thermostat housing. Discard the O-ring seal.
- Remove the bolts and remove the thermostat housing. Discard the O-ring seal.
