Heater Hoses: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the upper intake manifold. Refer to: Upper Intake Manifold .

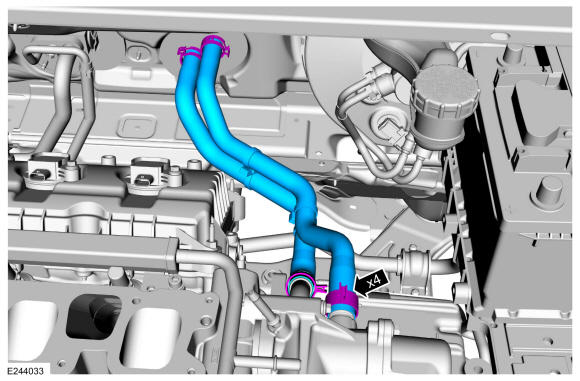

- Release the clamps and remove the heater hose assembly. Use the General Equipment: Hose Clamp Remover/Installer
