Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the pin-type retainers and the radiator site shield.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the pin-type retainers and the radiator site shield.

Courtesy of FORD MOTOR COMPANY
1. Remove the radiator guide pins.
2. Using cable ties loosely support the cooling module.
Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner .

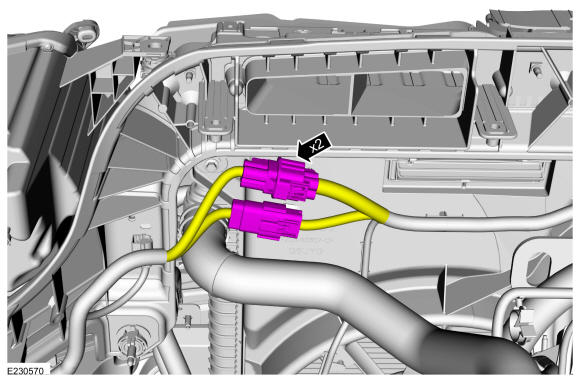

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

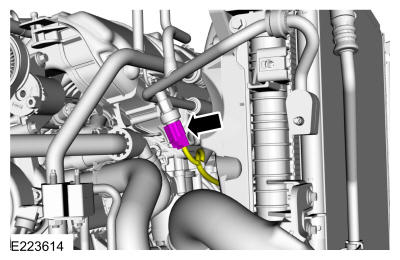

Disconnect the A/C pressure transducer electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the upper cooling fan bolts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the front under body shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the lower radiator support.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

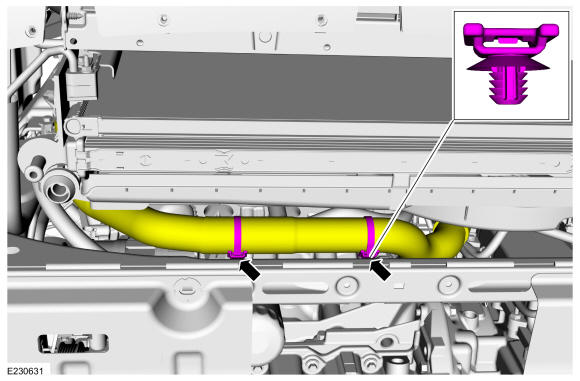

Detach the pin-type retainers and position aside the lower radiator hose.

Courtesy of FORD MOTOR COMPANY

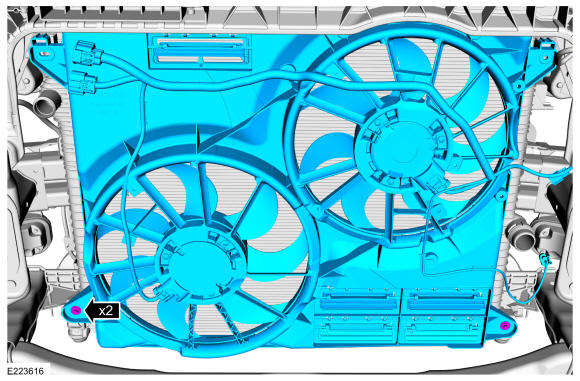

Remove the lower cooling fan bolts and the cooling fan motor and shroud.
Torque: 53 lb.in (6 Nm)
