Coolant Pump: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

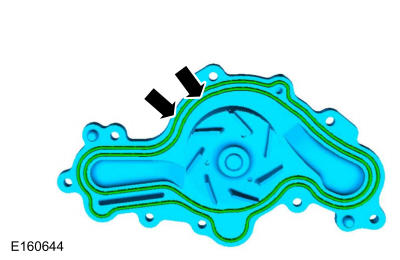

  1. NOTE: Clean and inspect all sealing surfaces.

    Install new gaskets.

    GFD279815Courtesy of FORD MOTOR COMPANY

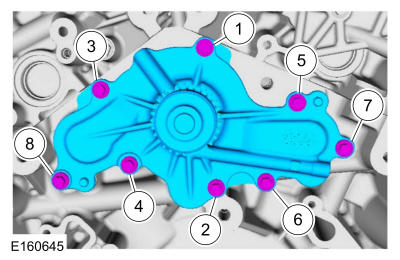

  2. Install the coolant pump and the bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 45°

    Fig 1: Coolant Pump Tightening Sequence
    GFD279816Courtesy of FORD MOTOR COMPANY
  3. Remove all of the shop towels from the oil pan opening.
  4. NOTE: Any coolant that has accumulated in the oil pan must be drained from the pan and any residual coolant cleaned from the front of the engine and oil pan. Failure to remove all traces of the coolant can result in oil contamination and severe engine damage.
    NOTE: Remove any residual coolant from the front of the engine and the oil pan using regulated, compressed air and clean, lint-free shop towels.

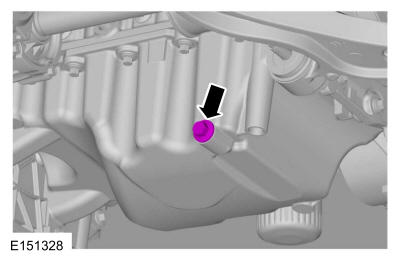

    Remove the oil pan drain plug and allow any accumulated coolant to drain.

    GFD279817Courtesy of FORD MOTOR COMPANY
  5. Install the oil pan drain plug.

    Torque: 20 lb.ft (27 Nm)

    GFD279817Courtesy of FORD MOTOR COMPANY

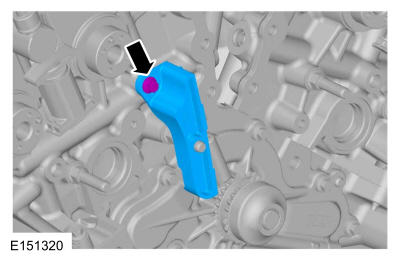

  6. Install the RH primary timing chain guide and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD279812Courtesy of FORD MOTOR COMPANY

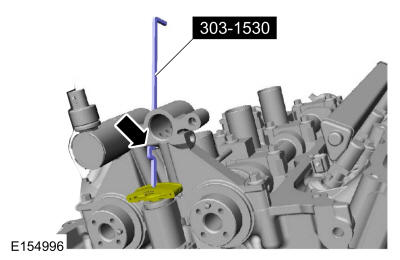

  7. Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
    GFD279818Courtesy of FORD MOTOR COMPANY

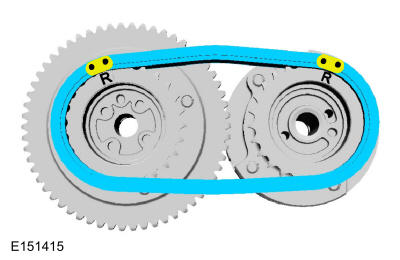

  8. Align the colored links with the timing marks. Assemble the RH VCT assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
    GFD279819Courtesy of FORD MOTOR COMPANY

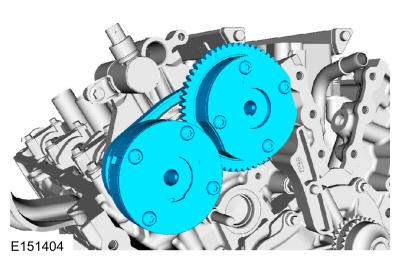

  9. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    GFD279811Courtesy of FORD MOTOR COMPANY

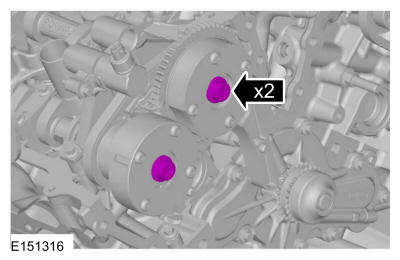

  10. Install the RH VCT bolts

    Torque: Stage 1: 30 lb.ft (40 Nm) Stage 2: Loosen: 1 turn(s) Stage 3: 18 lb.ft (25 Nm) Stage 4: 180°

    GFD279820Courtesy of FORD MOTOR COMPANY

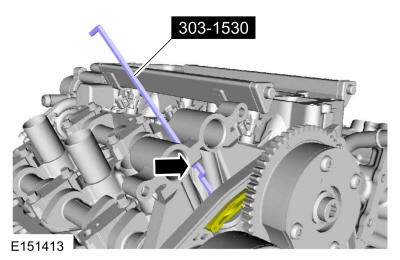

  11. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.

    Compress the RH secondary timing chain tensioner and remove the Secondary Chain Hold Down. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD279809Courtesy of FORD MOTOR COMPANY

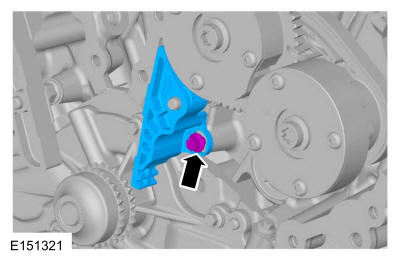

  12. Install the upper LH primary timing chain guide and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD279808Courtesy of FORD MOTOR COMPANY

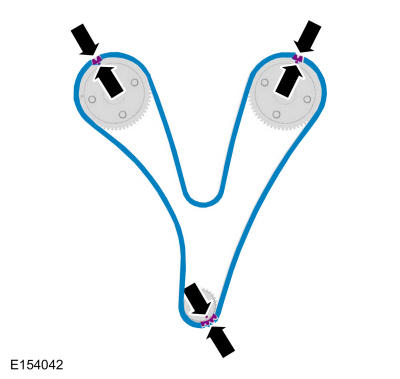

  13. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.

    GFD279821Courtesy of FORD MOTOR COMPANY

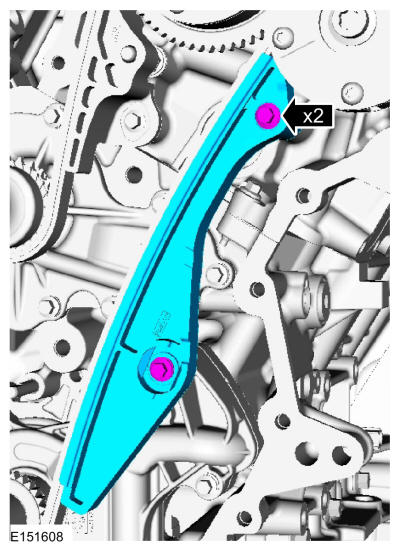

  14. Install the lower LH primary timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD279804Courtesy of FORD MOTOR COMPANY

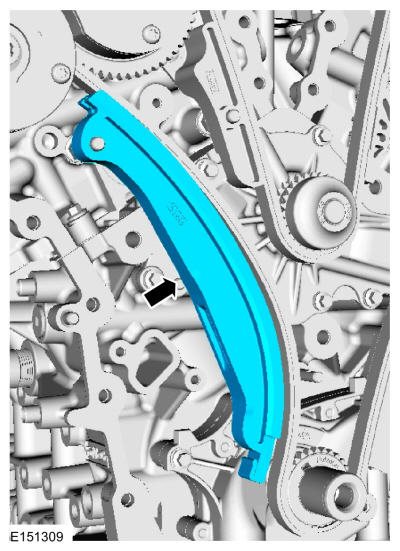

  15. Install the primary timing chain tensioner arm.
    GFD279803Courtesy of FORD MOTOR COMPANY

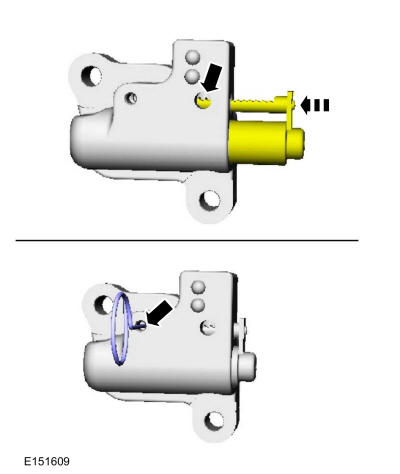

    • Release the ratchet detent.

    • Using a soft-jawed vise, compress the ratchet plunger.

    • Align the hole in the ratchet plunger with the hole in the tensioner housing.

    • Install a lockpin.

    GFD279822Courtesy of FORD MOTOR COMPANY

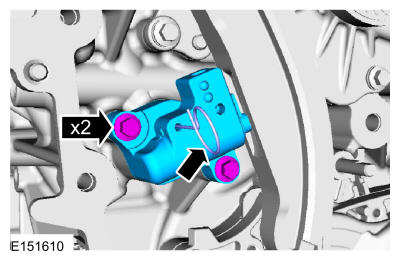

  16. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    • Install the primary tensioner and the bolts.

      Torque: 89 lb.in (10 Nm)

    • Remove the lockpin.

    GFD279823Courtesy of FORD MOTOR COMPANY
    • As a post-check, verify correct alignment of all timing marks.

    • There are 48 links in between the RH intake VVT assembly colored link (1) and the LH intake VVT assembly colored link (2).

    • There are 35 links in between LH intake VVT assembly colored link (2) and the 2 crankshaft sprocket links (3).

    GFD279824Courtesy of FORD MOTOR COMPANY
  17. NOTE: Do not use excessive force when installing the VVT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VVT oil control solenoid, inspect the bore and VVT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    Install the LH intake VCT oil control solenoid and the bolt.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 20°

    GFD279805Courtesy of FORD MOTOR COMPANY
  18. NOTE: Do not use excessive force when installing the VVT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VVT oil control solenoid, inspect the bore and VVT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

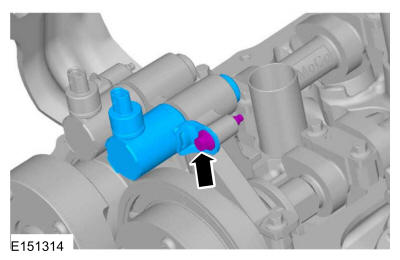

    Install the RH intake VCT oil control solenoid and the bolt.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 20°

    GFD279806Courtesy of FORD MOTOR COMPANY

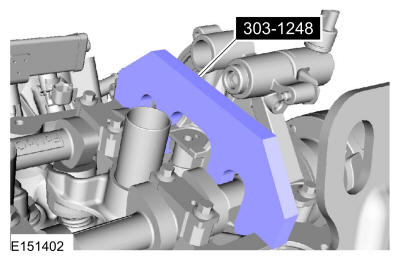

  19. Remove the RH Camshaft Holding Tool. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD279798Courtesy of FORD MOTOR COMPANY

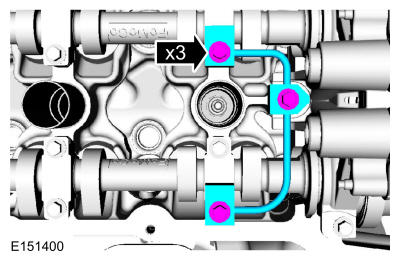

  20. Install the RH valve train oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45°

    GFD279797Courtesy of FORD MOTOR COMPANY

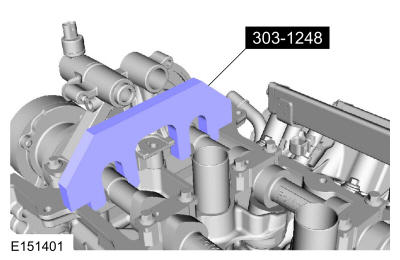

  21. Remove the LH Camshaft Holding Tool. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD279796Courtesy of FORD MOTOR COMPANY

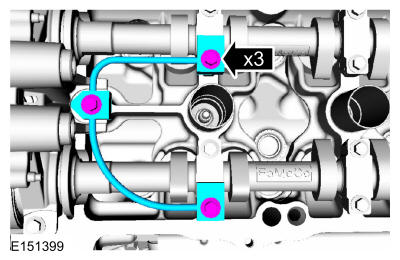

  22. Install the LH valve train oil tube and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 45°

    GFD279795Courtesy of FORD MOTOR COMPANY
  23. Install the engine front cover. Refer to: Engine Front Cover .
