Coolant Inlet Pipe: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Remove the lower intake manifold. Refer to: Lower Intake Manifold .

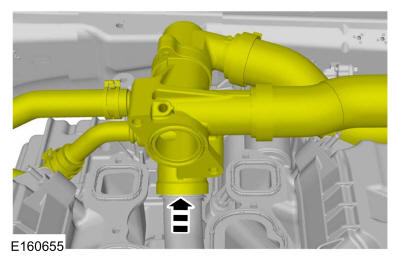

- Disconnect the thermostat housing from the cooling inlet pipe and position aside.
- Disconnect the coolant hose.

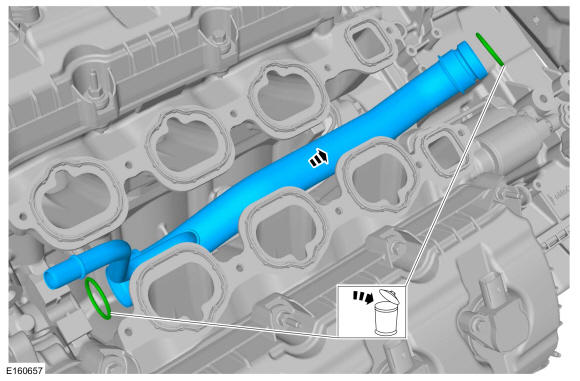

- Remove the coolant inlet pipe and discard the O-ring seals.
