Coolant Inlet Pipe: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

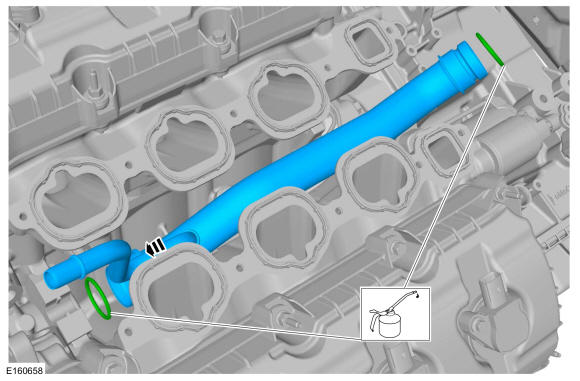

- Install new O-ring seals and lubricate them with clean engine coolant. Install the coolant inlet pipe.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

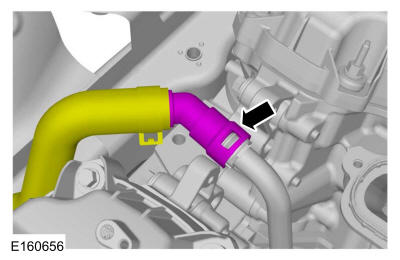

- Connect the coolant hose.

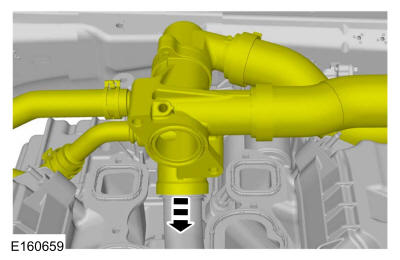

- Connect the thermostat housing to the coolant inlet pipe.
- Install the lower intake manifold. Refer to: Lower Intake Manifold .
