Hot Market AWD (all-wheel drive)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

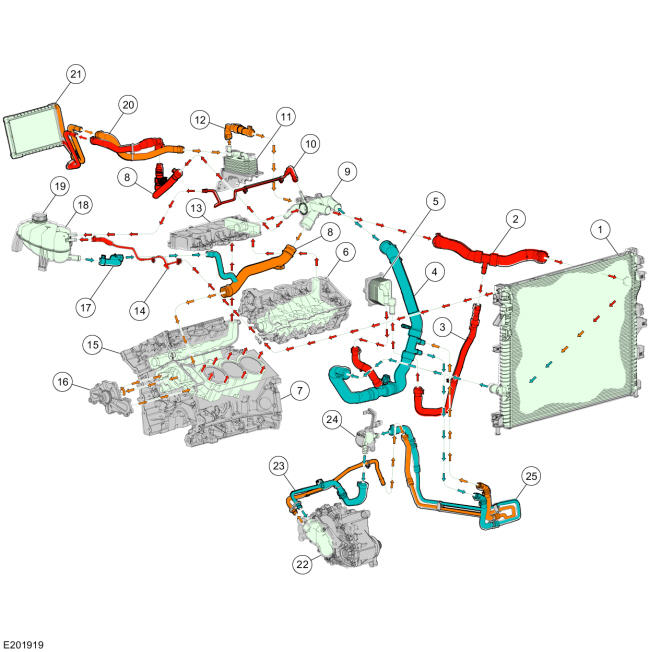

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Upper radiator hose |
| 3 | Oil cooler inlet hose |
| 4 | Lower radiator hose |
| 5 | Engine oil cooler |
| 6 | Cylinder head LH |
| 7 | Cylinder block |
| 8 | Coolant inlet tube |
| 9 | Thermostat housing |
| 10 | Thermostat housing-to-degas bottle hose |
| 11 | Transmission oil cooler |
| 12 | Transmission warmer outlet hose |
| 13 | Lower intake manifold |
| 14 | Radiator-to-degas bottle hose |
| 15 | Cylinder head RH |
| 16 | Coolant pump |
| 17 | Coolant inlet tube-to-degas bottle hose |
| 18 | Degas bottle |
| 19 | Pressure relief cap |
| 20 | Heater hose assembly |
| 21 | Heater core |
| 22 | Power Transfer Unit (PTU) |
| 23 | Power Transfer Unit (PTU) coolant outlet hose |
| 24 | Power Transfer Unit (PTU) coolant pump |
| 25 | Power Transfer Unit (PTU) coolant inlet hose |
