Fuse And Relay Location

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

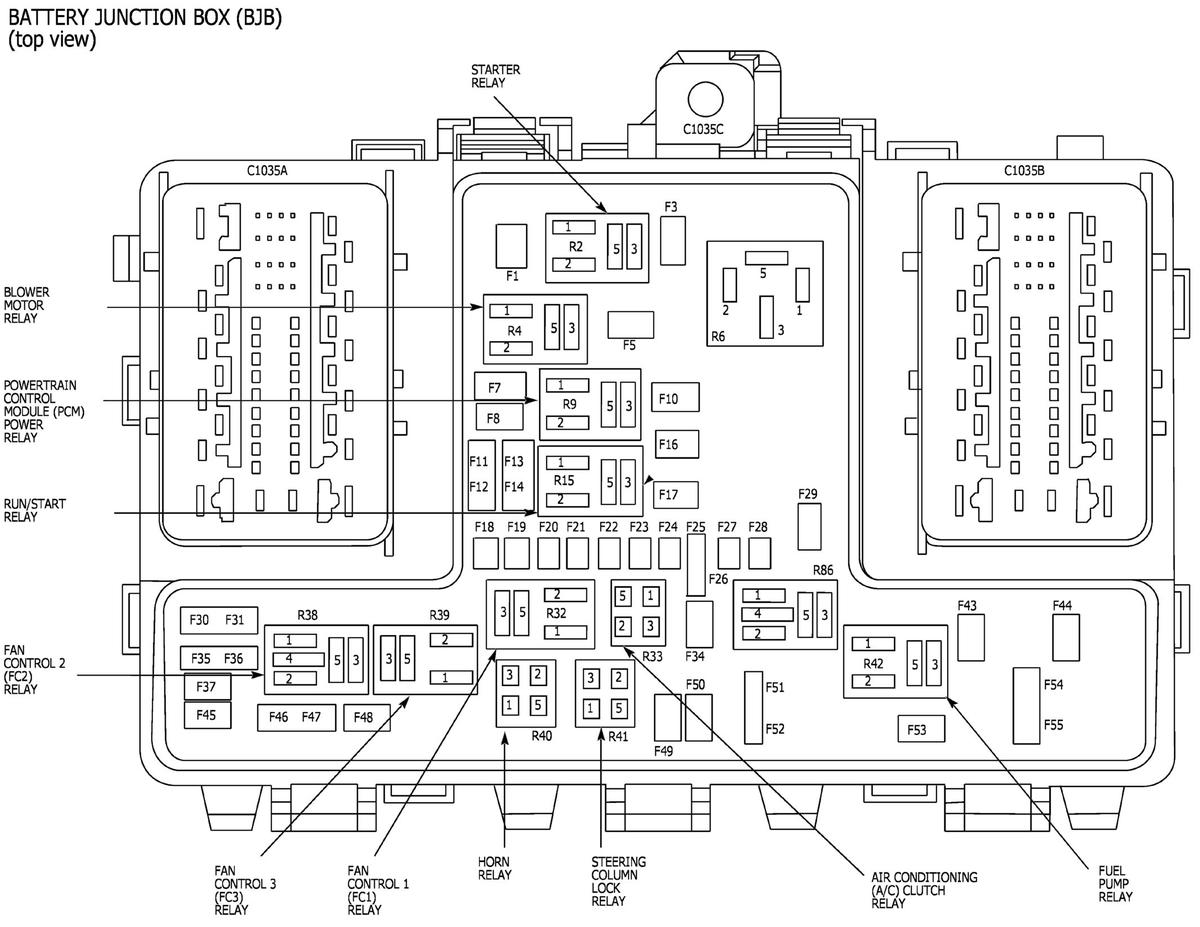

Fig 1: Battery Junction Box (BJB) Component Location (Top View)

Courtesy of FORD MOTOR COMPANY

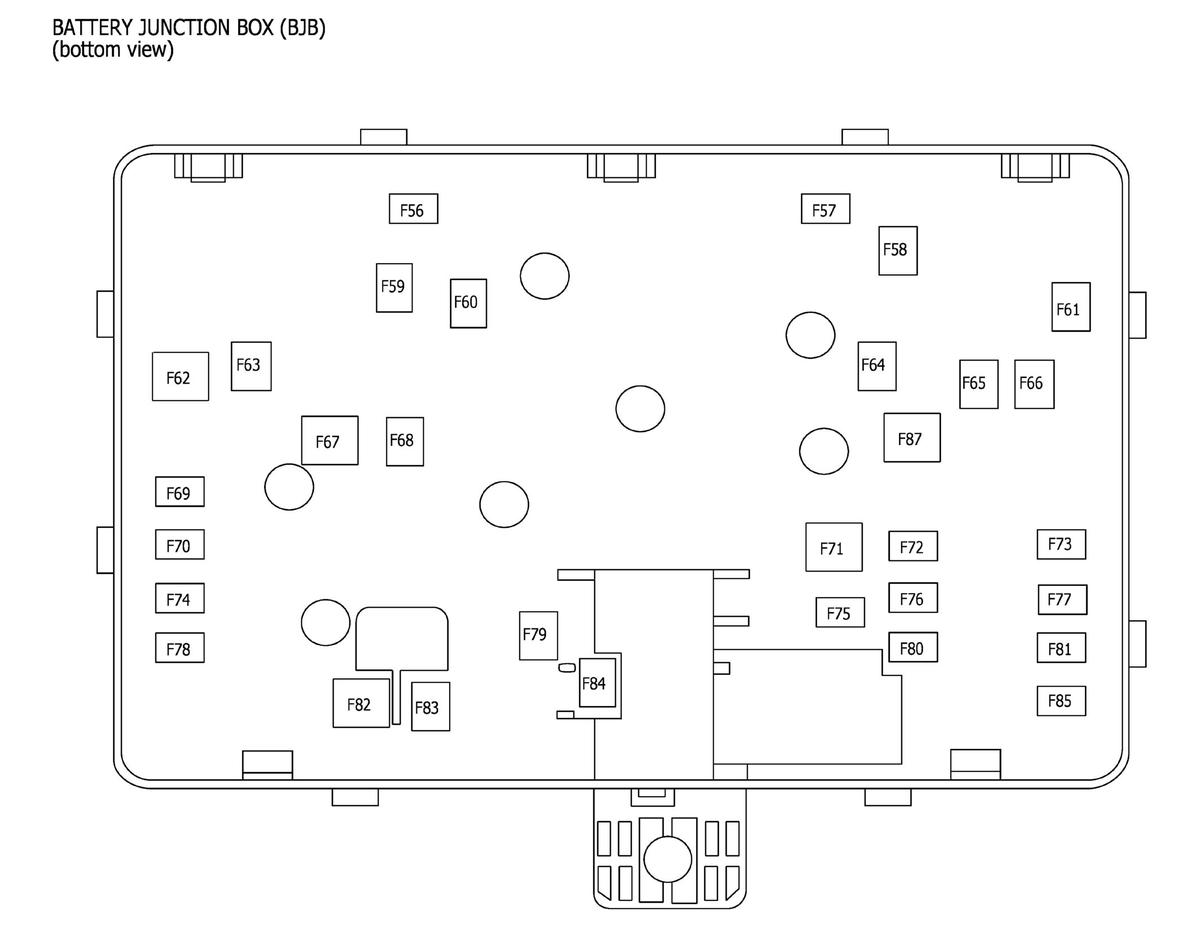

Fig 2: Battery Junction Box (BJB) Component Location (Bottom View)

Courtesy of FORD MOTOR COMPANY

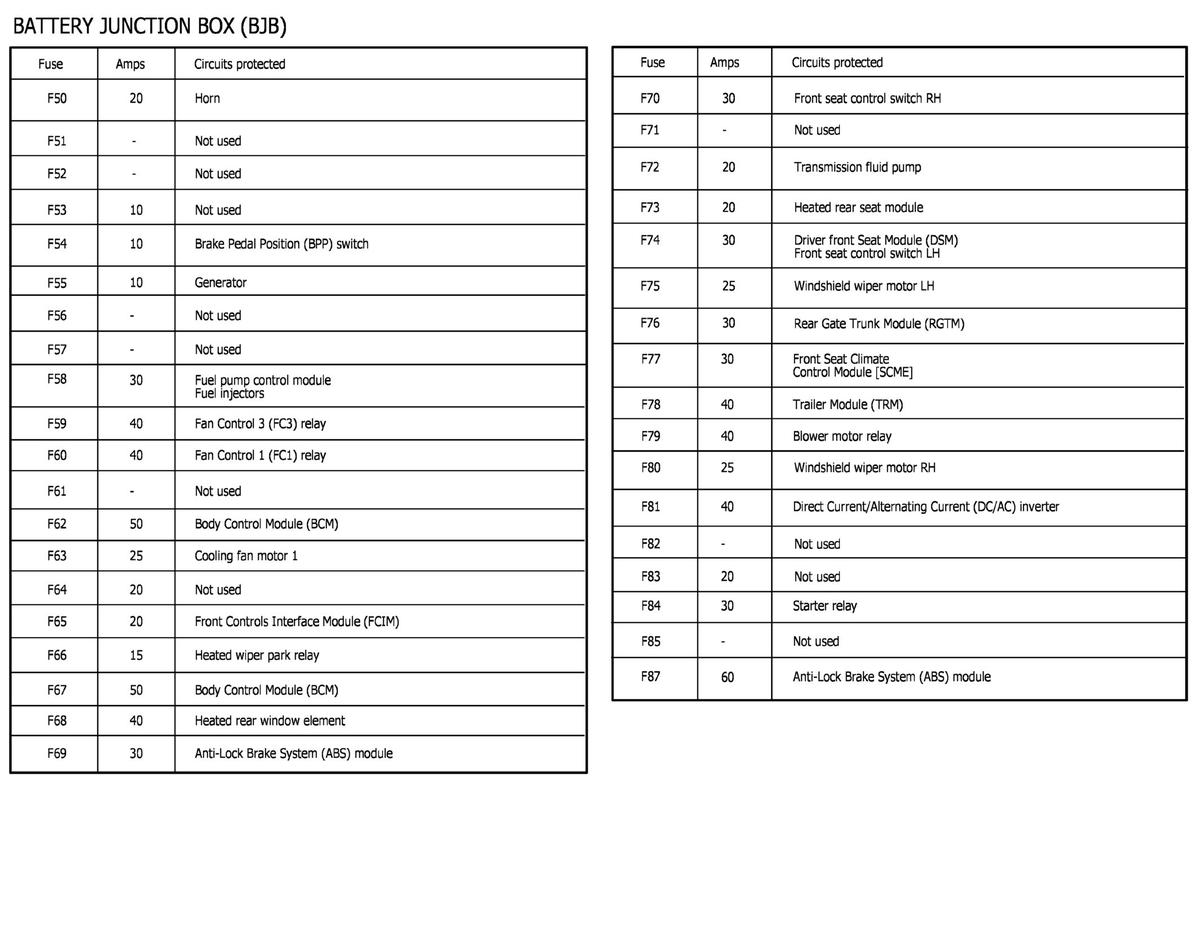

Fig 3: Battery Junction Box (BJB) Component Location Legend (1 of 2)

Courtesy of FORD MOTOR COMPANY

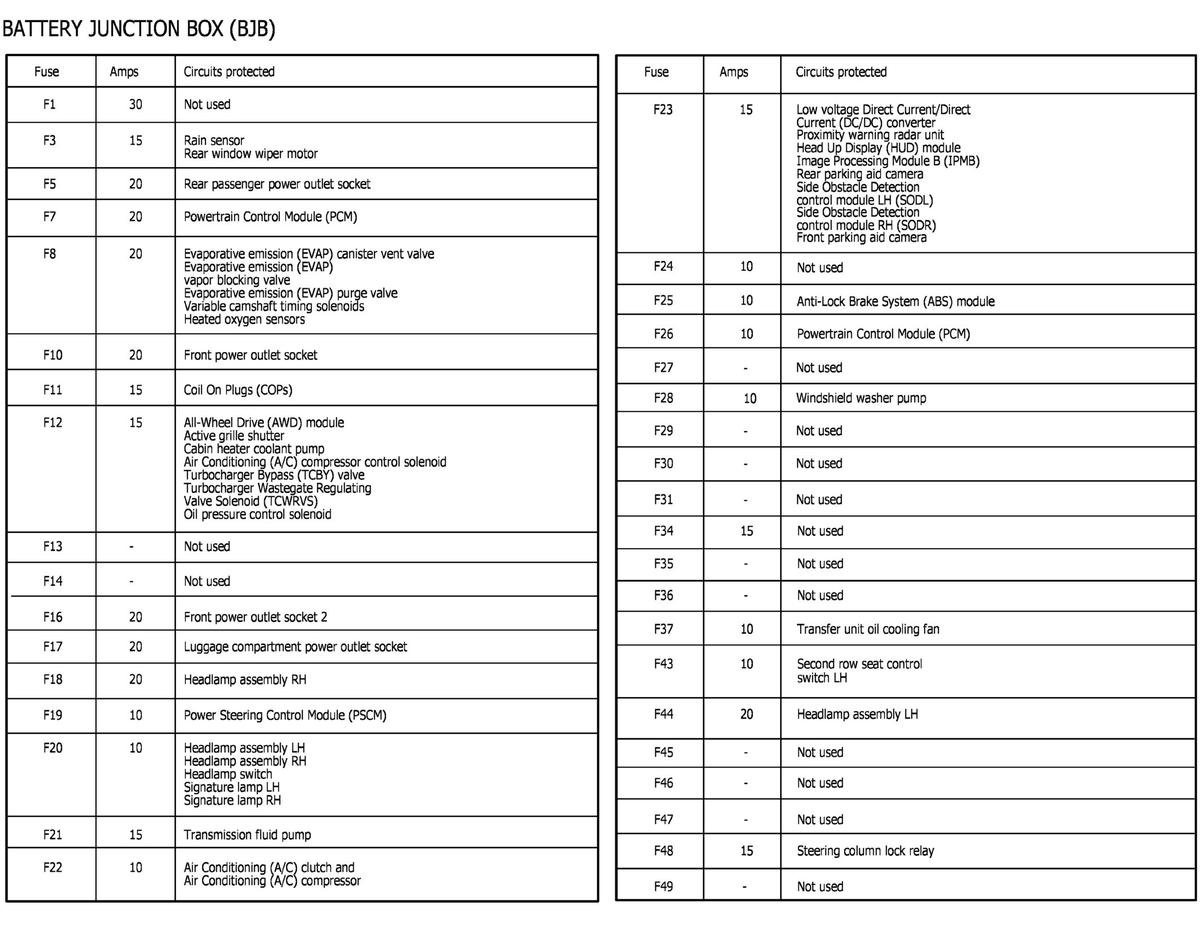

Fig 4: Battery Junction Box Component Location Legend (2 of 2)

Courtesy of FORD MOTOR COMPANY

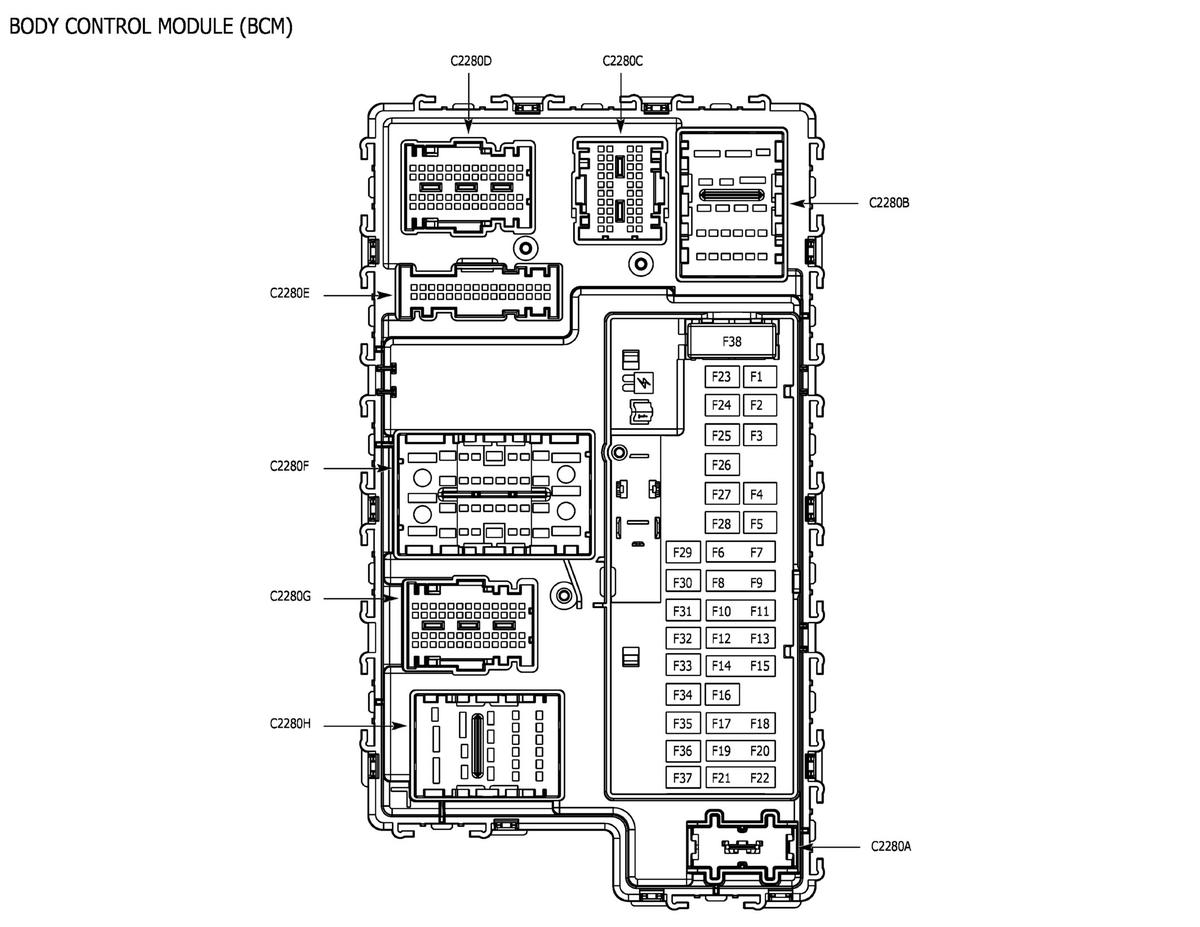

Fig 5: Body Control Module (BCM) Component Location

Courtesy of FORD MOTOR COMPANY

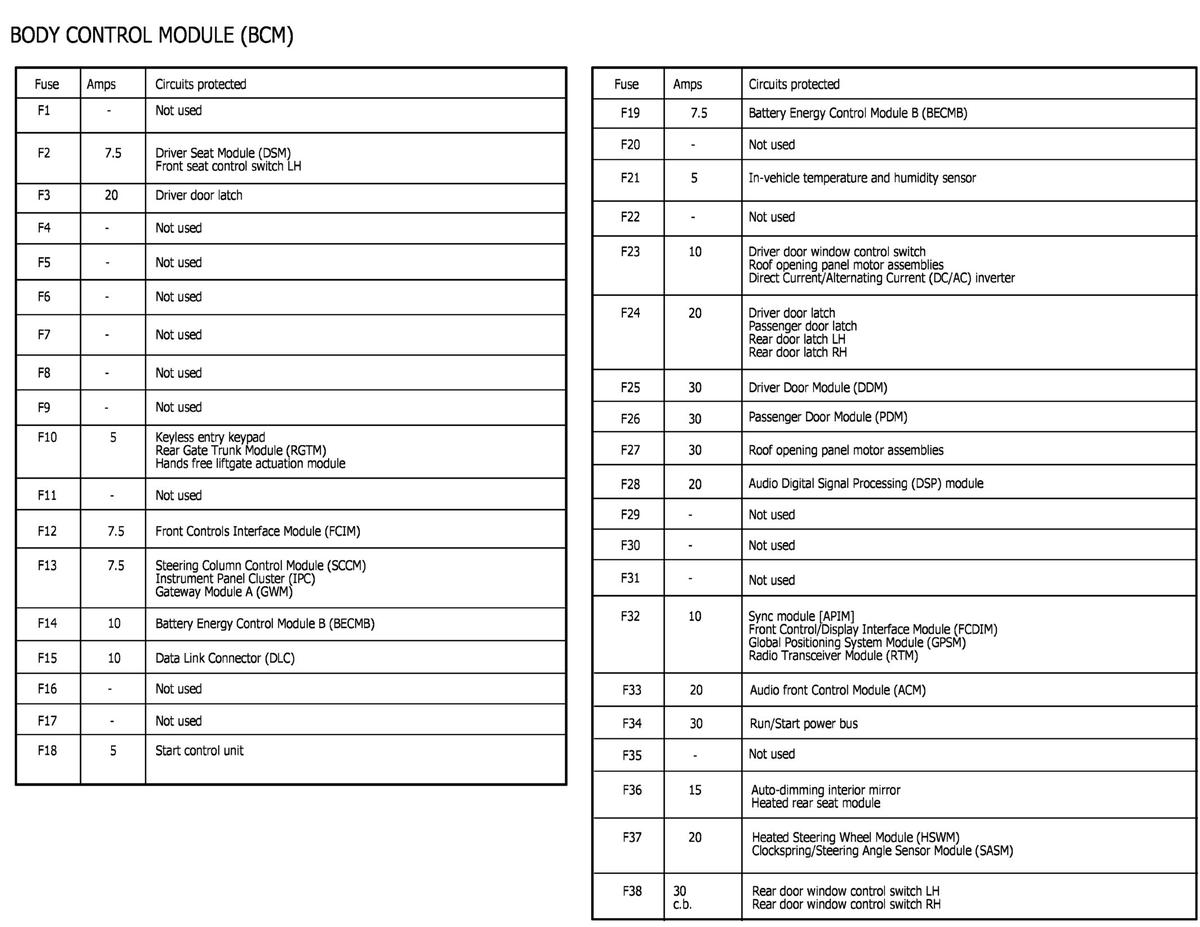

Fig 6: Body Control Module (BCM) Component Location Legend

Courtesy of FORD MOTOR COMPANY

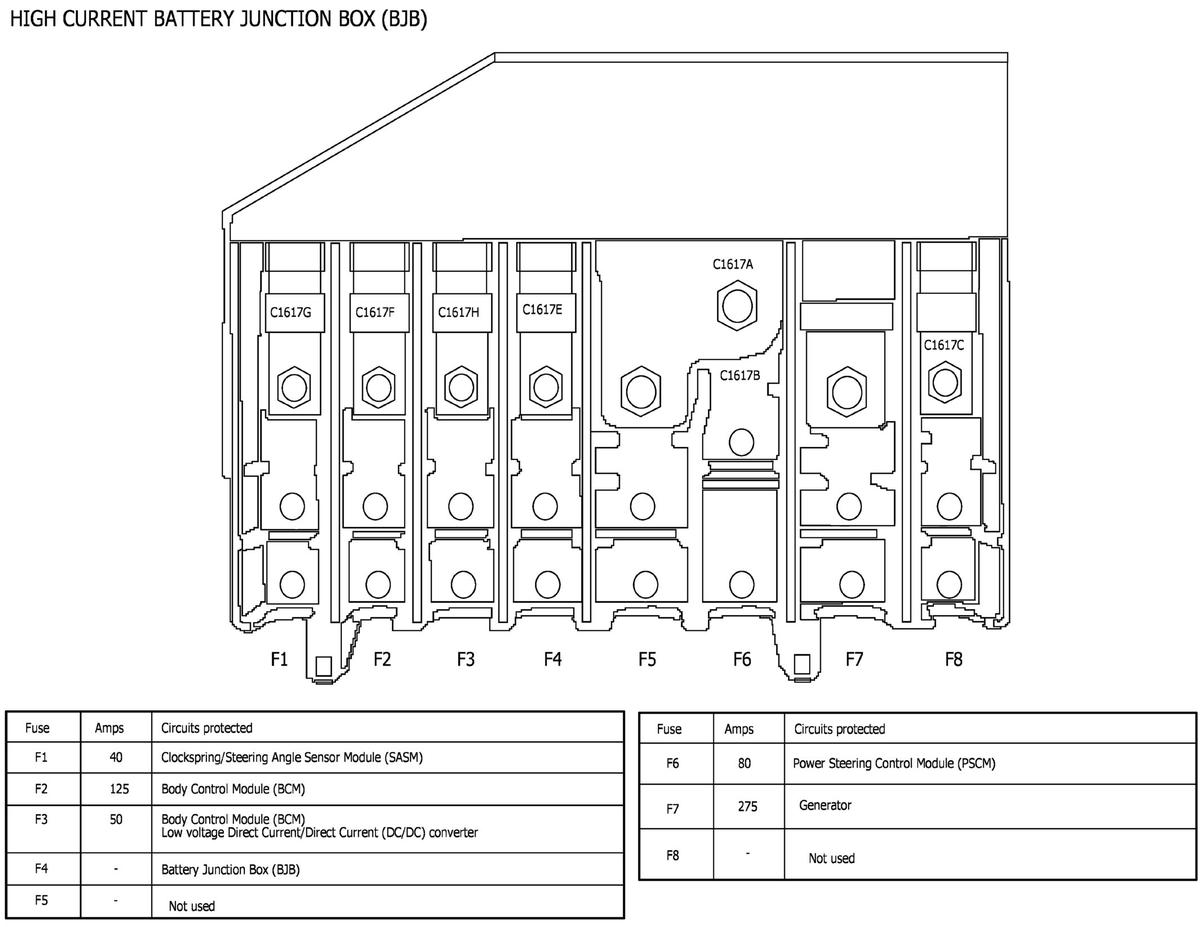

Fig 7: High Current Battery Junction Box (BJB) Component Location

Courtesy of FORD MOTOR COMPANY
