Cylinder Head to Coolant Outlet Connector Hose Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

Left-hand (LH) side

  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

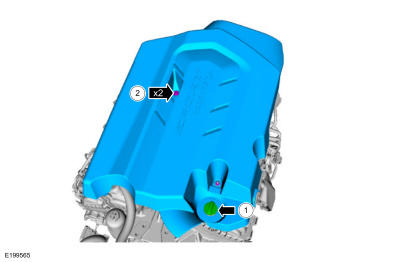

    1. Remove the oil filler cap.
    2. Remove the fasteners and the engine appearance cover.
    GFD279756Courtesy of FORD MOTOR COMPANY
  2. Remove the air cleaner. Refer to: Air Cleaner .
  3. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
  4. Remove the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .

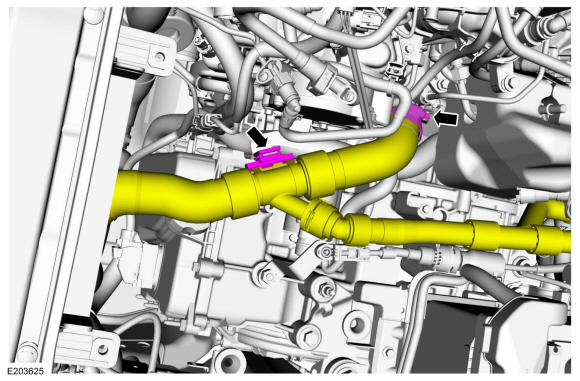

  5. Detach the bracket retainer, loosen the clamp, and disconnect the coolant hose.
    GFD279757Courtesy of FORD MOTOR COMPANY

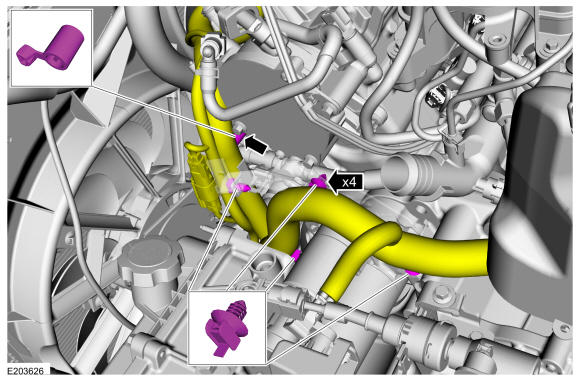

  6. Detach the pin-type and stud bolt retainers and position the wiring harness aside.
    GFD279758Courtesy of FORD MOTOR COMPANY

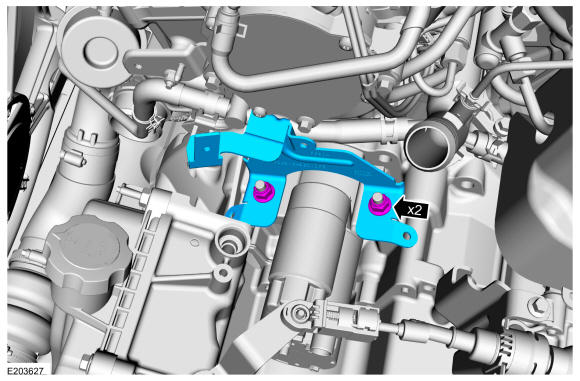

  7. Remove the fasteners and the coolant hose support bracket.
    GFD279759Courtesy of FORD MOTOR COMPANY

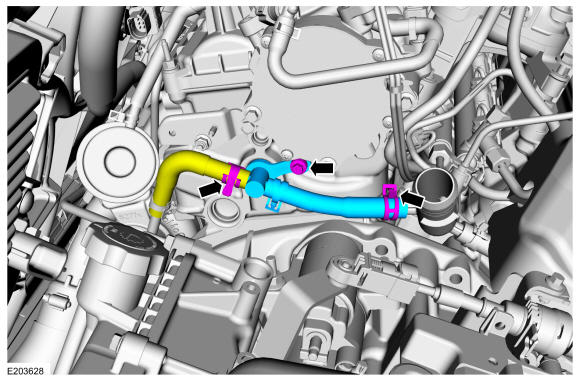

  8. NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

    Release the hose clamps and disconnect the coolant hoses. Remove the bolt and the cylinder head to coolant outlet connector hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Torque: 89 lb.in (10 Nm)

    GFD279760Courtesy of FORD MOTOR COMPANY
  9. Inspect the O-ring and replace if necessary.
    GFD278459Courtesy of FORD MOTOR COMPANY

    Right-hand (RH) side

  10. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
    1. Remove the oil filler cap.
    2. Remove the fasteners and the engine appearance cover.
    GFD279756Courtesy of FORD MOTOR COMPANY
  11. Remove the air cleaner. Refer to: Air Cleaner .
  12. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
  13. Remove the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .

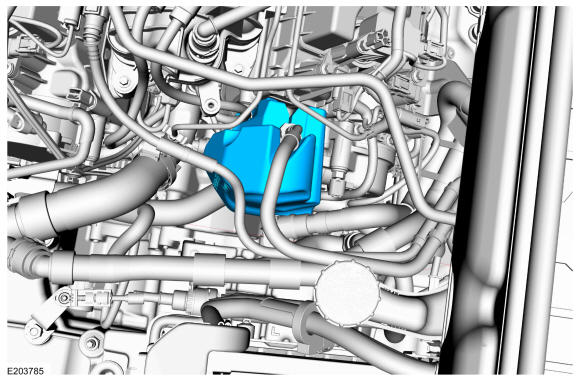

  14. Remove the high-pressure fuel pump sound insulator.
    GFD279761Courtesy of FORD MOTOR COMPANY
  15. NOTE: If equipped.

    Remove the transmission fluid warmer. Refer to: Transmission Fluid Warmer .

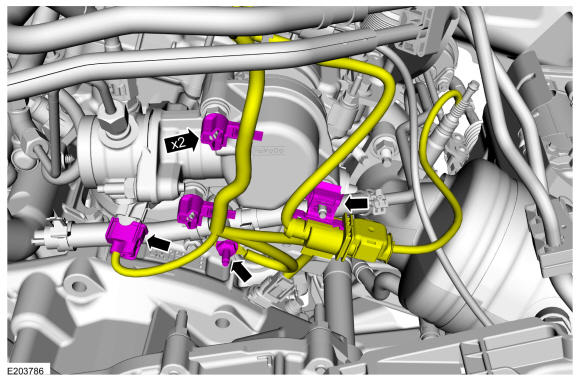

  16. Disconnect the high-pressure fuel pump electrical connector, detach the harness retainers, and remove the stud bolt.

    Torque: 89 lb.in (10 Nm)

    GFD279762Courtesy of FORD MOTOR COMPANY

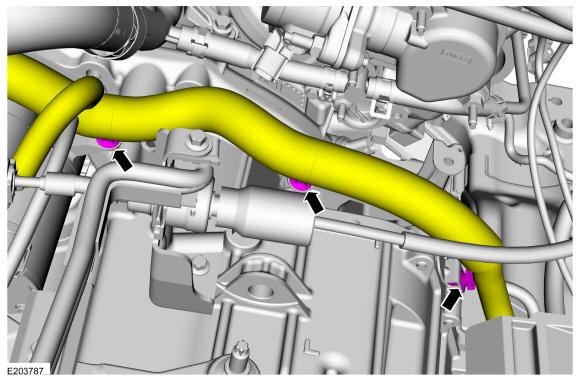

  17. Detach the pin-type retainers and position the wiring harness aside.
    GFD279763Courtesy of FORD MOTOR COMPANY

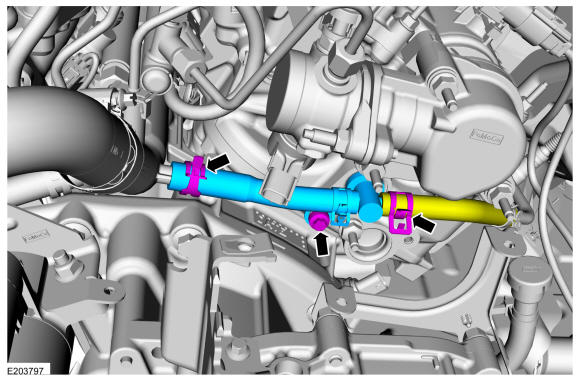

  18. NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

    Release the hose clamps and disconnect the coolant hoses. Remove the bolt and the cylinder head to coolant outlet connector hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Torque: 89 lb.in (10 Nm)

    GFD279764Courtesy of FORD MOTOR COMPANY
  19. Inspect the O-ring and replace if necessary.
GFD278459Courtesy of FORD MOTOR COMPANY
