Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .

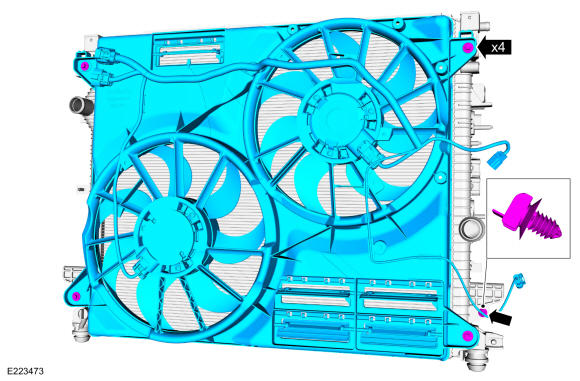

- Detach the harness retainer, remove the bolts, and the cooling fan motor and shroud.
Torque: 55 lb.in (6.2 Nm)
