Coolant Outlet Connector: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fuel rail. Refer to: Fuel Rail .
- Remove the coolant pump. Refer to: Coolant Pump .
-
- Loosen the clamp and disconnect the coolant hose.
- Depress the tabs and disconnect the coolant tube.
- Remove the knock sensor harness retainer from the stud bolt.

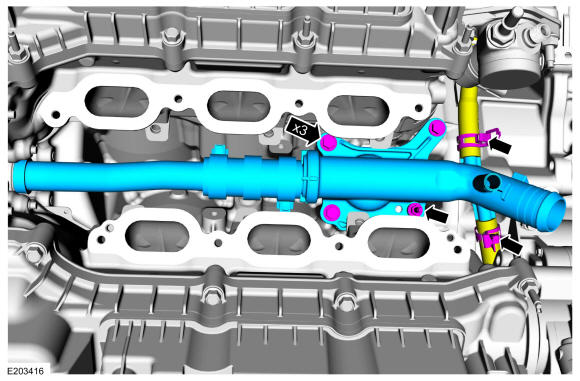

- Release the clamps and disconnect the coolant hoses. Remove the bolts and the coolant outlet connector and inlet pipe assembly. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Note the orientation of the coolant hose clamp and the coolant hose inlet pipe prior to removal.NOTE: DO NOT discard the coolant hose metal sleeve.
Release the hose clamp and remove the coolant hose and coolant inlet pipe assembly.
- Inspect the coolant outlet connector O-ring and replace if necessary.
