Hot Market AWD (all-wheel drive)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

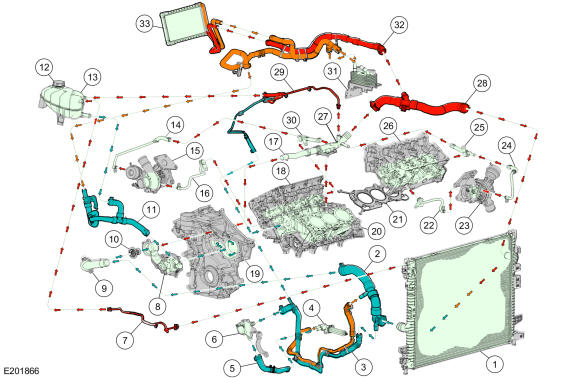

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Power Transfer Unit (PTU) coolant pump inlet hose |
| 4 | Power Transfer Unit (PTU) cooler |
| 5 | Power Transfer Unit (PTU) coolant pump outlet hose |
| 6 | Power Transfer Unit (PTU) coolant pump |
| 7 | Radiator-to-degas bottle hose |
| 8 | Coolant pump |
| 9 | Coolant inlet connector |
| 10 | Thermostat |
| 11 | Degas bottle hose |
| 12 | Pressure relief cap |
| 13 | Degas bottle |
| 14 | Turbocharger outlet tube RH |
| 15 | Turbocharger RH |
| 16 | Turbocharger inlet tube RH |
| 17 | Coolant outlet connector |
| 18 | Cylinder head RH |
| 19 | Engine front cover |
| 20 | Cylinder block |
| 21 | Cylinder head gasket LH |
| 22 | Turbocharger inlet tube LH |
| 23 | Turbocharger LH |
| 24 | Turbocharger outlet tube LH |
| 25 | Cylinder head to coolant outlet connector hose LH |
| 26 | Cylinder head LH |
| 27 | Coolant outlet connector |
| 28 | Upper radiator hose |
| 29 | Coolant outlet connector-to-degas bottle hose |
| 30 | Cylinder head to coolant outlet connector hose RH |
| 31 | Transmission fluid warmer |
| 32 | Heater inlet hose |
| 33 | Heater core |
